Product Description

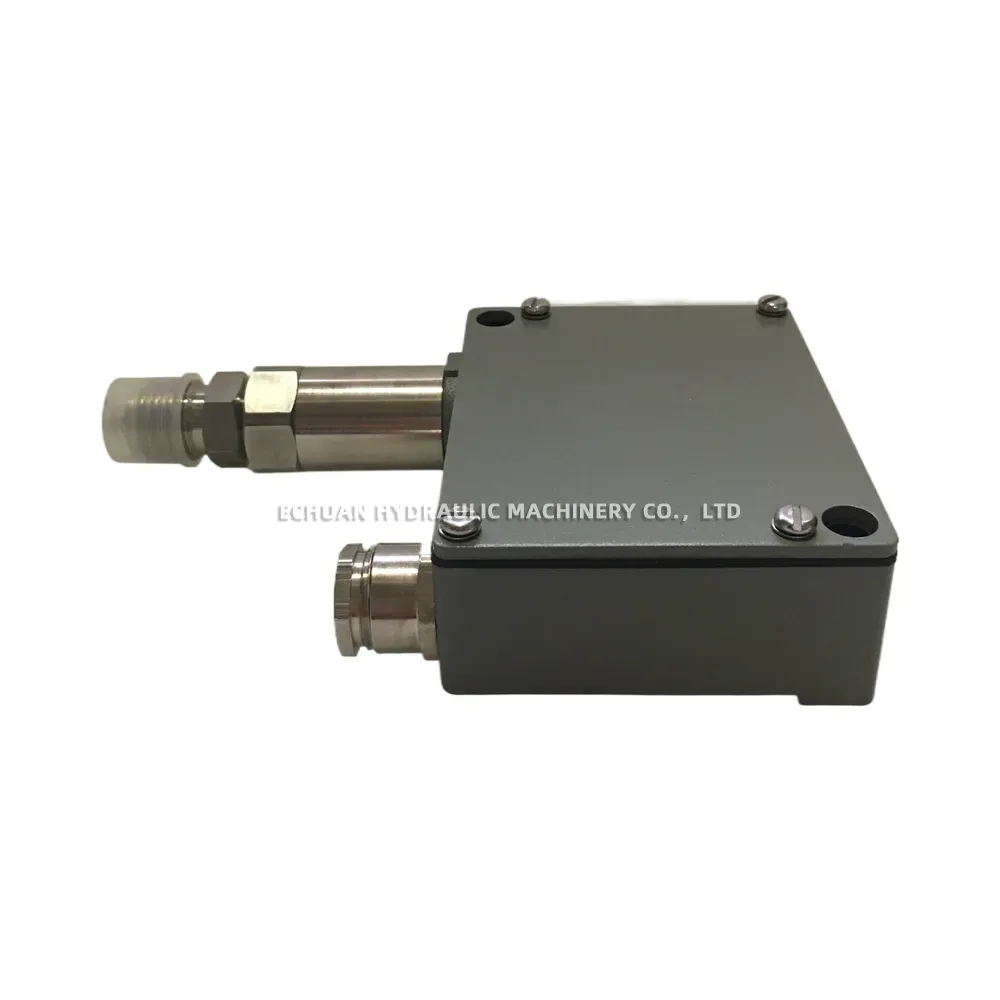

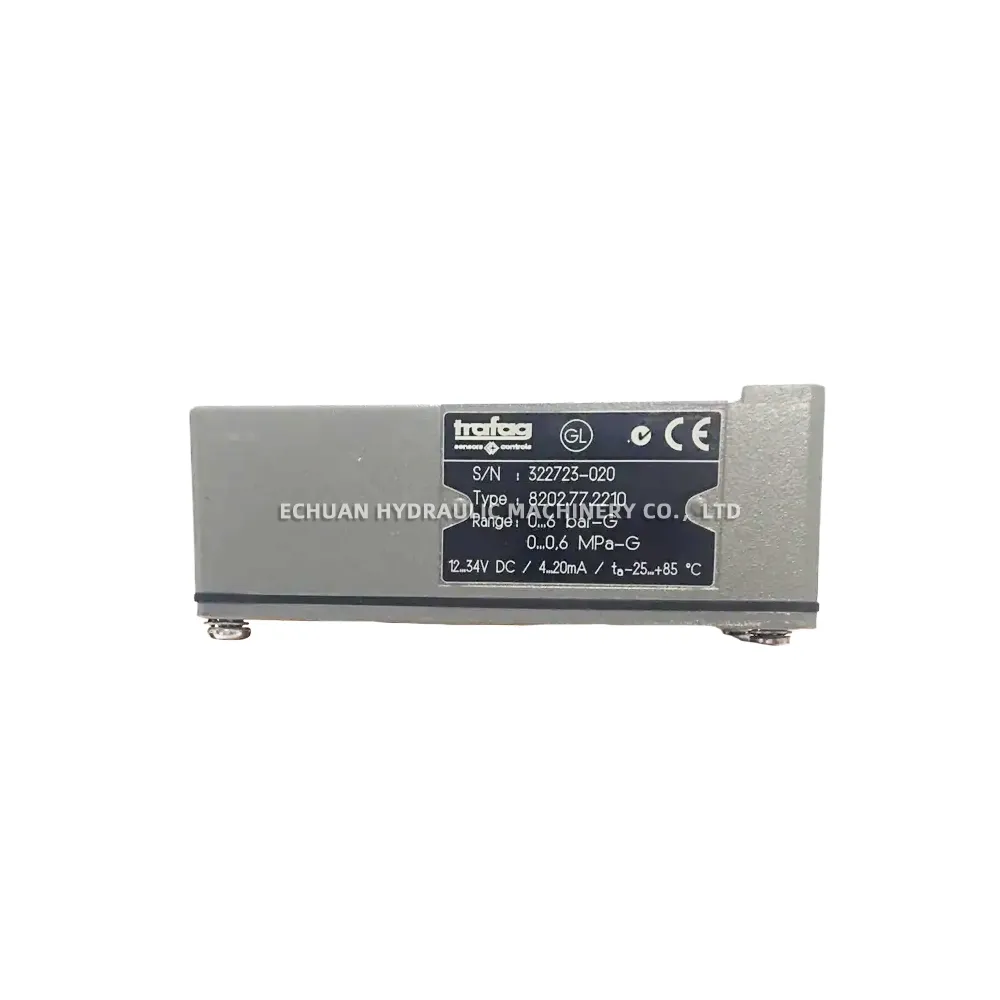

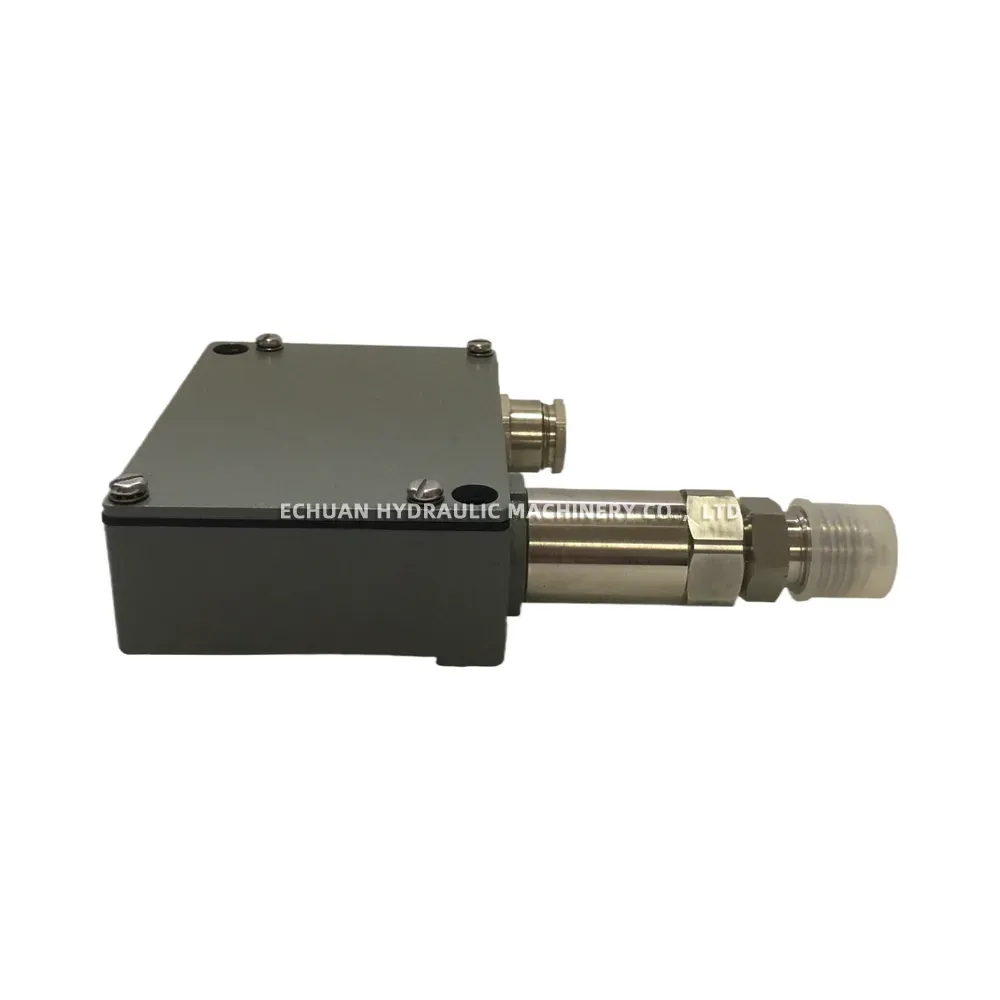

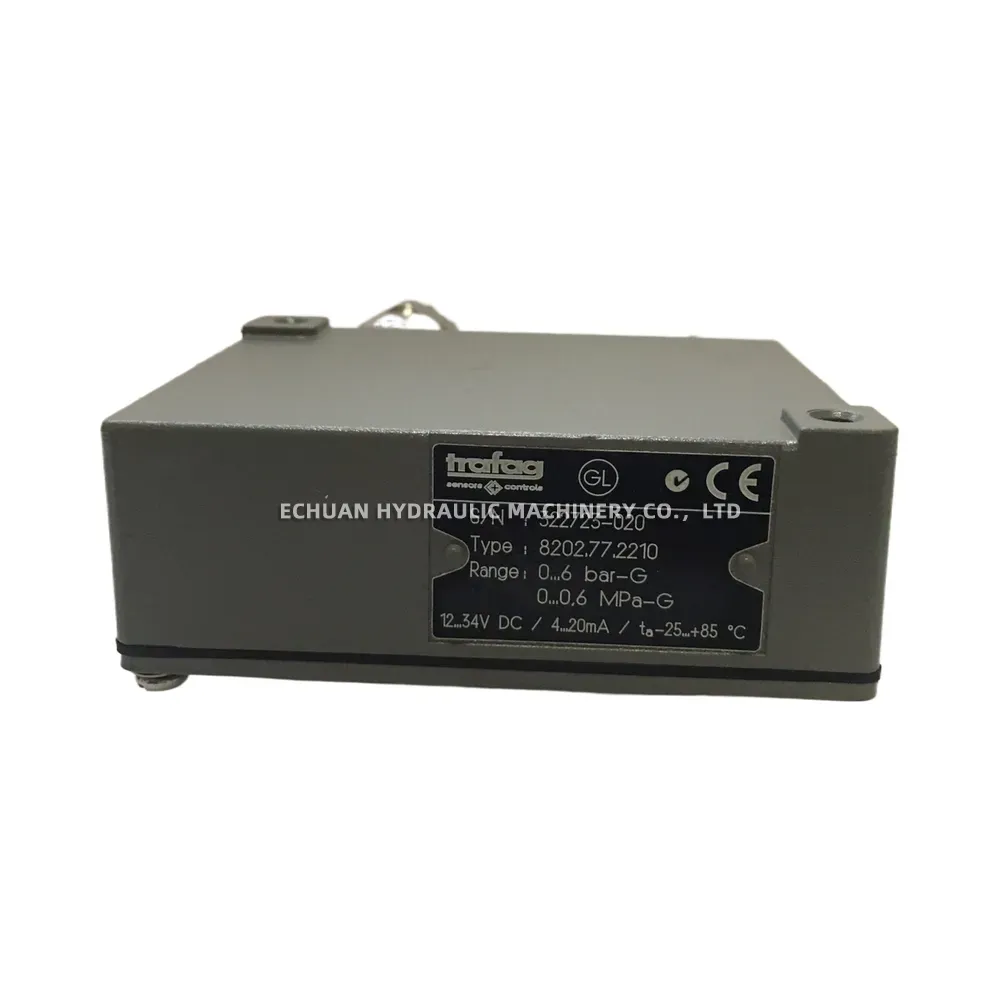

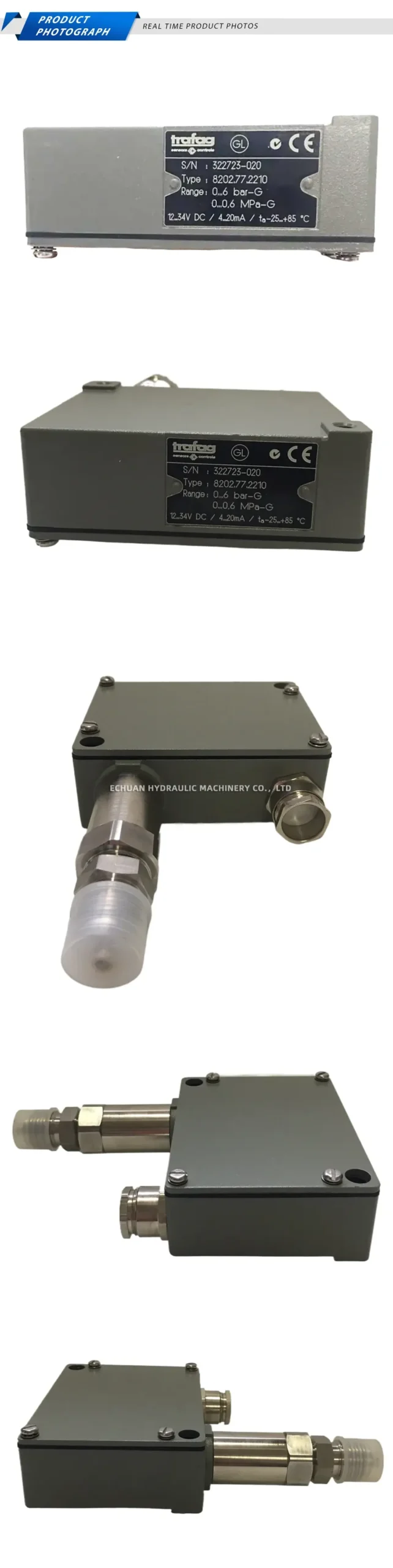

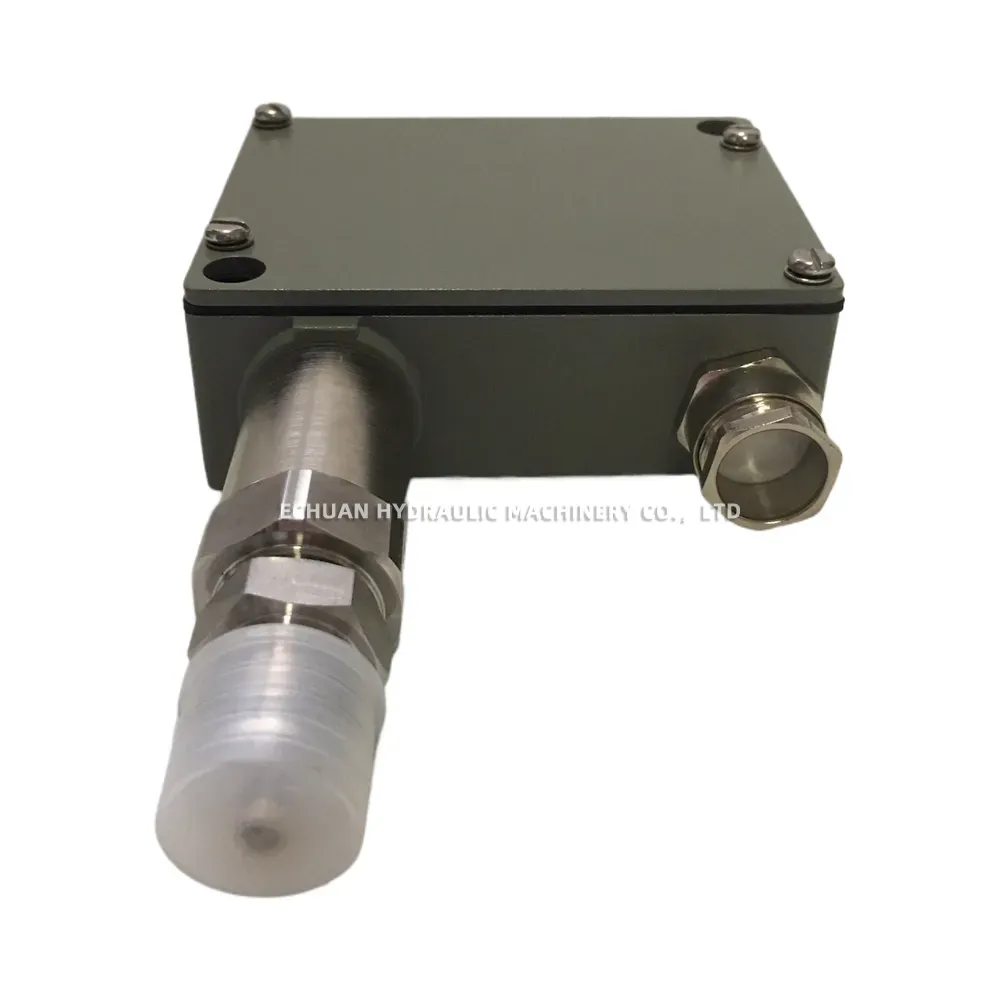

TRAFAG 8272.77.2210
The TRAFAG 8272.77.2210 is a robust pressure transmitter from the ECT 8272 series, specifically engineered for demanding applications such as shipbuilding, engine manufacturing, and various industrial processes. It utilizes Trafag’s proven thin-film-on-steel sensor technology, ensuring reliable and accurate pressure measurement with excellent long-term stability even in harsh environments. This particular model is configured for a pressure range of 0 to 10 bar, providing a standard 4-20mA output signal. Its compact design and wide operating temperature range make it a versatile solution for precise pressure monitoring.
Technical Specifications:
- Product Type: Pressure Transmitter
- Series: ECT 8272
- Order Code: 8272.77.2210
- Measuring Range: 0 … 10 bar
- Output Signal: 4 … 20 mA (2-wire)
- Accuracy (@ 25°C): ≤ ±0.5% FS typ.
- Sensor Technology: Thin-film-on-steel
- Electrical Connection: Connector EN175301-803-A (DIN 43650-A), Form A
- Pressure Connection: G1/4” male (according to EN 837)
- Media Temperature Range: -25°C … +125°C
- Ambient Temperature Range: -25°C … +85°C
- Protection Class: IP65 (with appropriate mating connector)
- Supply Voltage: 8 … 33 VDC (for 4-20mA output)
- Approvals (Series): DNV GL, Lloyd’s Register (LR), American Bureau of Shipping (ABS), Bureau Veritas (BV), Registro Italiano Navale (RINA), China Classification Society (CCS), Nippon Kaiji Kyokai (NK), Korean Register of Shipping (KRS) – (Confirm specific approvals for this exact model if critical)
TRAFAG 8272.77.2210
Model:TRAFAG 8272.77.2210
| Brand | Trafag |
|---|---|
| Model | 8272.77.2210 |
| Part No. | TRAFAG 8272.77.2210 |
| Category | Electrical |
| Link | https://www.echuan-hydraulic.com/product/trafag-8272-77-2210 |
