Product Description

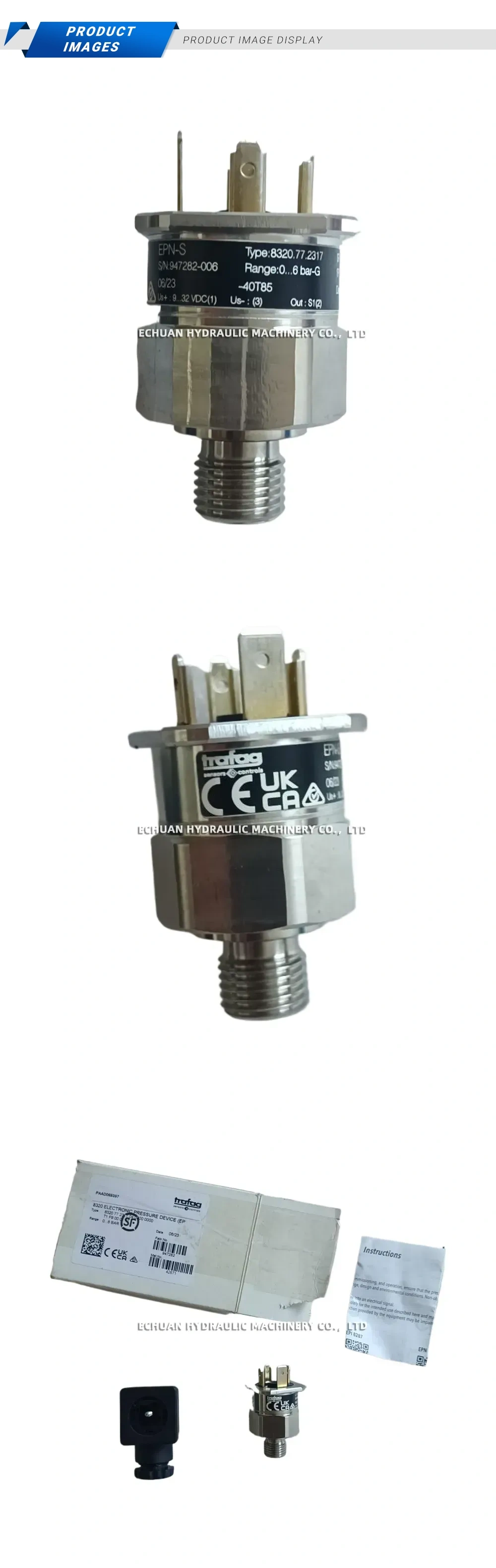

Trafag 8320.77.2317
The Trafag 8320.77.2317 is a compact and highly reliable pressure transmitter designed for a multitude of industrial applications. It features a robust thick-film-on-ceramic sensor, which provides excellent long-term stability and media compatibility. This specific model is engineered for precise pressure measurement in systems such as machine building, hydraulics, and process technology. With its standardized electrical and process connections, the Trafag 8320 offers a cost-effective and easy-to-integrate solution for accurate pressure monitoring.
Technical Specifications:
- Measuring Principle: Thick-film on ceramic
- Measuring Range: 0 … 10 bar
- Output Signal: 4 … 20 mA
- Electrical Connection: Connector DIN EN 175301-803 Form A
- Pressure Connection: G1/4″ male
- Accuracy @ 25°C: ≤ ±0.5 % FS typ.
- Operating Temperature: -25 … +85°C
Trafag 8320.77.2317
Order the Trafag 8320.77.2317 pressure transmitter, featuring a 0-10 bar measuring range, 4-20 mA output, and a robust G1/4″ connection. Ideal for industrial and hydraulic pressure sensing applications.
| Brand | Trafag |
|---|---|
| Model | 8320.77.2317 |
| Category | Electrical |
