Product Description

TRAFAG 900.2378.905

The TRAFAG 900.2378.905 is a high-quality pressure transmitter from the NAT 8252 series, renowned for its precision, reliability, and robust construction. Engineered with a thin-film-on-steel sensor cell, this device offers excellent long-term stability and accuracy, making it ideal for a wide range of demanding industrial applications. Its compact design, wide operating temperature range, and superior resistance to shock and vibration ensure consistent performance even in the harshest environments. This transmitter is perfectly suited for use in machine tools, hydraulics, process technology, and shipbuilding.

Technical Specifications:

  • Model Series: NAT 8252

  • Measuring Range: 0 … 10 bar

  • Output Signal: 4 … 20 mA

  • Supply Voltage: 8 … 32 VDC

  • Pressure Connection: G1/4″ male

  • Electrical Connection: M12x1, 4-pole

  • Accuracy: ≤ ±0.5% FS max.

  • IP Protection: IP67

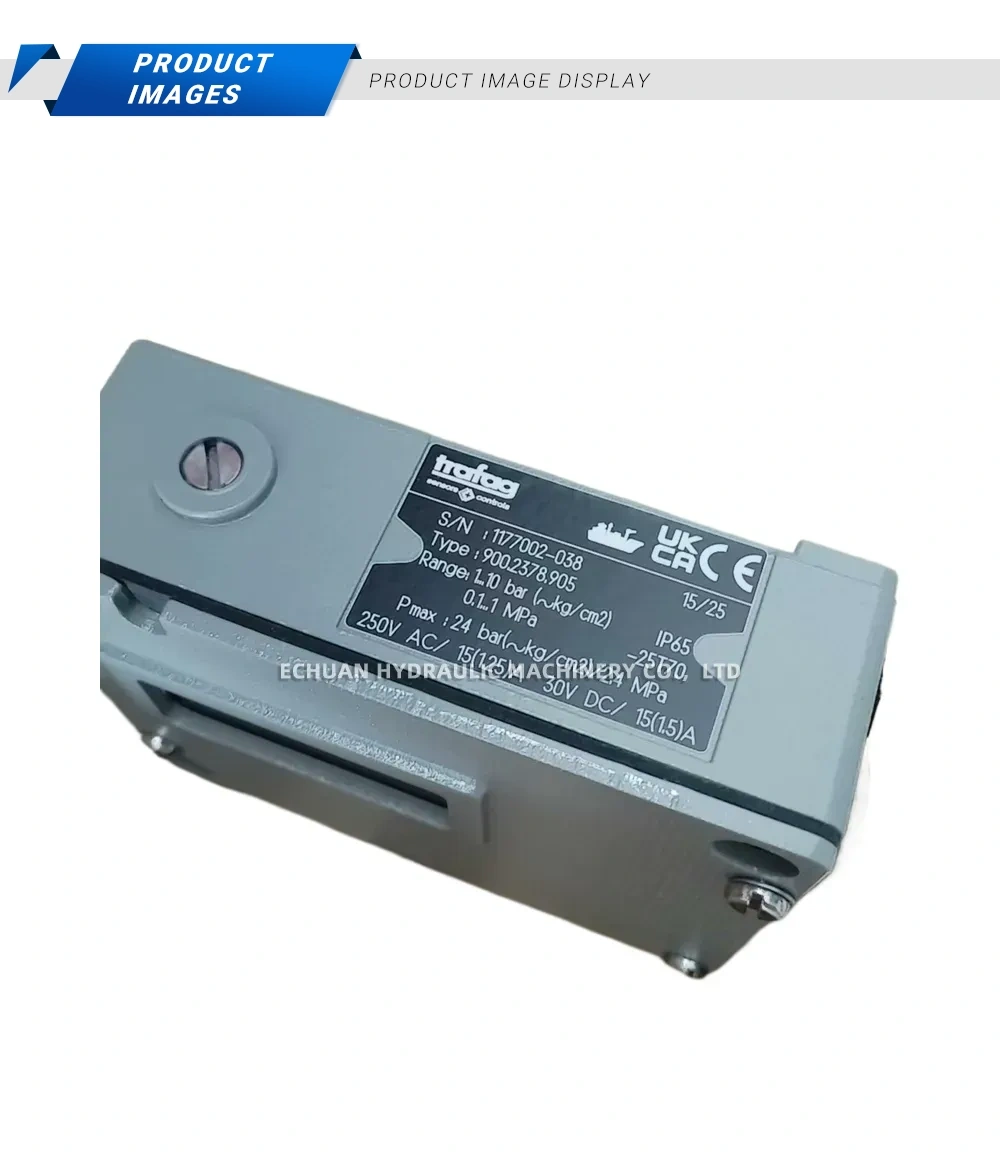

TRAFAG 900.2378.905 Description

TRAFAG 900.2378.905

Discover the TRAFAG 900.2378.905 pressure transmitter, a robust NAT 8252 series sensor featuring a 0-10 bar range and a 4-20mA output. Ideal for precise pressure measurement in demanding industrial and hydraulic systems.
