Product Description

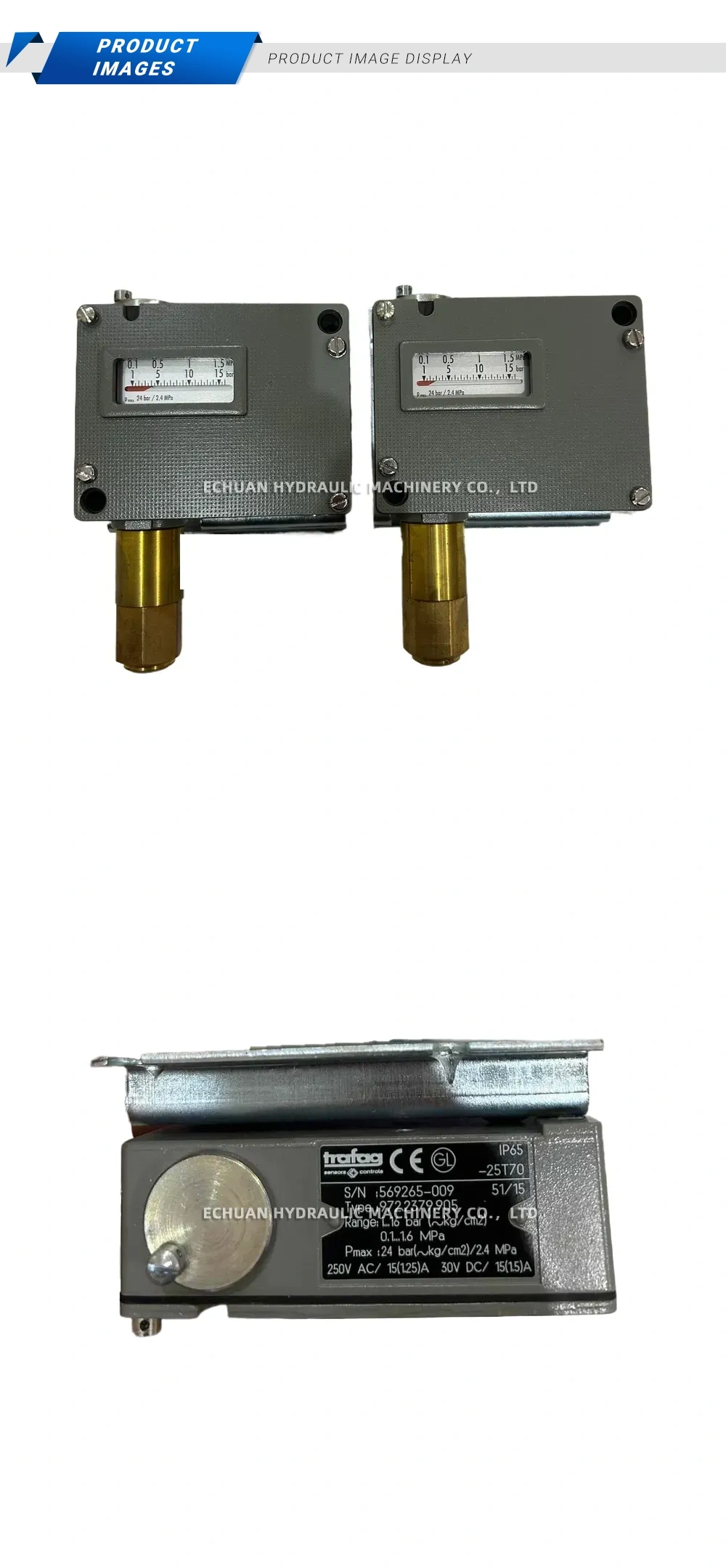

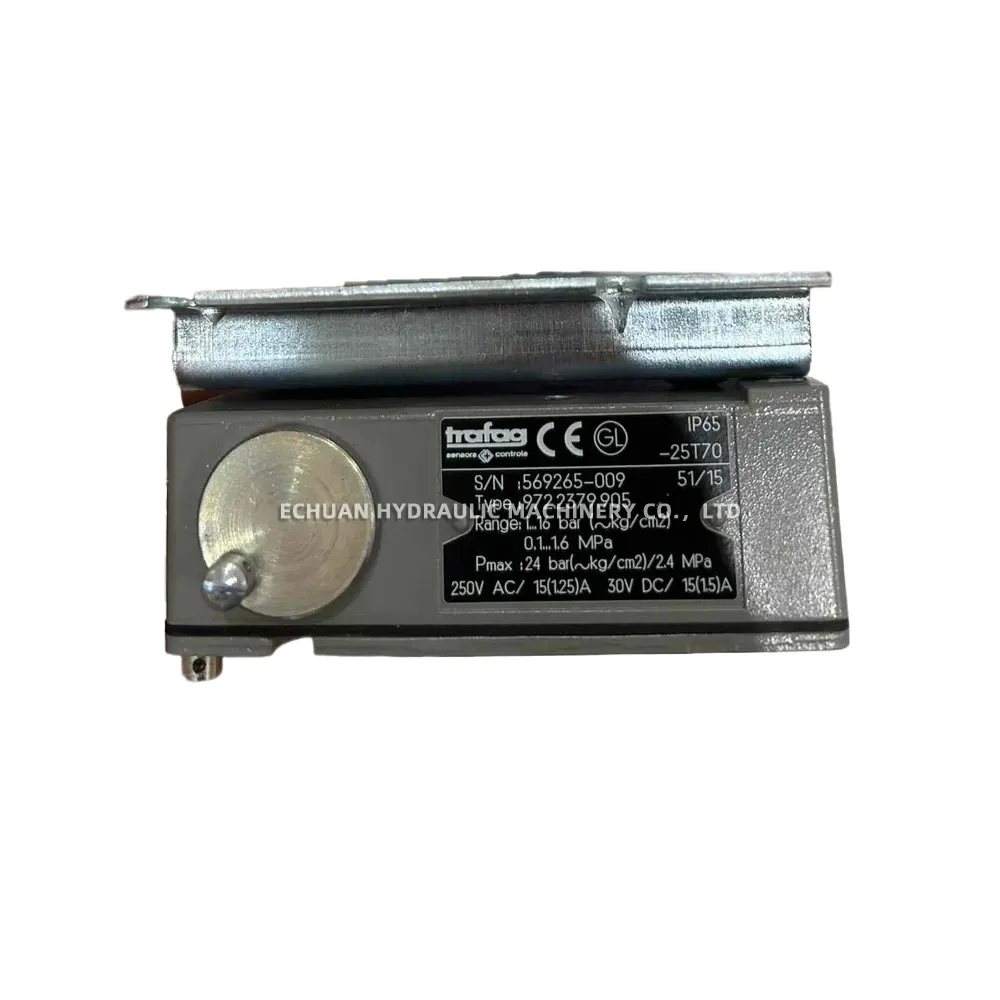

Trafag 972.2379.905 Pressure Switch

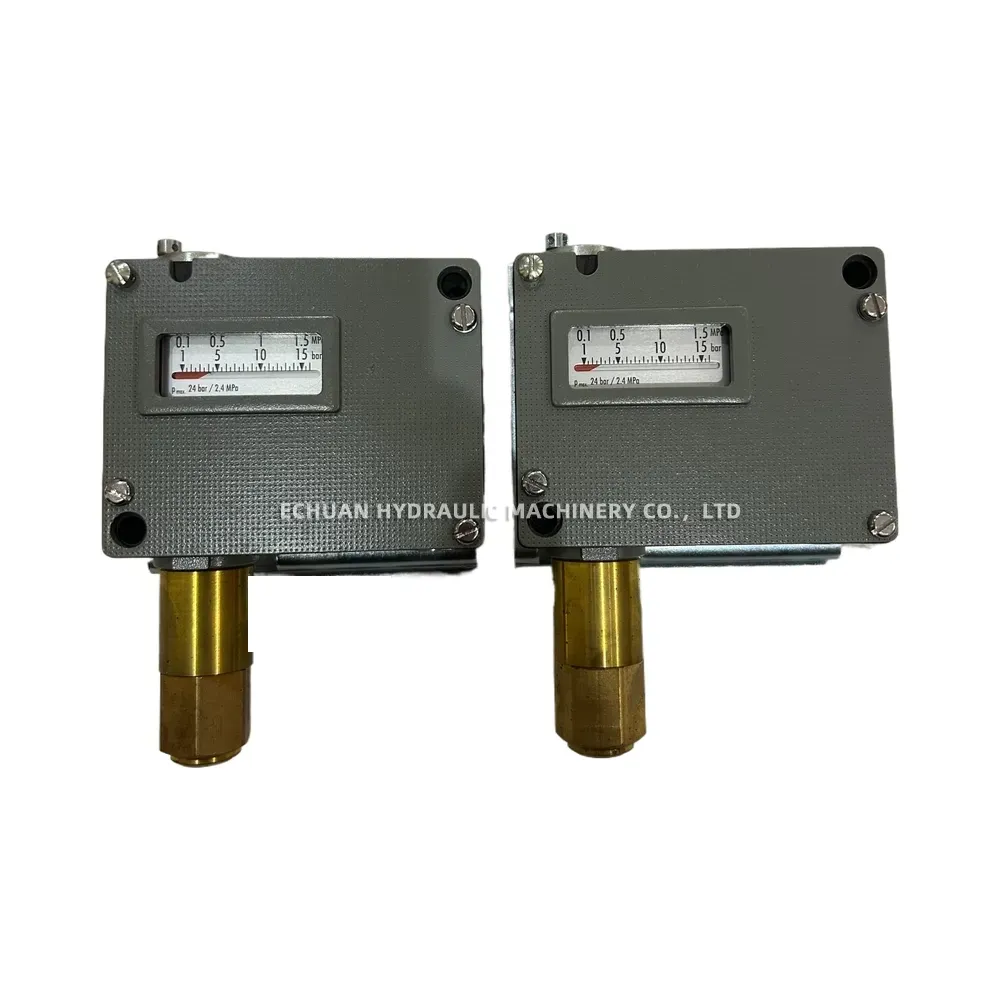

The Trafag 972.2379.905 is a robust and reliable industrial pressure switch designed for precise pressure monitoring and control. It features a clear analog dial indicator for at-a-glance pressure readings within its 1 to 16 bar range. Built with a rugged housing that provides IP65 protection, this switch is engineered to withstand harsh industrial environments, protecting against dust and water ingress. With both AC and DC electrical ratings and CE/GL certifications, it is a versatile and certified solution for a wide variety of applications in hydraulics, machine building, and process technology.
Technical Specifications:
- Model: 972.2379.905
- Pressure Range: 1 – 16 bar (0.1 – 1.6 MPa)
- Maximum Pressure (Pmax): 24 bar (2.4 MPa)
- Electrical Rating: 250V AC / 15A; 30V DC / 15A
- Protection Rating: IP65
- Operating Temperature: -25°C to 70°C
- Certifications: CE, GL
Trafag 972.2379.905 Pressure Switch
Buy the Trafag 972.2379.905 industrial pressure switch with a 1-16 bar range, analog indicator, and IP65 rating. Ideal for reliable pressure control in demanding applications.
