Product Description

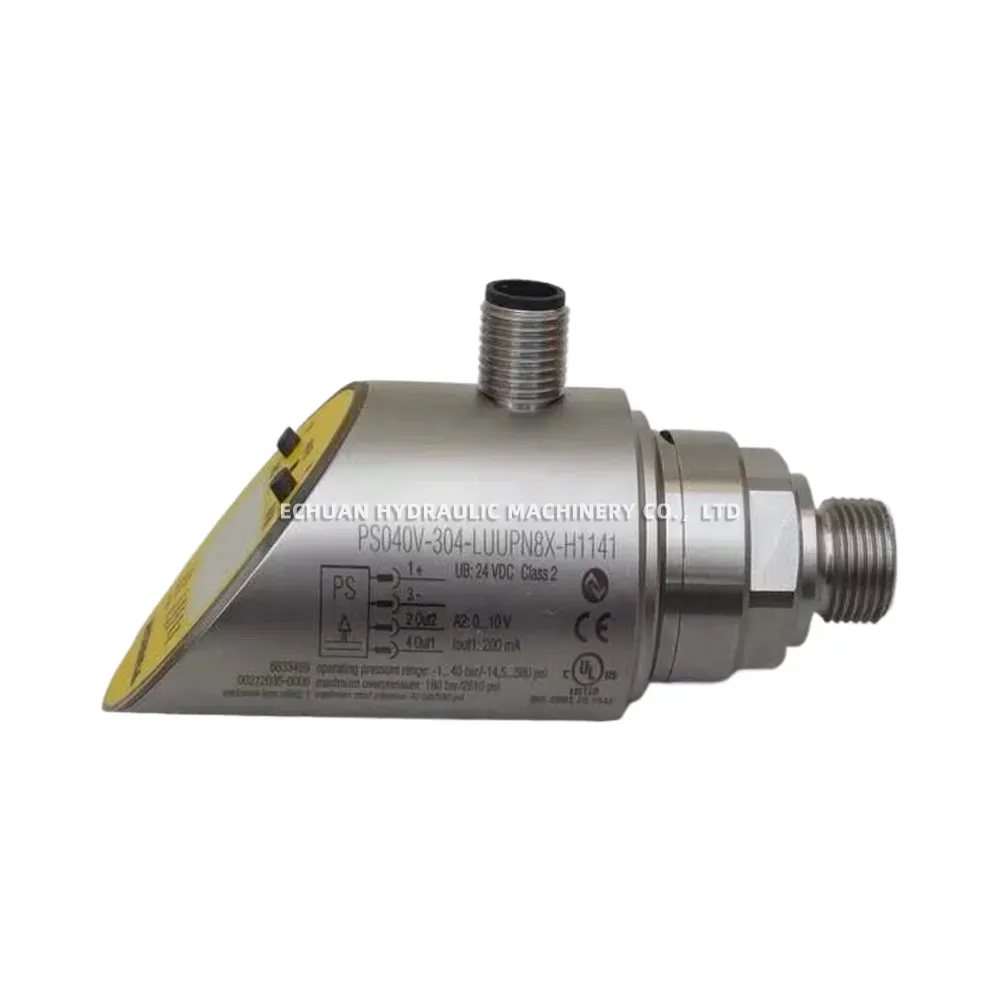

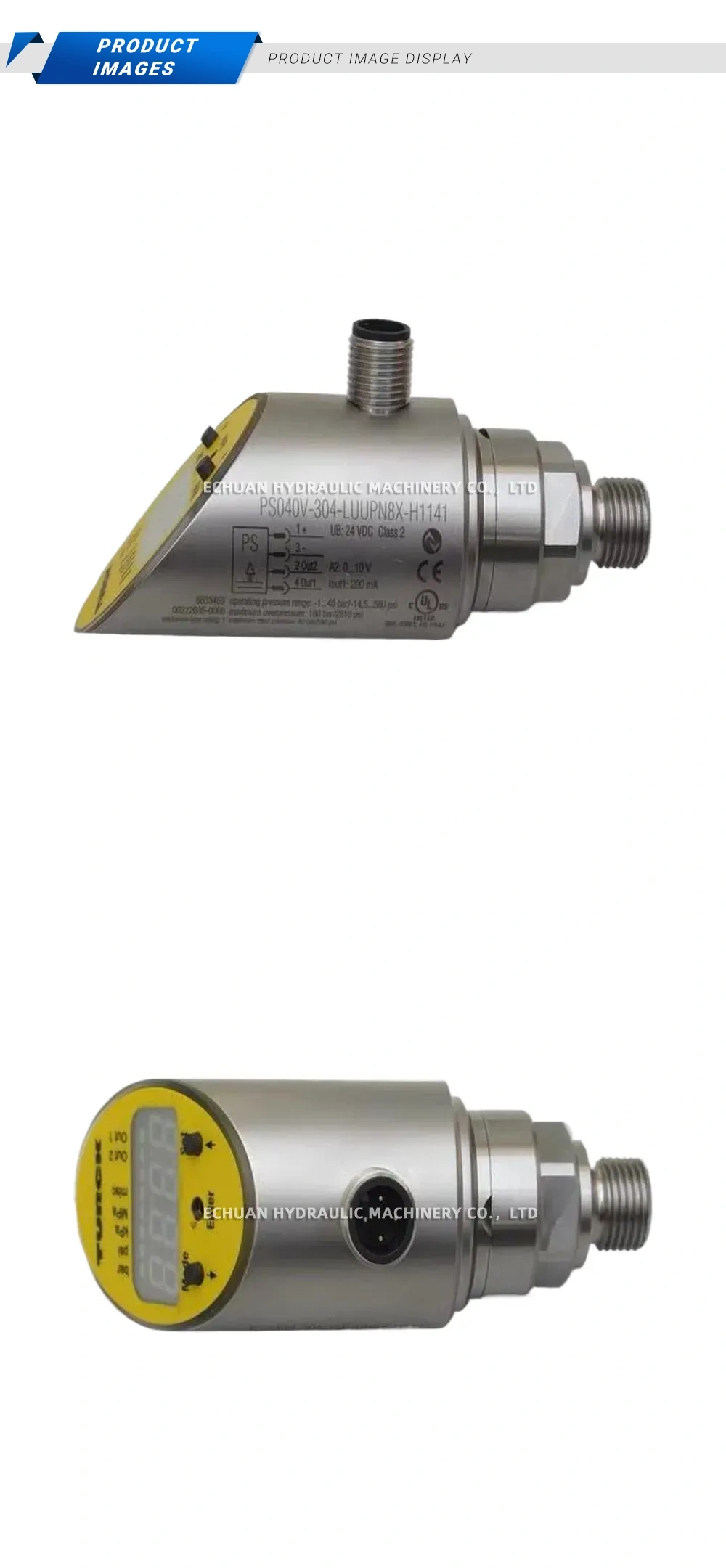

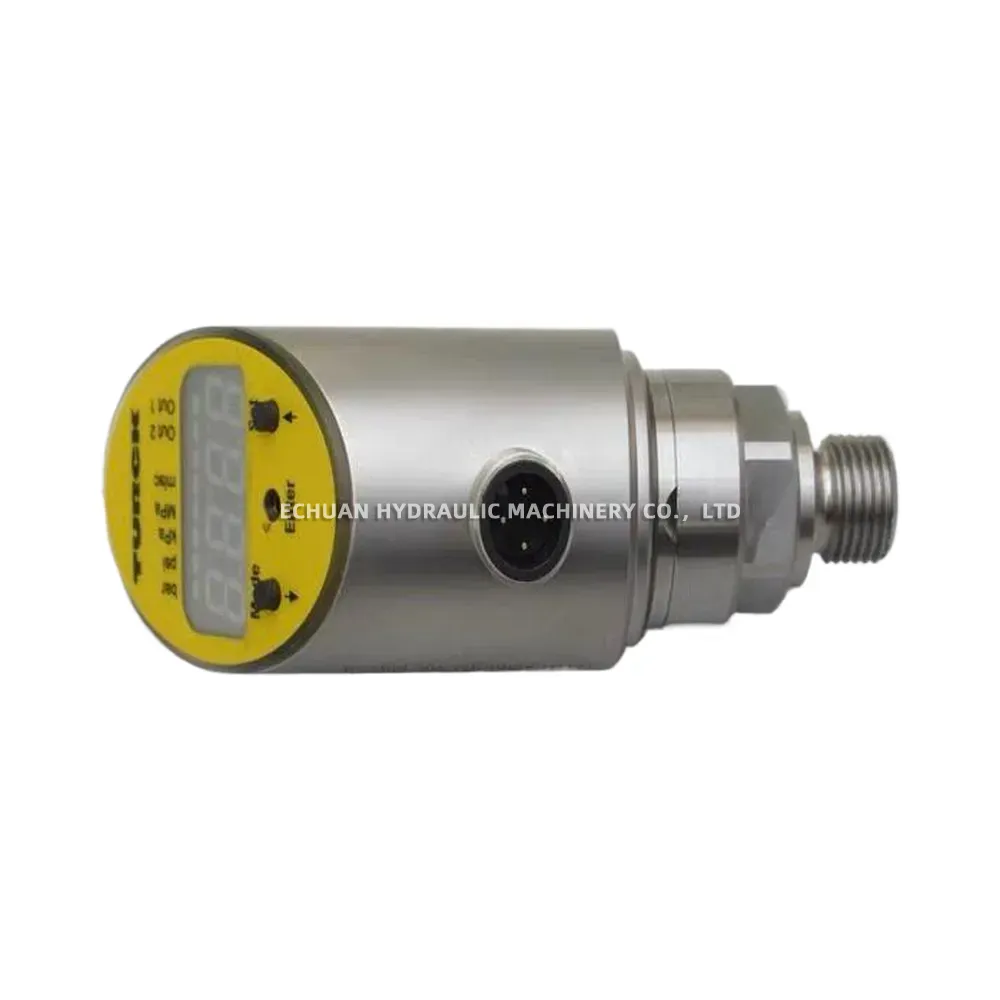

TURCK PS040V-304-LUUPN8X-H1141 Digital Pressure Switch
The TURCK PS040V-304-LUUPN8X-H1141 is a robust and versatile digital pressure switch designed for demanding industrial automation and process control applications. It features a durable stainless steel housing and a clear, rotatable display with integrated control buttons for easy on-site configuration and monitoring. This sensor provides reliable pressure measurement with two configurable switching outputs and a scalable analog output (voltage or current). The standard M12 electrical connector ensures a secure, quick, and easy installation, making it an ideal solution for monitoring pressure in hydraulic and pneumatic systems.
Technical Specifications:
- Operating Pressure Range: -1…40 bar (-14.5…580 psi)
- Maximum Overpressure: 100 bar (2610 psi)
- Operating Voltage: 18…30 VDC (per cULus Class 2)
- Outputs: 2 x configurable switching outputs (PNP/NPN); 1 x analog output (0…10 V / 4…20 mA)
- Electrical Connection: M12 x 1 Male Connector, 4-pin
- Process Connection: G1/4″ male thread
- Housing Material: Stainless Steel 1.4301 / AISI 304
TURCK PS040V-304-LUUPN8X-H1141 Digital Pressure Switch
Buy the TURCK PS040V-304-LUUPN8X-H1141 industrial digital pressure switch. Features a -1 to 40 bar range, stainless steel housing, M12 connector, and configurable switching/analog outputs for precise pressure control.
