Product Description

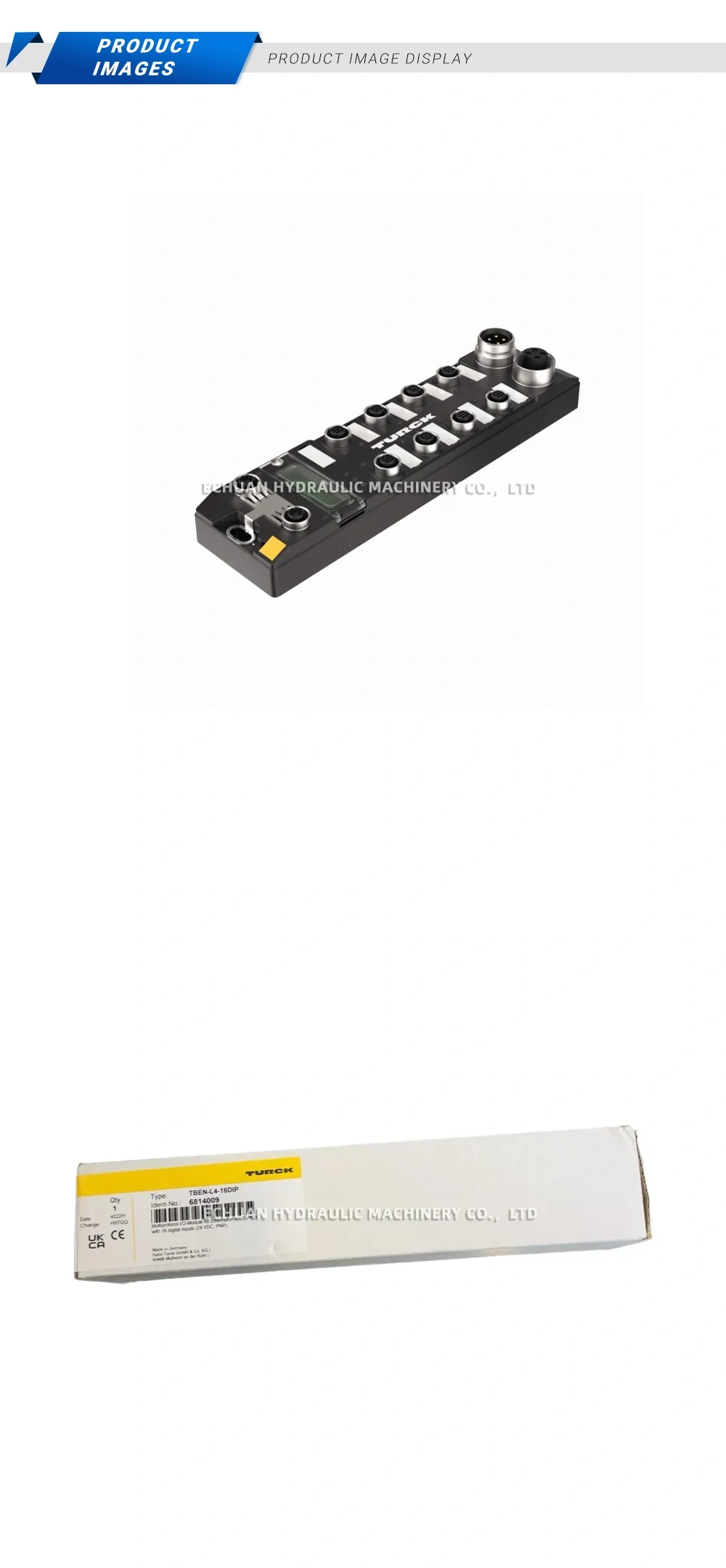

Turck TBEN-L4-16DIP
The Turck TBEN-L4-16DIP is a robust and compact block I/O module designed for demanding industrial automation applications. Featuring Turck’s multiprotocol technology, this device seamlessly operates on PROFINET, EtherNet/IP, and Modbus TCP networks, automatically detecting the active protocol upon startup. It provides 16 digital PNP inputs, making it ideal for collecting sensor signals directly in the field. With a rugged IP65/IP67/IP69K rated housing and industry-standard M12/M8 connectors, the TBEN-L4-16DIP ensures reliable performance even in harsh environments with exposure to dust, water, and high-pressure washdowns. The integrated Ethernet switch simplifies network topology, allowing for easy daisy-chaining of devices and reducing wiring complexity.
Technical Specifications:
- Function: Compact Multiprotocol I/O Module
- Number of Channels: 16 digital inputs (PNP)
- Communication Protocol: PROFINET, EtherNet/IP, Modbus TCP
- Protection Class: IP65 / IP67 / IP69K
- Operating Voltage: 18…30 VDC
- Connectors: 2 x M8 Ethernet, 1 x M12 Power, 8 x M12 I/O

Turck TBEN-L4-16DIP
Upgrade your automation system with the Turck TBEN-L4-16DIP, a rugged IP69K-rated compact I/O module featuring 16 digital inputs and multiprotocol support for PROFINET, EtherNet/IP, and Modbus TCP.
