Product Description

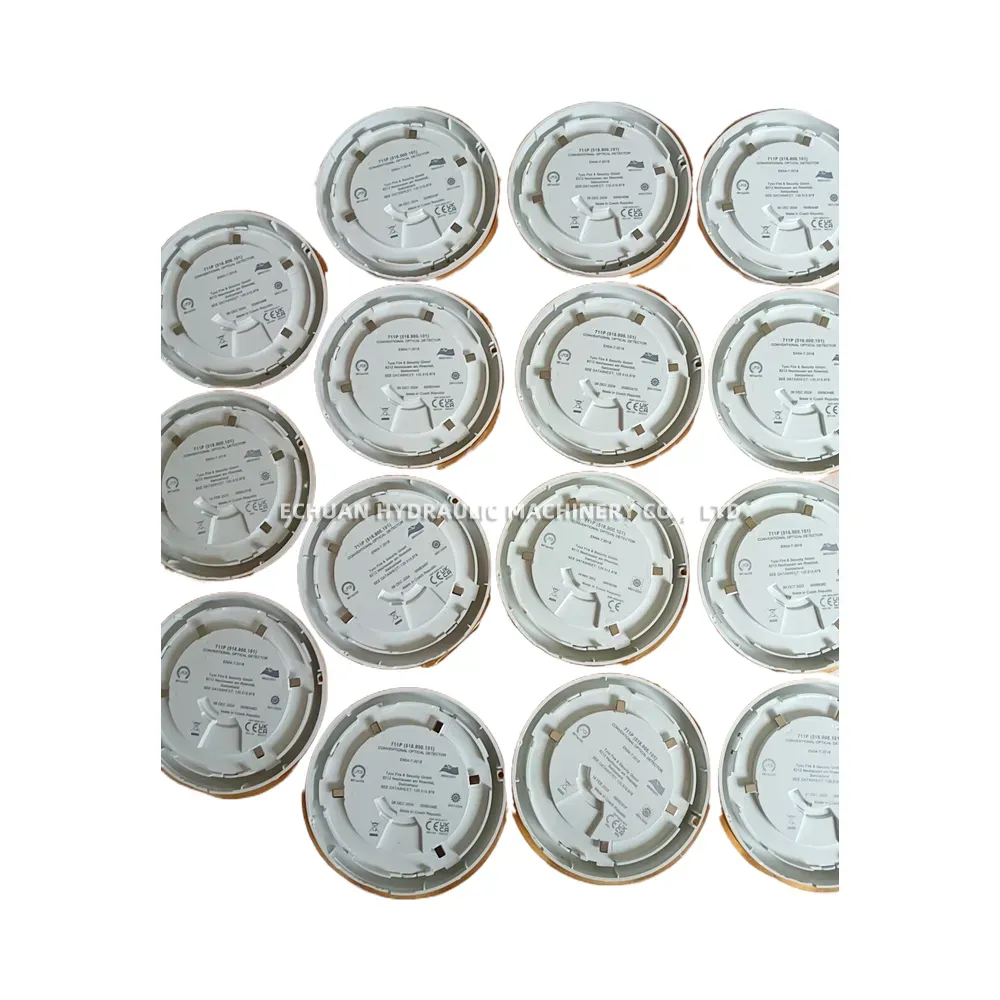

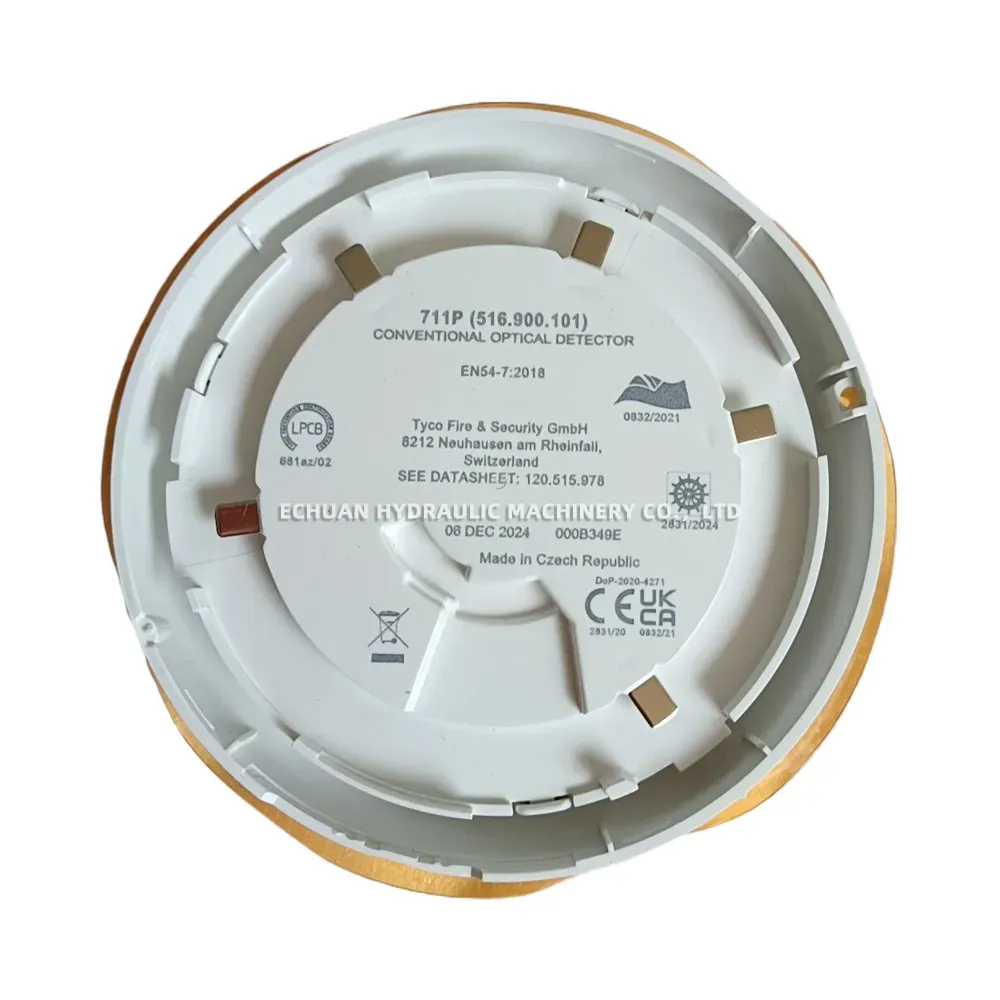

Tyco 711P (516.900.101) Conventional Optical Detector

The Tyco 711P (516.900.101) is a high-performance conventional optical smoke detector designed for early warning of fire conditions. It operates on the light scatter principle, making it highly effective at detecting slow-burning, smouldering fires which are common in residential and commercial buildings. The detector features a sophisticated algorithm that provides enhanced false alarm immunity and ensures reliable performance. Fully compliant with the EN54-7:2018 standard, the 711P is engineered for compatibility with a wide range of conventional fire alarm control panels, making it an ideal choice for new installations and system upgrades.

Technical Specifications:

  • Operating Voltage: 8.5 to 33 VDC

  • Quiescent Current: 45 µA @ 24 VDC

  • Alarm Current: 18 mA @ 12V, 51 mA @ 33V

  • Operating Temperature: -25°C to +70°C

  • Relative Humidity: 10% to 95% (non-condensing)

  • Housing Material: PC/ABS, White

  • Dimensions (with 4B base): 102 mm (Ø) x 51 mm (H)

  • Approvals: LPCB, EN54-7:2018, CE, UKCA

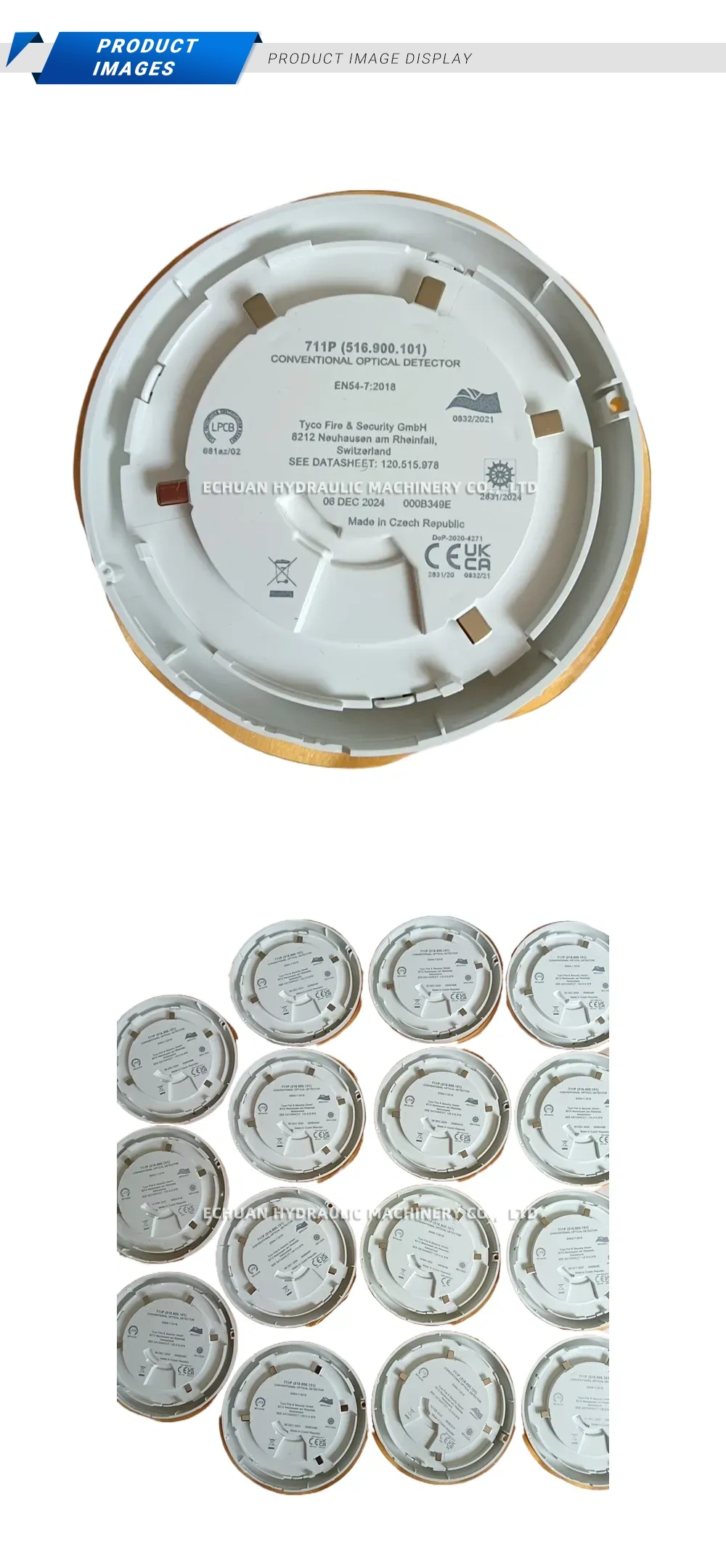

Tyco 711P (516.900.101) Conventional Optical Detector Description

Tyco 711P (516.900.101) Conventional Optical Detector

Buy the Tyco 711P (516.900.101) conventional optical smoke detector. EN54-7 certified for reliable and fast detection of smouldering fires. Ideal for commercial fire alarm systems.
