Product Description

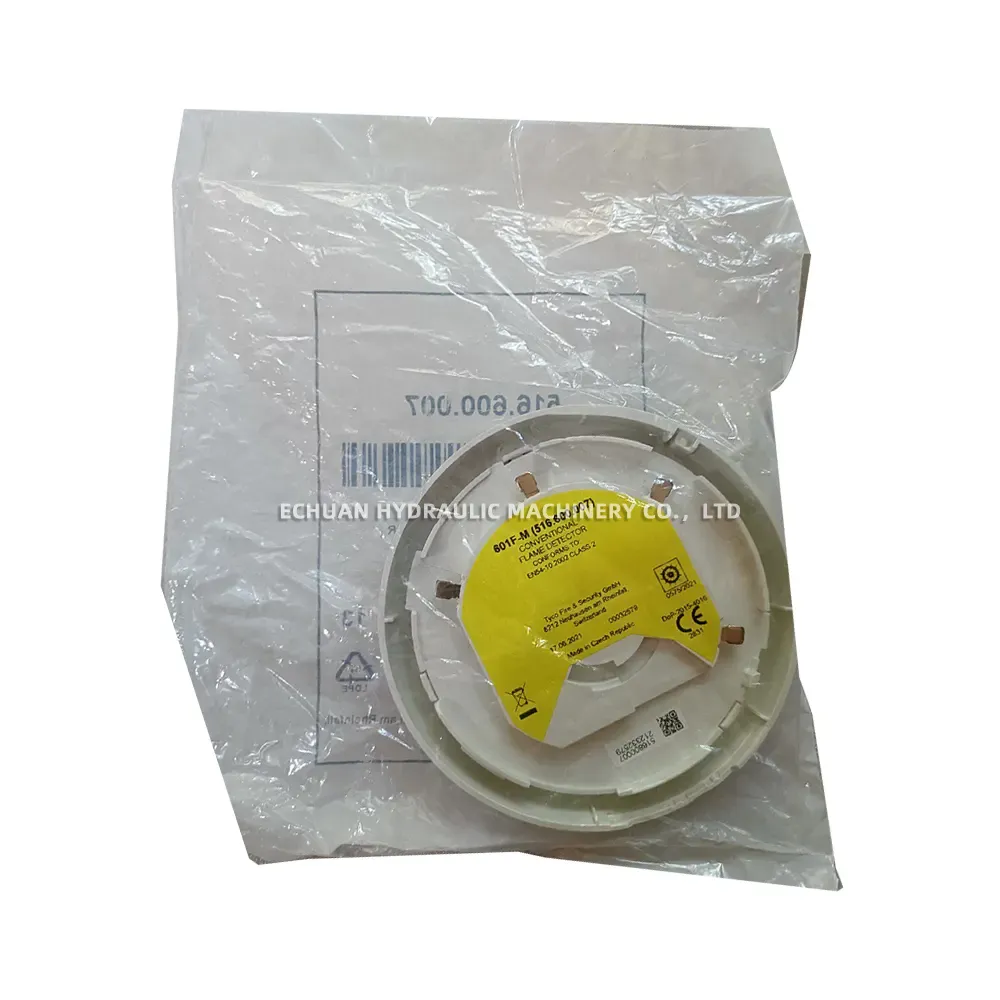

Tyco 801F-M (516.600.007) Conventional Flame Detector

The Tyco 801F-M is a high-performance conventional UV flame detector designed for the rapid and reliable detection of open flaming fires. It utilizes an advanced ultraviolet sensor that is insensitive to sunlight and artificial light sources, ensuring high immunity to false alarms. This detector is engineered for use with conventional fire alarm systems and is ideal for protecting high-risk environments where flaming fires may be expected, such as industrial facilities, generator rooms, and chemical plants. Its robust design and compliance with EN 54-10 Class 2 standards make it a trusted choice for critical safety applications.

Technical Specifications:

  • Model: 801F-M

  • Part Number: 516.600.007

  • Detection Principle: Ultraviolet (UV) radiation

  • Operating Voltage: 9 to 33 Vdc

  • Quiescent Current: 100 µA @ 24 Vdc

  • Field of View: 120° cone

  • Operating Temperature: -25°C to +70°C

  • Approvals: EN 54-10:2003 Class 2, CE

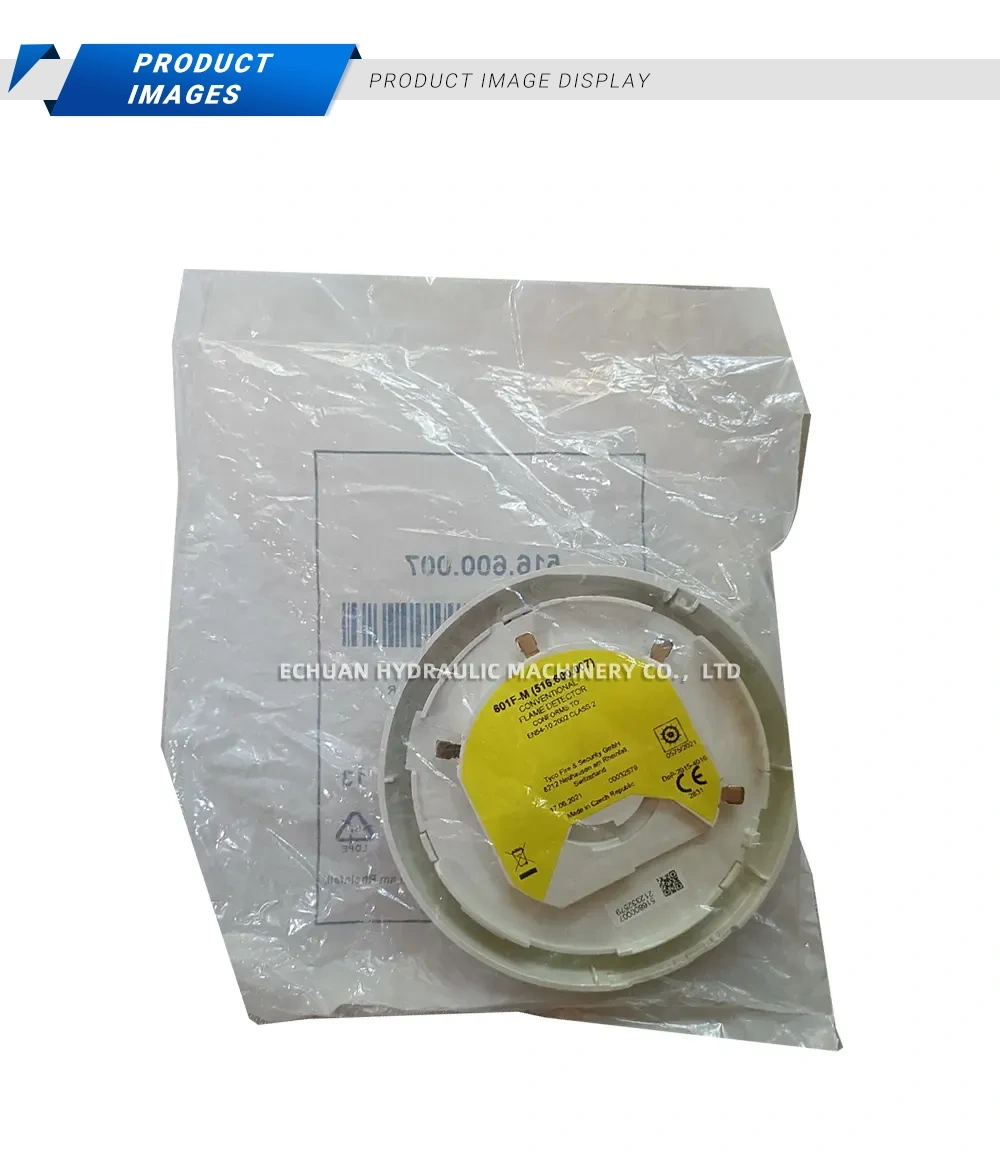

Tyco 801F-M (516.600.007) Conventional Flame Detector Description

Tyco 801F-M (516.600.007) Conventional Flame Detector

Shop the Tyco 801F-M (516.600.007), a reliable conventional UV flame detector. EN 54-10 certified for fast, false-alarm-immune detection of flaming fires in industrial and commercial fire alarm systems.

BrandTYCO
Model801F-M (516.600.007)
Part No.826723981841
CategoryOther products
Linkhttps://www.echuan-hydraulic.com/product/tyco-801f-m-516-600-007-conventional-flame-detector
