Product Description

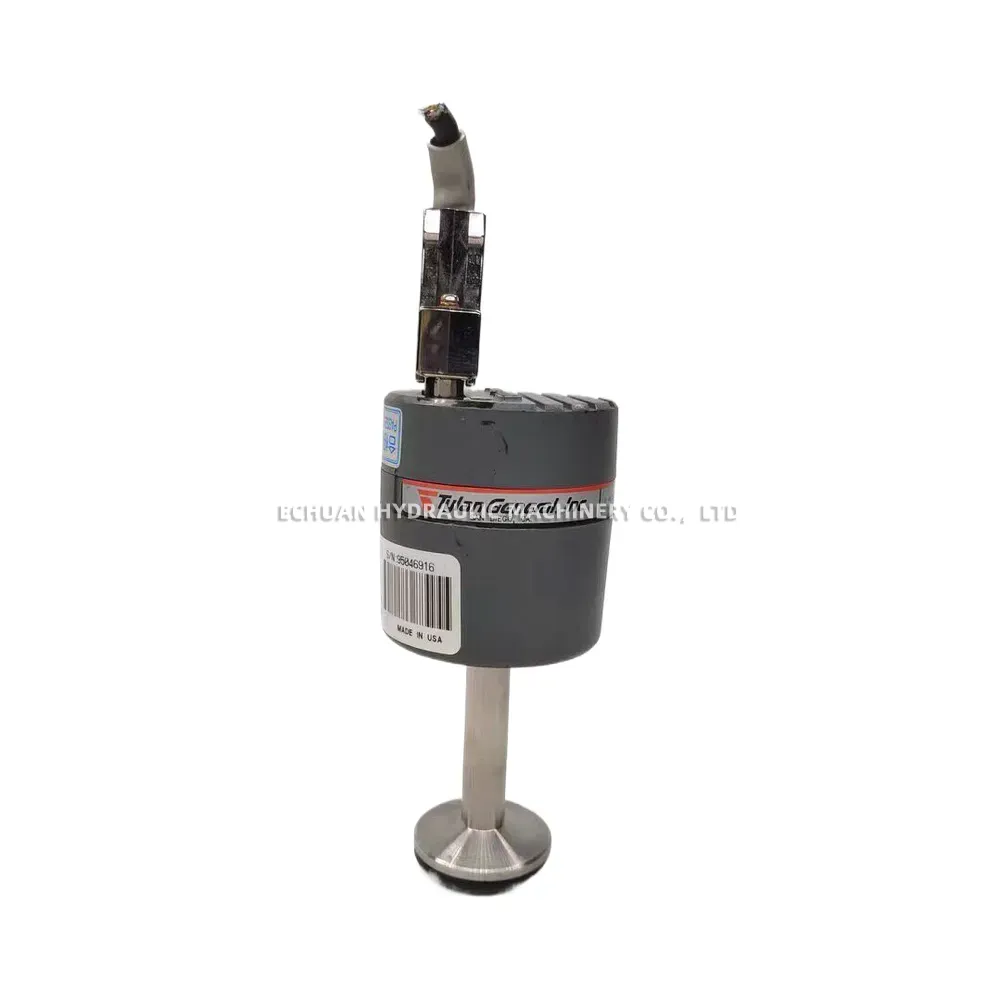

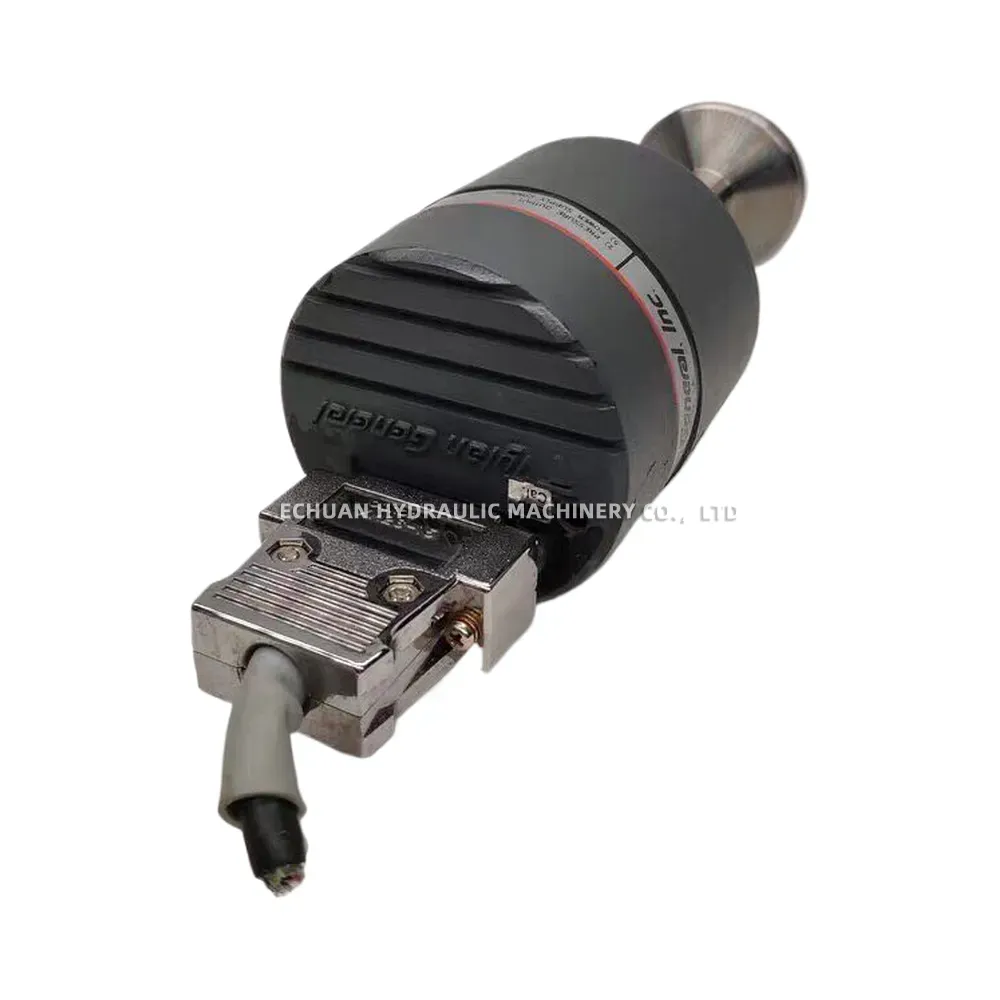

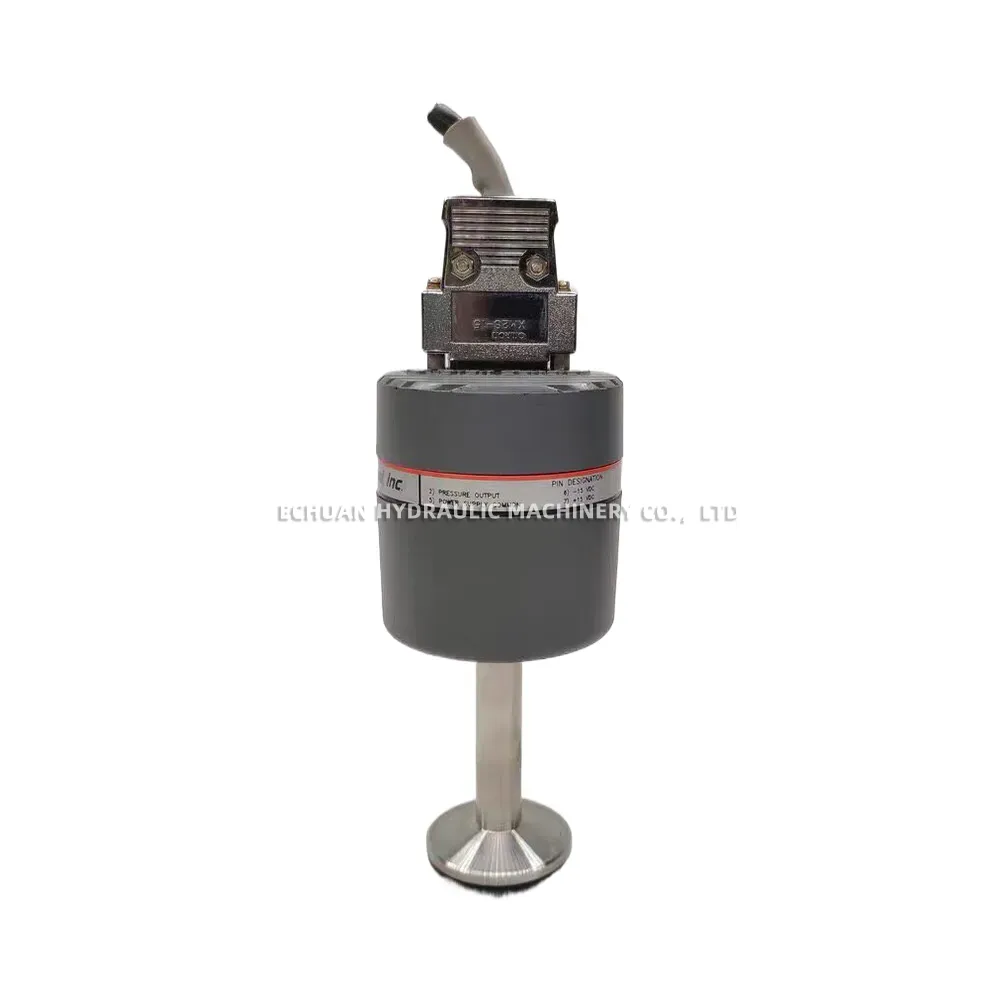

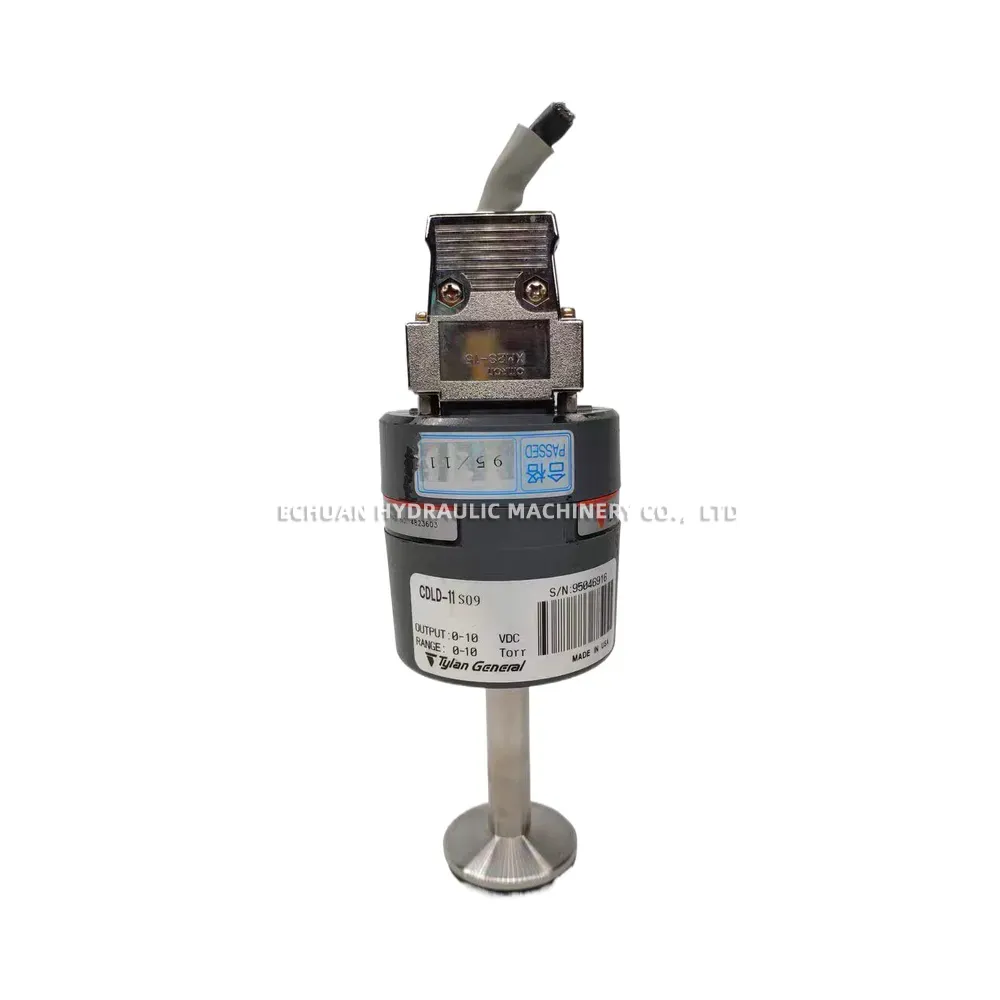

Tylan General CDLD-11 S09 Vacuum Gauge
The Tylan General CDLD-11 S09 is a high-performance capacitance manometer vacuum gauge engineered for precise pressure measurement in semiconductor and industrial vacuum applications. Proudly manufactured in San Diego, CA, USA, this highly reliable instrument measures pressure within a 0 to 10 Torr range and provides a corresponding proportional analog output of 0 to 10 VDC. The gauge is equipped with a secure flange mount base for stable system integration and utilizes a standard GI-32MX DIN connector. With clear pin designations (+15 VDC, Pressure Output, Power Supply Common, and -15 VDC), the CDLD-11 S09 ensures seamless electrical connectivity and accurate, repeatable vacuum monitoring for critical processes.
Technical Specifications:
- Brand: Tylan General
- Model: CDLD-11 S09
- Equipment Type: Capacitance Manometer Vacuum Gauge
- Pressure Range: 0 – 10 Torr
- Output Signal: 0 – 10 VDC
- Connector Type: GI-32MX DIN Connector
- Pin Designations: 1) +15 VDC, 2) Pressure Output, 3) Power Supply Common, 4) -15 VDC

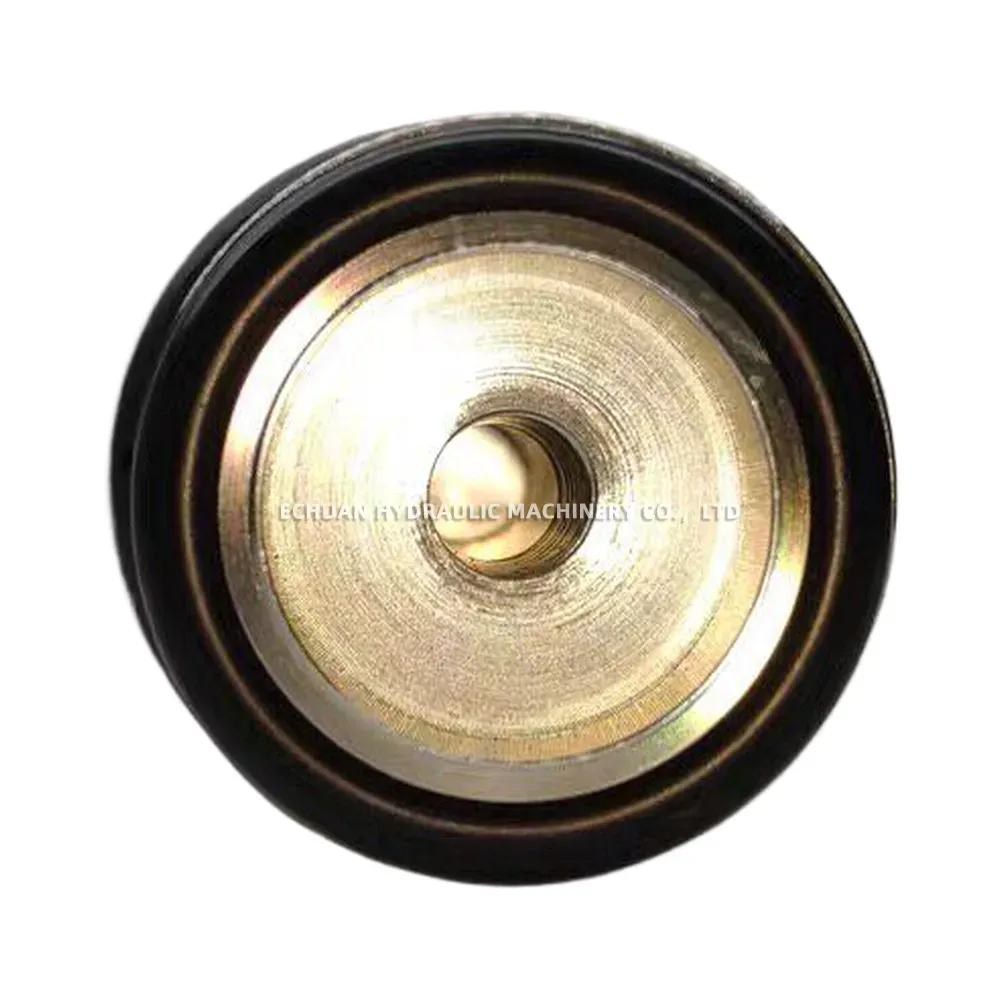

- Mounting Style: Flange Mount Base
- Country of Origin: Made in USA (San Diego, CA)
Tylan General CDLD-11 S09 Vacuum Gauge
Optimize your industrial vacuum measurement with the Tylan General CDLD-11 S09 Capacitance Manometer. Delivering highly accurate 0-10 Torr pressure readings with a 0-10 VDC output and a standard GI-32MX DIN connector, this USA-made gauge ensures reliable and precise performance for demanding semiconductor applications.
| Brand | Tylan General |
|---|---|
| Model | CDLD-11 S09 |
| Part No. | 1037006696492 |
| Category | Electrical |
