Product Description

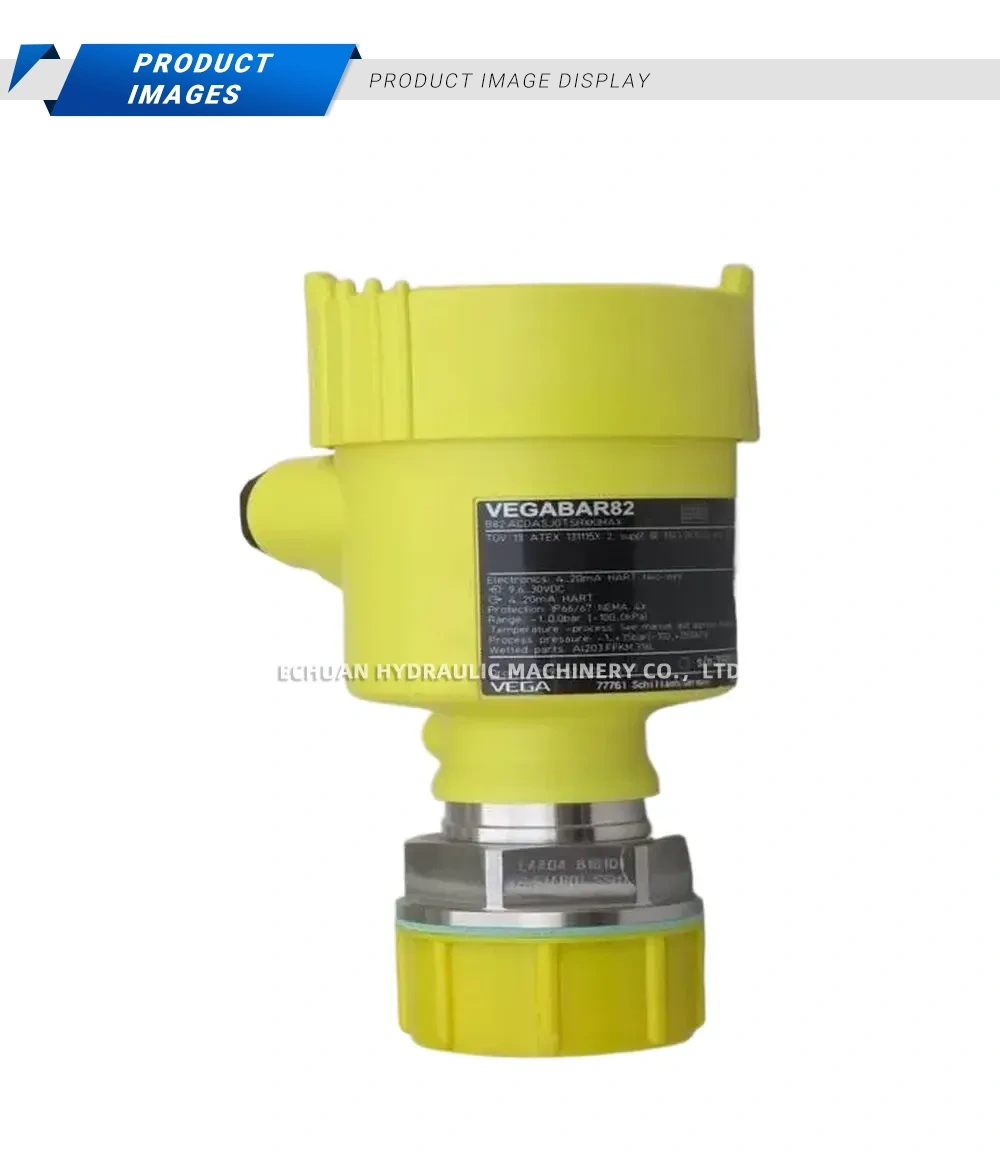

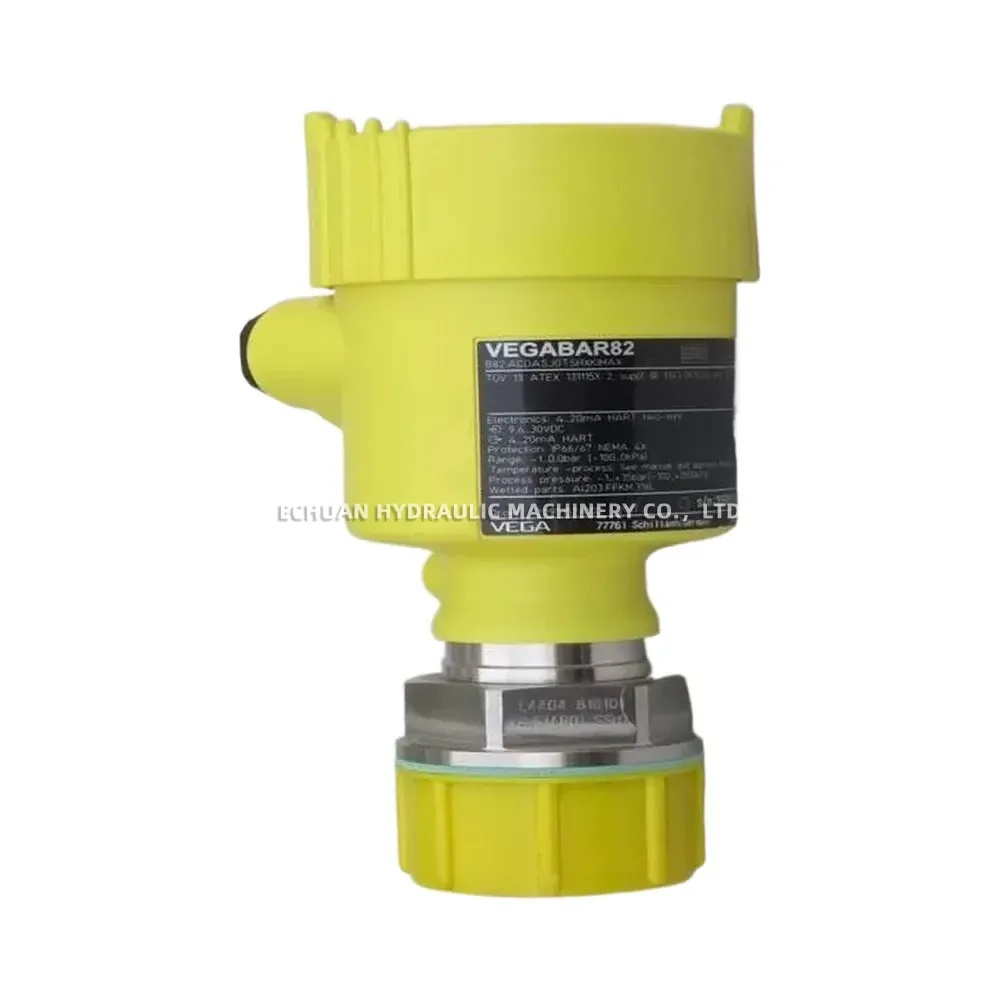

VEGA VEGABAR 82 Pressure Transmitter
The VEGA VEGABAR 82 is a highly robust and versatile pressure transmitter designed for demanding industrial applications. It features an abrasion-resistant ceramic measuring cell, making it an ideal choice for measuring the pressure of gases, vapors, and liquids. Its all-purpose design ensures high reliability and operational safety, even in harsh process conditions with abrasive media. The VEGABAR 82 offers a long service life and maintenance-free operation, providing a reliable solution for a wide range of pressure measurement tasks.
Technical Specifications:
- Output Signal: 4…20mA HART (two-wire)
- Power Supply: 9.6…30V DC
- Process Pressure Range: -1 to 2 bar (-100 to 200 kPa)
- Process Temperature: -20°C to +80°C
- Wetted Parts Material: Al2O3 Ceramic, FFKM, 316L Stainless Steel
- Protection Rating: IP66/67, NEMA 4X
- Certification: ATEX (TUV 11 ATEX 13115X) for hazardous areas
VEGA VEGABAR 82 Pressure Transmitter
Discover the VEGA VEGABAR 82, a robust industrial pressure transmitter with a ceramic cell. Features 4-20mA HART output, ATEX certification, and IP66/67 protection. Ideal for precise pressure measurement in liquids, gases, and abrasive media.
