Product Description
VER 5.2 Electronic Control Board

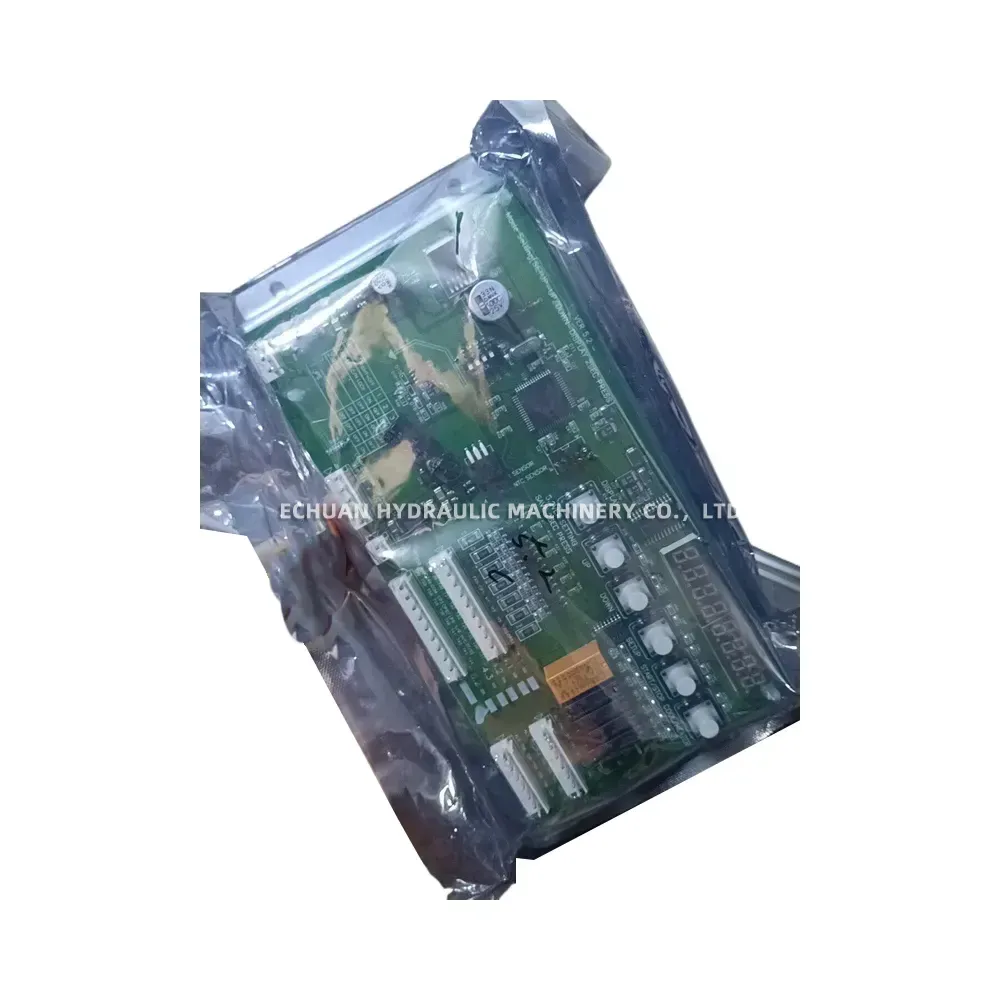

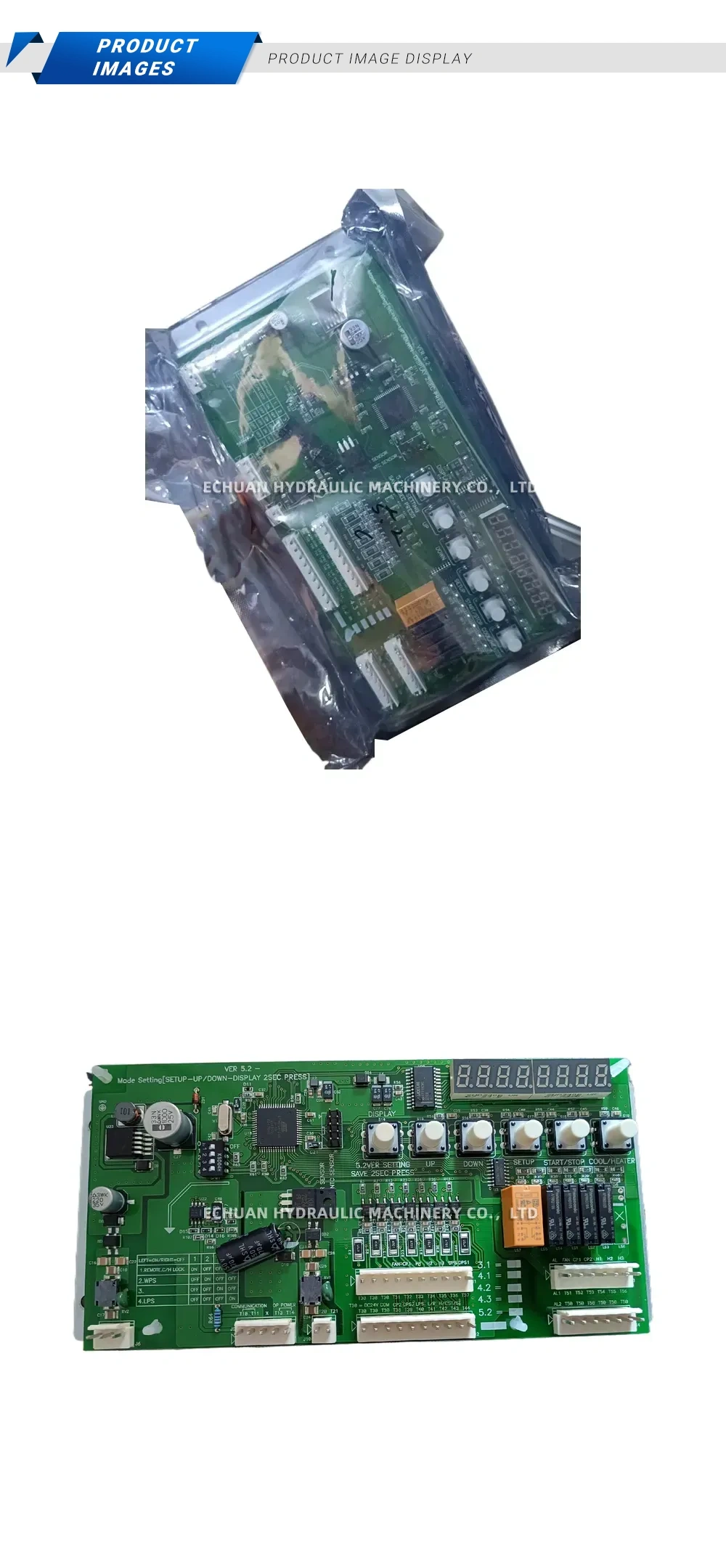

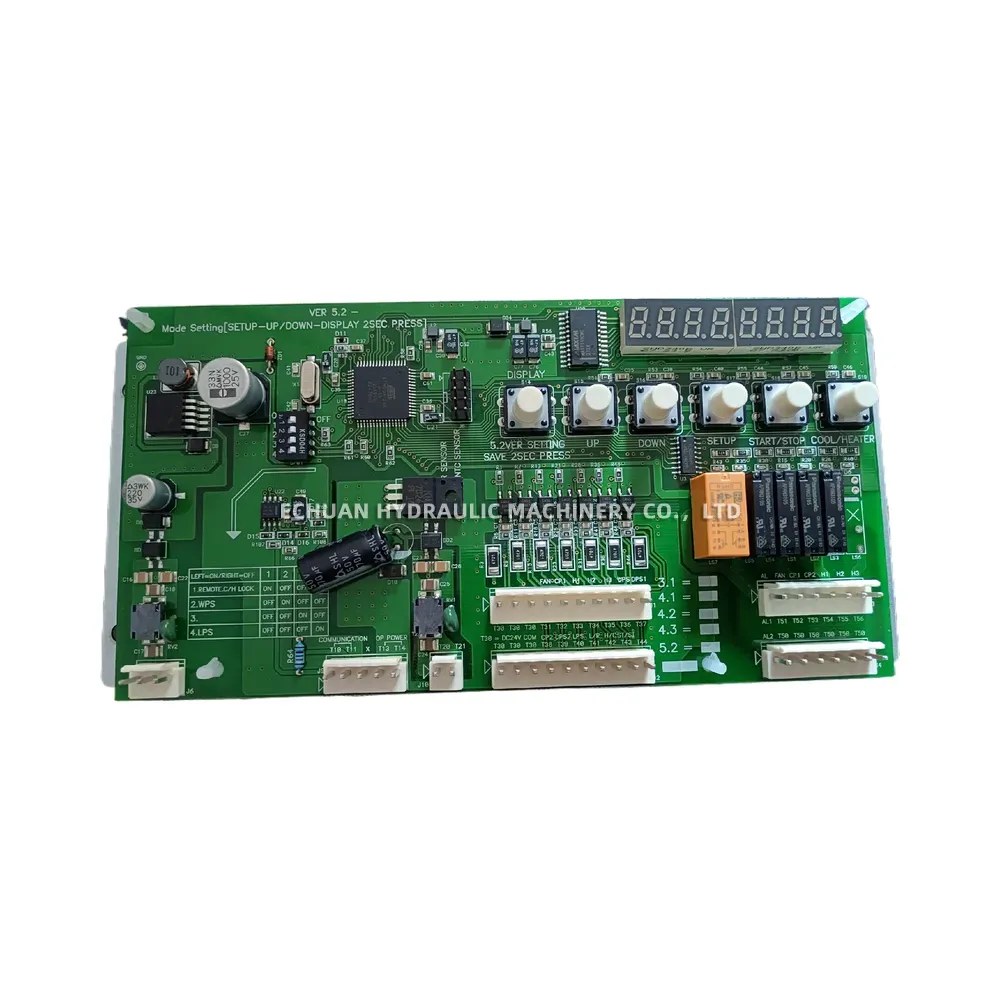

The VER 5.2 Electronic Control Board is a versatile and robust central controller designed for a wide range of HVAC applications. Engineered for reliability, this green printed circuit board (PCB) serves as the brain for your heating, ventilation, and air conditioning system. It features a clear 8-digit LED display and intuitive push-button controls (Setup, Start/Stop, Cool/Heater) for easy operation and mode setting. With multiple onboard relays for managing key components like fans, pumps, valves, and up to three compressors, it offers comprehensive system management. The board is equipped with numerous connection ports for up to eight temperature sensors (T1-T8) and includes critical safety inputs for low-pressure (LPS) and high-pressure switches. Configurable via onboard jumpers or dip switches, the VER 5.2 is an ideal replacement or upgrade for precise and efficient climate control.
Technical Specifications:
- Model: VER 5.2
- User Interface: 8-digit LED display with push-button controls for Setup, Start/Stop, and Mode Selection
- Relay Outputs: Fan, Valve, Pump, Compressor 1 (COMP1), Compressor 2 (COMP2), Compressor 3 (COMP3)
- Sensor Inputs: 8 dedicated temperature sensor inputs (T1-T8)
- Safety & Control Inputs: Low-Pressure Switch (LPS), High-Pressure Switch (HPS), Alarm (AL1), Communication Port (DP)
- Power Supply: Requires 24V DC input
- Configuration: Onboard jumpers/switches for Remote C/H Lock, WPS, and LPS settings
VER 5.2 Electronic Control Board
Upgrade your climate system with the VER 5.2 Electronic Control Board, a reliable HVAC controller featuring an 8-digit LED display, multi-compressor support, and extensive sensor inputs for precise temperature management.
