Product Description

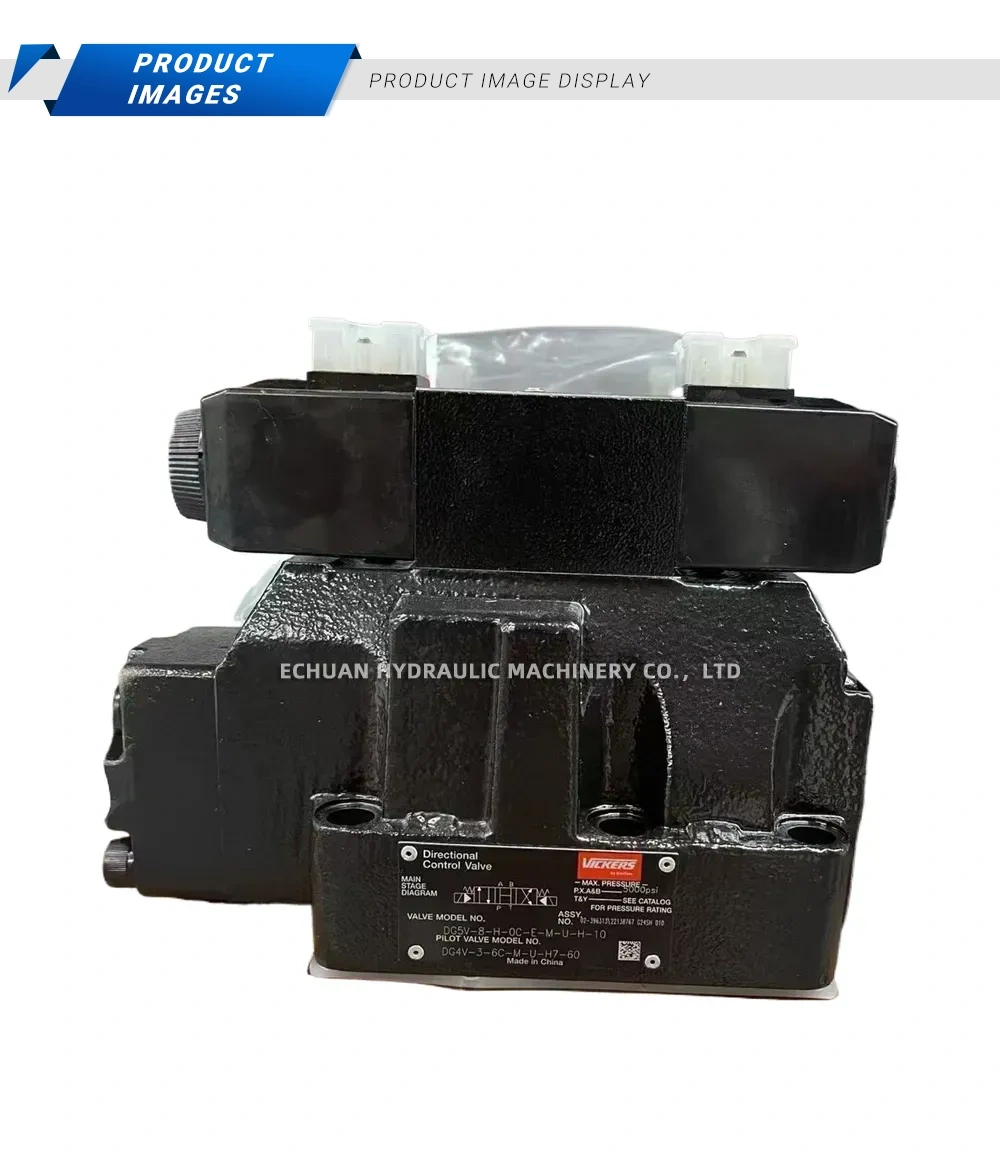

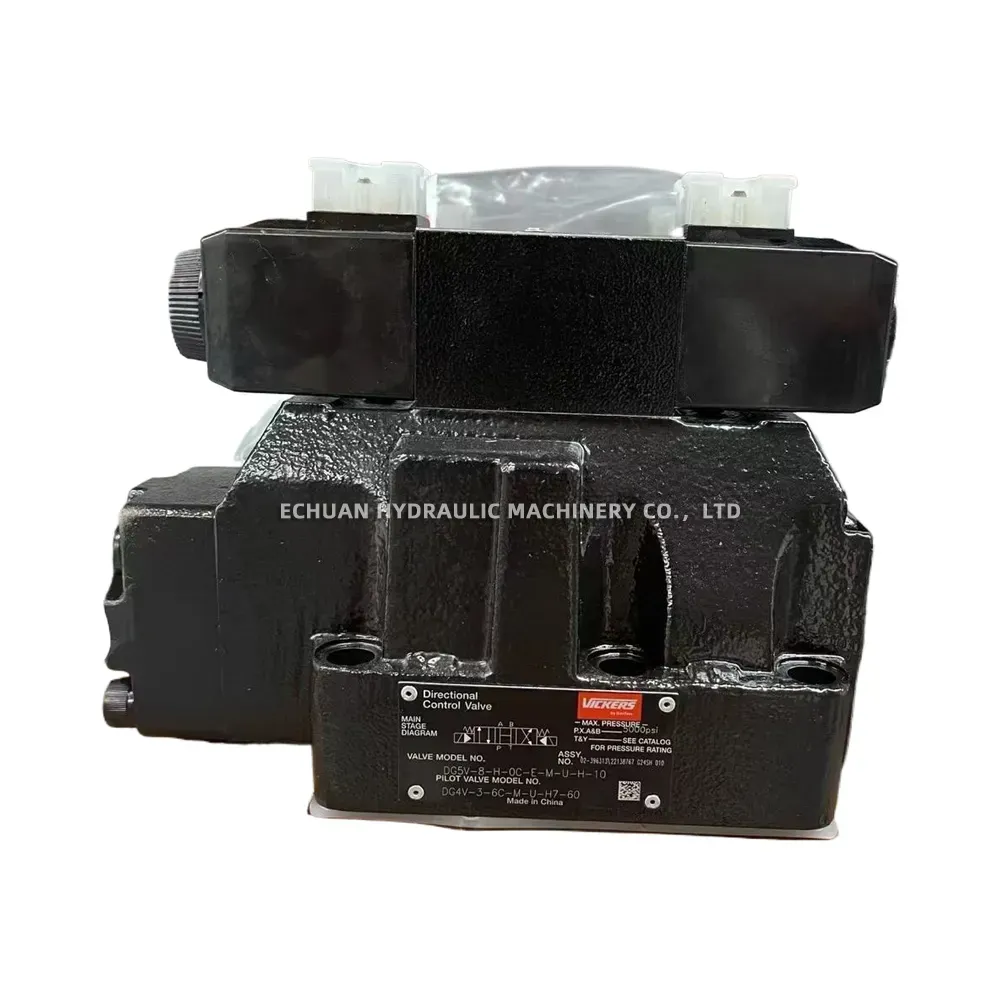

Vickers DG5V-8-H-0C-E-M-U-H-10 Hydraulic Directional Control Valve
The Vickers DG5V-8-H-0C-E-M-U-H-10 is a highly reliable, two-stage electro-hydraulic directional control valve designed for demanding industrial environments. Equipped with a solenoid pilot operation, this valve provides precise control over the starting, stopping, and direction of fluid flow within complex hydraulic circuits. The complete assembly pairs the robust DG5V-8 main stage valve with a factory-fitted DG4V-3-6C-M-U-H7-60 pilot valve to ensure optimal switching performance. Built with a durable cast iron body, it supports a maximum operating pressure of 3000 psi on the P, X, A, and B ports, making it an excellent choice for heavy-duty manufacturing and mobile equipment applications.
Technical Specifications:
- Brand: Vickers
- Main Stage Model: DG5V-8-H-0C-E-M-U-H-10
- Pilot Valve Model: DG4V-3-6C-M-U-H7-60
- Valve Type: Two-stage electro-hydraulic directional control valve
- Max Pressure (P, X, A, B Ports): 3000 psi
- Assembly Number: 02-396313 / 22138767
- Country of Origin: Made in China
Vickers DG5V-8-H-0C-E-M-U-H-10 Hydraulic Directional Control Valve
Upgrade your industrial hydraulic system with the Vickers DG5V-8-H-0C-E-M-U-H-10 Two-Stage Directional Control Valve. Featuring a DG4V-3 solenoid pilot valve and a 3000 psi maximum pressure rating for primary ports, this robust electro-hydraulic valve delivers precise, heavy-duty fluid control.
| Brand | VICKERS |
|---|---|
| Model | DG5V-8-H-0C-E-M-U-H-10 |
| Part No. | 847084916211 |
| Category | Hydraulic valves |
