Product Description

Wago 750-403

The Wago 750-403 is a 4-channel digital input module designed for the WAGO-I/O-SYSTEM 750. This module is engineered to receive and process binary signals from sensors, switches, and proximity sensors operating at DC 24V. It provides a reliable and compact solution for integrating digital field signals into a PLC or control system. Each of the four input channels features a noise-rejection filter (3.0 ms) to ensure stable signal acquisition in industrial environments. The module utilizes Wago’s proven CAGE CLAMP® connection technology for secure, vibration-proof, and maintenance-free wiring.

Technical Specifications:

  • Number of digital inputs: 4

  • Signal voltage (0-signal): -3 … +5 VDC

  • Signal voltage (1-signal): 15 … 30 VDC

  • Input filter: 3.0 ms

  • System supply voltage: 5 VDC (via data contacts)

  • Connection technology: CAGE CLAMP®

  • Isolation: 500 V system/field

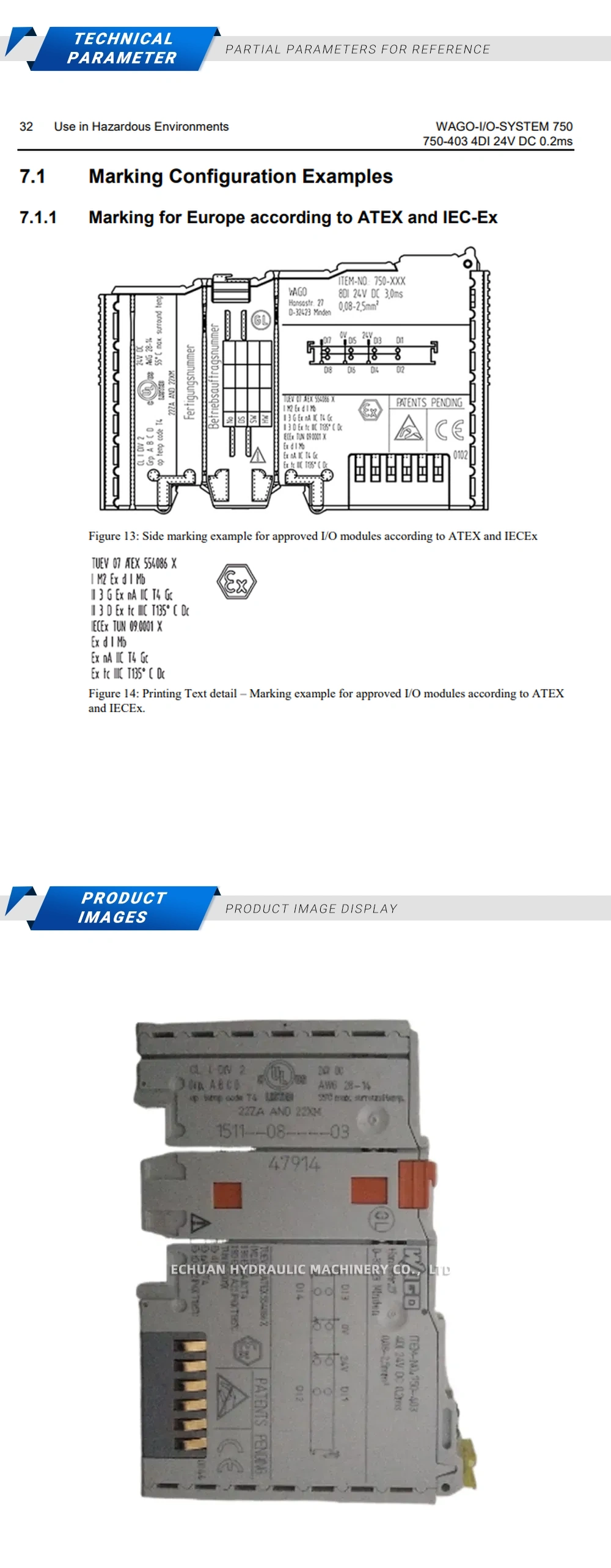

Wago 750-403 Description

Wago 750-403

Wago 750-403: A reliable 4-channel digital input module for the WAGO-I/O-SYSTEM 750, designed for processing DC 24V signals from sensors and switches in industrial automation applications.
