Product Description

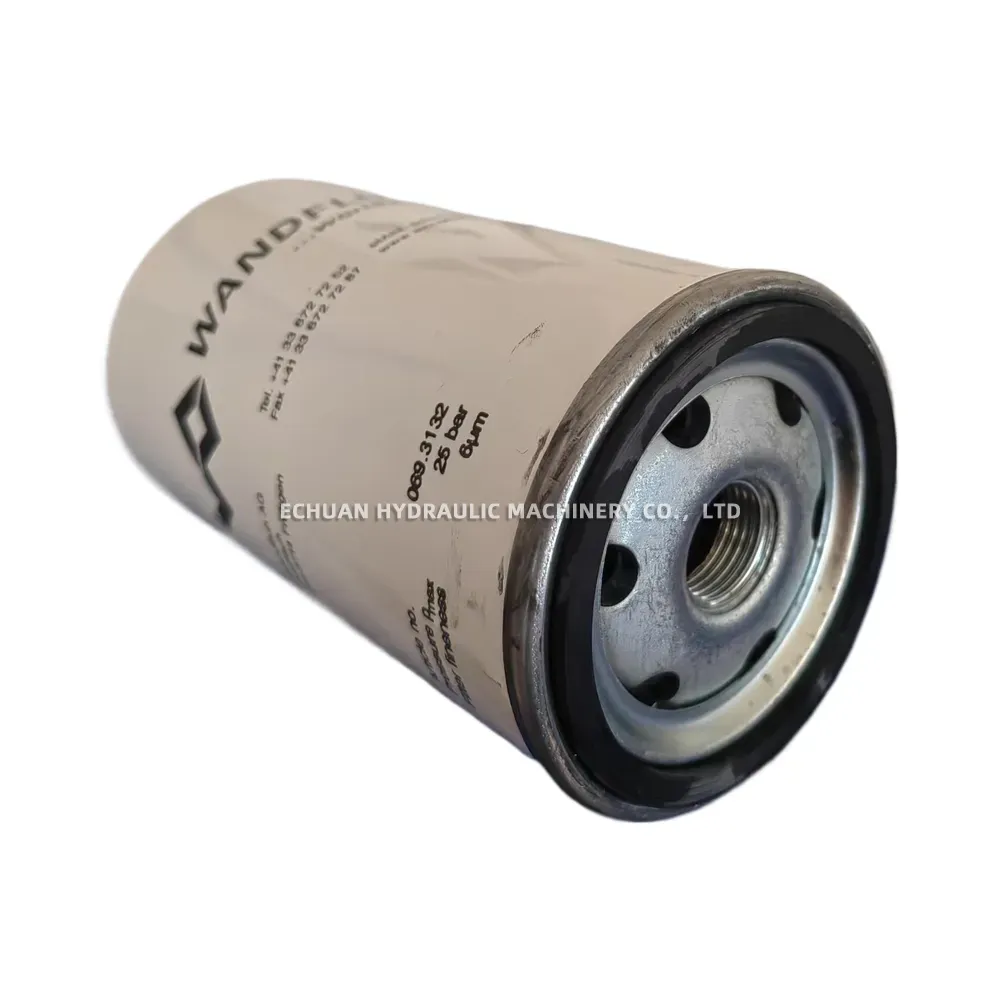

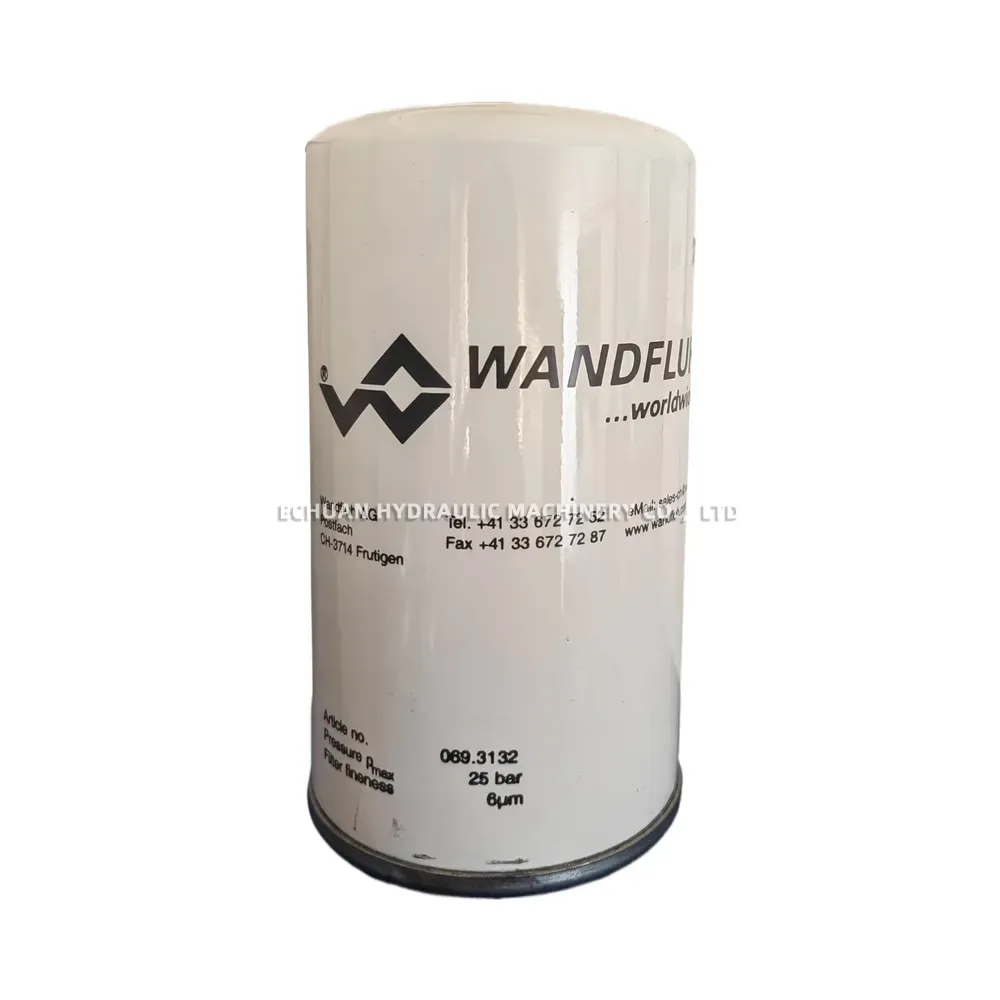

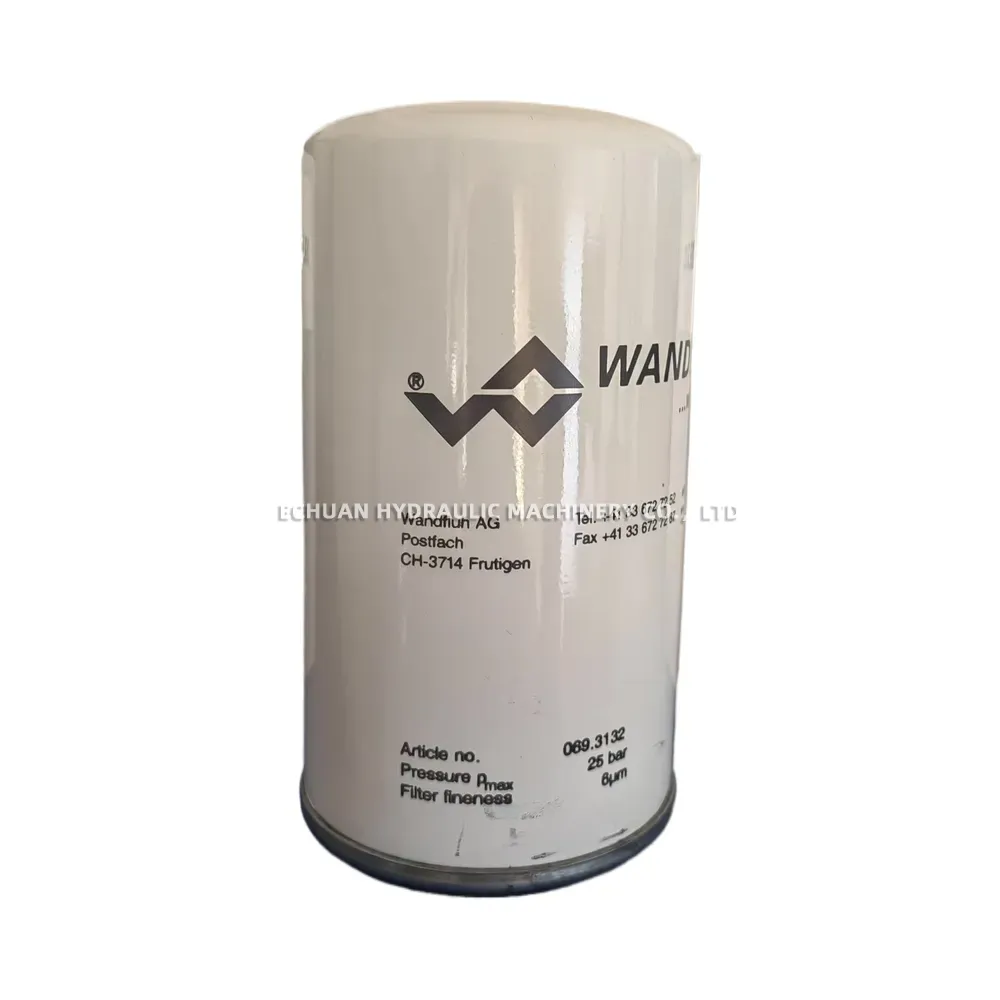

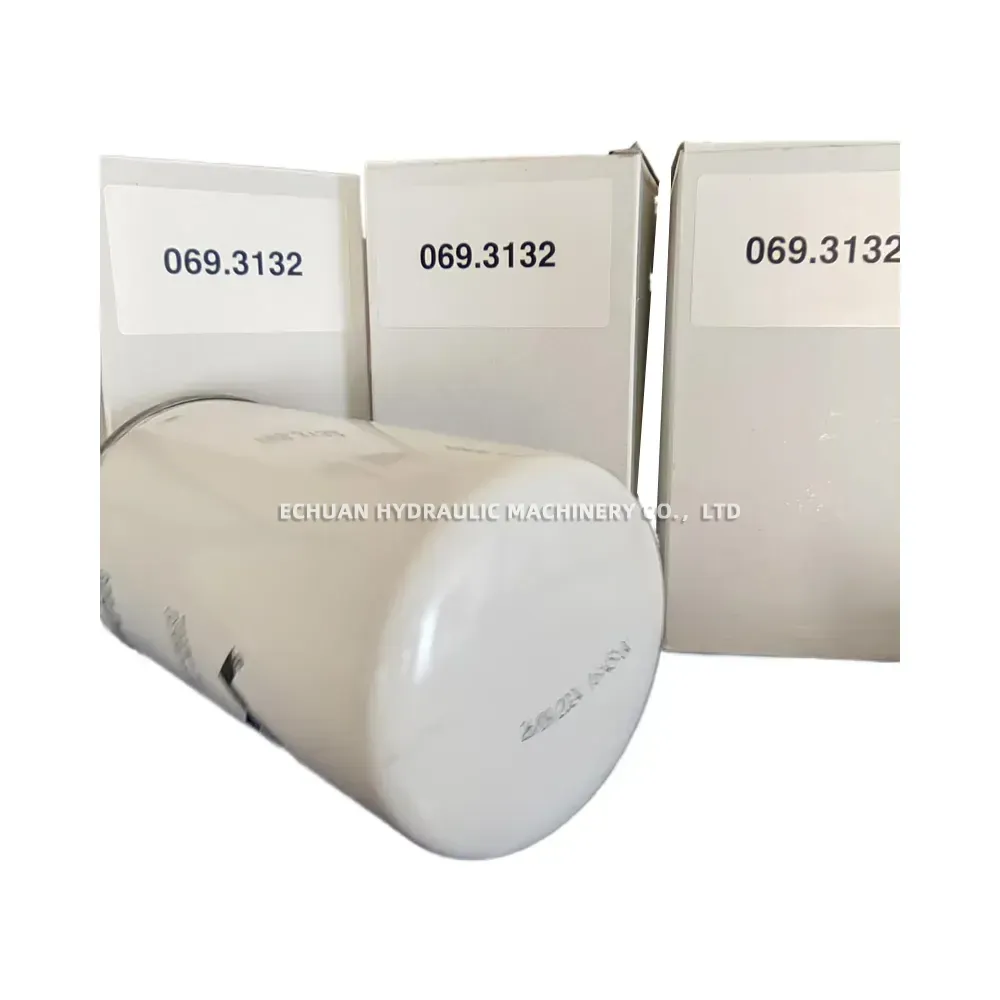

Wandfluh 069.3132 Hydraulic Filter Element

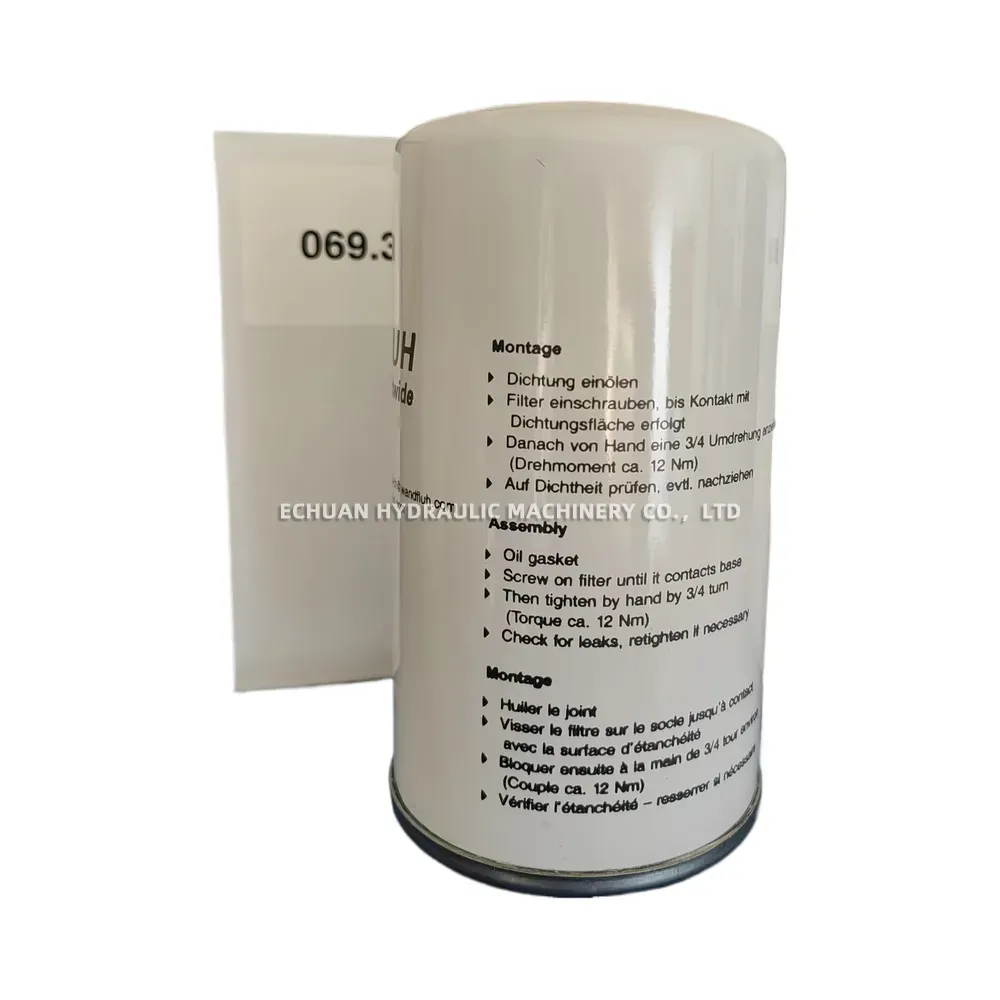

Ensure optimal performance and longevity of your hydraulic systems with the Wandfluh 069.3132 Hydraulic Filter Element. Manufactured by Wandfluh AG in Switzerland, this premium replacement filter is engineered to effectively remove fluid contaminants with a precise 6µm filter fineness. Built to withstand demanding industrial environments, it features a maximum operating pressure of 25 bar. The filter is designed for quick and secure assembly: simply oil the gasket, screw the filter on until it contacts the base, and hand-tighten by a 3/4 turn (approximately 12 Nm torque) for a leak-free seal.

Technical Specifications:

  • Brand: Wandfluh

  • Model/Article Number: 069.3132

  • Maximum Operating Pressure (pmax): 25 bar

  • Filter Fineness: 6µm

  • Installation Torque: Approx. 12 Nm (3/4 turn after base contact)

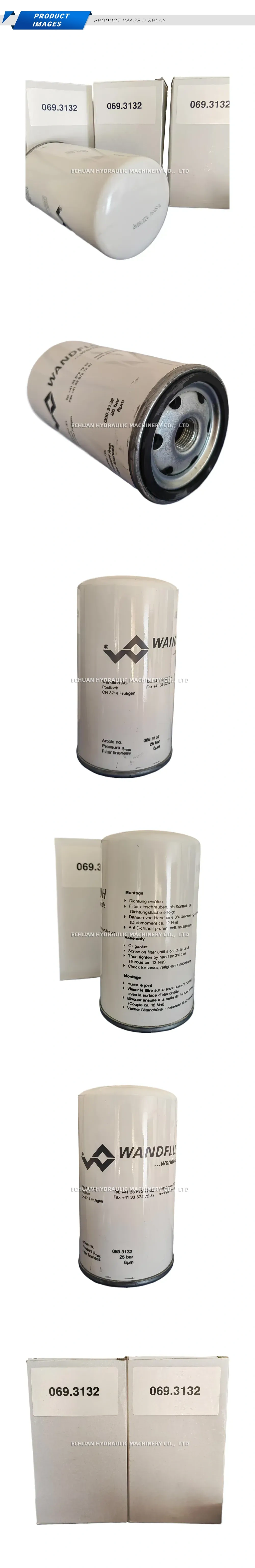

Wandfluh 069.3132 Hydraulic Filter Element Description

Wandfluh 069.3132 Hydraulic Filter Element

Genuine Wandfluh 069.3132 Hydraulic Filter Element featuring 6µm filtration and a 25 bar max pressure rating. Engineered in Switzerland for superior hydraulic system protection, fluid cleanliness, and easy installation.

BrandWANDFLUH
Model069.3132
Part No.1020502481337
CategoryHydraulic parts
Linkhttps://www.echuan-hydraulic.com/product/wandfluh-069-3132-hydraulic-filter-element
