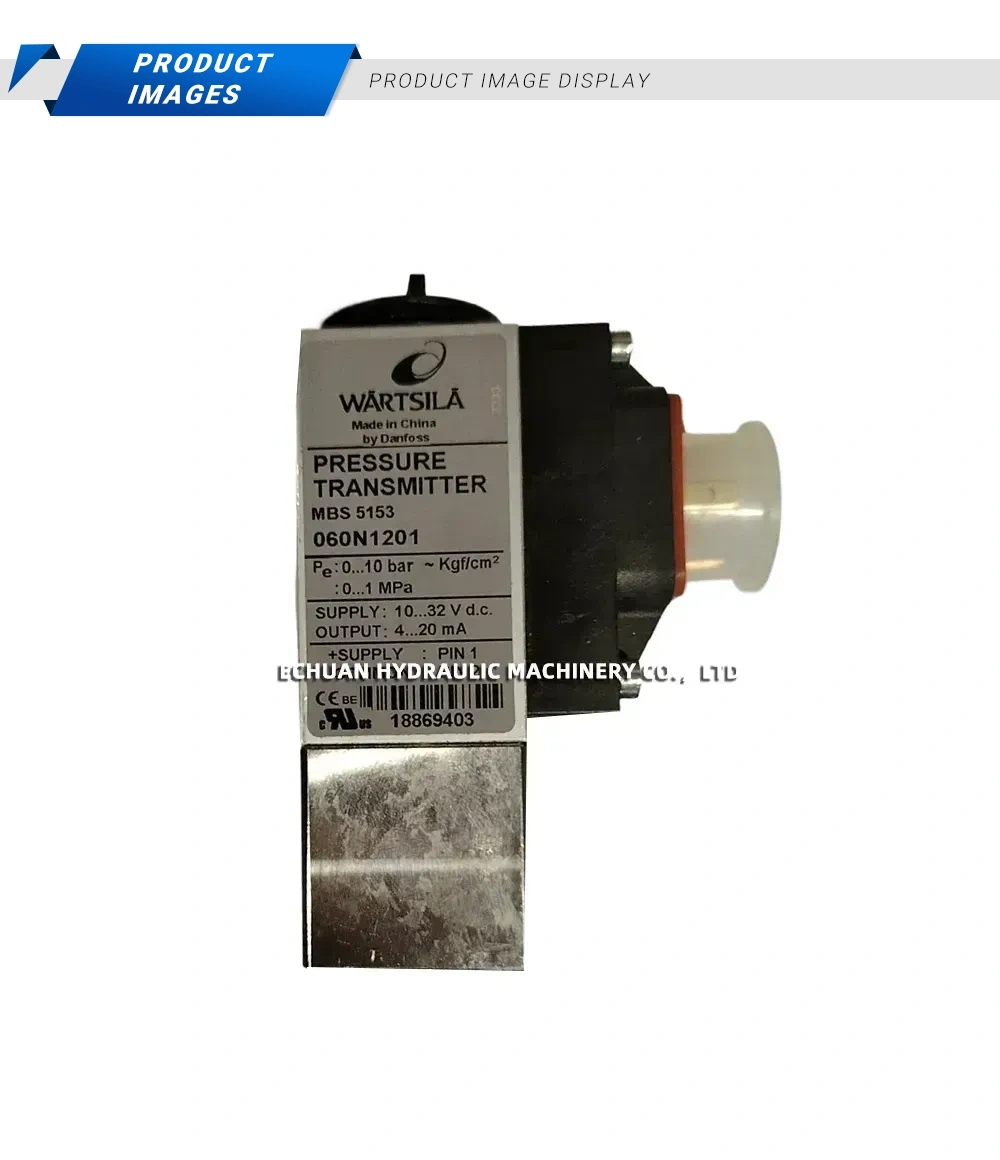

WARTSILA MBS 5153 060N1201
The WARTSILA MBS 5153 060N1201 is a high-performance, block-type pressure transmitter engineered for severe industrial and marine environments. Manufactured by Danfoss, this model is designed to provide reliable and accurate pressure measurement even under conditions of high vibration and shock. Its robust, compact design features a flush diaphragm, making it ideal for use with viscous, crystallizing, or otherwise challenging media that could clog a standard pressure port. With a comprehensive range of marine approvals, the MBS 5153 is a trusted component for critical applications in ship engine rooms, hydraulic systems, and other demanding onboard machinery, ensuring operational safety and efficiency.
Technical Specifications:
- Model: MBS 5153
- Part Number: 060N1201
- Pressure Range: 0 – 16 bar
- Output Signal: 4 – 20 mA
- Pressure Connection: G 1/2 A Flush diaphragm
- Electrical Connection: Pg 9, DIN 43650-A
- Marine Approvals: DNV-GL, LR, BV, ABS, RMRS
WARTSILA MBS 5153 060N1201
Shop the WARTSILA MBS 5153 060N1201, a robust Danfoss block-type pressure transmitter with a flush diaphragm. Ideal for harsh marine and industrial applications, this sensor provides reliable 0-16 bar pressure measurement with a 4-20 mA output.
