Product Description

Weidmuller UR20-4AI-UI-16

The Weidmuller UR20-4AI-UI-16 is a high-performance analog input module designed for the innovative u-remote I/O system. This compact module provides four configurable channels that can handle both voltage and current signals, offering exceptional flexibility for a wide range of industrial applications. With a 16-bit resolution, it ensures highly accurate and reliable data acquisition for precise monitoring and control tasks. The tool-free PUSH IN connection technology simplifies installation and maintenance, reducing wiring time and ensuring a secure connection. Its slim design saves valuable cabinet space, making it an ideal solution for modern automation systems where efficiency and precision are paramount.

Technical Specifications:

  • Module Type: 4-Channel Analog Input Module (Voltage/Current)

  • Number of Inputs: 4

  • Input Signal Range: 0…20 mA, 4…20 mA, 0…10 V, -10…+10 V

  • Resolution: 16 Bit

  • Connection Technology: PUSH IN

  • Supply Voltage: 24 V DC

  • Operating Temperature: -20 °C to +60 °C

  • Dimensions (W x H x D): 11.5 mm x 120 mm x 76 mm

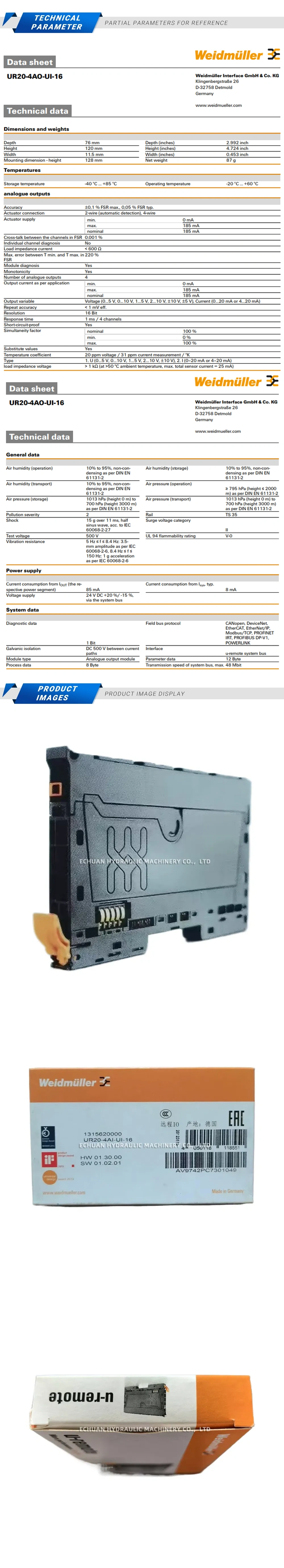

Weidmuller UR20-4AI-UI-16 Description

Weidmuller UR20-4AI-UI-16

Discover the Weidmuller UR20-4AI-UI-16, a high-precision 4-channel analog input module for the u-remote I/O system. Features 16-bit resolution and configurable voltage/current inputs for versatile industrial automation.
