Product Description

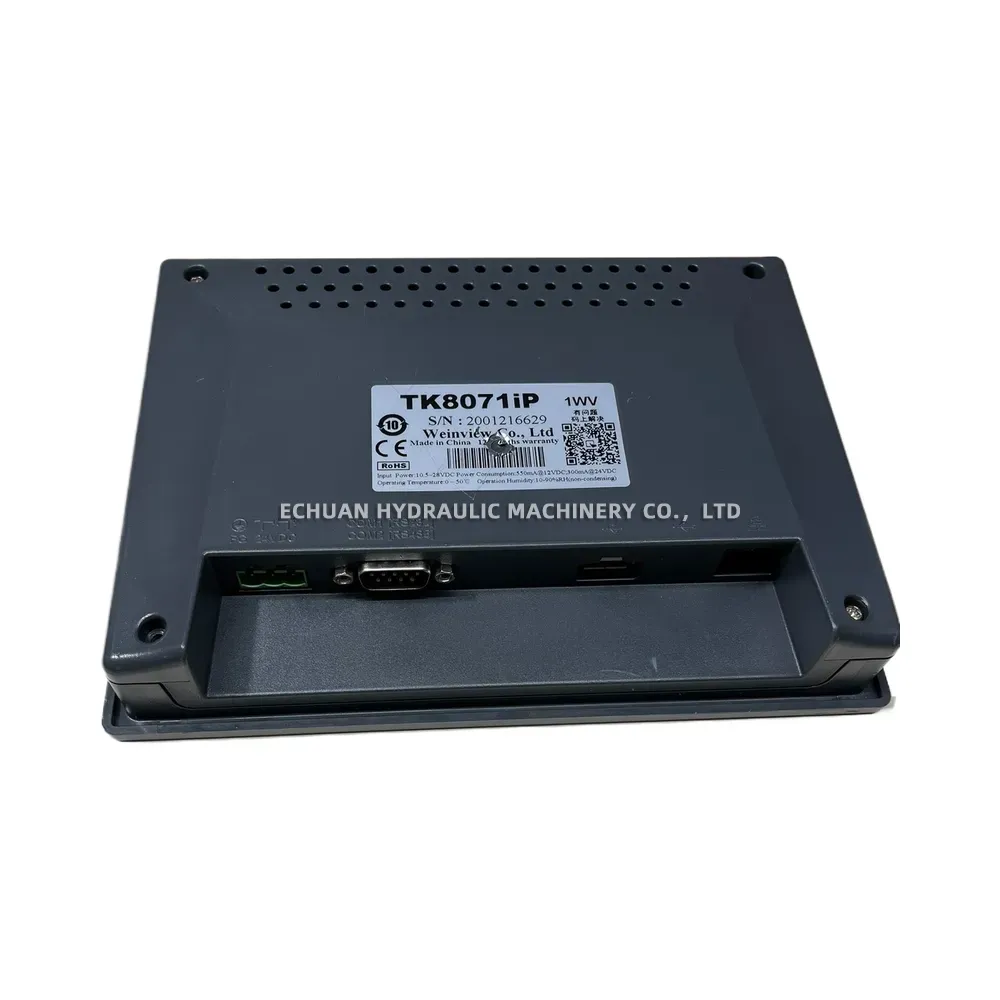

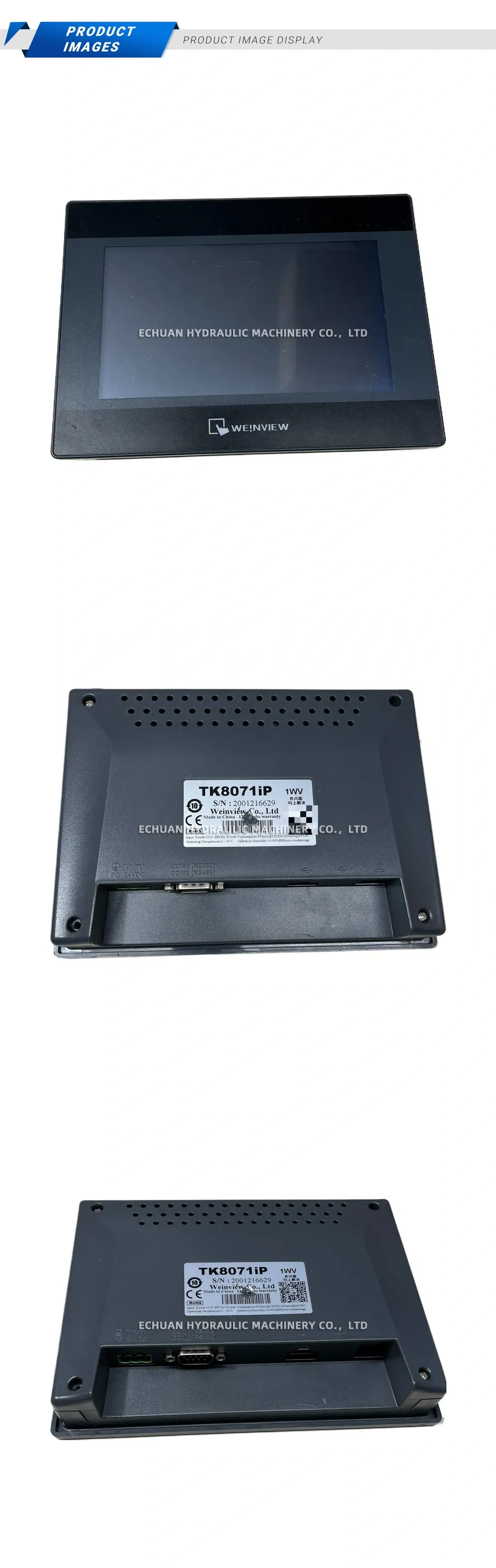

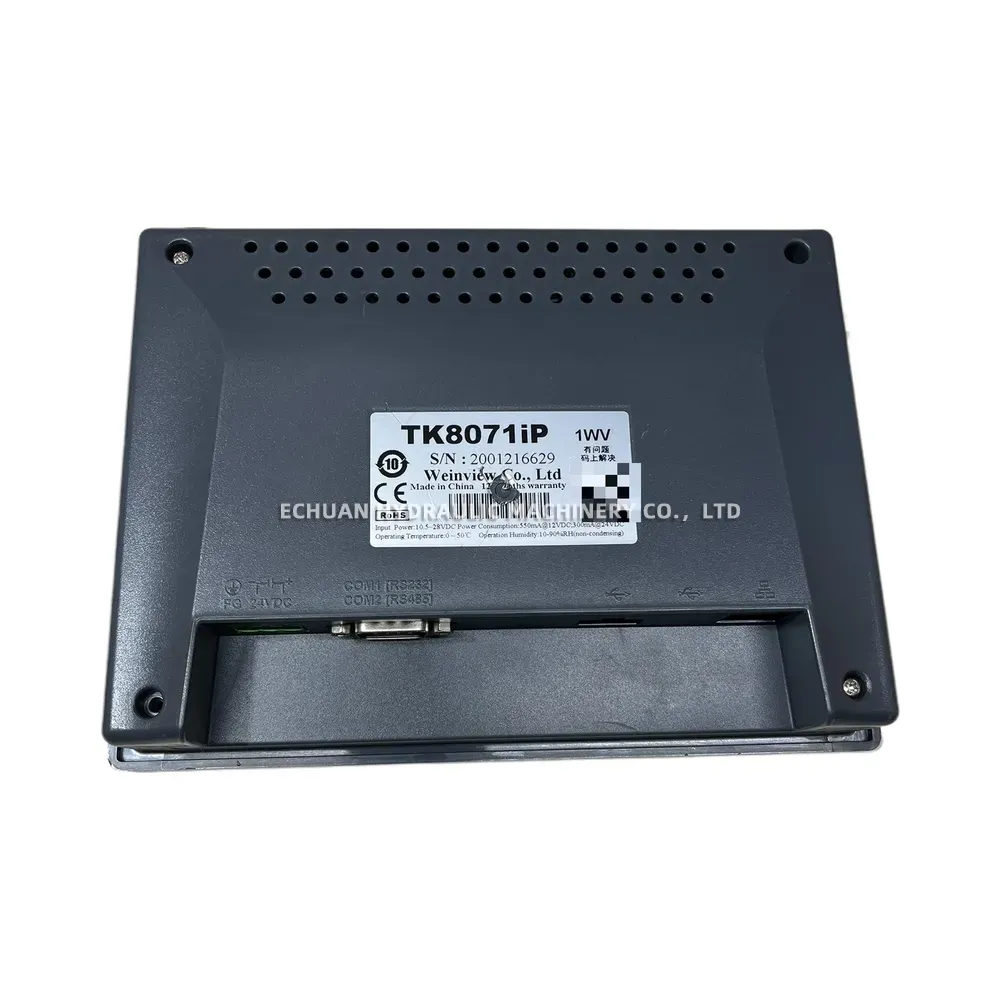

Weinview TK8071IP
The Weinview TK8071IP is a high-performance 7-inch Human Machine Interface (HMI) designed for a wide range of industrial automation applications. It features a vibrant 16.7M color TFT display with a resolution of 800 x 480, providing clear and detailed visuals for monitoring and control. Powered by a 600MHz RISC CPU and equipped with 128MB of both Flash and RAM, the TK8071IP delivers fast and responsive performance. Its versatile connectivity options, including an Ethernet port, RS-232, and RS-485 serial ports, ensure seamless integration with various PLCs and controllers. The rugged IP65-rated front panel makes it suitable for use in demanding industrial environments. Configuration is made simple with the powerful and intuitive EasyBuilder Pro software.
Technical Specifications:
- Display: 7″ TFT LCD
- Resolution: 800 x 480 pixels
- Processor: 32-bit RISC CPU 600MHz
- Memory: 128MB Flash, 128MB RAM
- Communication Ports: COM1 (RS-232), COM2 (RS-485 2W/4W), Ethernet (10/100 Base-T), USB 2.0 Host
- Input Power: 24±20% VDC
- Front Panel Protection: IP65 Compliant
Weinview TK8071IP
Discover the Weinview TK8071IP, a reliable 7-inch HMI touch panel with an 800×480 resolution and built-in Ethernet port. Ideal for industrial automation, it features a powerful 600MHz CPU and a durable IP65-rated front panel for robust control and monitoring.
