Product Description

Wenglor OY1TA603P0003 Photoelectronic Distance Sensor

The Wenglor OY1TA603P0003 is a high-performance photoelectronic distance sensor designed for precise object detection in demanding industrial environments. Utilizing advanced background suppression technology, this sensor reliably detects objects within its defined working range, regardless of their color, shape, or surface texture, while effectively ignoring any background interference. Its compact housing, robust IP67 protection, and wide operating temperature range make it suitable for a variety of automation tasks, including presence detection, positioning, and quality control. The sensor features a user-friendly teach-in function for quick setup and a switchable PNP output (NO/NC) for flexible integration into control systems.

Technical Specifications:

  • Working Range: 15…600 mm

  • Switching Output: PNP, NO/NC (Normally Open/Normally Closed), switchable

  • Supply Voltage: 10…30 V DC

  • Light Source: Red Light

  • Switching Frequency: 1000 Hz

  • Connection: M8 x 1 Connector, 4-pin

  • Protection Class: IP67

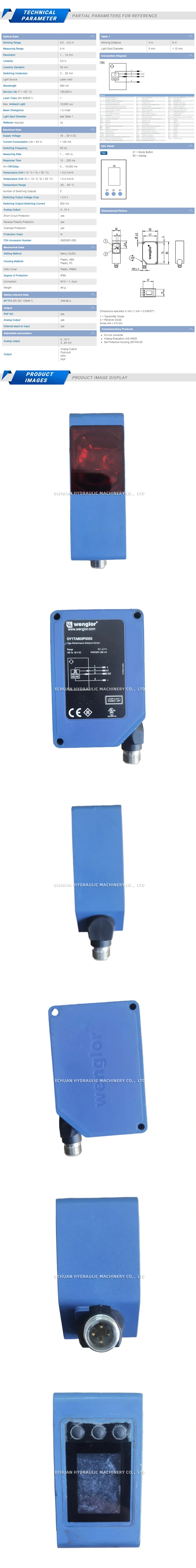

Wenglor OY1TA603P0003 Description

Wenglor OY1TA603P0003

Shop the Wenglor OY1TA603P0003, a reliable photoelectronic distance sensor with a 15-600mm range, PNP output, and superior background suppression for industrial automation.
