Product Description

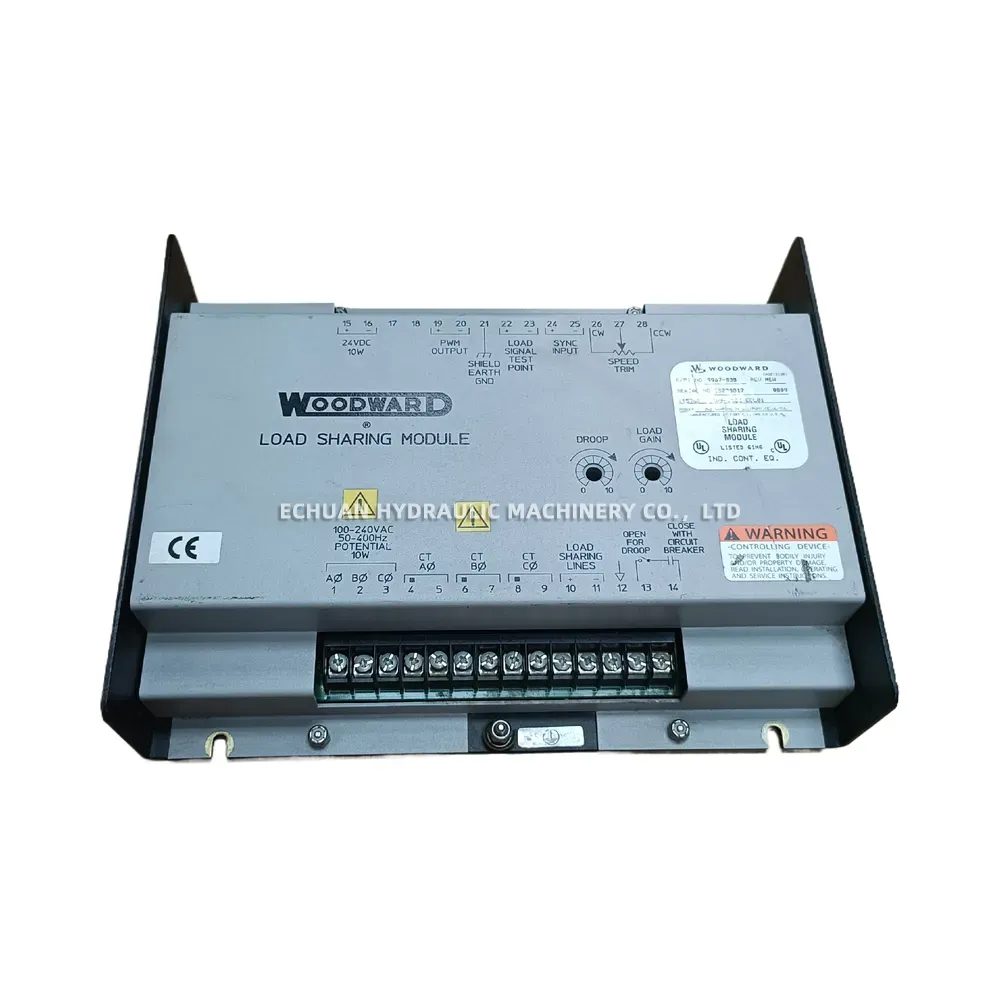

Woodward 9907-838 Load Sharing Module

The Woodward 9907-838 is a robust and reliable Load Sharing Module designed for use with the 723PLUS Digital Speed Control system in generator set applications. This module is essential for systems requiring multiple generators to operate in parallel, ensuring stable and balanced power distribution across the grid. It facilitates both isochronous and droop load sharing, providing precise control over engine load to maintain system frequency and stability. The 9907-838 is engineered to withstand harsh industrial environments, making it an ideal choice for power generation, marine, and industrial engine control systems that demand high performance and dependability.

Technical Specifications:

  • Input Power: 18–40 Vdc

  • Load Share Signal: 0–3 Vdc (representing 0–100% load)

  • Operating Temperature Range: –40 to +85 °C (–40 to +185 °F)

  • Agency Compliance: CE Compliant for EMC Directive 89/336/EEC

Woodward 9907-838 Description

Woodward 9907-838

Woodward 9907-838 Load Sharing Module for precise isochronous and droop load sharing in parallel generator applications. Compatible with 723PLUS controls for stable power management.
