Product Description

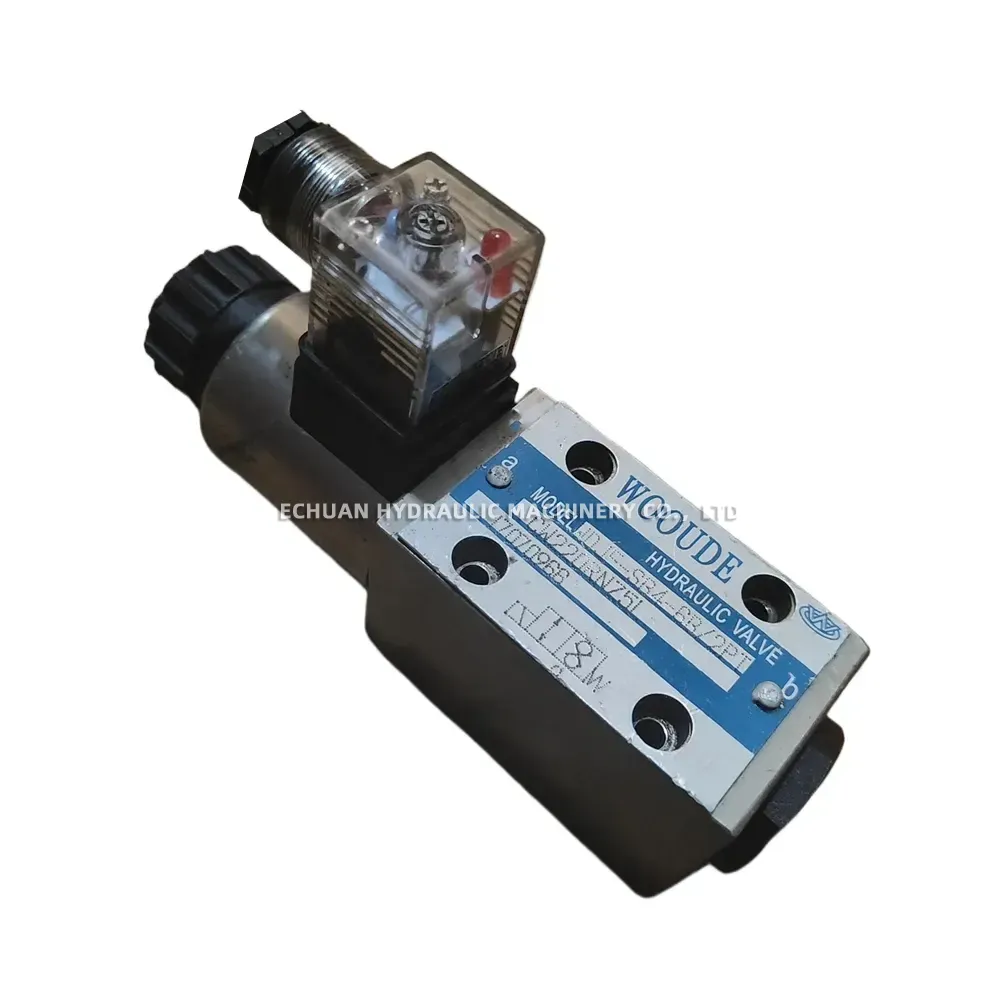

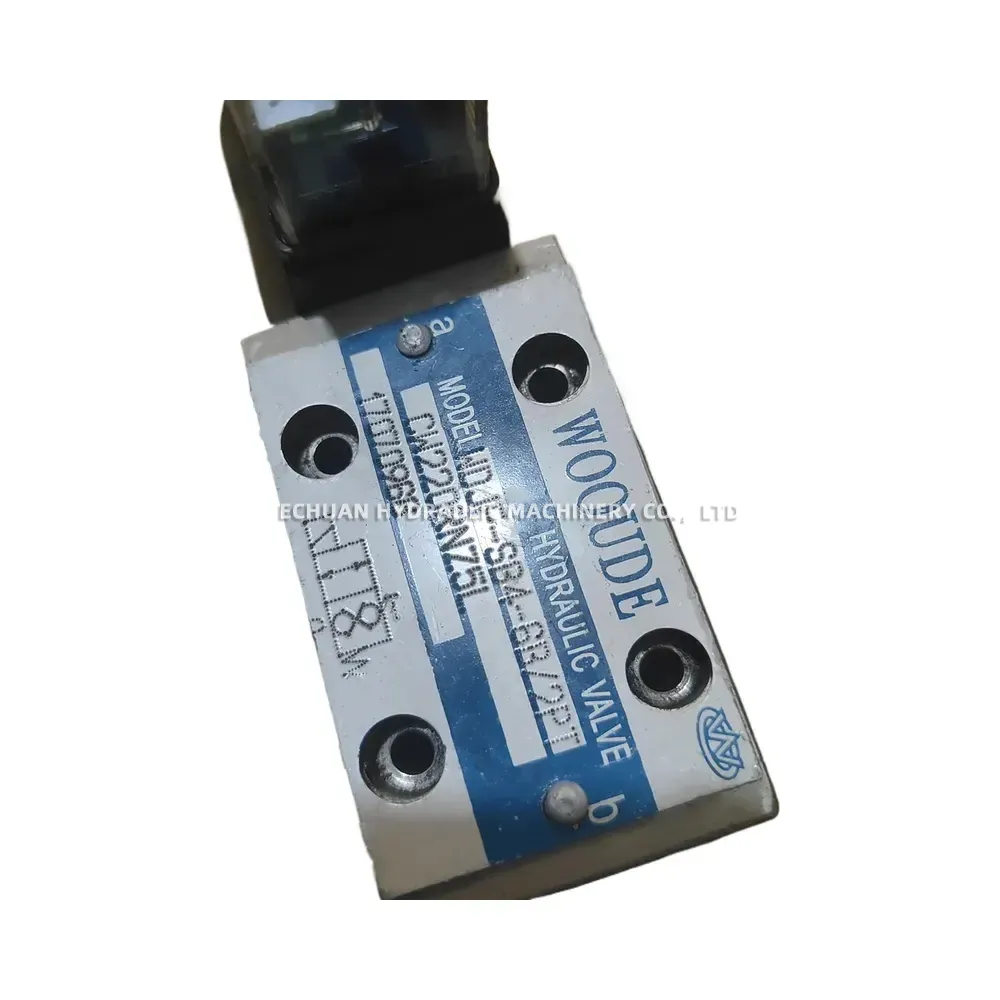

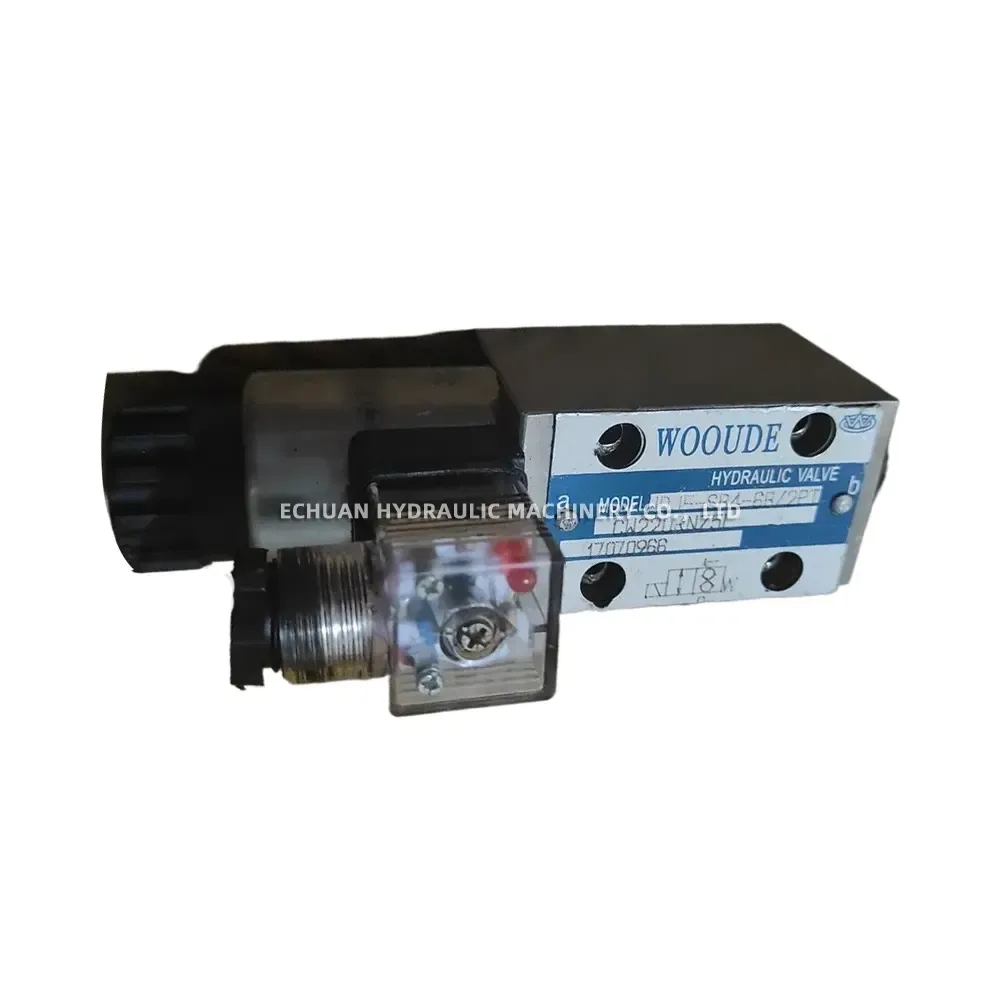

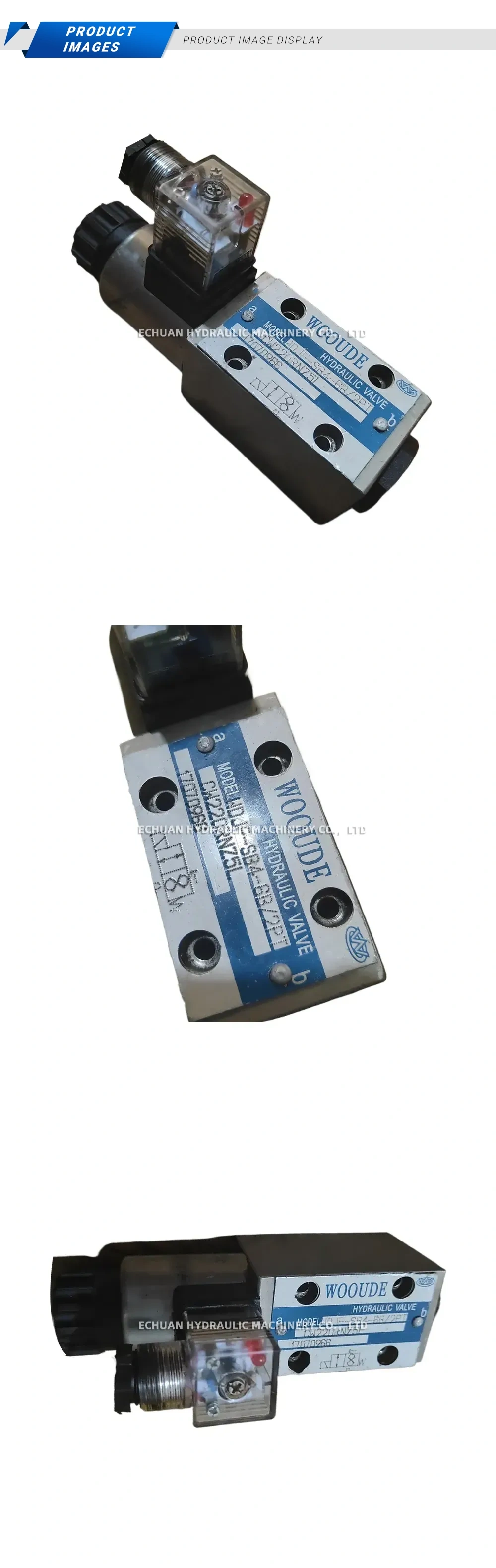

WOOUDE WDJF-SB4-6B-2PT/CW220RNZ5L Hydraulic Solenoid Directional Control Valve
The WOOUDE WDJF-SB4-6B-2PT/CW220RNZ5L is a high-performance, solenoid-operated hydraulic directional control valve engineered for reliable fluid power management in demanding industrial environments. Featuring a standard size 6 (NG6/CETOP 3) subplate mounting interface, this robust spool-type valve facilitates highly precise directional switching of hydraulic flow across its four working ports (P, T, A, and B). It is equipped with a heavy-duty single solenoid actuator powered by a 220V coil (model CW220RNZ5L). For enhanced operational convenience and troubleshooting, the valve includes a standard DIN plug connector integrated with a status indicator light. Designed to deliver consistent directional control and minimize pressure drop, this WOOUDE valve is an essential component for modern automated hydraulic systems.
Technical Specifications:
- Brand: WOOUDE
- Model: WDJF-SB4-6B-2PT/CW220RNZ5L
- Valve Type: Solenoid-Operated Directional Control Valve
- Mounting Interface: Size 6 (NG6 / CETOP 3) Subplate Mounting
- Port Configuration: 4 Ports (P, T, A, B) arranged in a diamond pattern
- Actuation: Single Solenoid
- Coil Voltage: 220V AC (Coil Code: CW220RNZ5L)
- Electrical Connection: DIN Plug Connector with Indicator Light
- Construction: Spool-Type
WOOUDE WDJF-SB4-6B-2PT/CW220RNZ5L Hydraulic Solenoid Directional Control Valve
Optimize your industrial fluid power systems with the WOOUDE WDJF-SB4-6B-2PT/CW220RNZ5L Hydraulic Solenoid Directional Control Valve. This NG6/CETOP 3 size valve features a 220V single solenoid, a 4-port spool design, and a DIN plug with an LED indicator for reliable, precise, and highly efficient hydraulic flow switching.
| Brand | WOOUDE |
|---|---|
| Model | WDJF-SB4-6B-2PT/CW220RNZ5L |
| Part No. | 807694271493 |
| Category | Hydraulic valves |
