Product Description

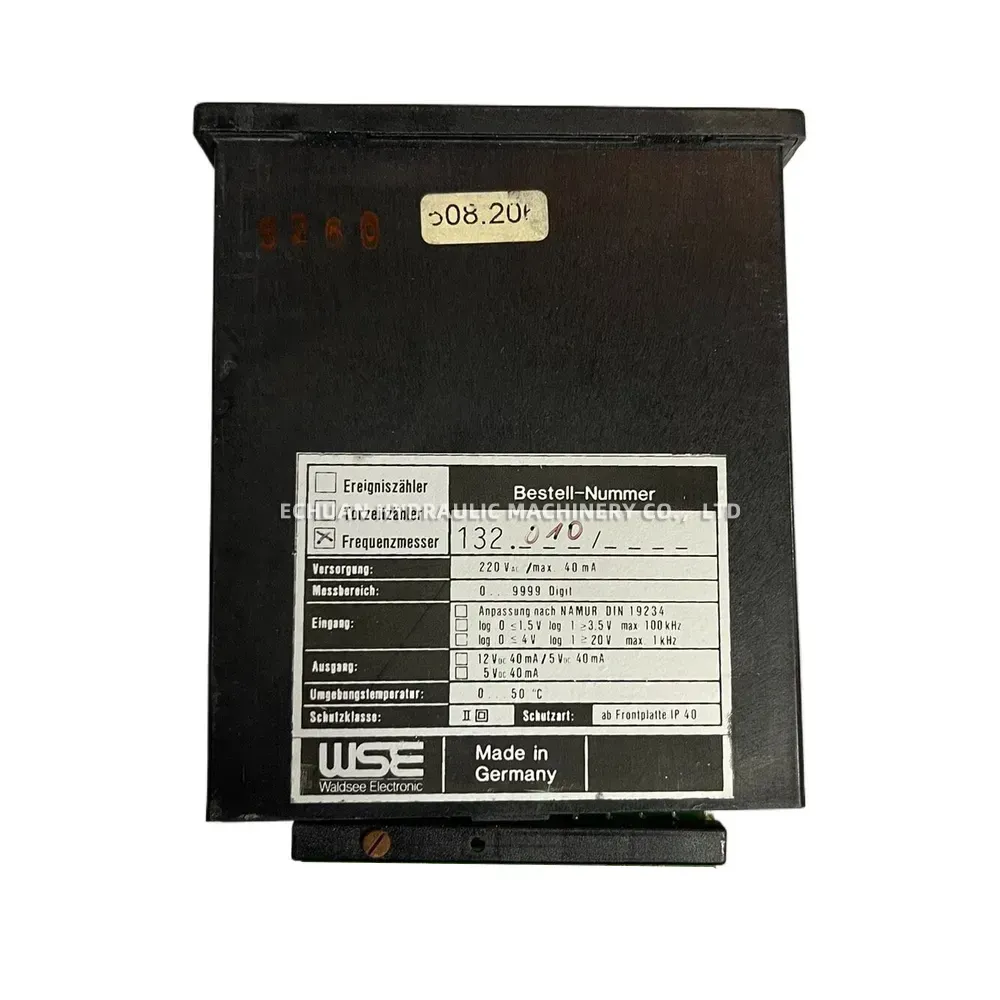

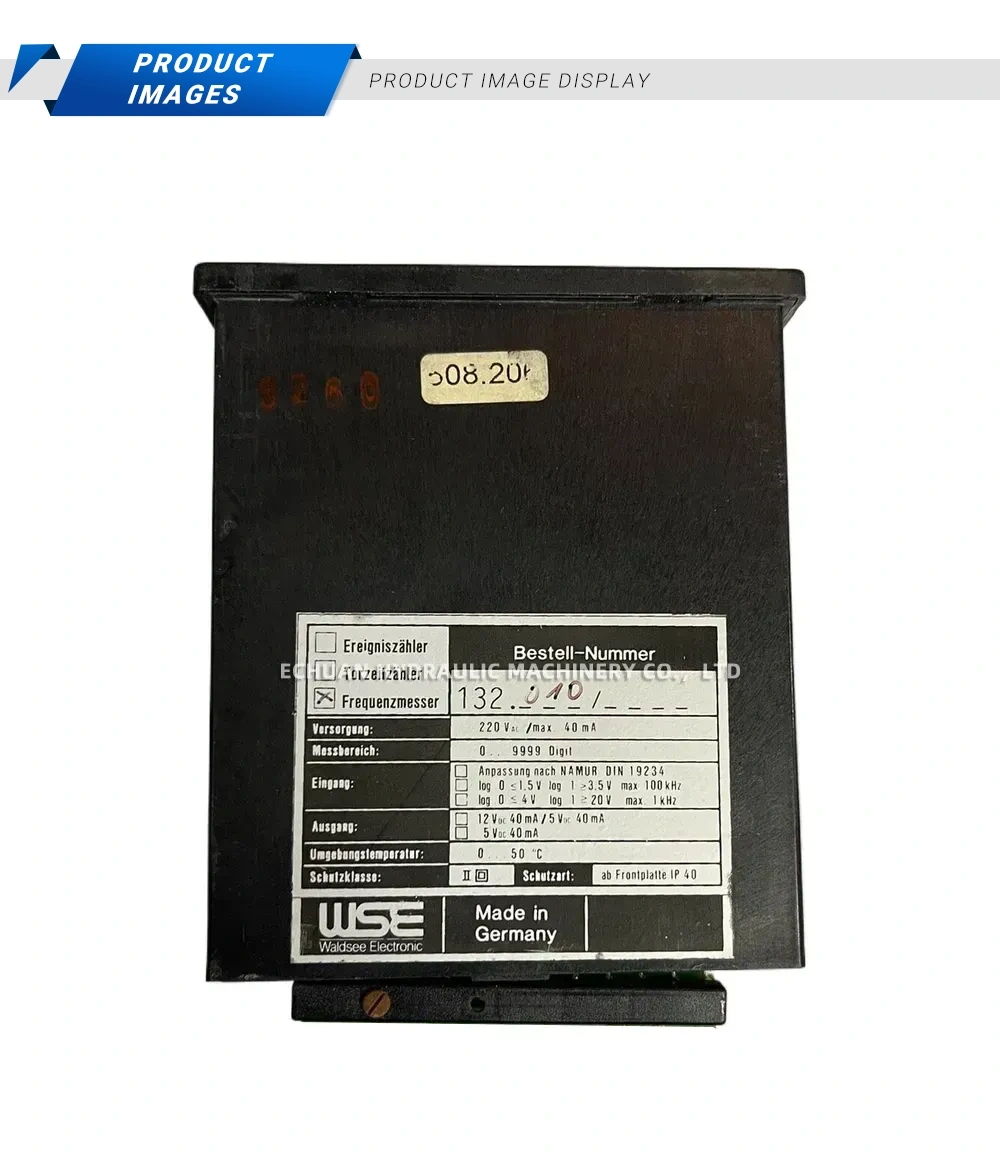

WSE 132.040 Frequency Meter
The WSE 132.040 is a high-precision industrial frequency meter (Frequenzmesser) manufactured by Waldsee Electronic in Germany. Designed for reliability in demanding environments, this panel-mount meter features a clear 4-digit display with a measurement range from 0 to 9999. It offers versatile input configurations, including options for NAMUR sensors and standard logarithmic signals, making it adaptable to various industrial control and monitoring systems. With its robust construction and IP40-rated front plate, the WSE 132.040 provides accurate frequency measurement for a wide range of applications.
Technical Specifications:
- Model: 132.040
- Brand: WSE (Waldsee Electronic)
- Measurement Range: 0 … 9999 digits
- Power Supply: 220 V~ / max 40 mA
- Input Options: NAMUR DIN 19234 adaptation; log 0 < 1.5V / 1 > 3.5V (max 100 kHz); log 0 < 4V / 1 > 20V (max 1 kHz)
- Output Options: 12 Vdc 40 mA / 5 Vdc 40 mA or 5 Vdc 40 mA
- Operating Temperature: 0 to 50 °C
- Protection: Class II / IP 40 from front plate
- Origin: Made in Germany
WSE 132.040 Frequency Meter
Shop the WSE 132.040 industrial frequency meter from Waldsee Electronic. This German-made digital meter features a 0-9999 measurement range, 220V AC supply, and multiple input options. Ideal for precise industrial frequency monitoring.
