Product Description

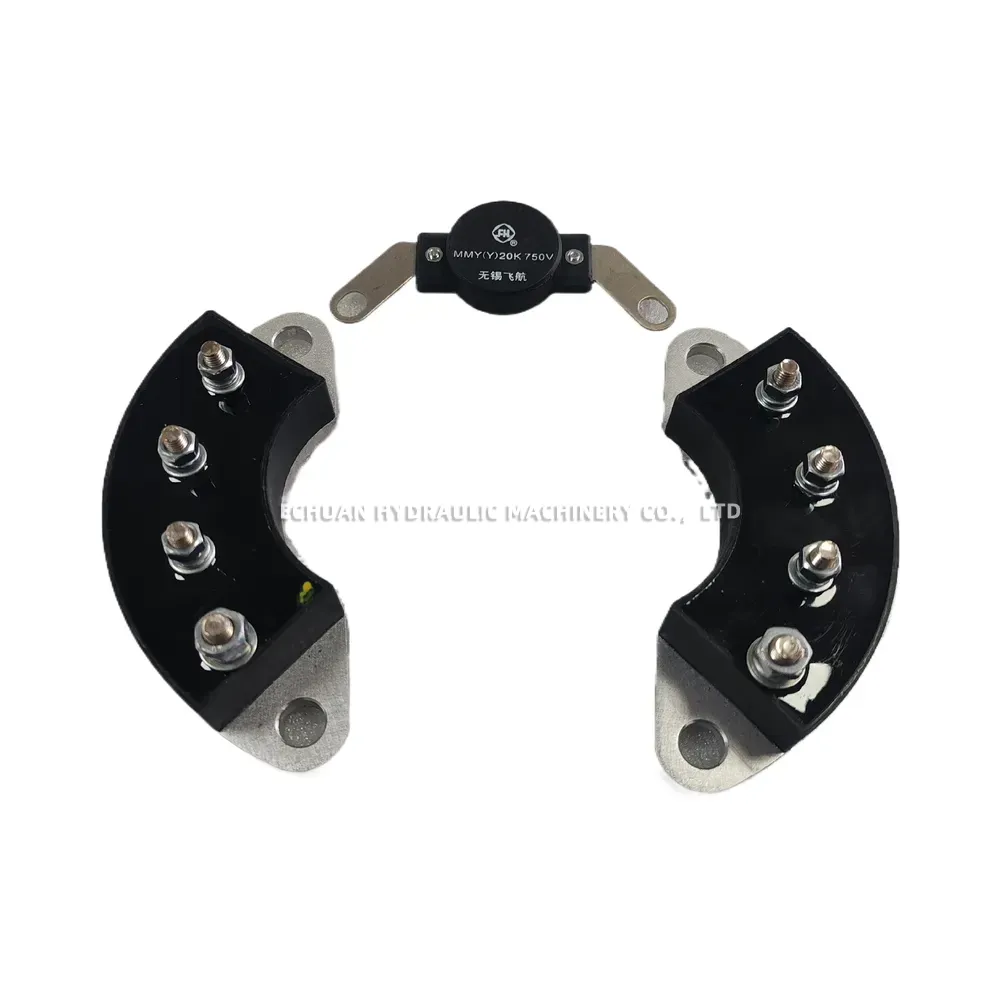

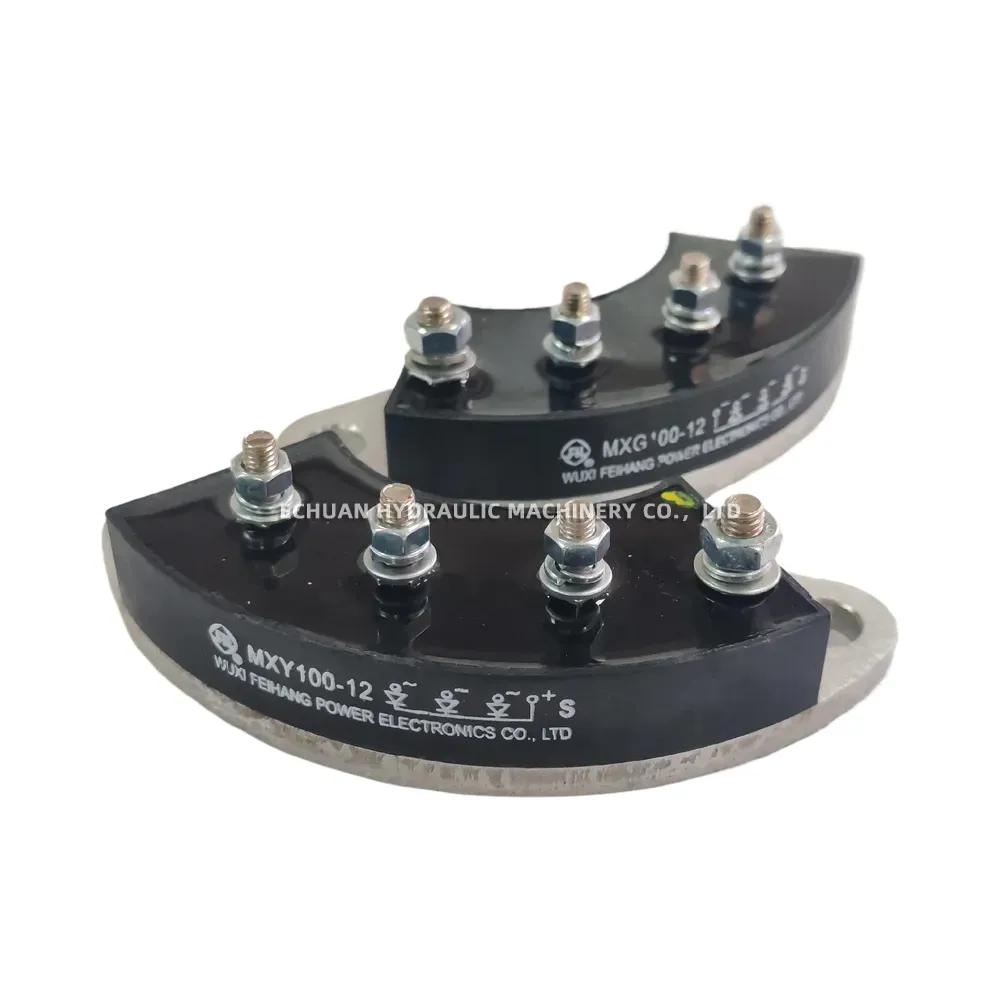

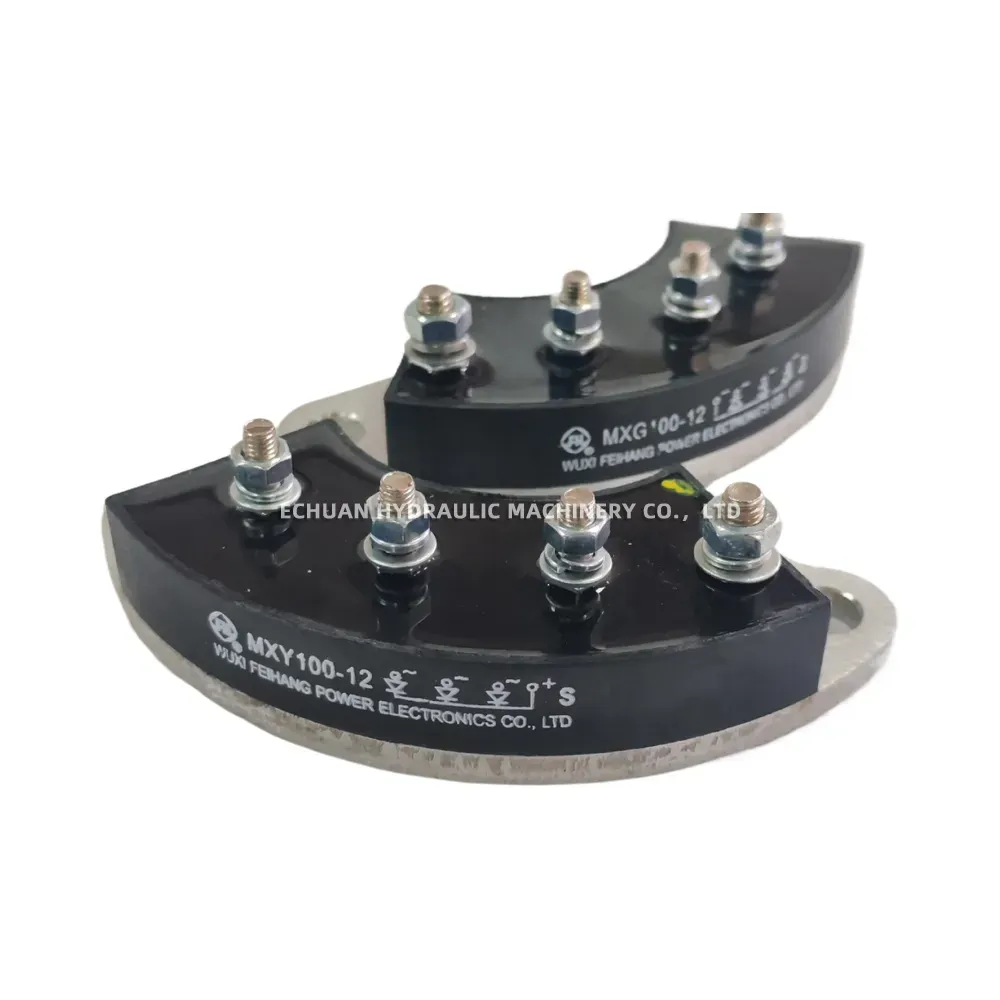

Wuxi Feihang MXY100-12 / MXG100-12 / MMY(Y)20K Three-Phase Rectifier Bridge Assembly
The Wuxi Feihang MXY100-12 and MXG100-12 semi-circular rectifier modules, combined with the MMY(Y)20K protective unit, form a highly reliable three-phase rotating rectifier bridge assembly. Engineered specifically for industrial power electronics and brushless alternators, this assembly provides highly efficient AC to DC power conversion. The rectifier modules feature a robust 100A current capacity and a 1200V peak inverse voltage rating, ensuring stable and continuous operation under heavy industrial loads. Heavy-duty bolted terminals allow for secure, low-resistance high-current connections, while the integrated metal baseplates ensure exceptional thermal conductivity and heat dissipation. Furthermore, the system includes the MMY(Y)20K 750V surge suppressor unit, which actively protects the diode bridge and generator windings from damaging voltage spikes and transient surges.
Technical Specifications:
- Brand: Wuxi Feihang Power Electronics Co., Ltd.

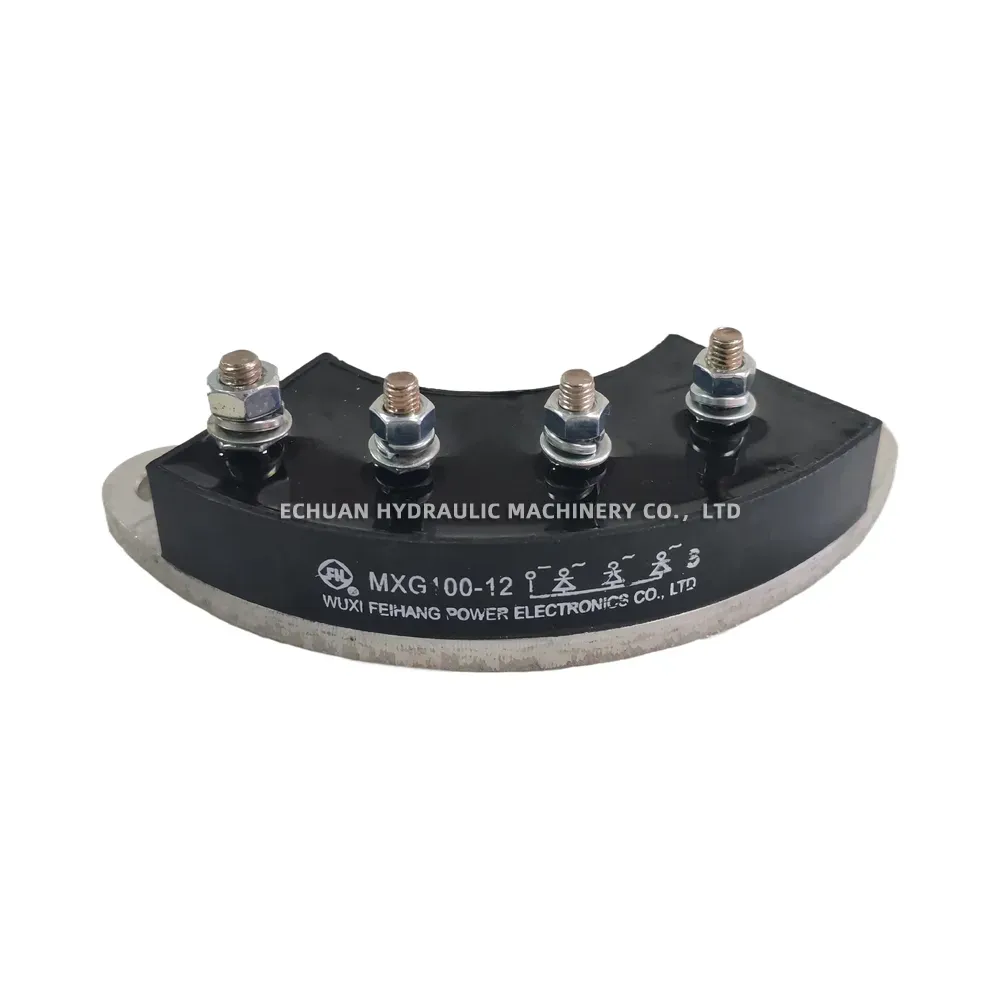

- Model Numbers: MXY100-12 (Forward) / MXG100-12 (Reverse) / MMY(Y)20K
- Current Rating (Io): 100A
- Voltage Rating (Vrrm): 1200V (Rectifier Modules)

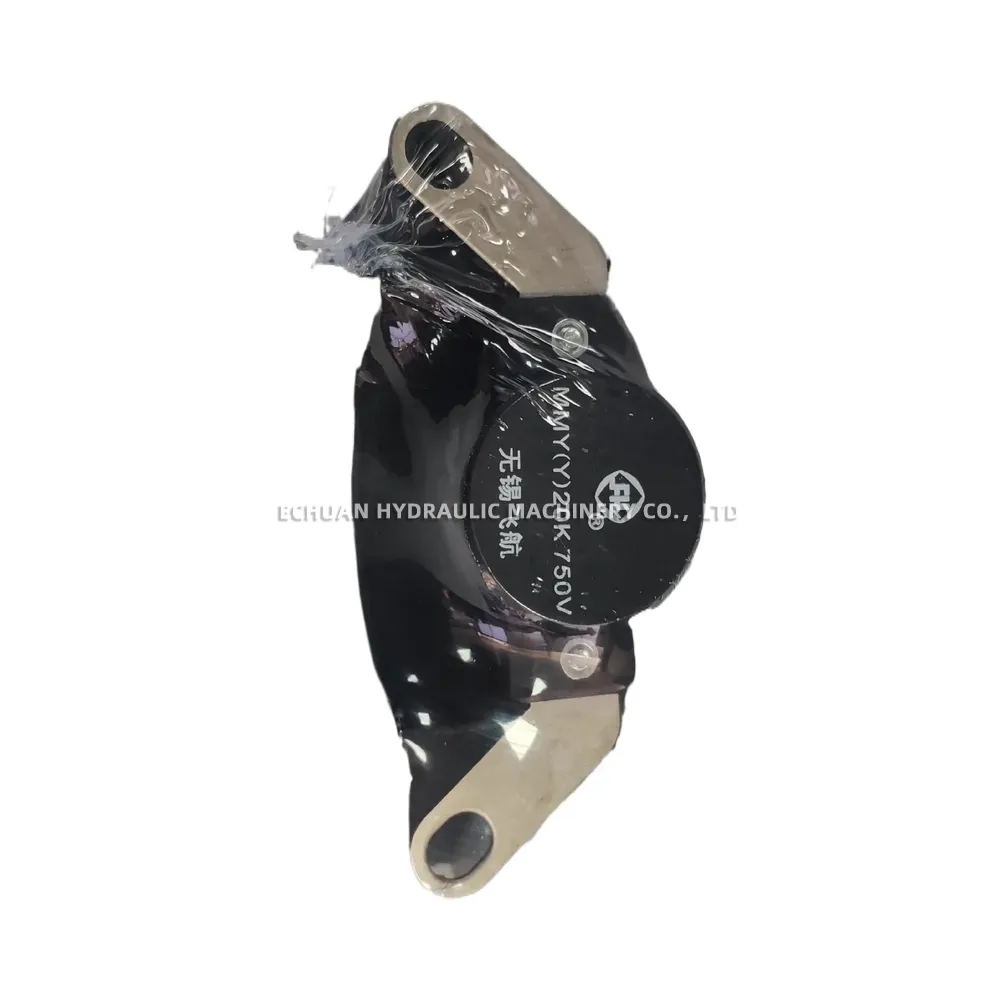

- Surge Protection: MMY(Y)20K Resistor/Varistor Unit (750V Rating)

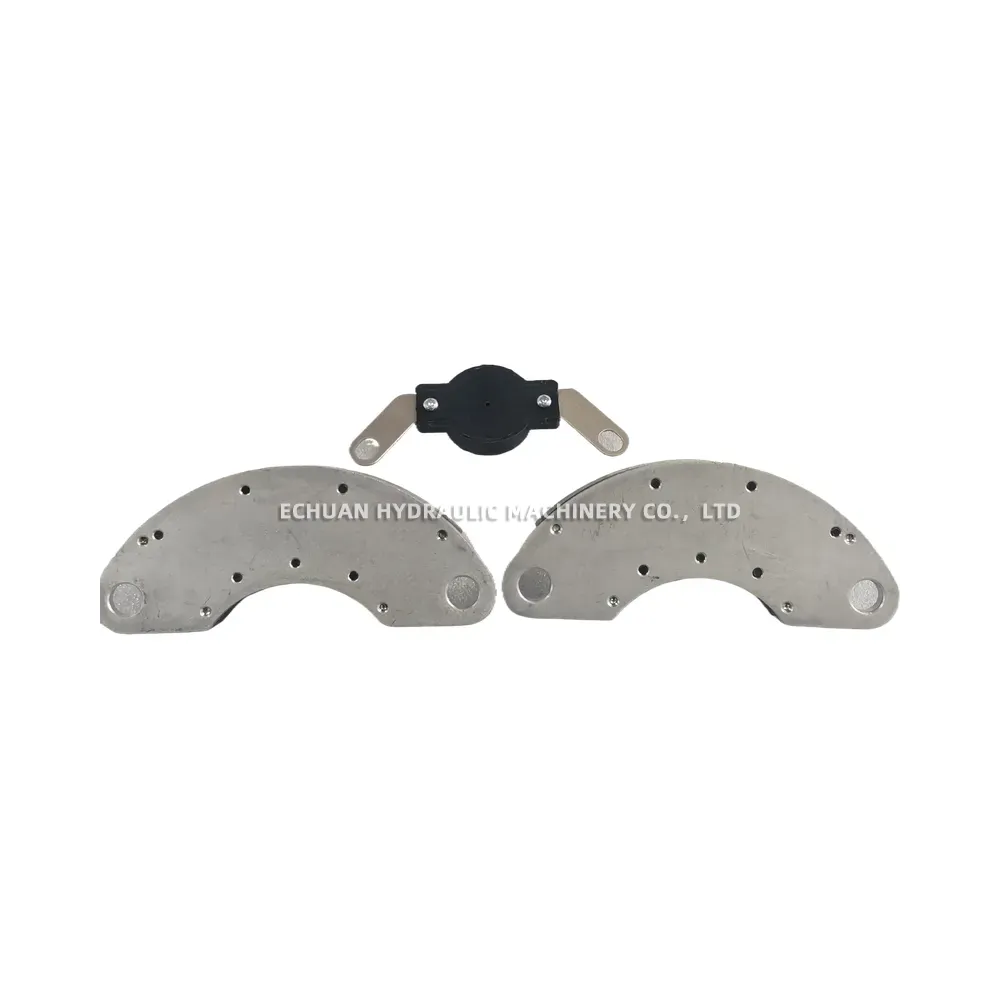

- Form Factor: Semi-circular modules with bolted terminals and metal baseplates
Wuxi Feihang MXY100-12 / MXG’00-12 / MMY(Y)20K Three-Phase Rectifier Bridge Assembly
Optimize your generator’s performance with the Wuxi Feihang MXY100-12 / MXG100-12 Three-Phase Rectifier Bridge Assembly. Rated at 100A and 1200V, this industrial-grade rotating rectifier set features metal baseplates for superior cooling and includes an MMY(Y)20K 750V surge suppressor for ultimate circuit protection. Ideal for brushless alternator maintenance and repair.
