Product Description

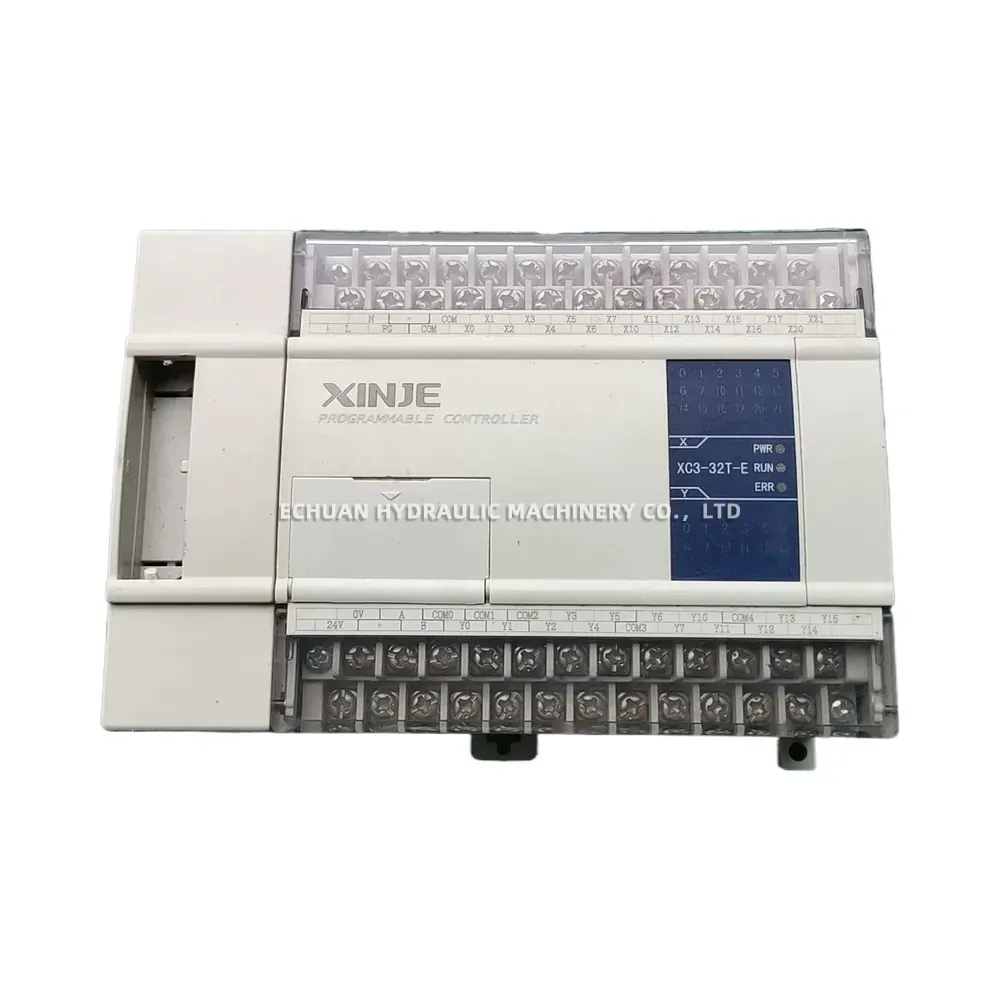

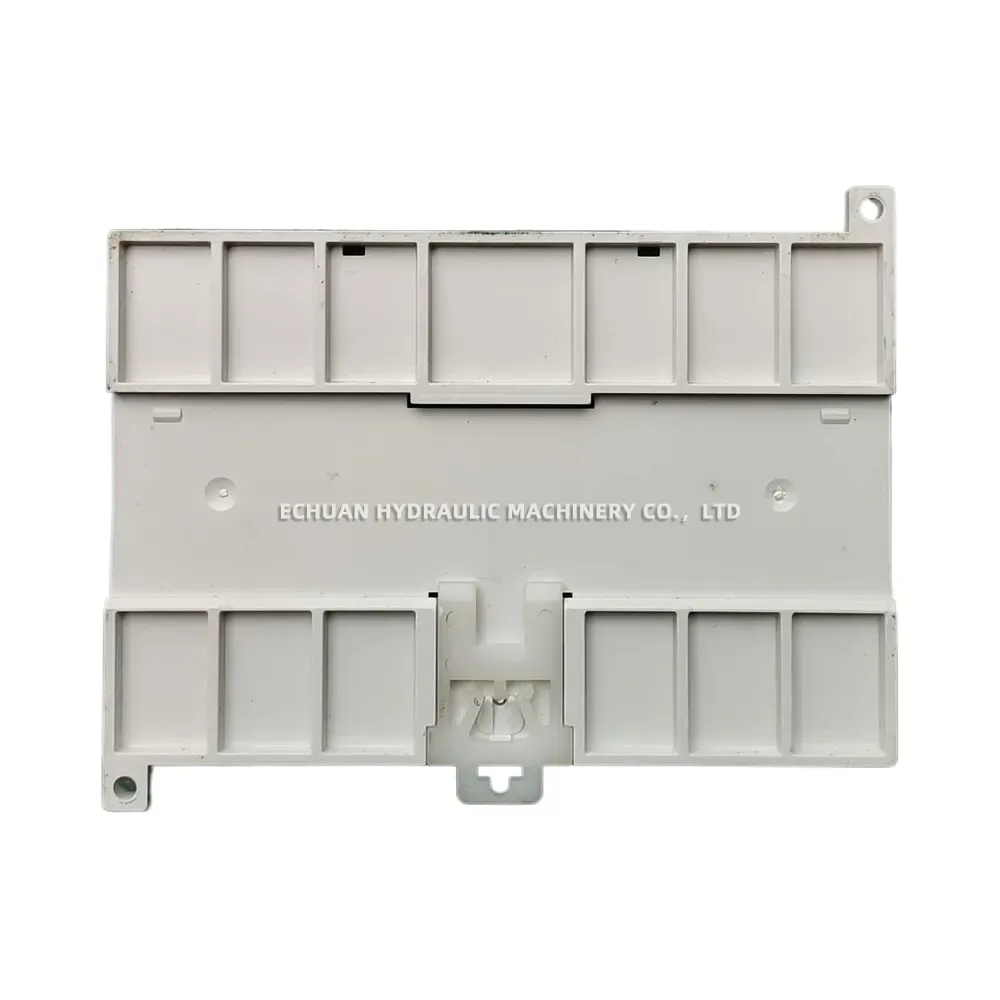

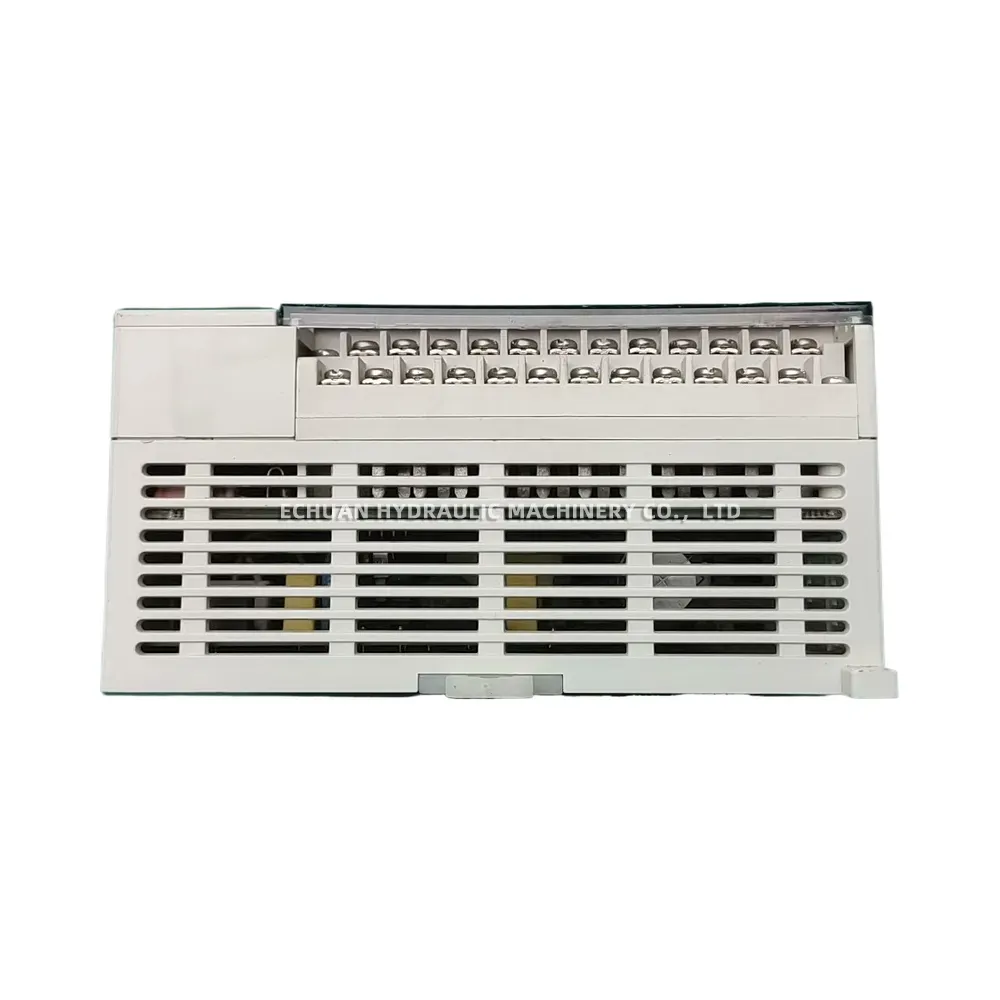

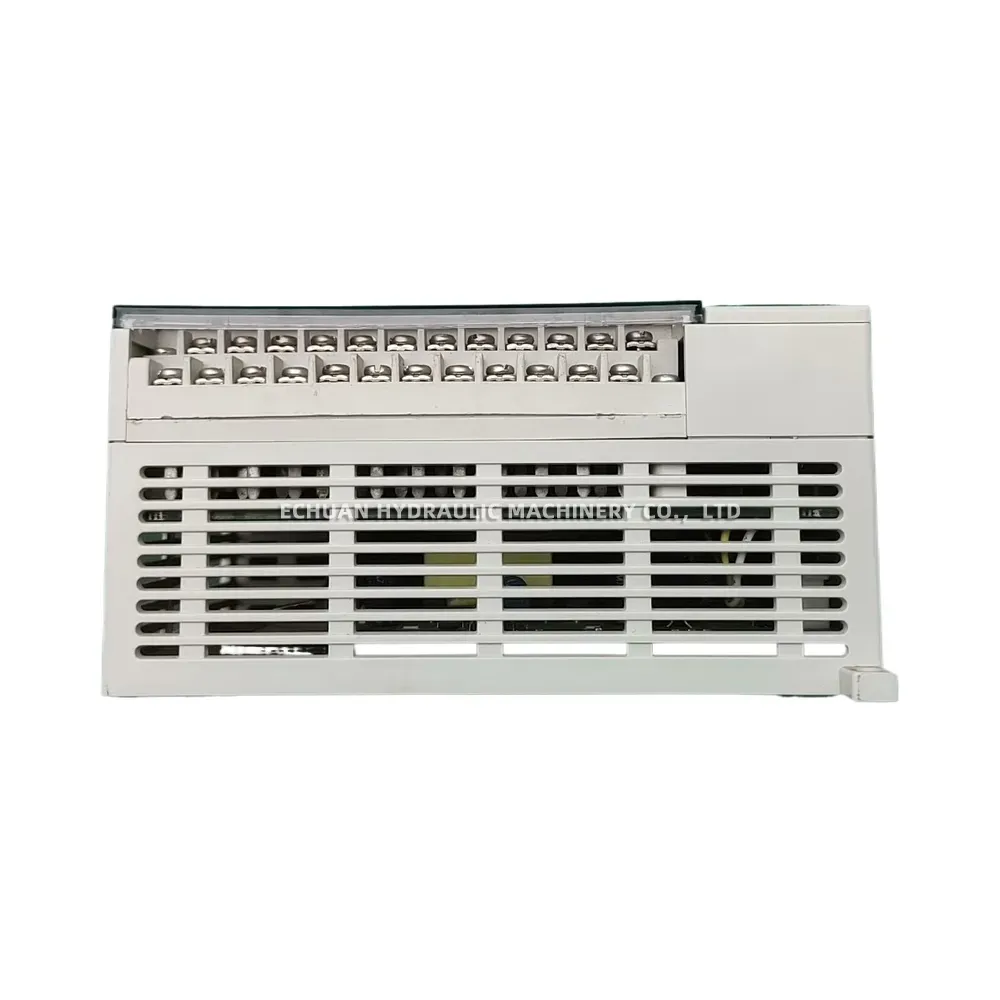

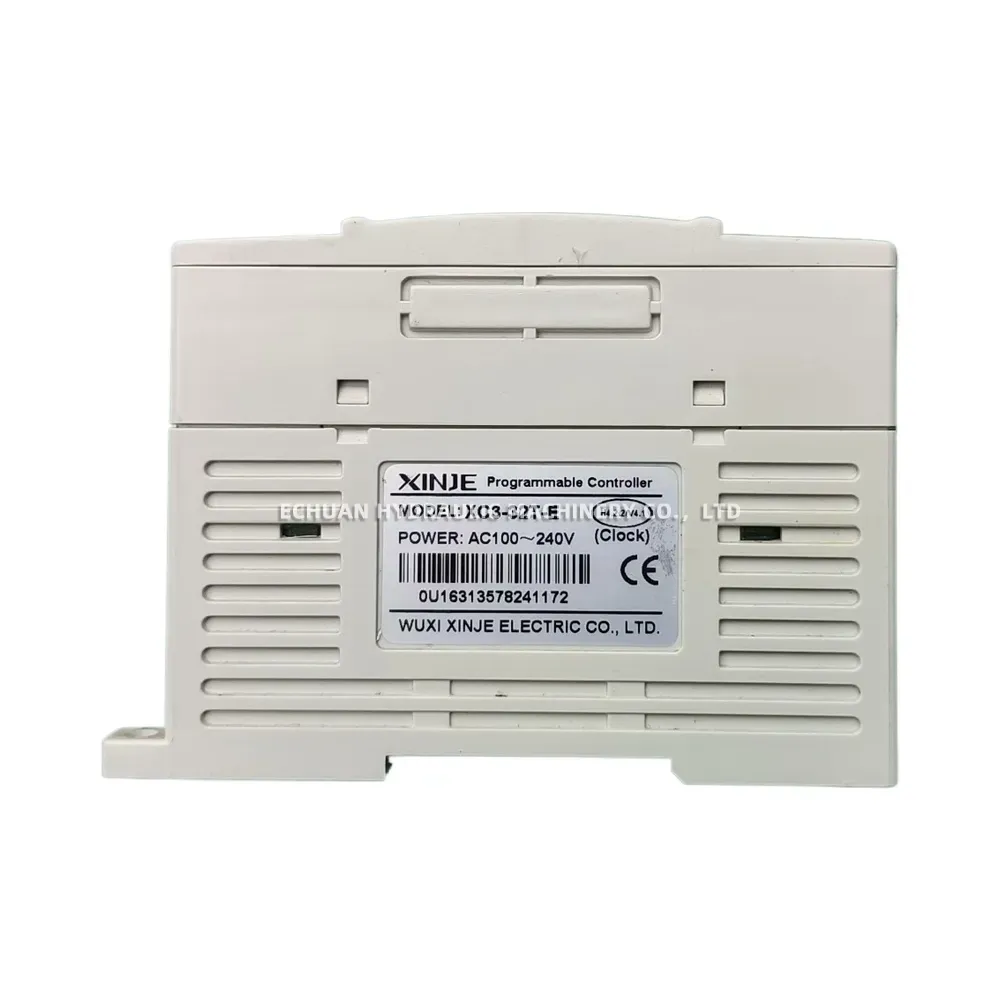

XINJE XC3-32T-E Programmable Controller

The XINJE XC3-32T-E is a high-performance programmable logic controller (PLC) from the XC3 series, engineered for a wide array of industrial automation tasks. Operating on a flexible AC100~240V power supply, this compact unit is both powerful and versatile. It is equipped with 16 digital inputs and 16 high-speed transistor outputs, making it ideal for applications requiring precise motion control and rapid response times. Key features include a built-in real-time clock for scheduling and time-stamping operations, and robust communication capabilities via integrated RS232 and RS485 ports. The XC3-32T-E provides a reliable and cost-effective solution for controlling machinery, processes, and automated systems.

Technical Specifications:

  • Model: XC3-32T-E
  • Power Supply: AC100~240V
  • Digital Inputs: 16 points
  • Digital Outputs: 16 points (Transistor type, NPN)
  • Program Capacity: 128K steps
  • Communication Ports: 1x RS232, 1x RS485
  • Special Functions: Built-in Real-Time Clock (RTC)

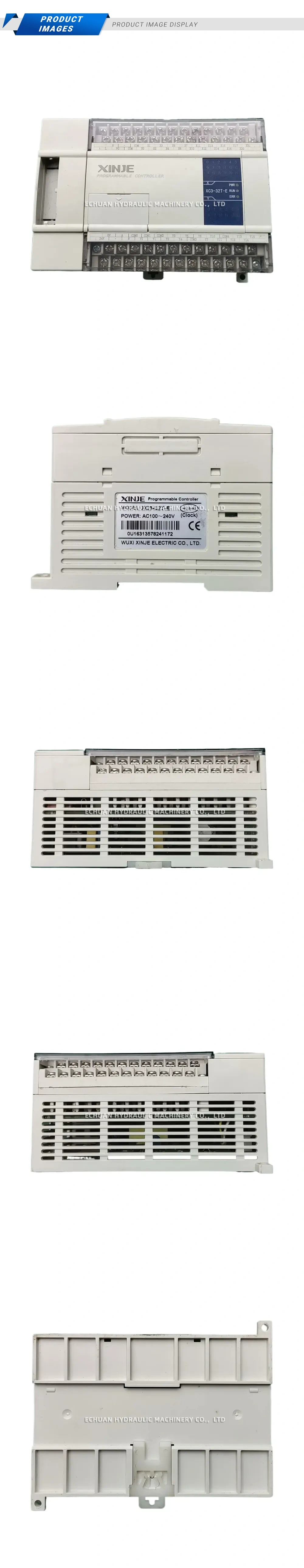

XINJE XC3-32T-E Programmable Controller Description

XINJE XC3-32T-E Programmable Controller

Discover the XINJE XC3-32T-E PLC, a compact programmable controller featuring 16 digital inputs, 16 transistor outputs, and an AC100-240V power supply. Perfect for industrial automation with a built-in clock and RS232/RS485 communication ports.
