Product Description
XT-06 Manual Indexing Head

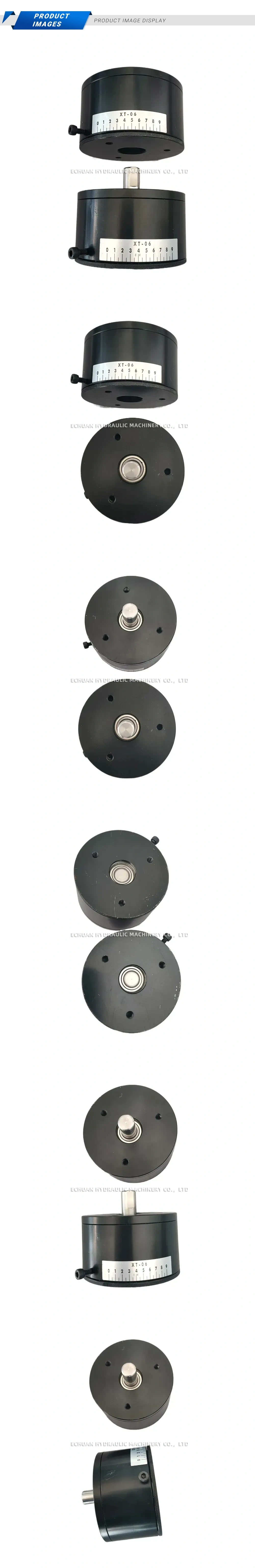

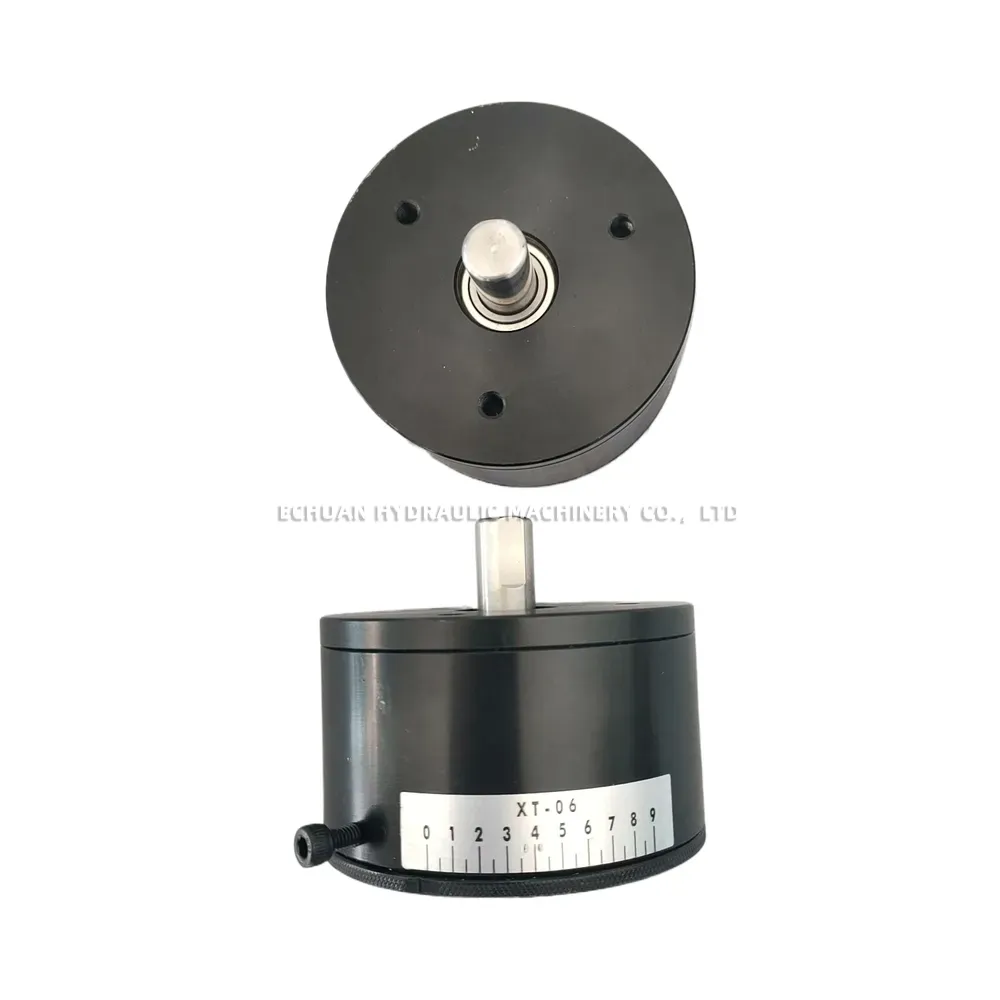

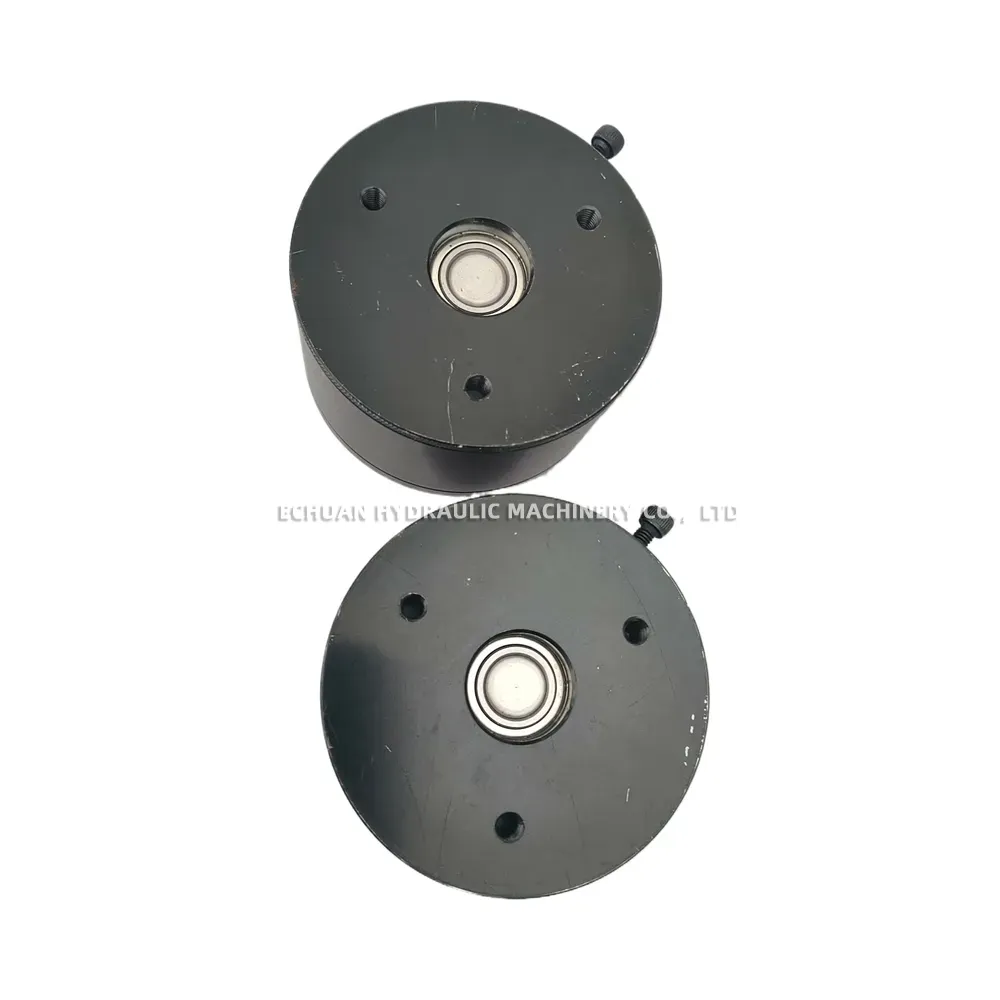

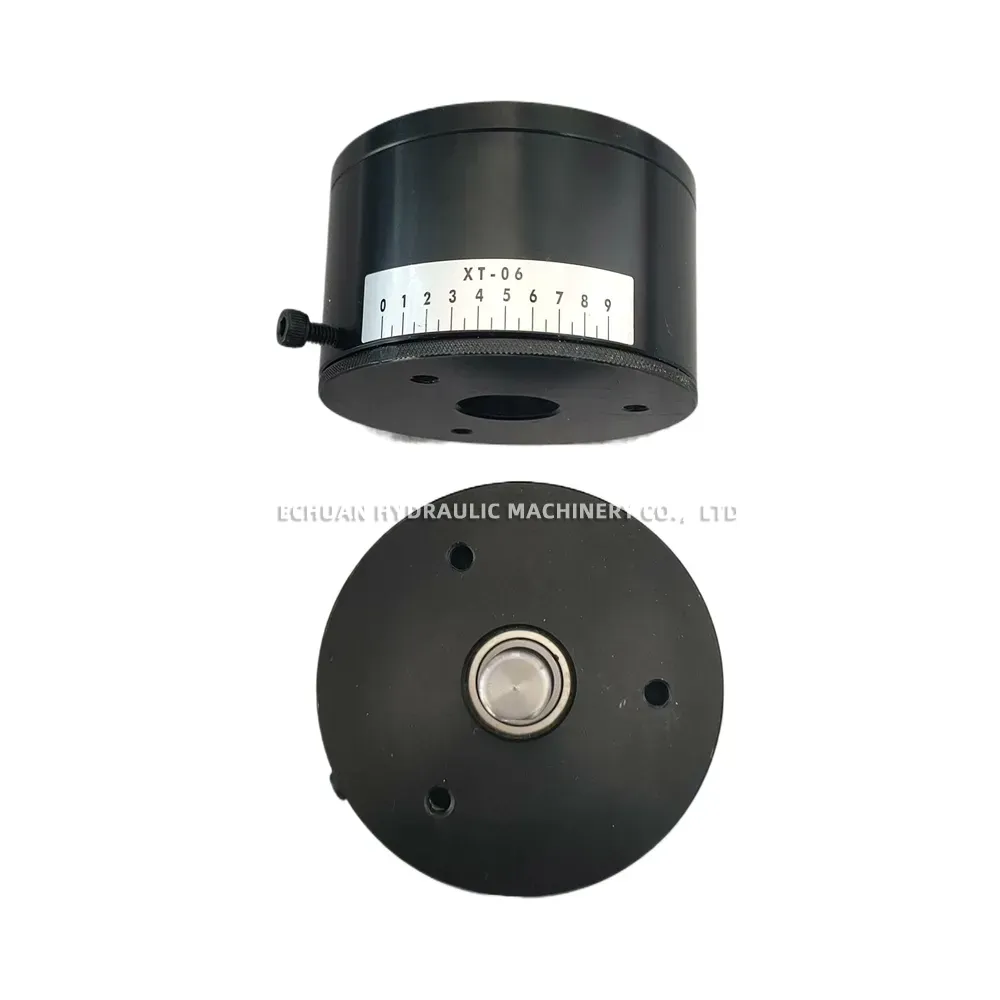

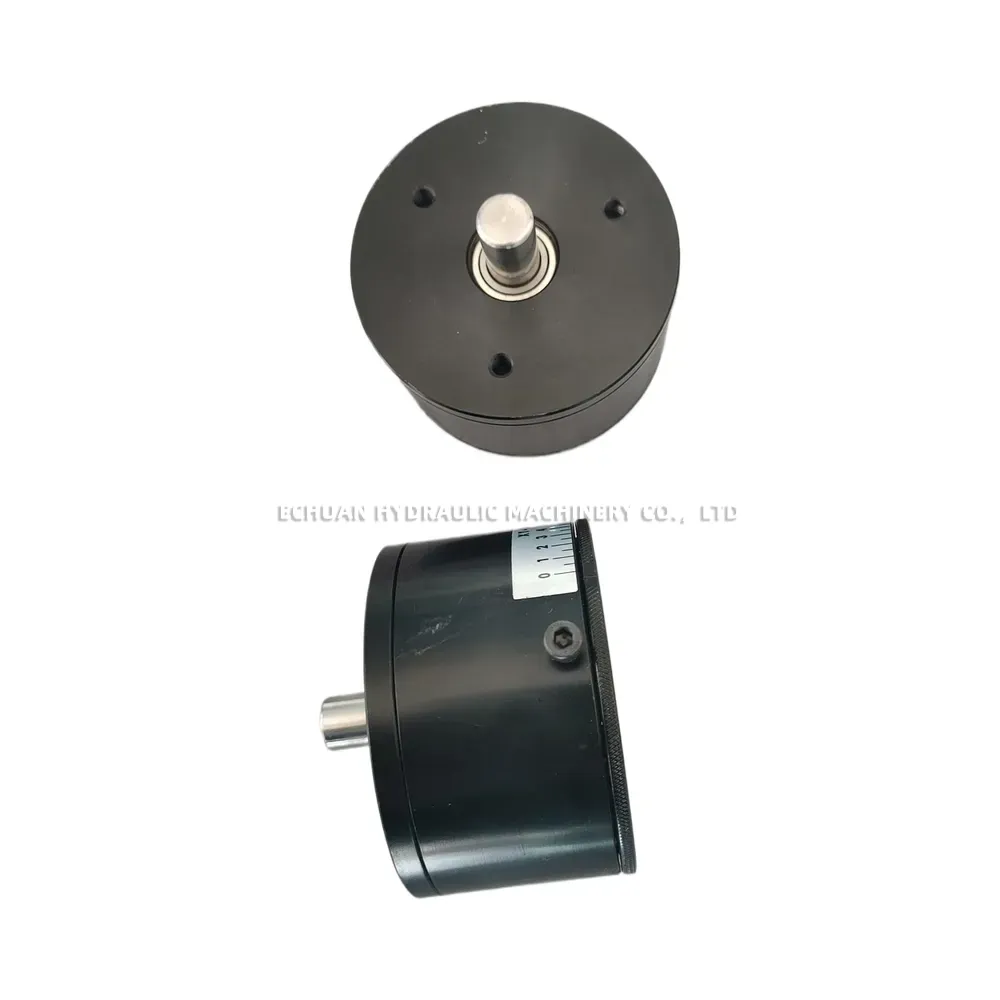

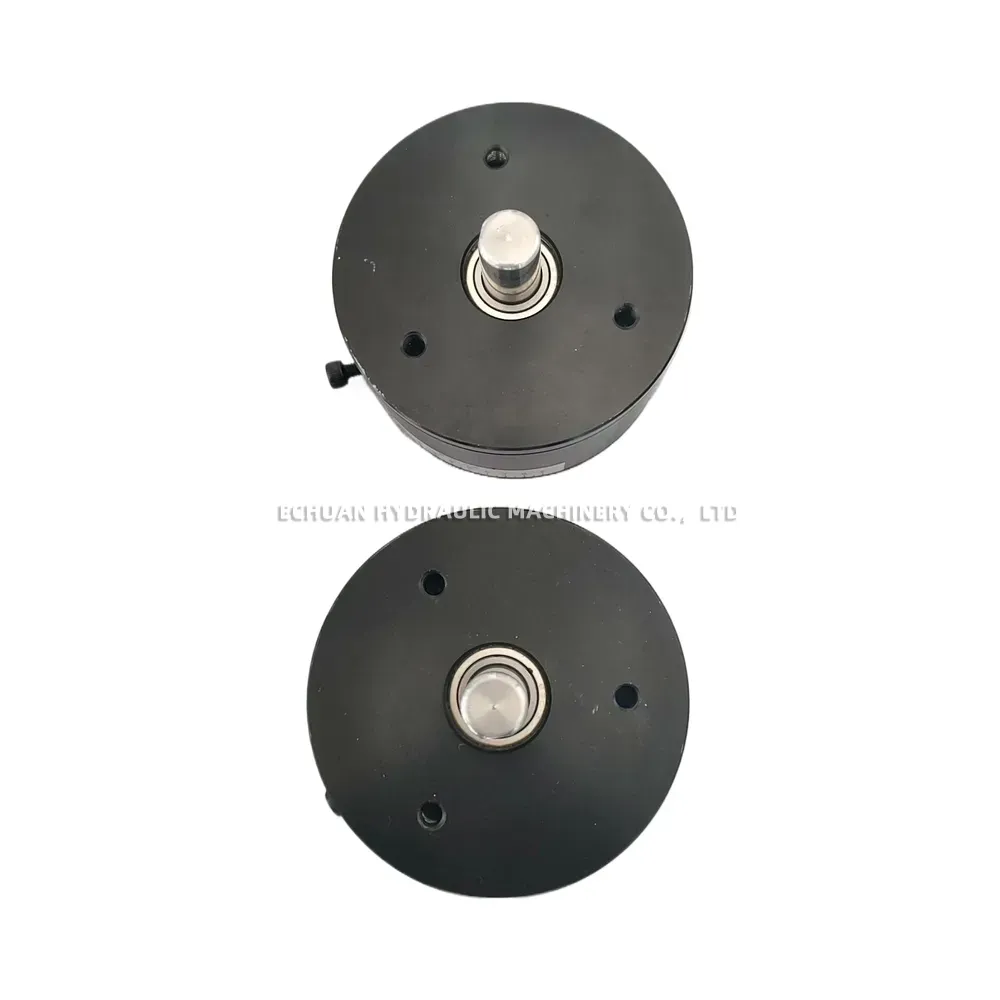

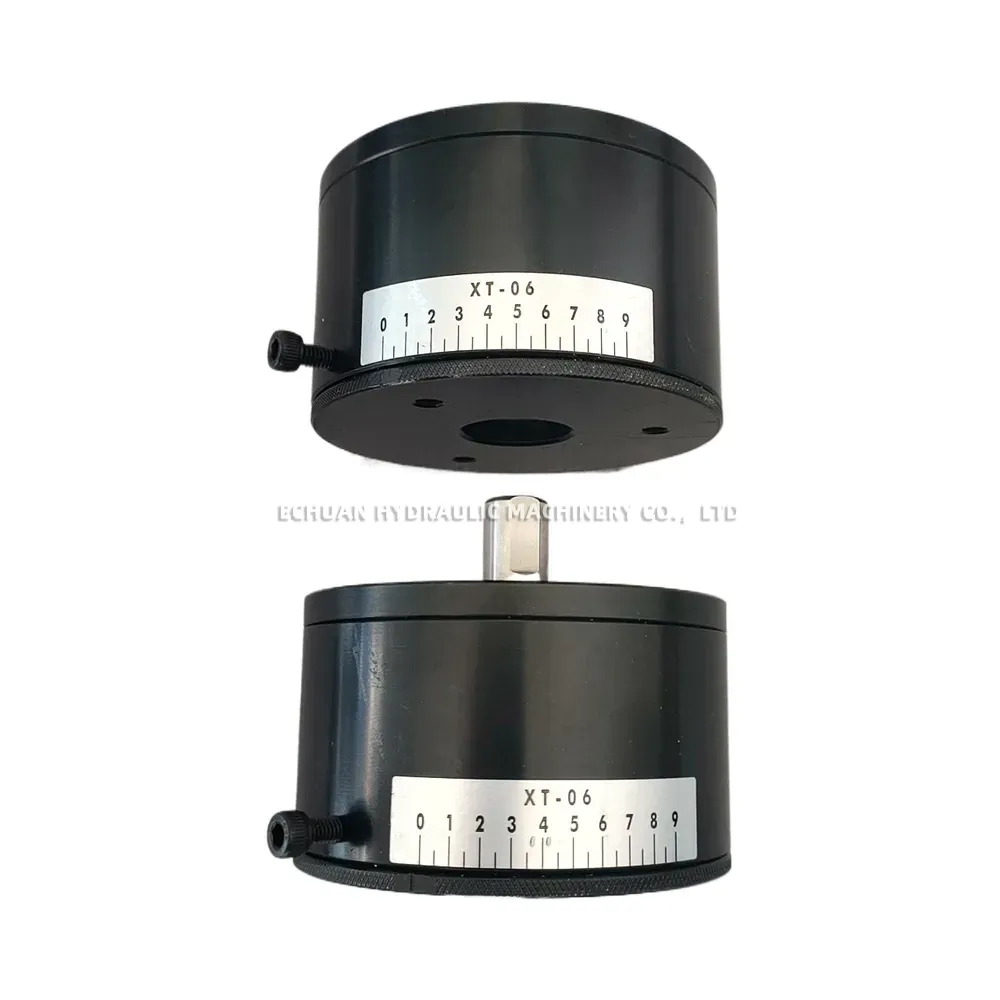

The XT-06 Manual Indexing Head is a robust and highly accurate cylindrical mechanical indexing device engineered for precise angular positioning in industrial applications. Constructed with a durable black housing—utilizing anodized aluminum and high-grade steel—it features a clear, easy-to-read graduated scale labeled from 0 to 9. The unit is designed around a central D-shaped drive shaft supported by a smooth bearing assembly, ensuring reliable and repeatable rotational adjustments. For secure installation and operation, it includes pre-drilled mounting holes on its circular flange and a convenient side locking screw to firmly hold your selected position in place without slipping.
Technical Specifications:
- Model: XT-06
- Scale Range: Graduated 0-9 dial for precise mechanical positioning
- Drive Shaft: Central D-shaped bore for secure, slip-free torque transmission
- Locking Mechanism: Integrated side locking screw for rigid position securing
- Mounting Style: Circular flange equipped with pre-drilled mounting holes
- Construction & Finish: Heavy-duty black housing with internal bearing assembly for smooth rotation
XT-06 Manual Indexing Head
Upgrade your industrial machinery with the XT-06 Manual Indexing Head. Featuring a precise 0-9 graduated scale, a secure D-shaped drive shaft fitting, and a reliable side locking screw, this durable mechanical indexer delivers exact angular positioning and repeatability for automation, packaging, and tooling setups.
