Product Description

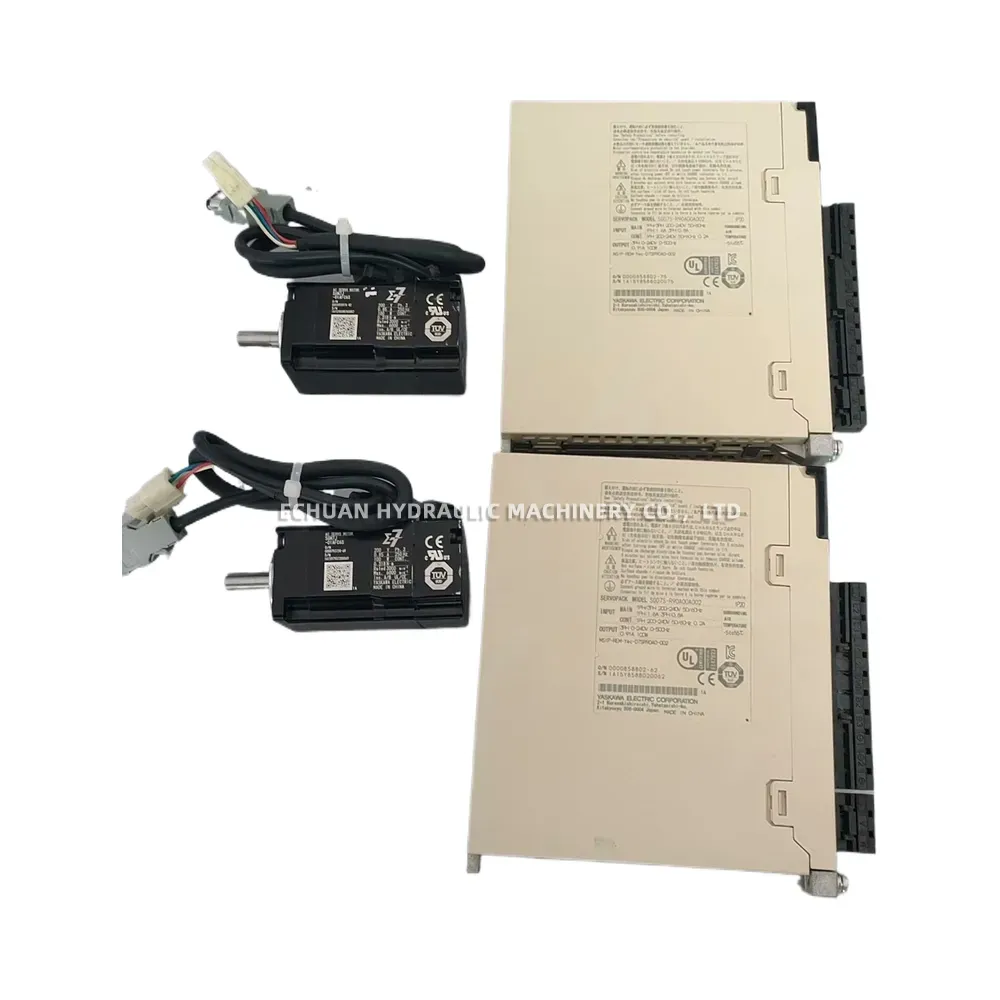

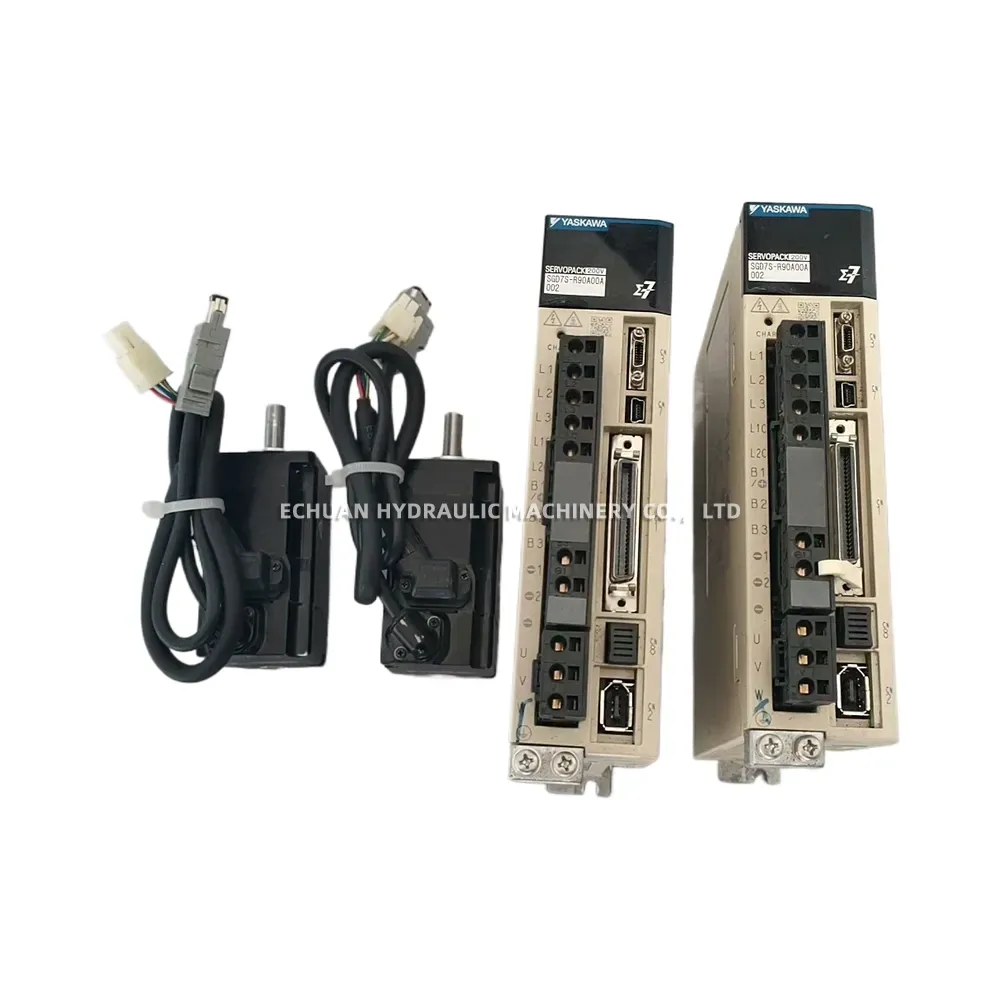

Yaskawa SGD7S-R90A00A002 / SGM7J-01AFC6S AC Servo Drive and Motor Set
The Yaskawa SGD7S-R90A00A002 and SGM7J-01AFC6S set is a high-performance AC servo drive and motor combination from the industry-leading Sigma-7 series. Designed for advanced industrial automation, this 100W system delivers exceptional precision, rapid response times, and reliable operation. The SGD7S SERVOPACK drive features versatile 1-phase or 3-phase 200-240V input capabilities and advanced tuning functions to optimize machine performance. Paired with the highly efficient SGM7J servo motor, which boasts a rated speed of 3000 RPM, a maximum speed of 6000 RPM, and 0.318 N·m of rated torque, this paired set is ideal for applications requiring compact, high-speed, and accurate motion control.
Technical Specifications:
- Brand: Yaskawa

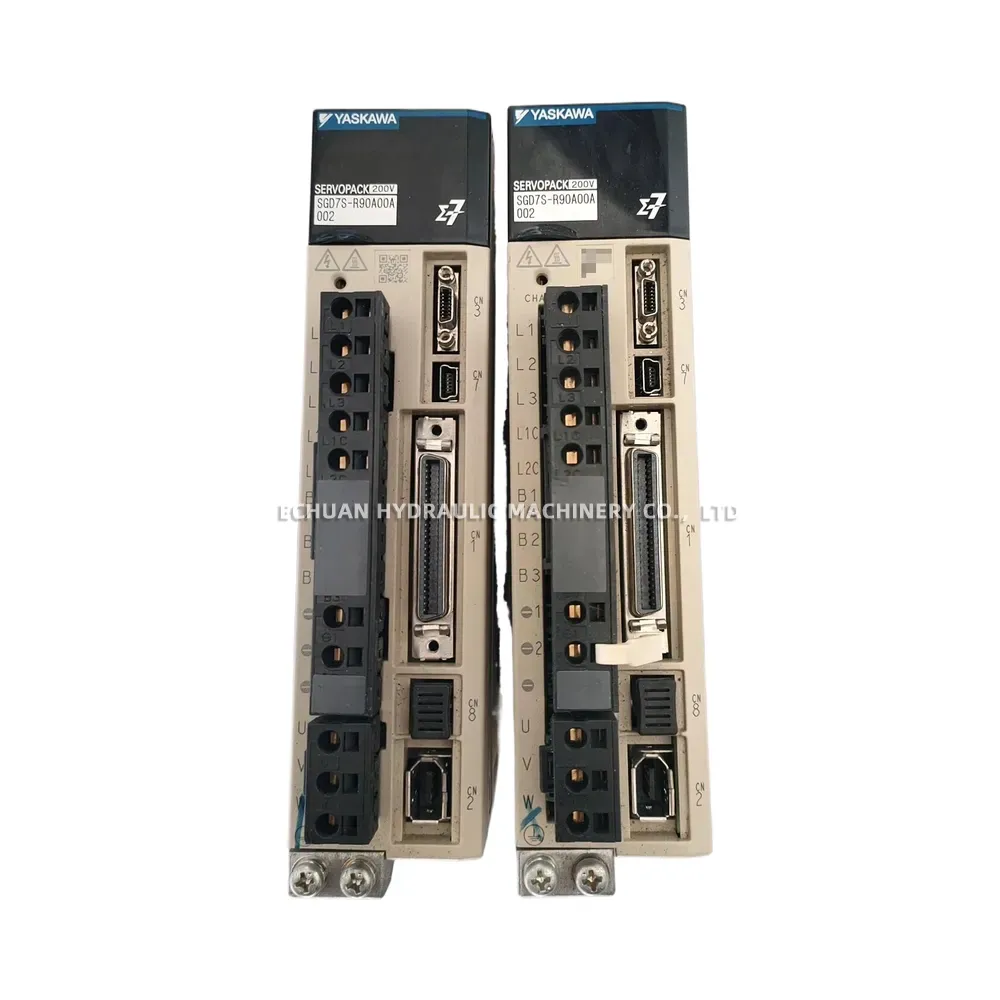

- Drive Model: SGD7S-R90A00A002 (Sigma-7 SERVOPACK)

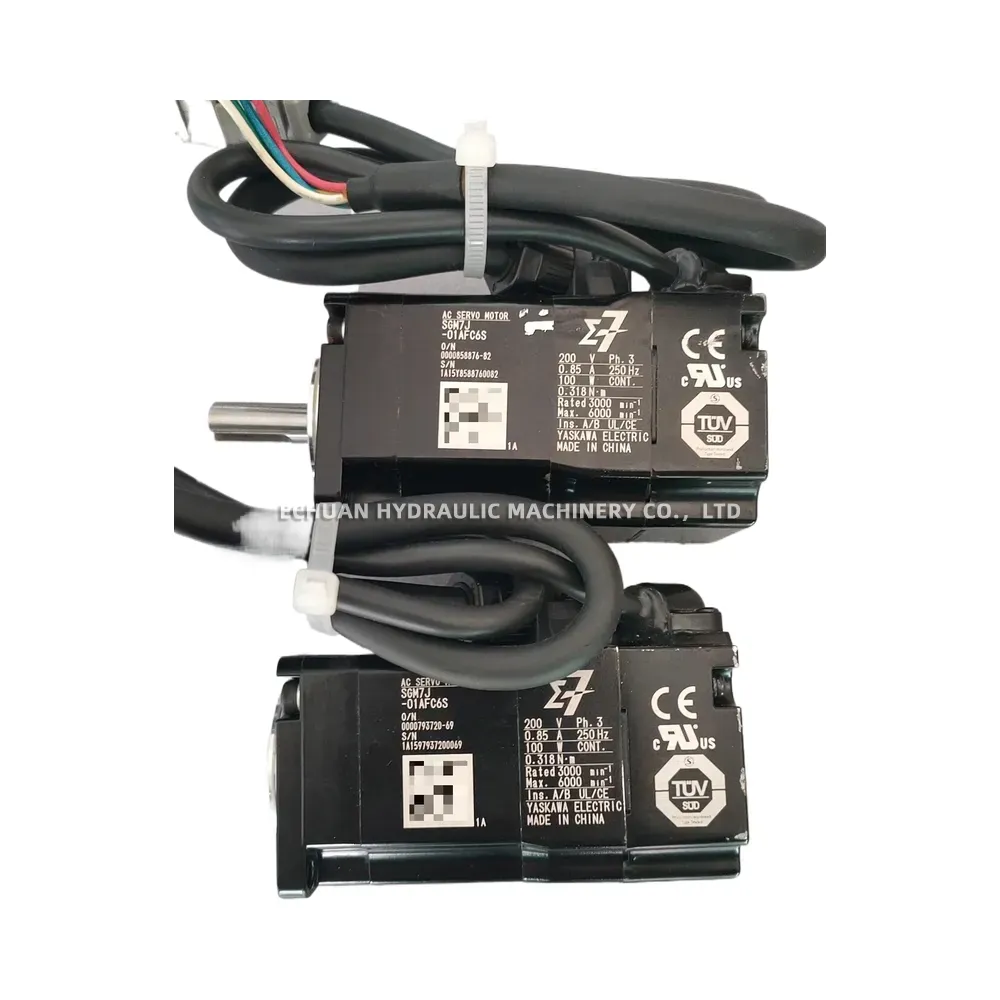

- Motor Model: SGM7J-01AFC6S
- System Power Rating: 100W

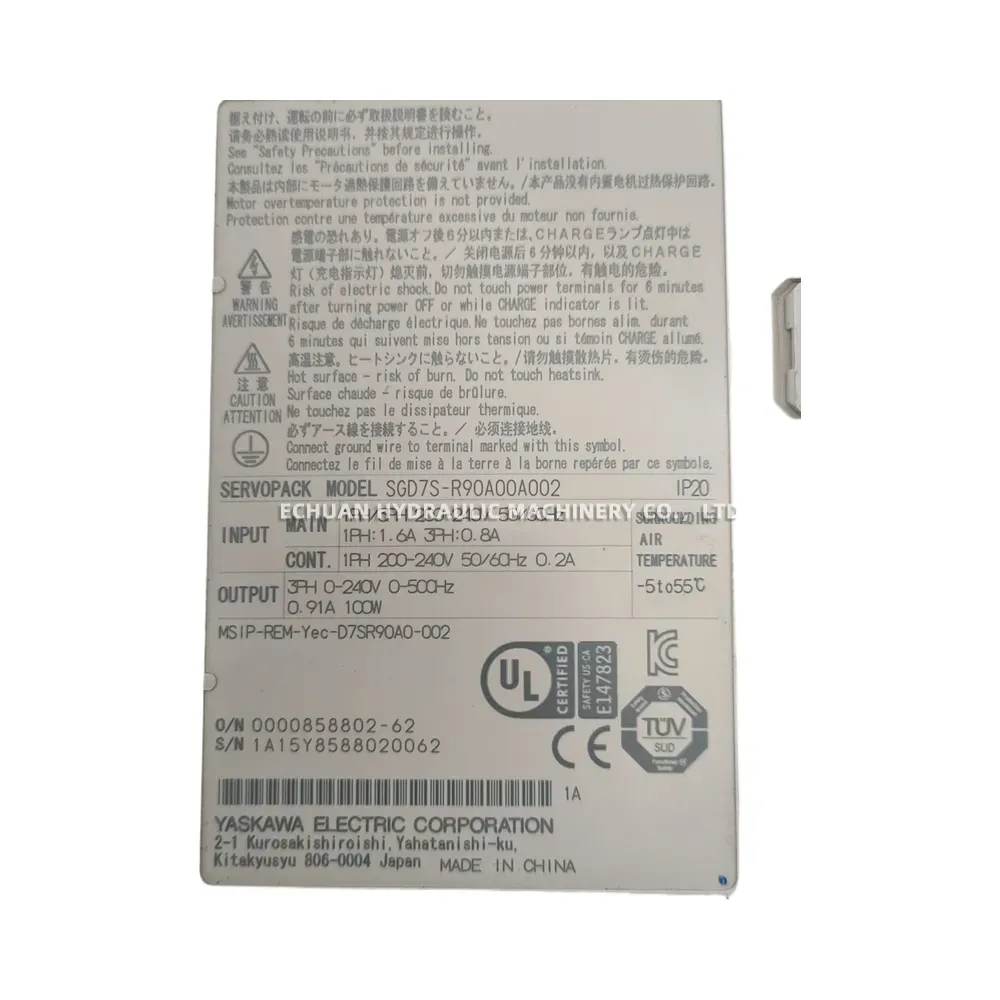

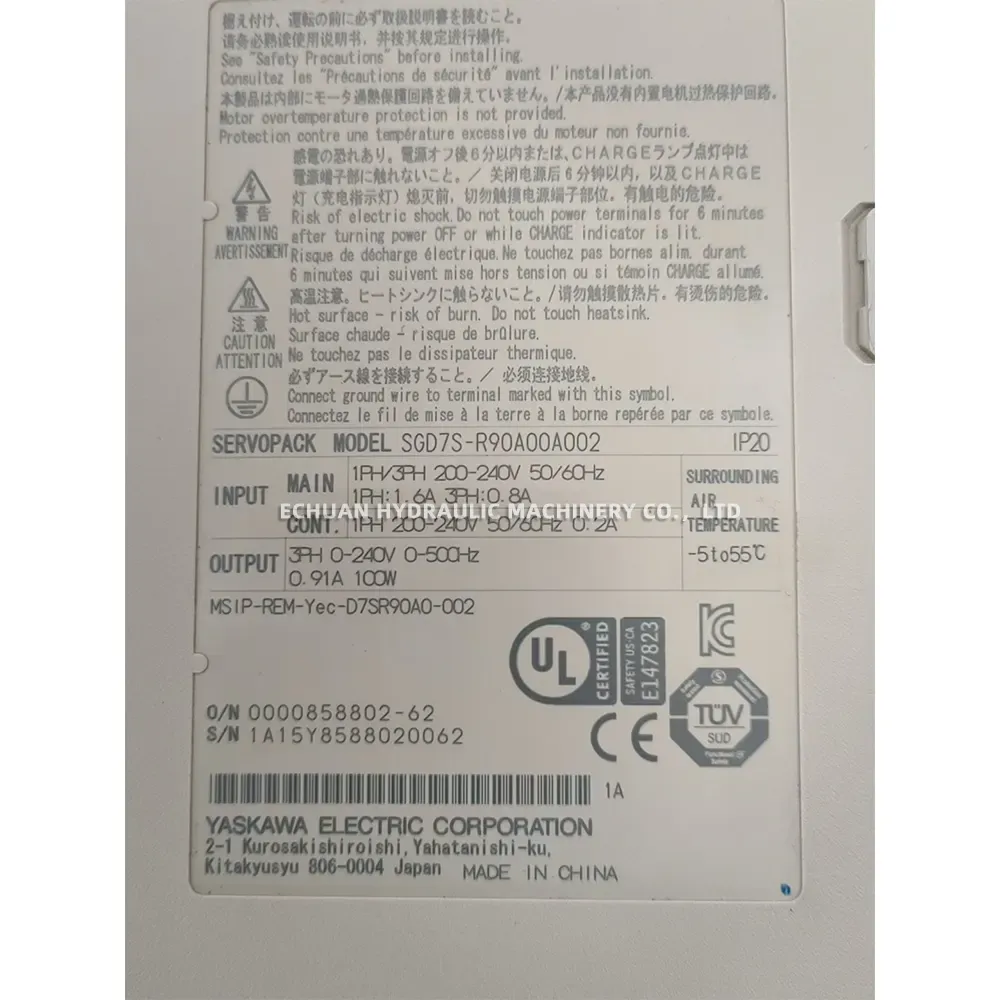

- Drive Input (Main): 1PH/3PH 200-240V 50/60Hz (1PH: 1.6A / 3PH: 0.8A)
- Drive Input (Control): 1PH 200-240V 50/60Hz, 0.2A
- Drive Output: 3PH 0-240V 0-500Hz, 0.91A, 100W
- Motor Rated Voltage & Current: 200V, 0.85A
- Motor Rated Torque: 0.318 N·m
- Motor Speed: Rated 3000 min⁻¹ / Max 6000 min⁻¹
- Operating Temperature (Drive): -5 to 55°C
- Enclosure / Insulation: IP20 (Drive) / Class A/B (Motor)
Yaskawa SGD7S-R90A00A002 / SGM7J-01AFC6S AC Servo Drive and Motor Set
Shop the Yaskawa Sigma-7 SGD7S-R90A00A002 AC Servo Drive and SGM7J-01AFC6S Servo Motor Set. This reliable 100W, 200V motion control package delivers 3000 RPM rated speed and 0.318 N·m torque, providing high-precision performance for your industrial automation machinery.
| Brand | YASKAWA |
|---|---|
| Model | SGD7S-R90A00A002 / SGM7J-01AFC6S |
| Part No. | 1015433967425 |
| Category | Servo motors |
