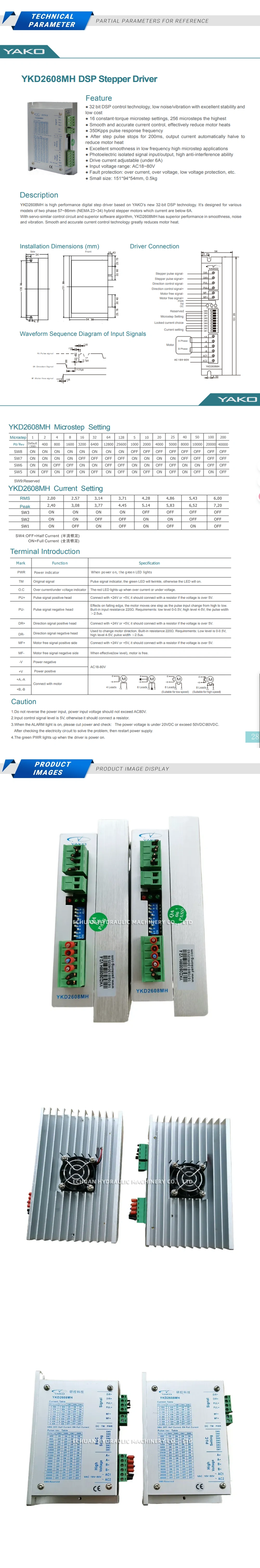

Product Description
YEKO YKD2608MH
The YEKO YKD2608MH is a high-performance digital 2-phase stepper motor driver, engineered with advanced 32-bit DSP control technology. It is designed to provide smooth, quiet, and precise motion control for a wide range of stepper motors, particularly NEMA 23 and NEMA 34 sizes. This driver significantly reduces motor heating, noise, and vibration, enhancing the overall performance and longevity of your automation equipment. With its wide range of micro-stepping resolutions and adjustable output current, the YKD2608MH offers exceptional flexibility for applications such as CNC machines, 3D printers, laser cutters, and other automated systems requiring reliable and accurate positioning.
Technical Specifications:
- Input Voltage: DC 20-60V
- Output Current: 1.8A – 6.0A (Peak) adjustable via DIP switch
- Microstep Resolution: 16 selectable resolutions from 400 to 51200 steps/rev
- Control Signal Input: Pulse/Direction (PUL/DIR) & Clockwise/Counter-clockwise (CW/CCW) modes
- Logic Signal Voltage: Compatible with 5V, 12V, and 24V signals (no current-limiting resistor needed)
- Protection Features: Includes over-voltage, over-current, and phase error protection
YEKO YKD2608MH
Discover the YEKO YKD2608MH, a high-performance digital 2-phase stepper motor driver with DC 20-60V input and 6.0A peak current. Ideal for CNC and automation, it offers low noise, low vibration, and precise control.
| Brand | YEKO |
|---|---|
| Model | YKD2608MH |
| Category | Electrical |
| Link | https://www.echuan-hydraulic.com/product/yeko-ykd2608mh |
