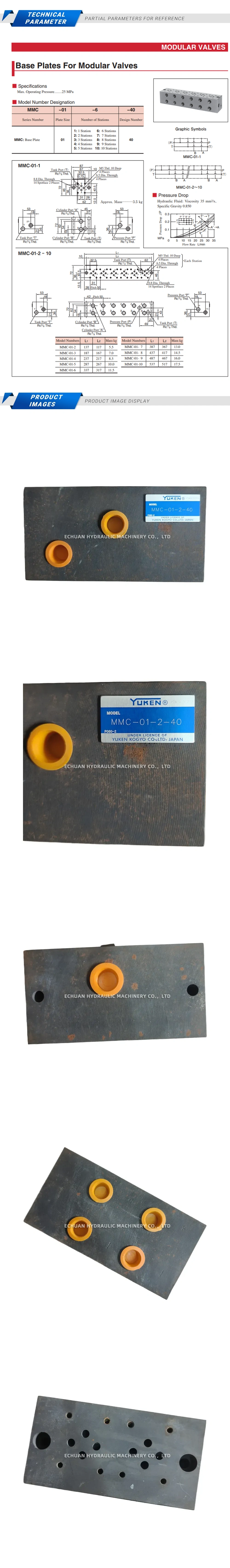

Product Description
YUKEN MMC-01-2-40 Modular Check Valve
The YUKEN MMC-01-2-40 is a high-performance modular check valve designed for reliable operation in hydraulic systems. As part of Yuken’s 01 series, this valve conforms to the CETOP 3 / NG6 / D03 mounting standard, allowing for easy and compact stacking with other modular valves. Its primary function is to permit free fluid flow in one direction while preventing any reverse flow, thereby protecting system components from back pressure and maintaining pressure in specific lines. The MMC-01-2-40 is engineered for durability and precision, making it an ideal choice for a wide range of industrial hydraulic applications where dependable one-way flow control is critical.
Technical Specifications:
- Model: MMC-01-2-40
- Valve Type: Modular Check Valve
- Nominal Size: 01 (NG6 / CETOP 3 / D03)
- Maximum Operating Pressure: 25 MPa (3630 PSI)
- Maximum Flow Rate: 35 L/min (9.25 U.S. GPM)
- Cracking Pressure: 0.2 MPa (29 PSI / 2 bar)
- Approximate Weight: 0.6 kg (1.3 lbs)
YUKEN MMC-01-2-40
Buy the Yuken MMC-01-2-40, a reliable NG6 / CETOP 3 modular check valve. This hydraulic valve ensures one-way flow control with a 2 bar cracking pressure, ideal for industrial applications.
