Hydraulic systems serve as the core power source for a multitude of industries, providing comprehensive support for construction machinery, manufacturing equipment, aircraft control systems, and even automotive braking systems. Their operating principle is based on the transmission of power through an incompressible fluid—most commonly, hydraulic oil. However, despite the extreme durability of these systems, they face an invisible and ubiquitous adversary: contamination. It is precisely here that the filtration process steps in, acting as a silent hero to ensure the system’s long-term durability, efficiency, and high-performance operation.
Consider a hydraulic system as a complex circulatory system, with the hydraulic fluid serving as its very lifeblood. Just as our bodies require pure blood to function properly, a hydraulic system demands clean fluid. Even particles too minute to be seen with the naked eye can inflict catastrophic damage. Why, then, is filtration not merely important, but absolutely critical?
1. The Silent Destroyer: How Contamination Harms Your System
① Abrasive Wear: This is the most common type of damage. Even hard particles smaller than the clearance between moving parts act like miniature grinding tools. They abrade components such as valve spools, cylinder walls, and the gears within pumps and motors, leading to increased internal leakage and reduced efficiency. Imagine putting sand into an engine—the consequences are catastrophic!

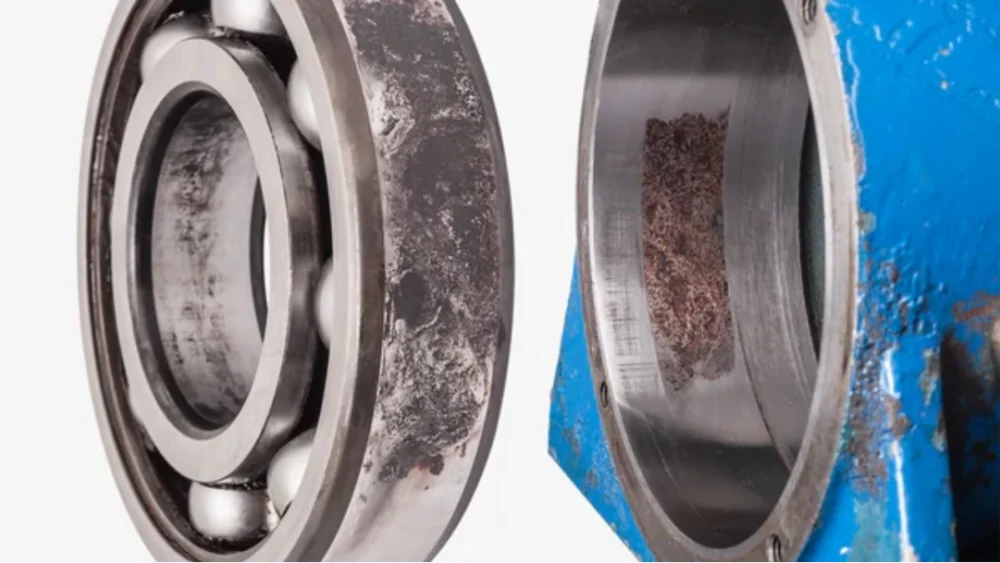

② Fatigue Damage: Contaminants (particularly moisture) accelerate wear on metal surfaces, causing stress-bearing components—such as gears and bearings—to develop cracks and eventually fail.
③ Corrosion Processes: Moisture, a common contaminant, reacts with hydraulic fluid and metal surfaces to generate corrosive byproducts. This leads to pitting and rust formation, compromising component strength and generating even more contaminant particles.
④ Component Failure: Particles can become lodged within precise mating clearances, causing valve spools to stick, reducing suction at pump inlets, and resulting in erratic actuator movement—or even complete seizure. This leads to additional production delays, equipment downtime, and even safety hazards.
⑤ Fluid Degradation: Oxidation and high temperatures are the primary enemies of hydraulic fluid. Metal particles play a critical role here, acting as catalysts that accelerate these degradation processes. This shortens the fluid’s service life, necessitating more frequent—and costly—maintenance and adjustments.
2.The Silent Guardian: How Filtration Turns the Tide
Filtration refers to the process of removing solid particles from hydraulic fluid. A well-designed filtration system acts as a multi-tiered safety defense mechanism, protecting the critical components within the hydraulic system.
① Extending Component Lifespan: By removing solid particles, filtration technology significantly reduces wear on critical components such as pumps, motors, cylinders, and hydraulic valves. This extends the service life of expensive components, thereby lowering maintenance and replacement costs.
② Enhancing System Efficiency: Reduced wear means that components can maintain tighter operating clearances, thereby minimizing internal leakage within the system. This ensures that the power generated by the pump is efficiently transmitted to the actuators, preventing “sluggish” operation and enabling the system to maintain high levels of performance.
③ Reducing Downtime and Maintenance Costs: A lower component failure rate translates directly into a reduction in unplanned maintenance time. Proactive filtration significantly reduces the need for emergency repairs, making maintenance scheduling more predictable and resulting in substantial cost savings.
④ Extending Fluid Lifespan: By removing the “catalysts” that accelerate fluid degradation and by keeping the fluid clean, filters enable hydraulic oil to maintain optimal performance over a longer period. This reduces the frequency of costly fluid replacements as well as associated disposal costs.

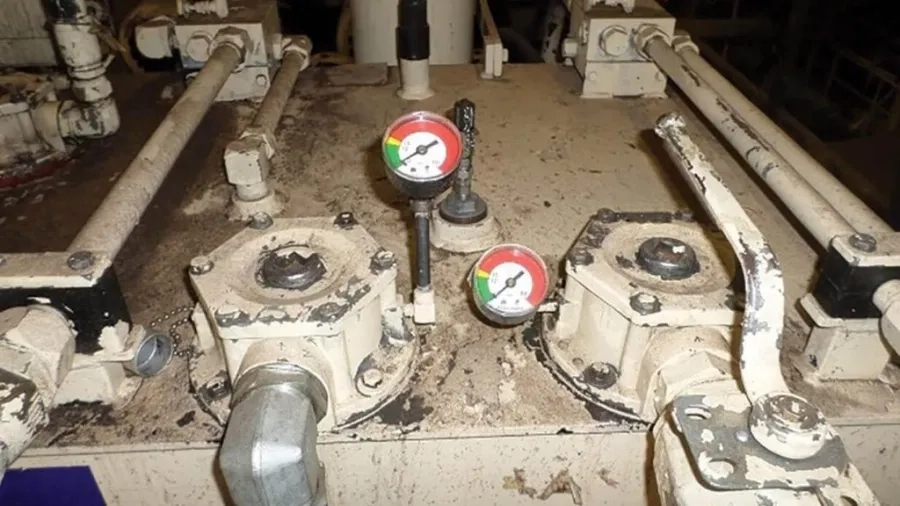

⑤ Enhancing Safety:A smoothly operating hydraulic system is inherently safer. Components suffering from functional anomalies caused by contamination can trigger unpredictable movements or failures, thereby endangering both equipment and operators. Filtration effectively mitigates such risks.
3.Types of Filters and Their Installation Locations
Most hydraulic systems, depending on operating conditions and component types, strategically install various types of filters throughout the circuit:

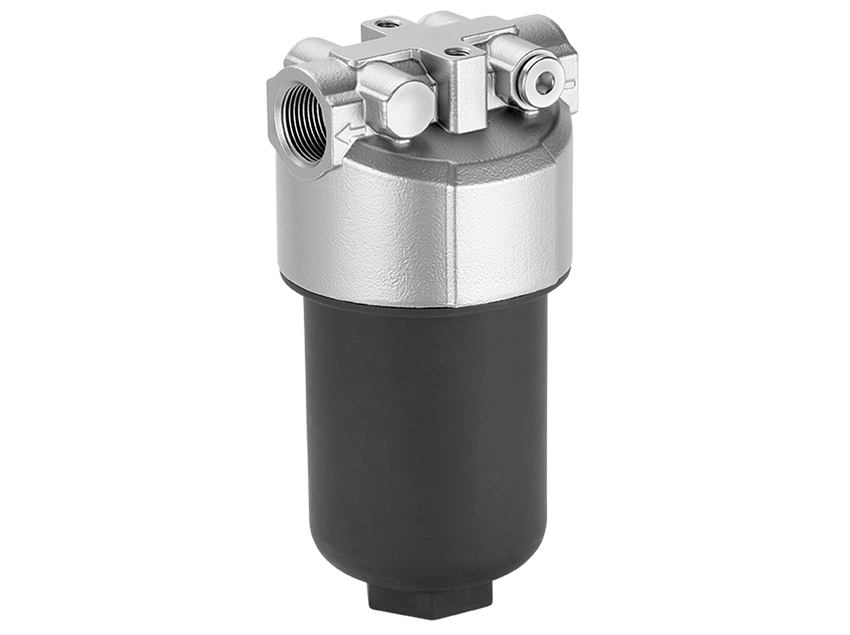

① Suction Filter: Located at the pump’s suction port to ensure that the fluid entering the pump is filtered.
② High-Pressure Filter: Installed downstream of the pump to protect precision components, such as control valves and actuators.
③ Return Filter: Purifies the fluid before it flows back into the reservoir.

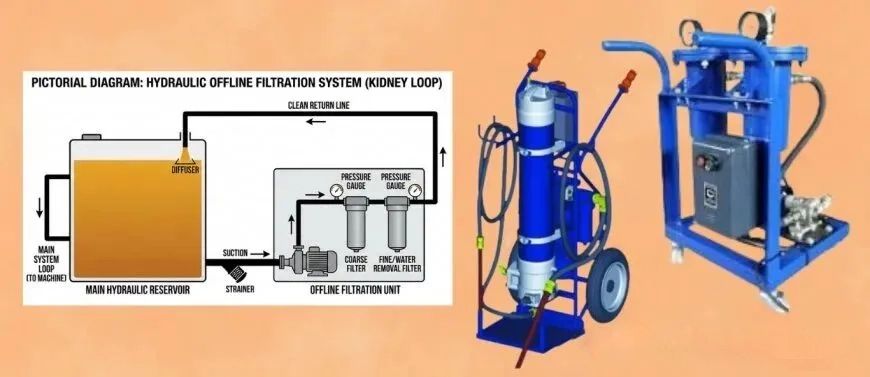

④ Offline (Bypass) Filter: Provides independent, continuous, and dedicated filtration to ensure overall fluid cleanliness; it typically operates independently of the main system.
⑤ Air Breather: Filters the air entering and exiting the reservoir, preventing airborne contaminants and moisture from entering the system.
4. Key Takeaways
Filters are not optional accessories in a hydraulic system; rather, they are a prerequisite for achieving efficient, reliable, and safe operation. Investing in a high-quality filtration system and strictly adhering to a regular filter maintenance schedule will yield substantial returns: extended component lifespan, reduced downtime, lower operating costs, and a more reliable, healthier hydraulic system. Never underestimate the value of clean hydraulic fluid.
