Product Description

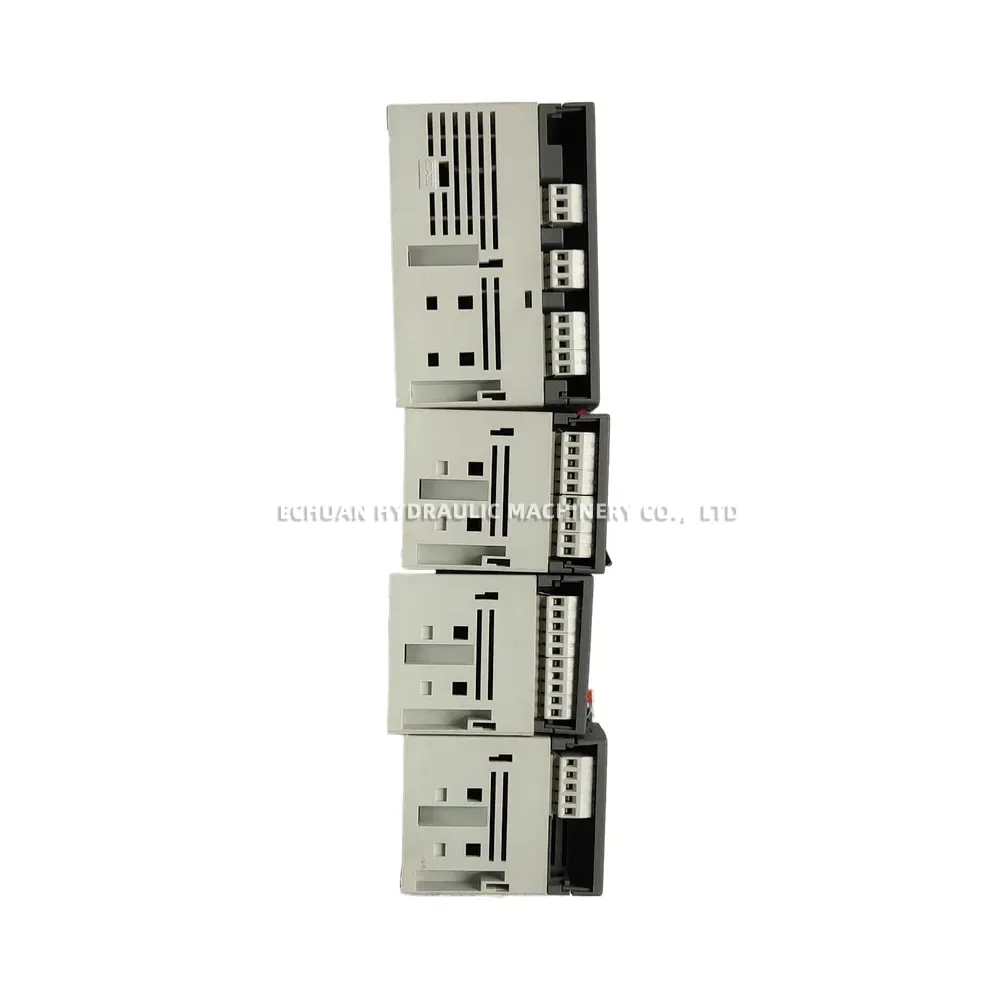

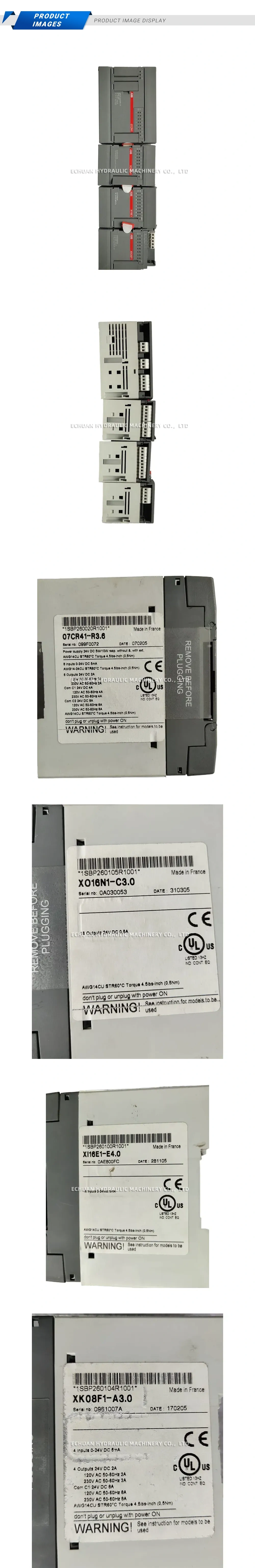

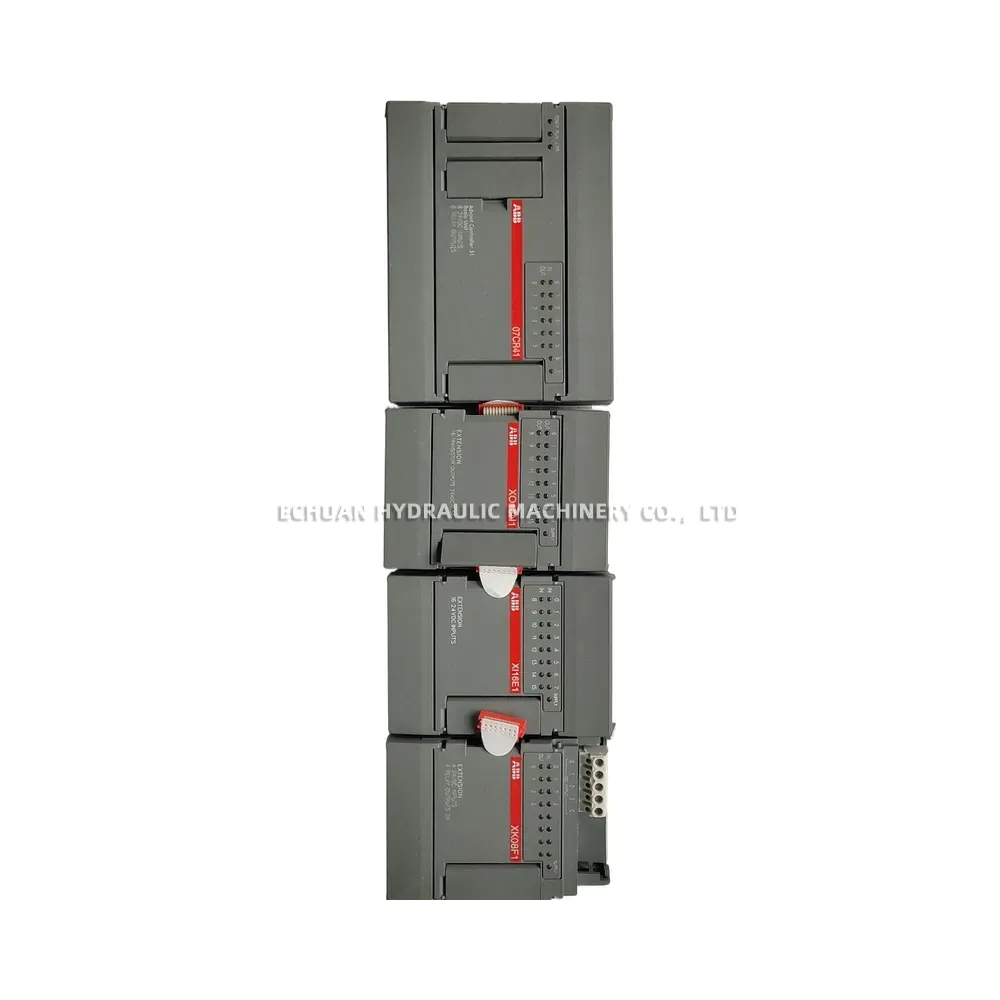

ABB 07CR41-R3.6 PLC Module Stack (CPU and I/O Extension Modules)
The ABB 07CR41-R3.6 PLC Module Stack is a comprehensive industrial automation control solution designed to deliver reliable and scalable performance for complex systems. This complete assembly features a powerful central processing unit (CPU) alongside three versatile I/O expansion modules, providing an extensive array of digital and relay connections. The main CPU operates on a 24V DC power supply and includes 8 digital inputs and 6 relay outputs. To accommodate larger system requirements, the stack is fully equipped with the XO16N1-C3.0 (16 digital outputs), XI16E1-E4.0 (16 inputs), and XK08F1-A3.0 (mixed 4 inputs and 4 relay outputs) extension modules. Engineered for durability in demanding environments, all modules feature standardized AWG14CU wiring compatibility with secure 4.5 lbs-inch torque terminals, ensuring safe and consistent industrial operation.
Technical Specifications:
- Brand: ABB

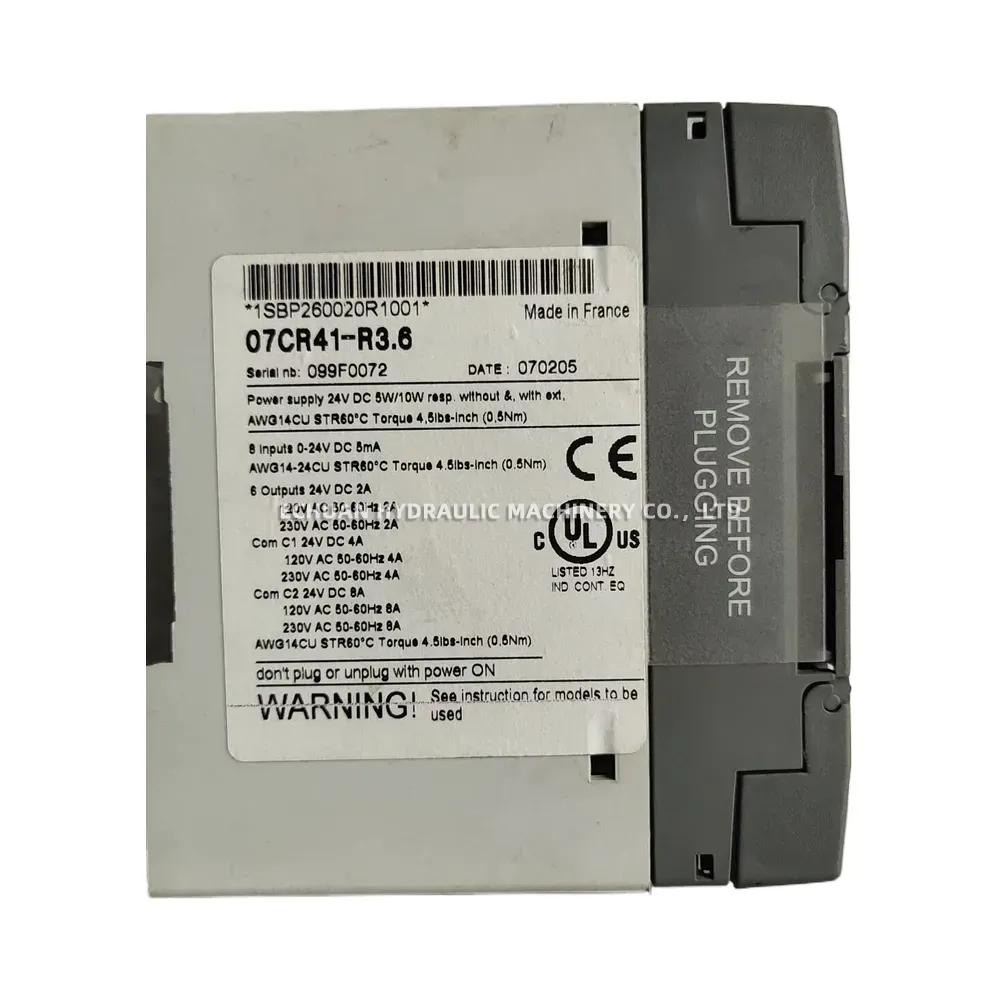

- Main CPU Model: 07CR41-R3.6 (Part Number: 1SBP260020R1001)
- Power Supply: 24V DC, 5W (without extension) / 10W (with extension)
- CPU I/O Configuration: 8 Inputs (0-24V DC, 5mA) / 6 Relay Outputs (24V DC / 120V AC / 230V AC, 2A)

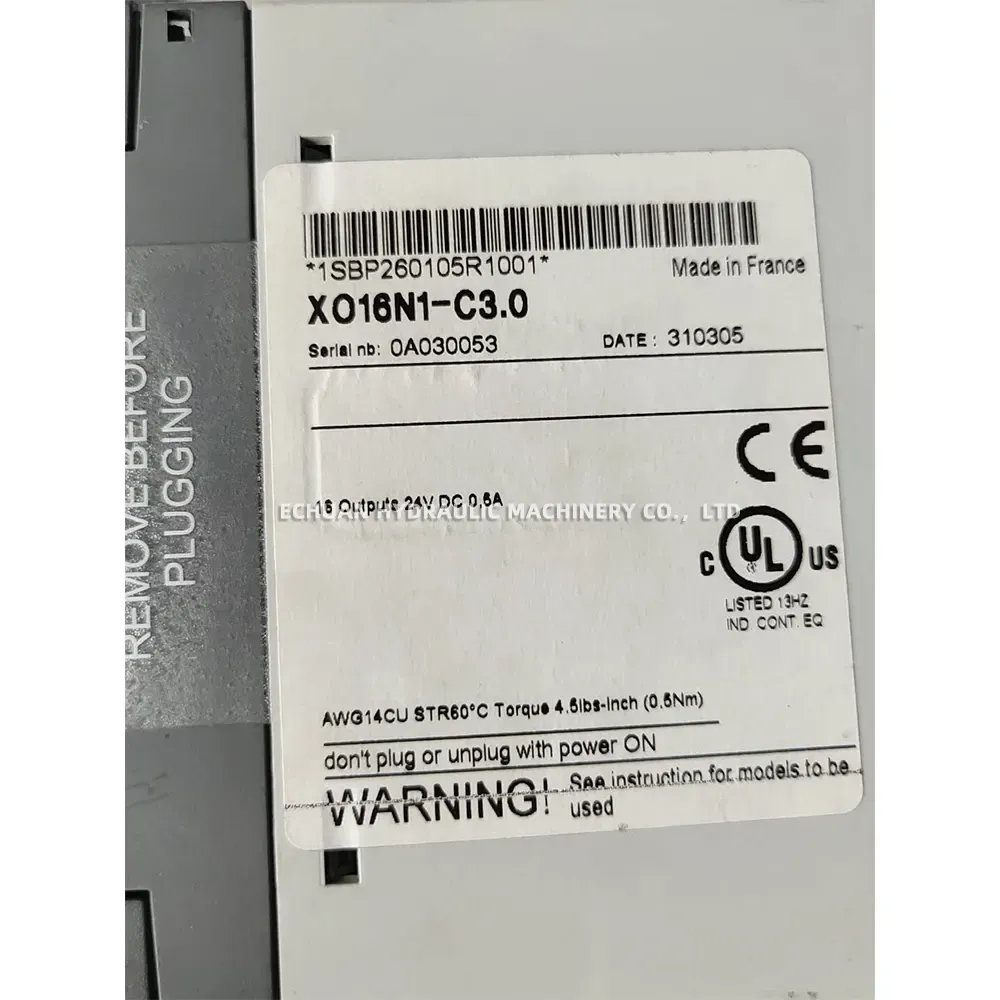

- Expansion Module 1 (XO16N1-C3.0): 16 Outputs (24V DC, 0.5A) – Part Number: 1SBP260105R1001

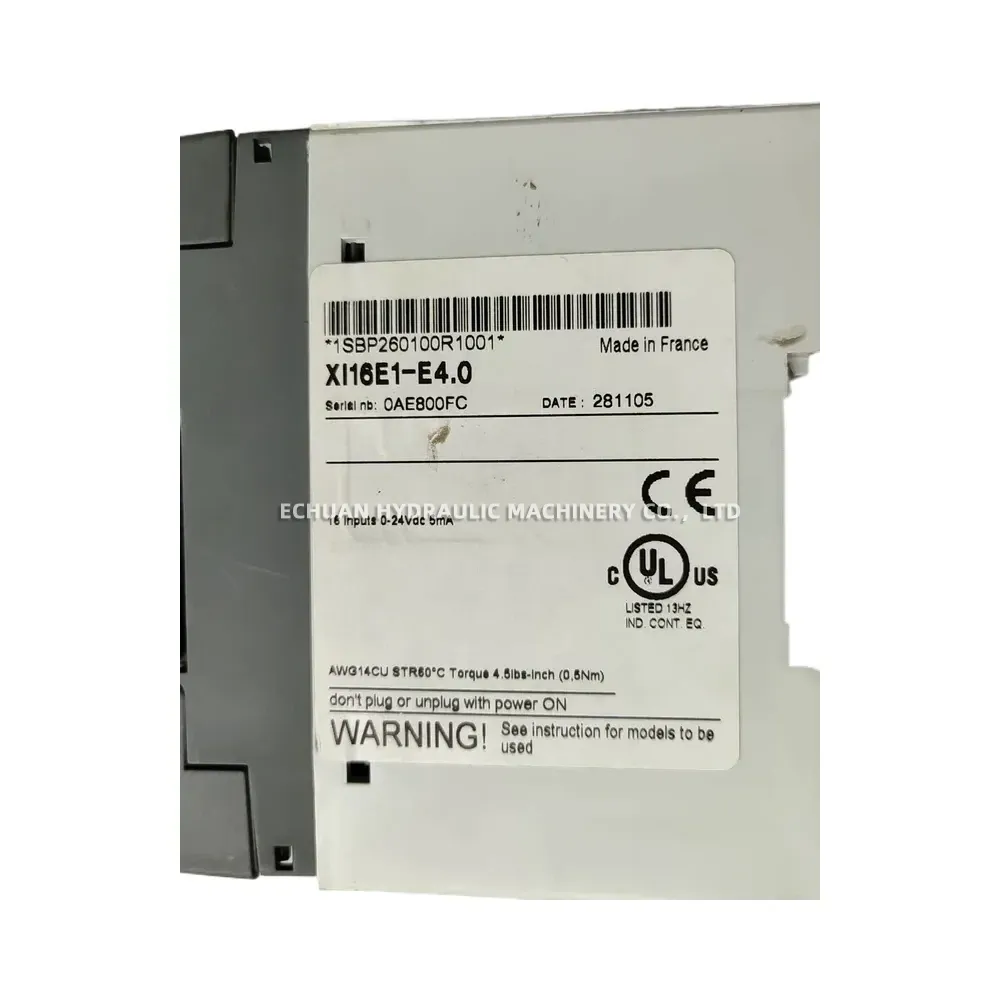

- Expansion Module 2 (XI16E1-E4.0): 16 Inputs (0-24V AC, 5mA) – Part Number: 1SBP260100R1001

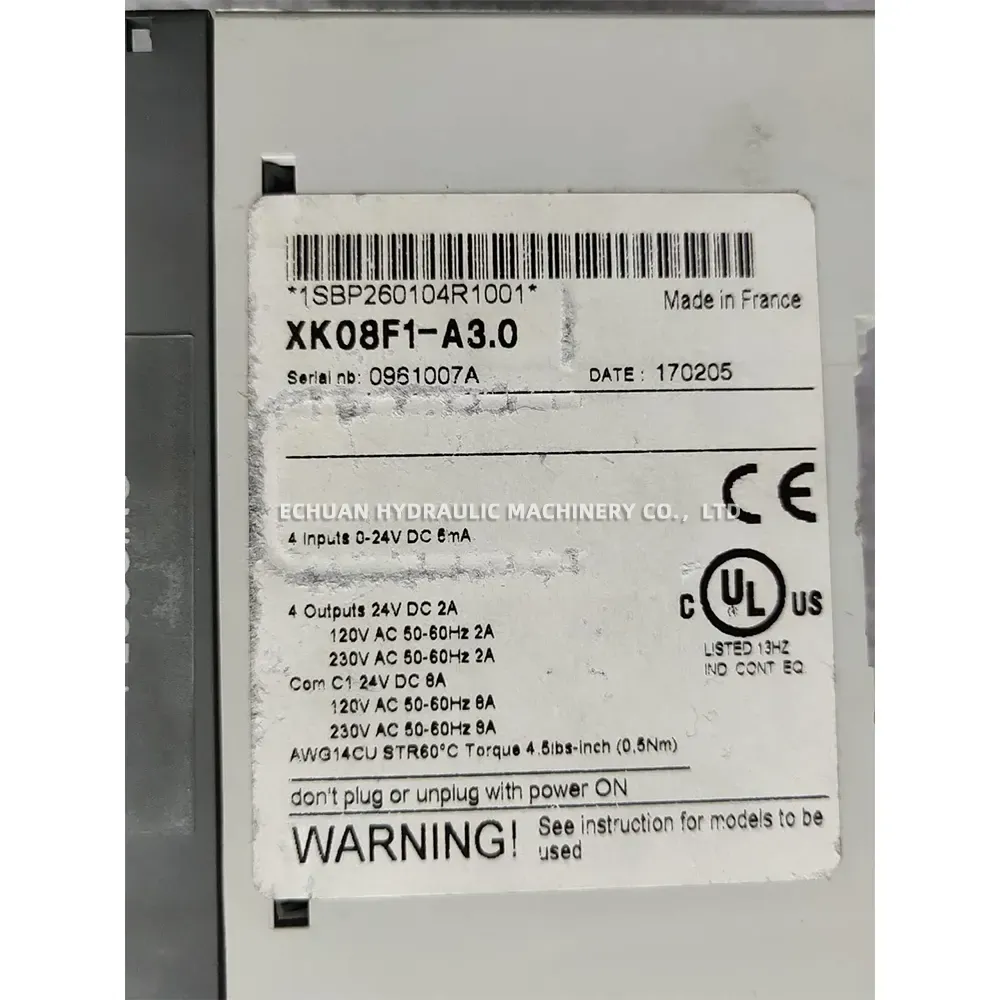

- Expansion Module 3 (XK08F1-A3.0): 4 Inputs (0-24V DC, 5mA) / 4 Relay Outputs (24V DC / 120V AC / 230V AC, 2A) – Part Number: 1SBP260104R1001
- Wiring Specifications: AWG14-CU STR 60°C, Terminal Torque 4.5 lbs-inch (0.5Nm)
- Country of Origin: Made in France
ABB 07CR41-R3.6 PLC Module Stack (CPU and I/O Extension Modules)
Optimize your industrial automation setup with the ABB 07CR41-R3.6 PLC Module Stack. This comprehensive controller package includes a 24V DC main CPU and three dedicated I/O expansion modules (XO16N1-C3.0, XI16E1-E4.0, and XK08F1-A3.0), delivering scalable digital and relay connectivity for robust, high-performance machinery control.
| Brand | ABB |
|---|---|
| Model | 07CR41-R3.6 |
| Part No. | 621652496137 |
| Category | Electrical |
| Link | https://www.echuan-hydraulic.com/product/abb-07cr41-r3-6-plc-module-stack-cpu-and-i-o-extension-modules |
