Product Description

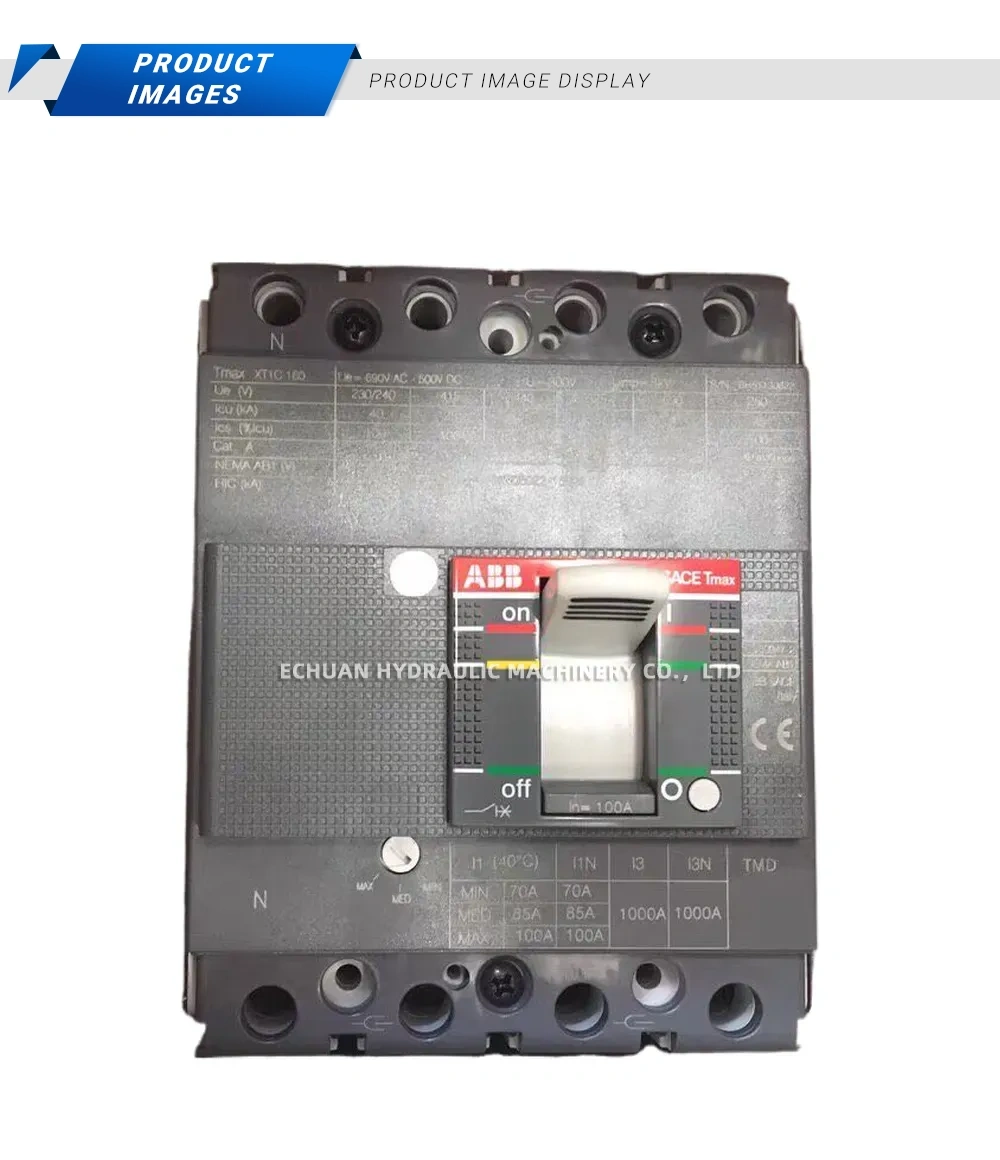

ABB Tmax XT1C 160 Molded Case Circuit Breaker (MCCB)
The ABB Tmax XT1C 160 is a high-performance molded case circuit breaker (MCCB) designed to provide reliable and robust electrical protection for a wide range of industrial and commercial applications. Equipped with a highly accurate TMD thermal-magnetic trip unit, this breaker ensures superior defense against overloads and short circuits. It features a rated current of 100A and an impressive breaking capacity of up to 40kA at 230/240V. With adjustable thermal protection settings (MIN 70A, MED 85A, MAX 100A) and a fixed magnetic protection threshold of 1000A, the Tmax XT1C offers versatile and precise power management. Its compact design, CE certification, and high insulation voltage rating of 690V AC / 600V DC make it an ideal choice for ensuring safety and efficiency in low-voltage distribution networks.
Technical Specifications:
- Brand: ABB
- Model: Tmax XT1C 160
- Rated Current (In): 100A
- Rated Insulation Voltage (Ui): 690V AC / 600V DC
- Rated Operational Voltage (Ue): 230/240V
- Ultimate Short-Circuit Breaking Capacity (Icu): 40kA at 230/240V
- Trip Unit Type: TMD (Thermal-Magnetic)
- Thermal Protection (I1): Adjustable (MIN: 70A, MED: 85A, MAX: 100A)
- Magnetic Protection (I3): Fixed at 1000A
- Utilization Category: Category A

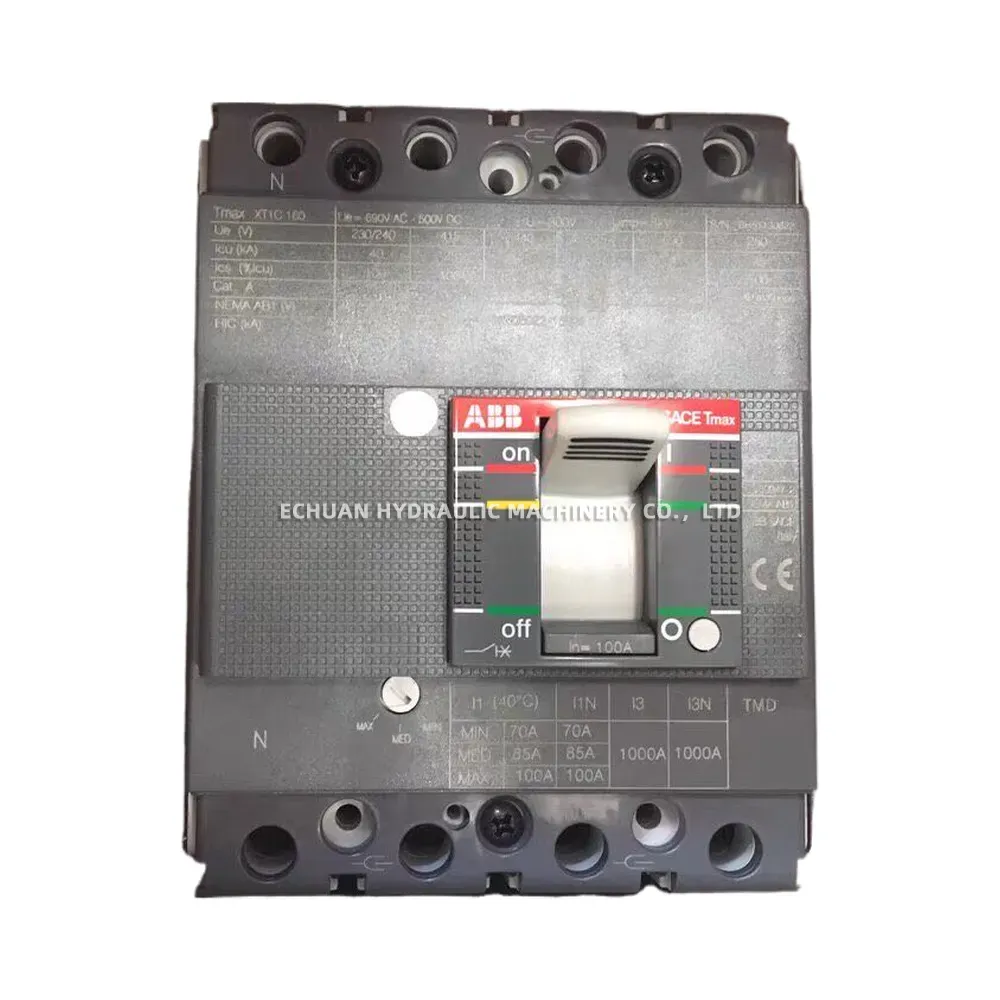

ABB Tmax XT1C 160 Molded Case Circuit Breaker (MCCB)
