Product Description

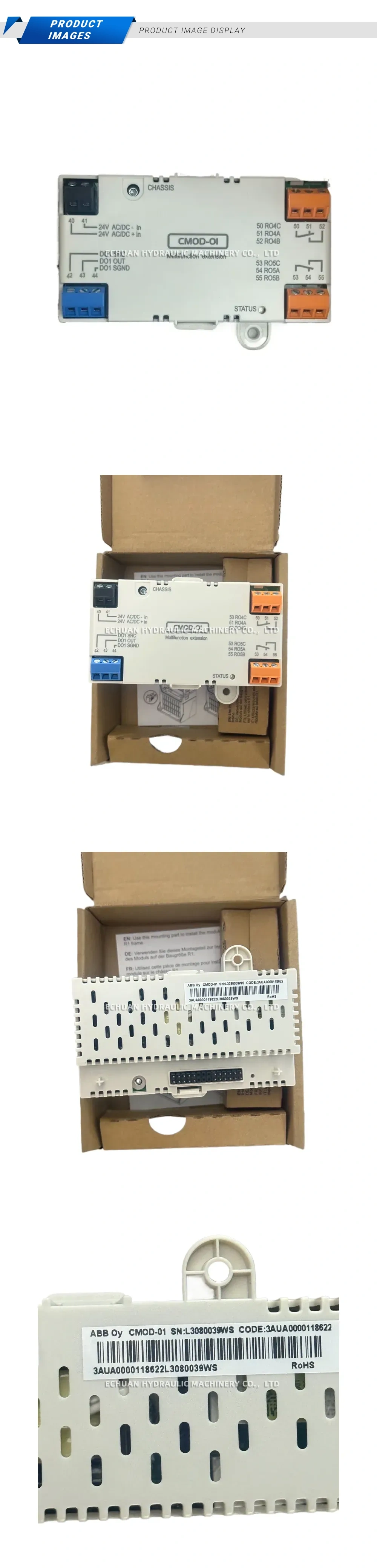

ABB CMOD-OI Multifunction Extension Module

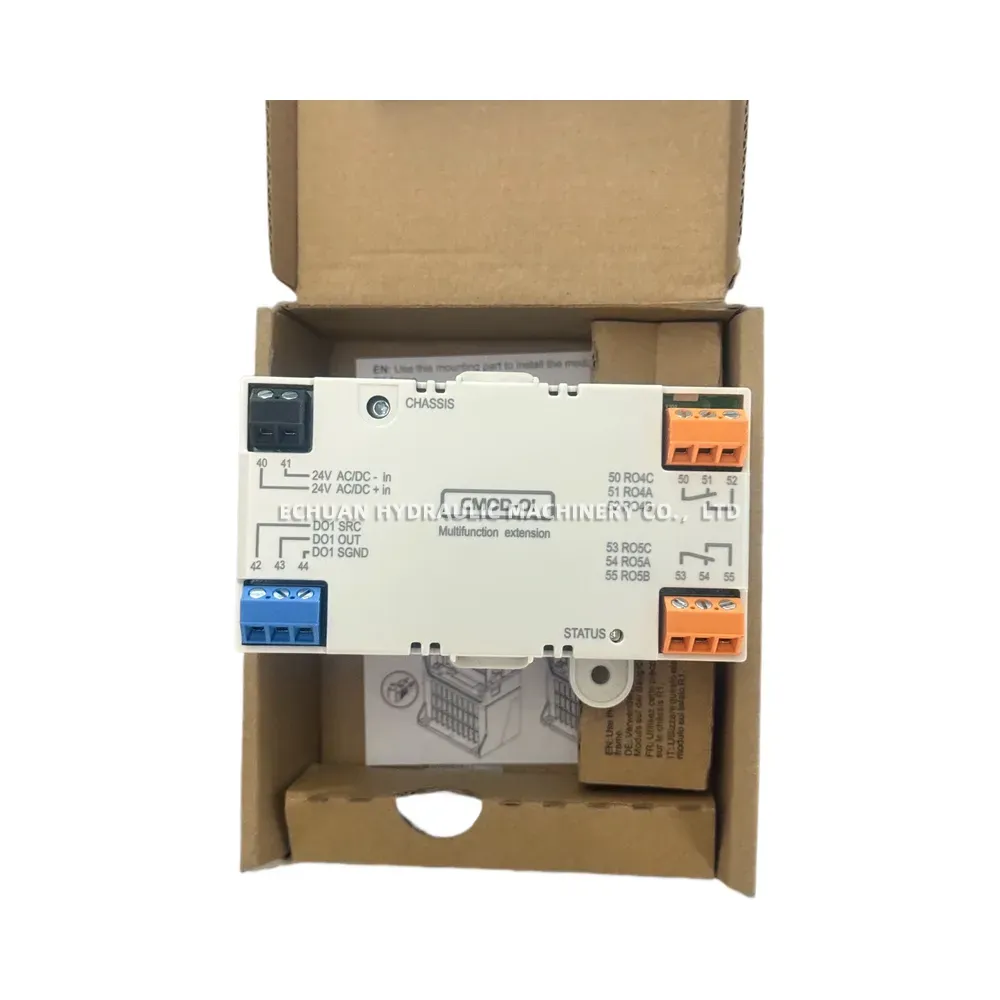

The ABB CMOD-01 (often referenced as CMOD-OI) is a highly reliable multifunction extension module engineered to expand the capabilities of ABB industrial drives and control systems. This versatile plug-in module provides an external 24V AC/DC auxiliary power input, ensuring that the drive’s control unit remains fully operational and communicative even when the main power supply is disconnected. Additionally, the module expands the system’s I/O capabilities by offering one digital output (DO1) and two relay outputs (RO4 and RO5) for flexible signaling, monitoring, and process control. Designed for seamless integration, it features a clear status LED indicator and mounts securely via a chassis interface with a backplane connector. With its robust construction and RoHS compliance, the CMOD-01 (Product Code: 3AUA0000118622) is an essential upgrade for demanding industrial automation environments.
Technical Specifications:
- Brand: ABB
- Model: CMOD-01 (CMOD-OI)

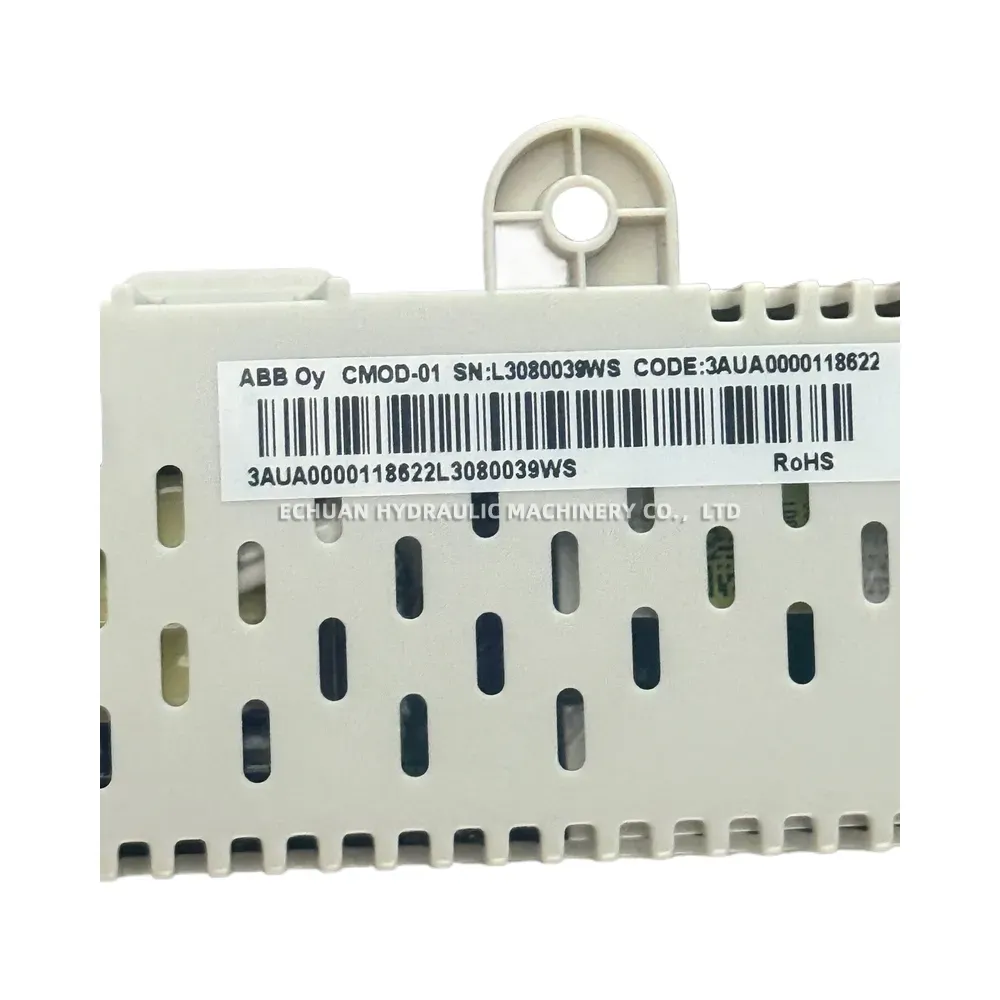

- Product Code: 3AUA0000118622

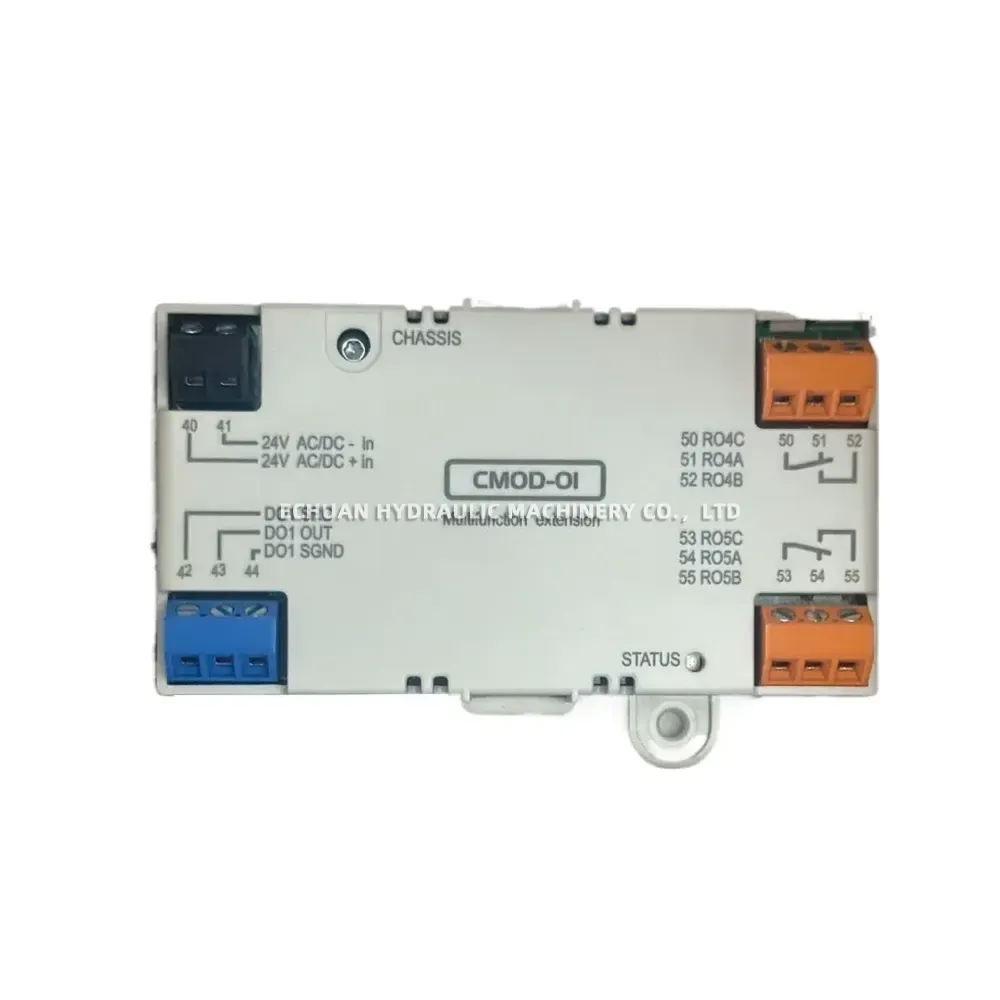

- Auxiliary Power Input: 24V AC/DC (Terminals 40, 41)
- Digital Output (DO): 1 x DO (DO1 SRC, DO1 OUT, DO1 SGND – Terminals 42, 43, 44)
- Relay Outputs (RO): 2 x RO (RO4: Terminals 50-52 / RO5: Terminals 53-55)
- Diagnostics: On-board Status LED indicator

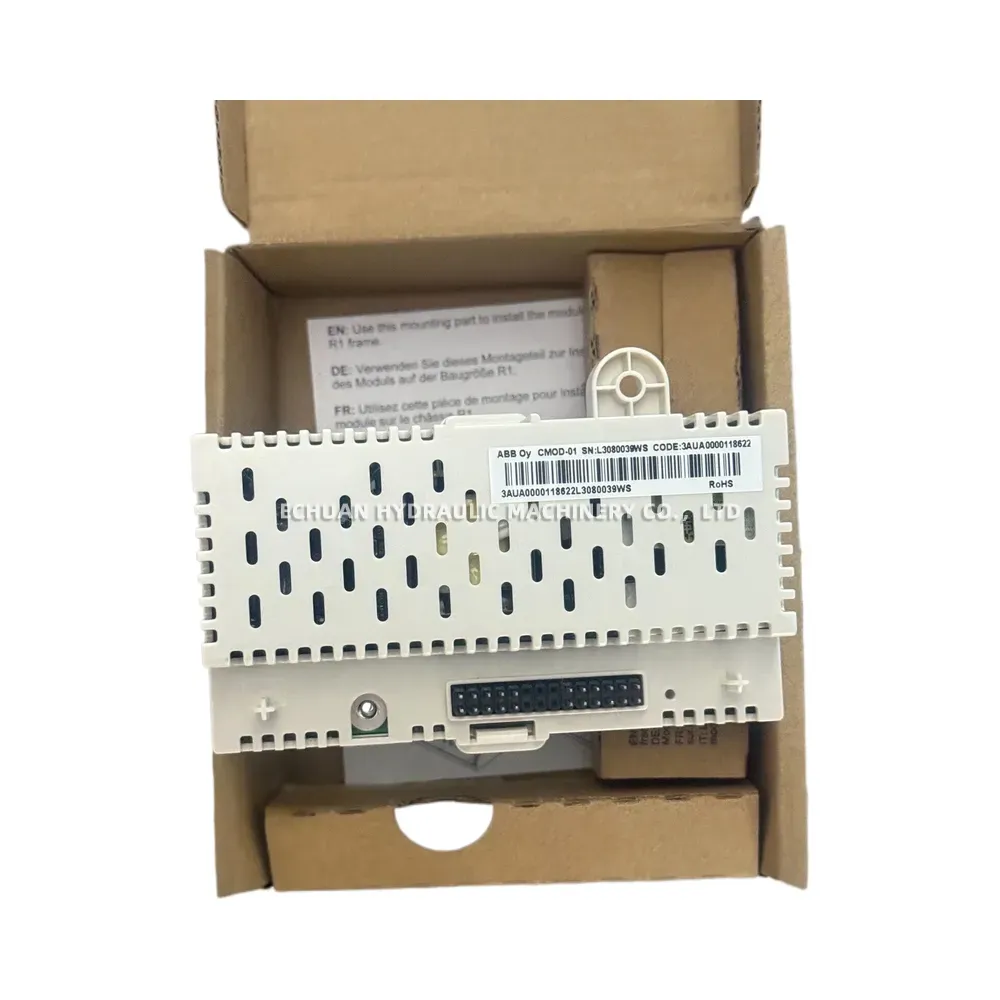

- Mounting Interface: Chassis mount with backplane connector
- Compliance: RoHS
ABB CMOD-OI Multifunction Extension Module
Enhance your ABB drive systems with the ABB CMOD-01 (3AUA0000118622) Multifunction Extension Module. Featuring a 24V AC/DC auxiliary power input, one digital output, and dual relay outputs, this plug-in module ensures continuous control operation and seamless I/O expansion for your industrial automation needs.
