Product Description
Absopulse MOX12-P3509 DC/DC Converter
The Absopulse MOX12-P3509 (Model MOX12-P3509B) is a highly reliable, industrial-grade DC/DC power converter module engineered to deliver multiple output rails for complex electronic systems. Manufactured in Canada by Absopulse Electronics Ltd., this rugged unit accepts a 48Vdc input (ranging from 42V to 56V) and provides an array of precise DC outputs including +5V, +12V, +15V, +24V, and +/-24V to support various load requirements. Featuring robust terminal block connections for secure power and communication interfacing, this RoHS-compliant converter is designed for heavy-duty industrial environments and serves as a direct replacement for Rockwell part number 80026-173-23.
Technical Specifications:
- Brand: Absopulse Electronics Ltd.
- Model: MOX12-P3509 / MOX12-P3509B
- Part Number: 80026-173-23 (Rockwell replacement)
- Input Voltage: 48Vdc (Operating range: 42-56V)
- Outputs (COM1): +5.0Vdc / 10A and +15.0Vdc / 1A
- Outputs (Independent): +12Vdc / 1A and +24Vdc / 2A
- Output (COM2): +/-24Vdc / 1A
- Outputs (COM3 & COM4): +15Vdc / 1A (COM3) and +15Vdc / 2A (COM4)

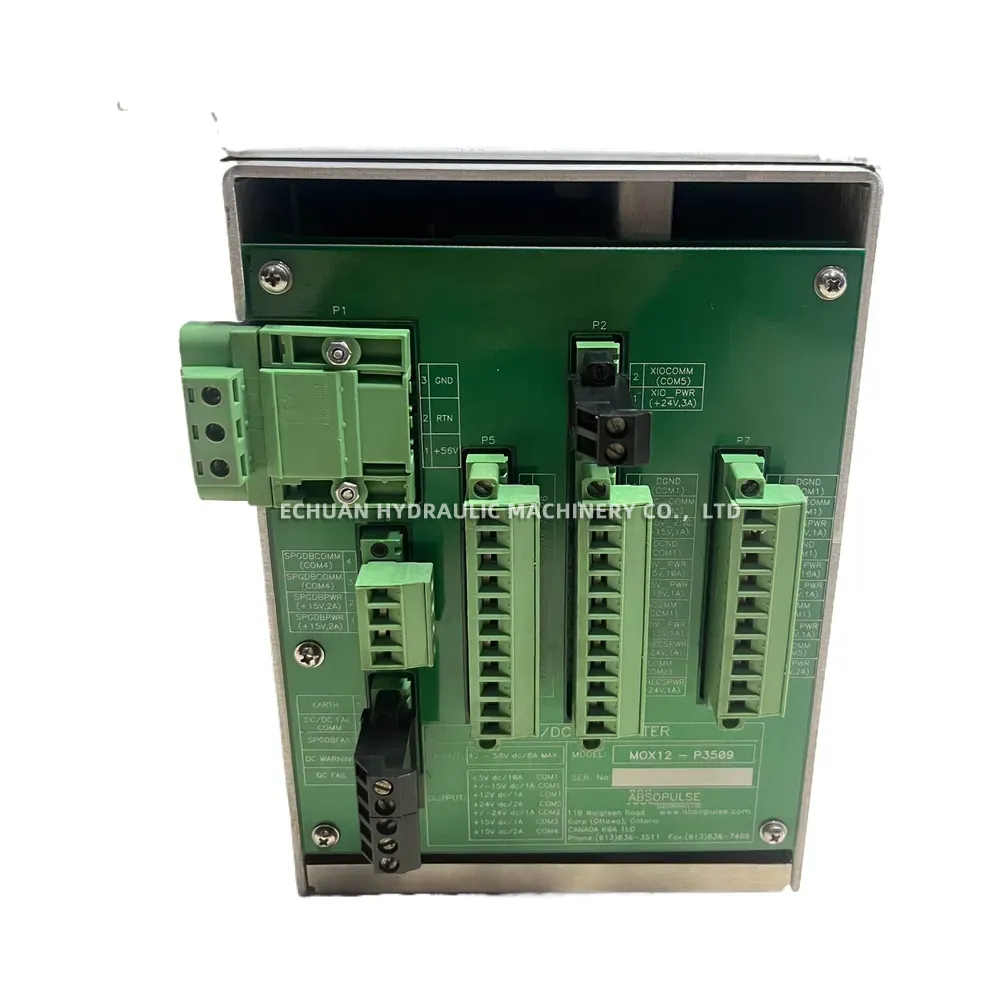

- Connection Type: Terminal block connections
- Certifications: RoHS Compliant, Made in Canada
Absopulse MOX12-P3509 DC/DC Converter
Shop the Absopulse MOX12-P3509 industrial DC/DC converter. Features a 48Vdc input, multiple output rails (+5V, +12V, +15V, ±24V), and terminal block connections. Direct replacement for Rockwell P/N 80026-173-23.
