Product Description

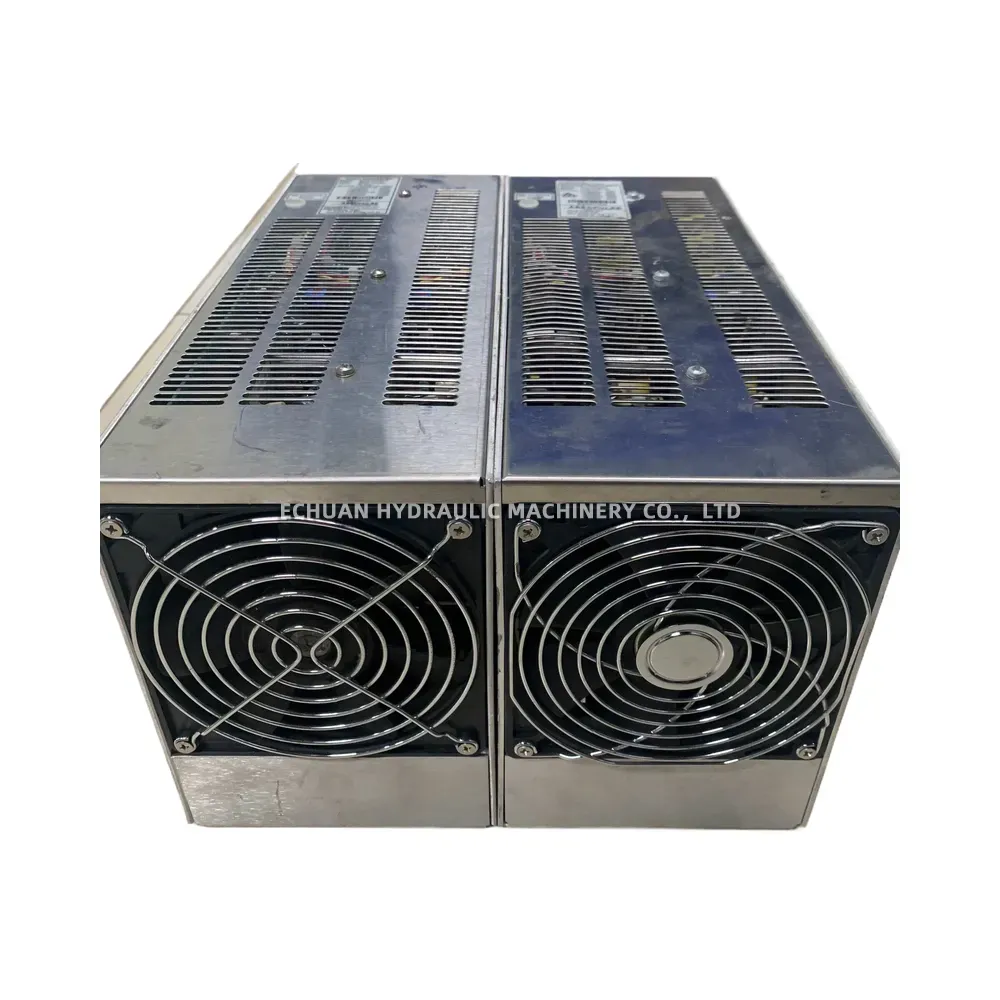

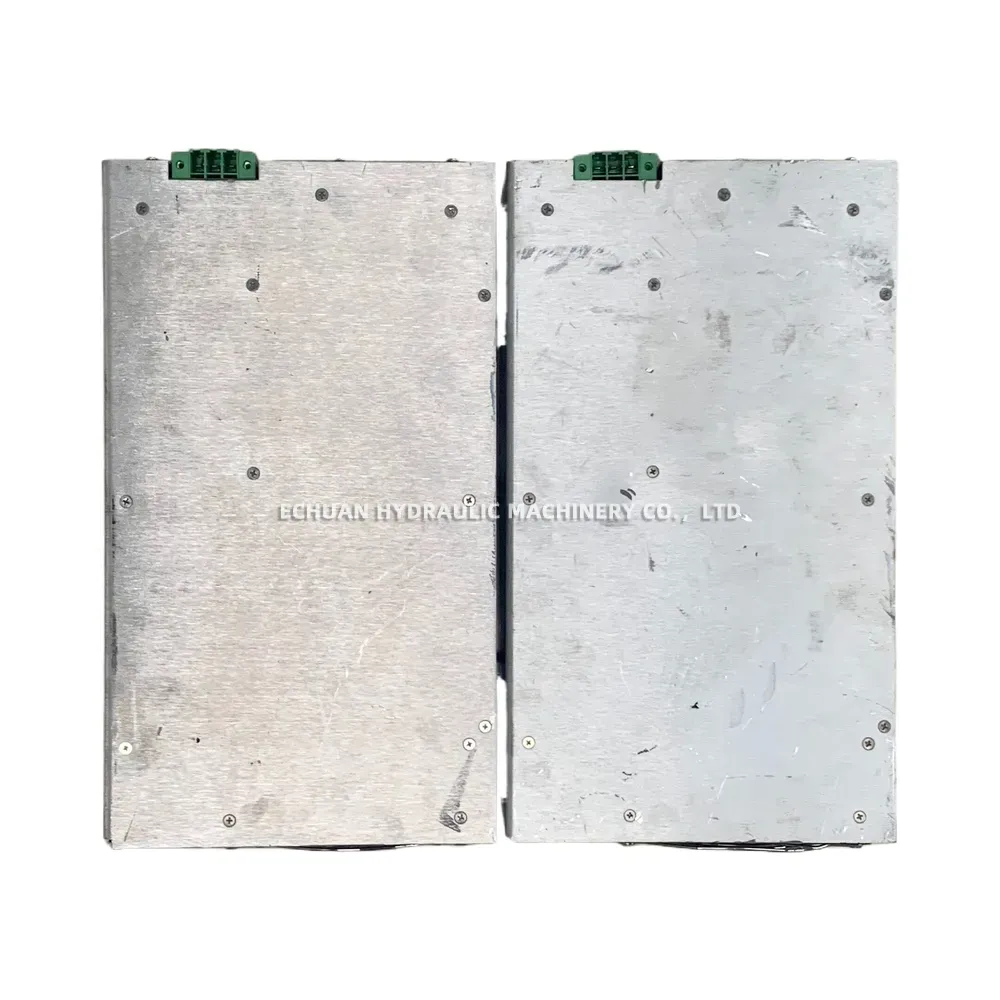

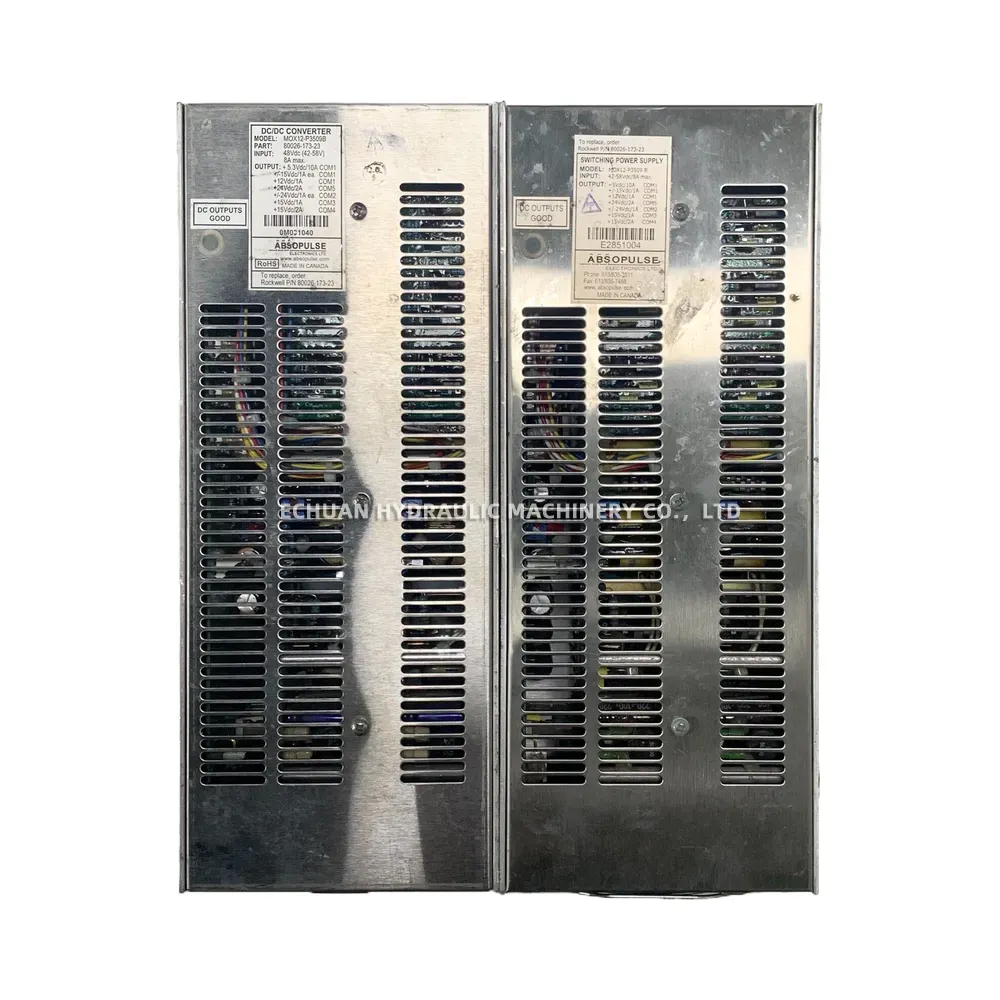

Absopulse MOX12-P3509B DC/DC Converter Switching Power Supply
The Absopulse MOX12-P3509B is a robust, multi-output DC/DC converter and switching power supply unit specifically designed for demanding industrial applications. Manufactured in Canada by Absopulse Electronics Ltd., this high-performance unit is engineered to serve as a direct replacement for Rockwell P/N 80026-173-23. It operates on a 48Vdc nominal input (with a flexible 42-58V range) and provides a highly versatile array of common and isolated outputs, including +5.3Vdc, +/-15Vdc, +12Vdc, and +24Vdc, to support complex electrical systems. The rear panel is equipped with multiple green terminal block connectors for secure, reliable wiring. RoHS compliant and built to rigorous quality standards, the MOX12-P3509B ensures stable and efficient power delivery in critical automation and control environments.

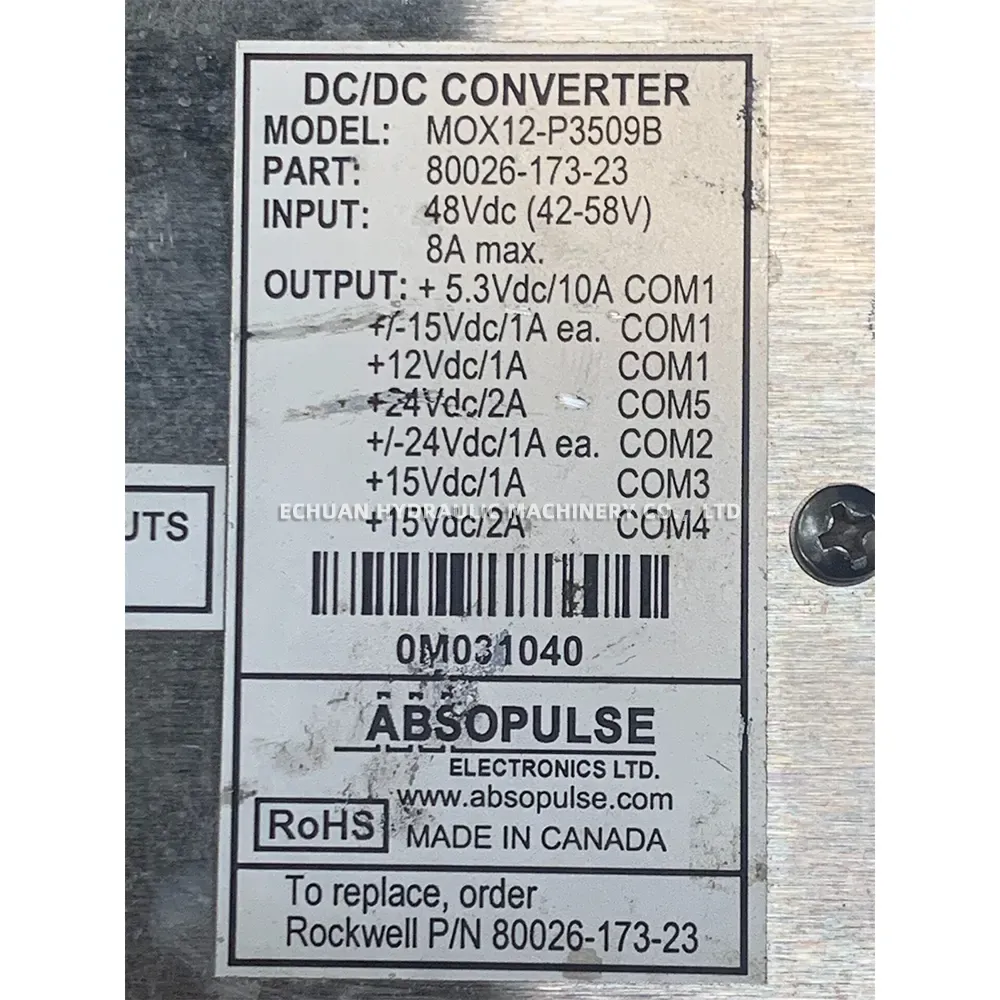

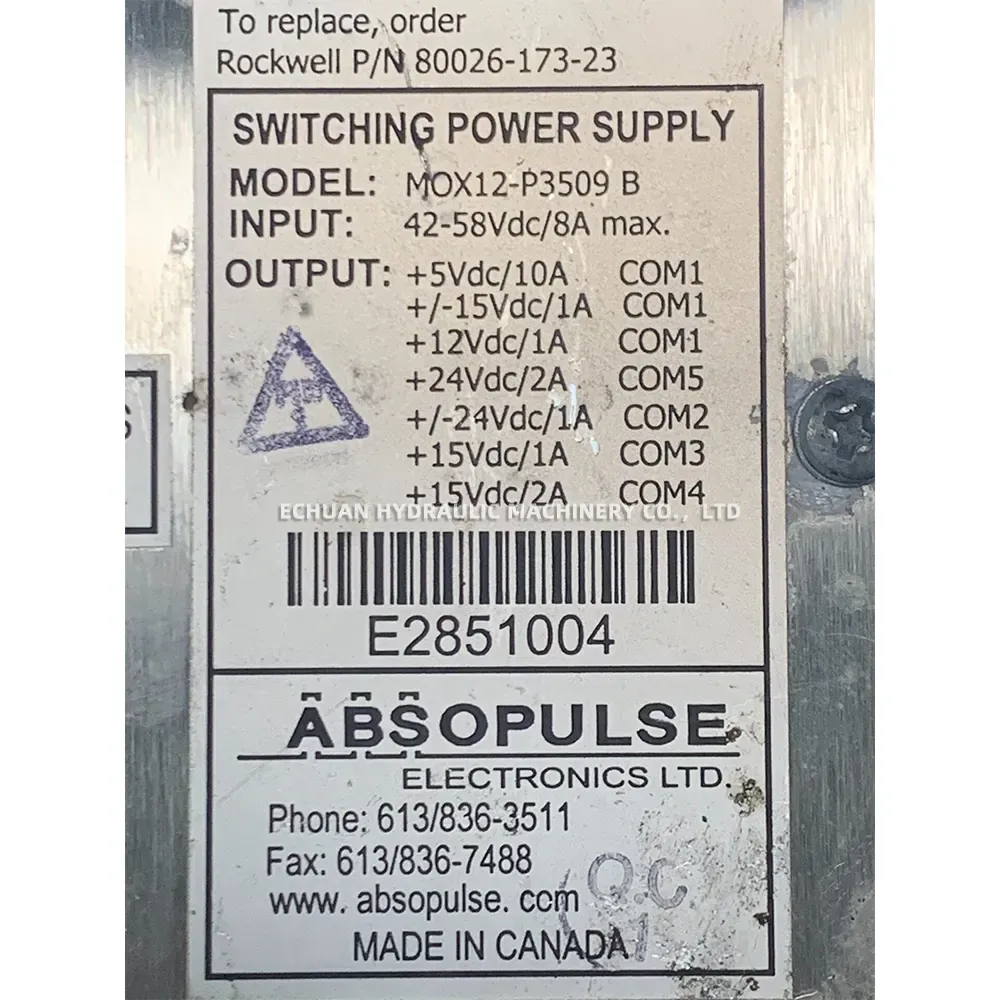

Technical Specifications:
- Brand: Absopulse Electronics Ltd.
- Model: MOX12-P3509B
- Replacement Part Number: Rockwell P/N 80026-173-23
- Input Voltage: 48Vdc (Range: 42-58V), 8A max.
- COM1 Outputs: +5.3Vdc / 10A; +/-15Vdc / 1A ea.; +12Vdc / 1A
- COM2 Outputs: +/-24Vdc / 1A ea.
- COM3 Output: +15Vdc / 1A
- COM4 Output: +15Vdc / 2A
- COM5 Output: +24Vdc / 2A

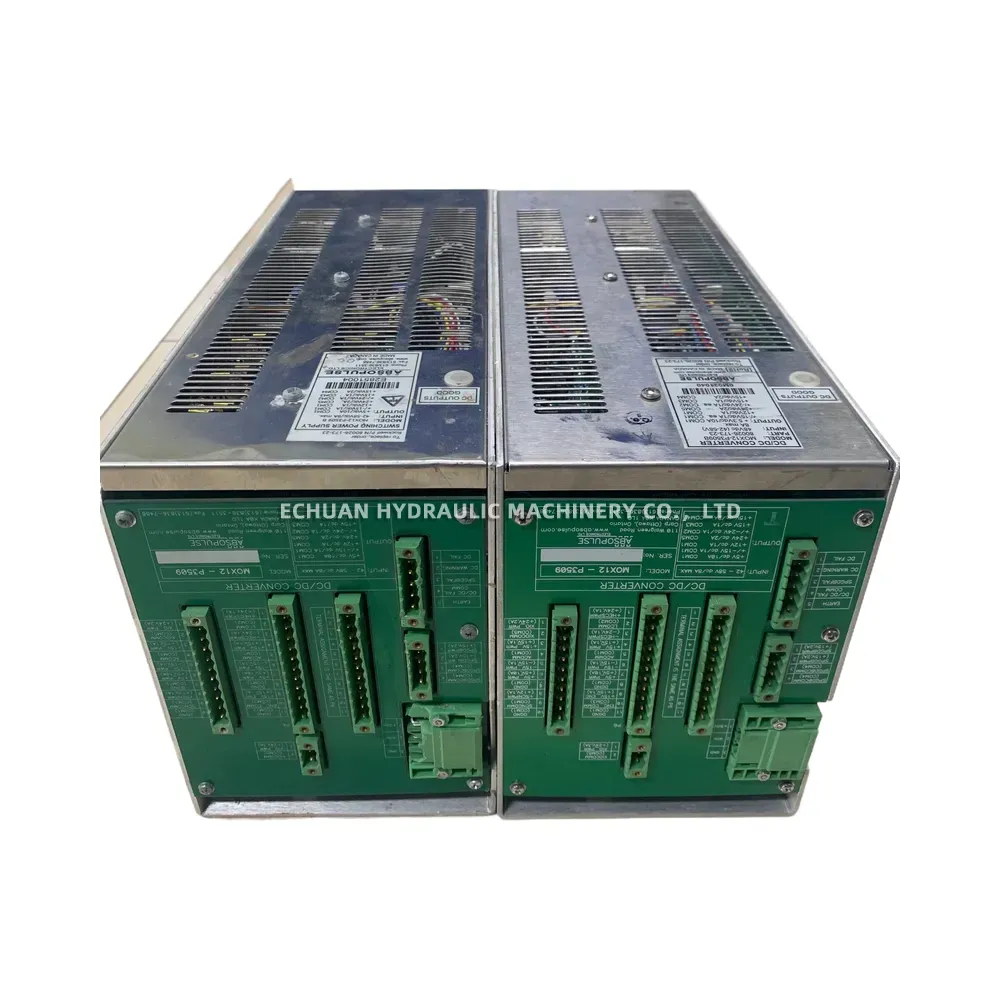

- Connections: Multiple green terminal block connectors (rear panel)
- Certifications & Origin: RoHS Compliant, Made in Canada
Absopulse MOX12-P3509B DC/DC Converter Switching Power Supply
Shop the Absopulse MOX12-P3509B Multi-Output DC/DC Converter. This rugged industrial switching power supply is a direct replacement for Rockwell P/N 80026-173-23. Featuring a 48Vdc input and a wide range of versatile outputs (+5.3V, +/-15V, +12V, +24V), it delivers reliable power for critical automation control systems.
| Brand | Absopulse |
|---|---|
| Model | MOX12-P3509B |
| Part No. | 866519186549 |
| Category | Electrical |
