Product Description

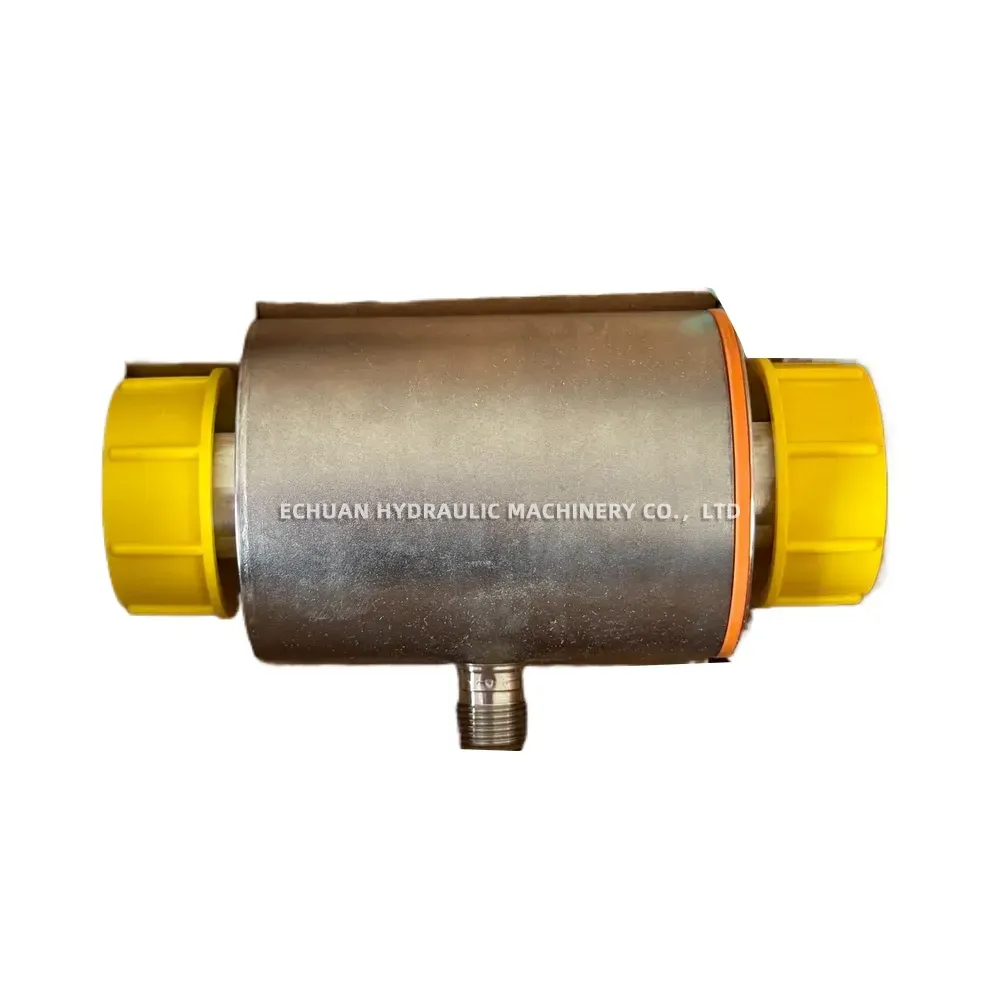

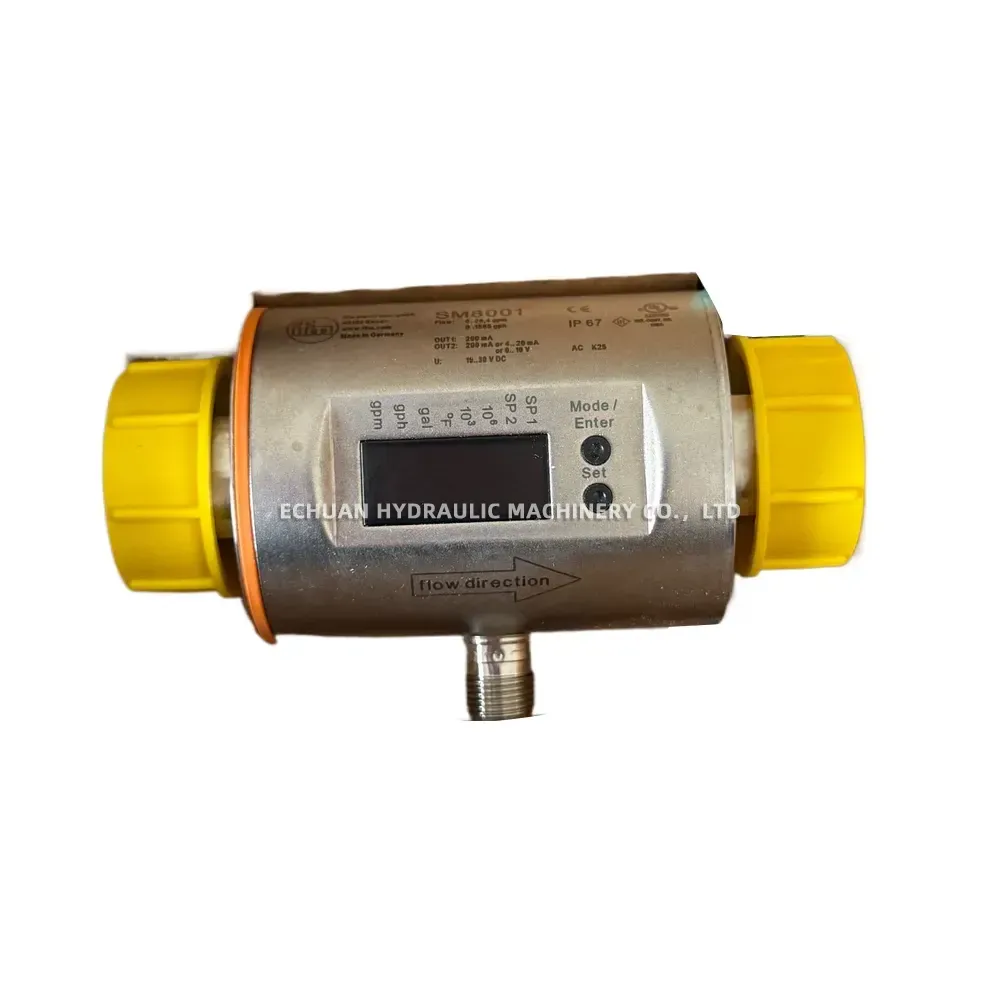

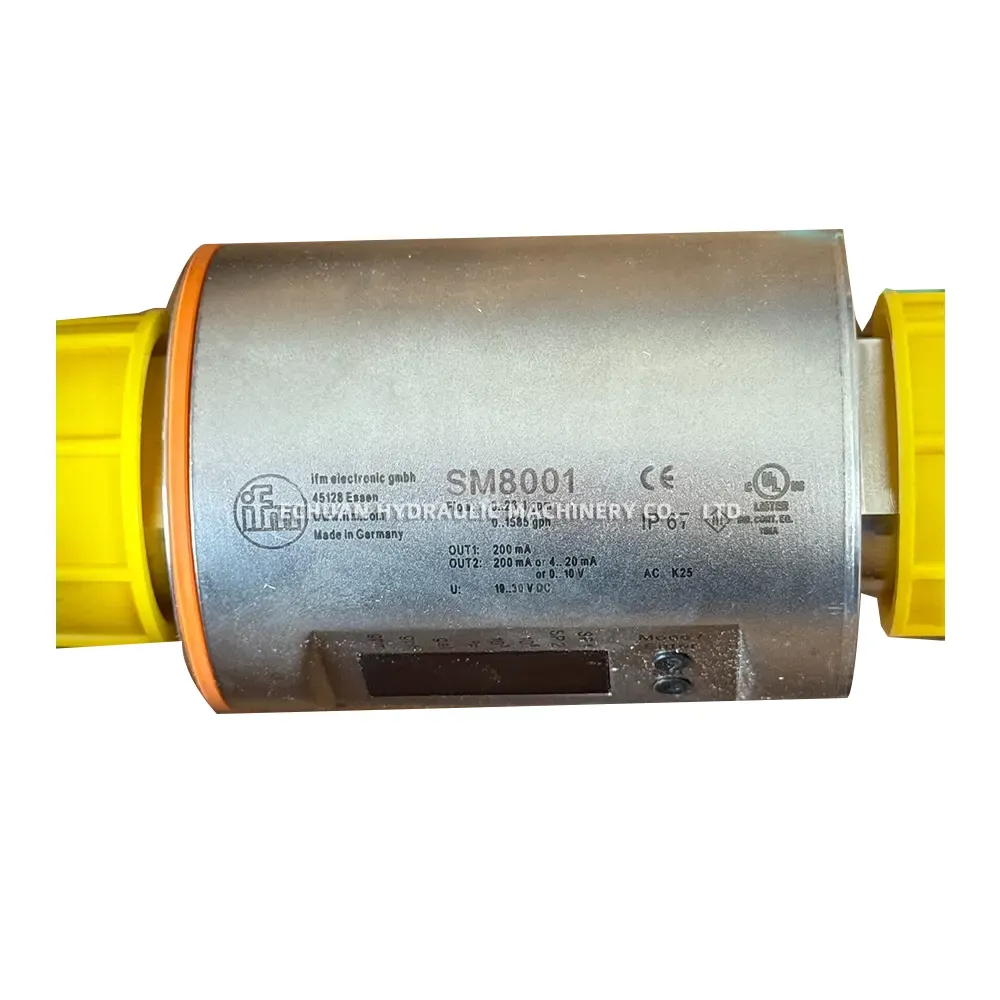

ifm SM8001 Flow Monitor
The ifm SM8001 (model SMR11GGXFRKG/US) is a highly reliable industrial flow monitor from the efector300 series, engineered for precise flow measurement and system monitoring. Manufactured in Germany, this robust magnetic-inductive sensor features an intuitive digital display with programmable buttons, allowing operators to easily configure parameters and monitor values in gpm, gph, gal, and °F. It offers a versatile flow measurement range of 0.26 to 4 gpm (0 to 1585 gph) and includes a built-in flow direction indicator for enhanced operational awareness. Equipped with flexible dual outputs (OUT1: 200 mA; OUT2: 200 mA, 4…20 mA, or 0…10 V) and a rugged IP67 protection rating, the SM8001 ensures seamless integration and durable performance in demanding industrial environments. The unit is fully CE marked and UL Listed.
Technical Specifications:
- Brand / Model: ifm SM8001 (SMR11GGXFRKG/US)
- Flow Measurement Range: 0.26…4 gpm (0…1585 gph)
- Operating Voltage: 19…30 V DC
- Output 1 (OUT1): 200 mA (Digital)
- Output 2 (OUT2): 200 mA or 4…20 mA or 0…10 V (Digital/Analog)
- Display & Interface: Digital display with programmable buttons; supports gpm, gph, gal, and °F
- Protection Class: IP 67
- Approvals & Compliance: CE, UL US Listed (IND. CONT. EQ. 11MA)
ifm SM8001 Flow Monitor
Optimize your industrial fluid systems with the ifm SM8001 Flow Monitor. This German-made efector300 sensor features a 0.26 to 4 gpm measurement range, an intuitive digital display, dual programmable outputs (digital/analog), and an IP67 rating for reliable, precise flow control.
