Product Description

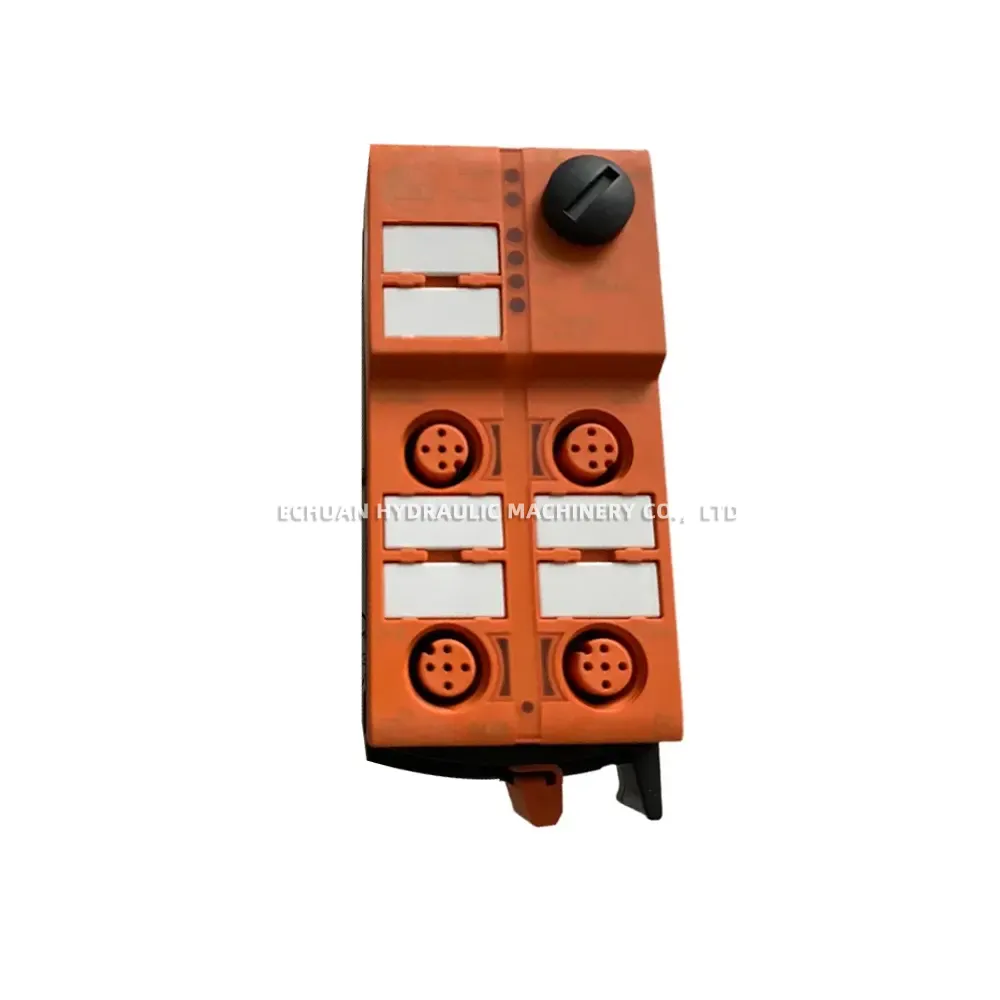

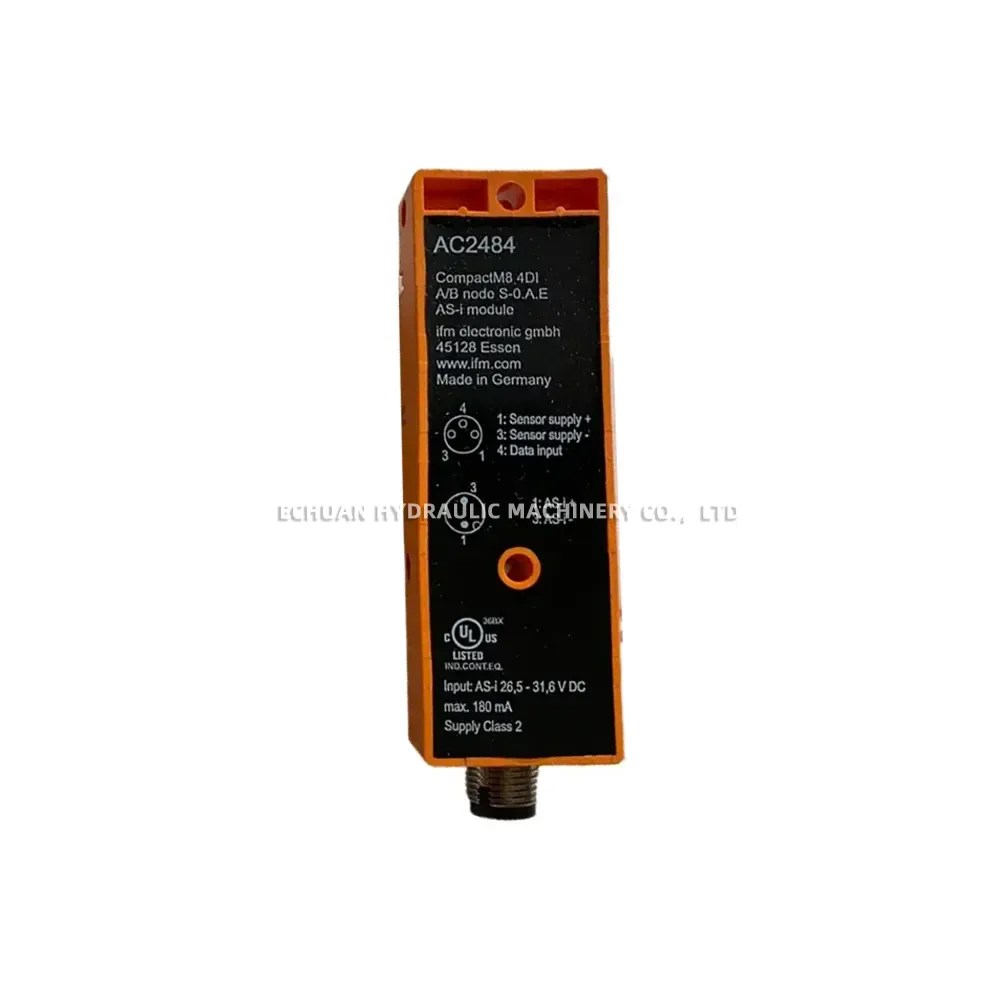

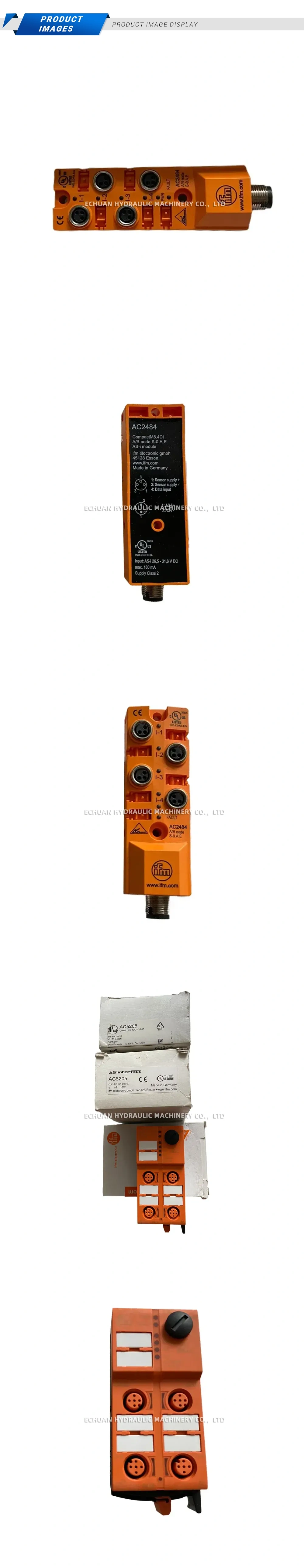

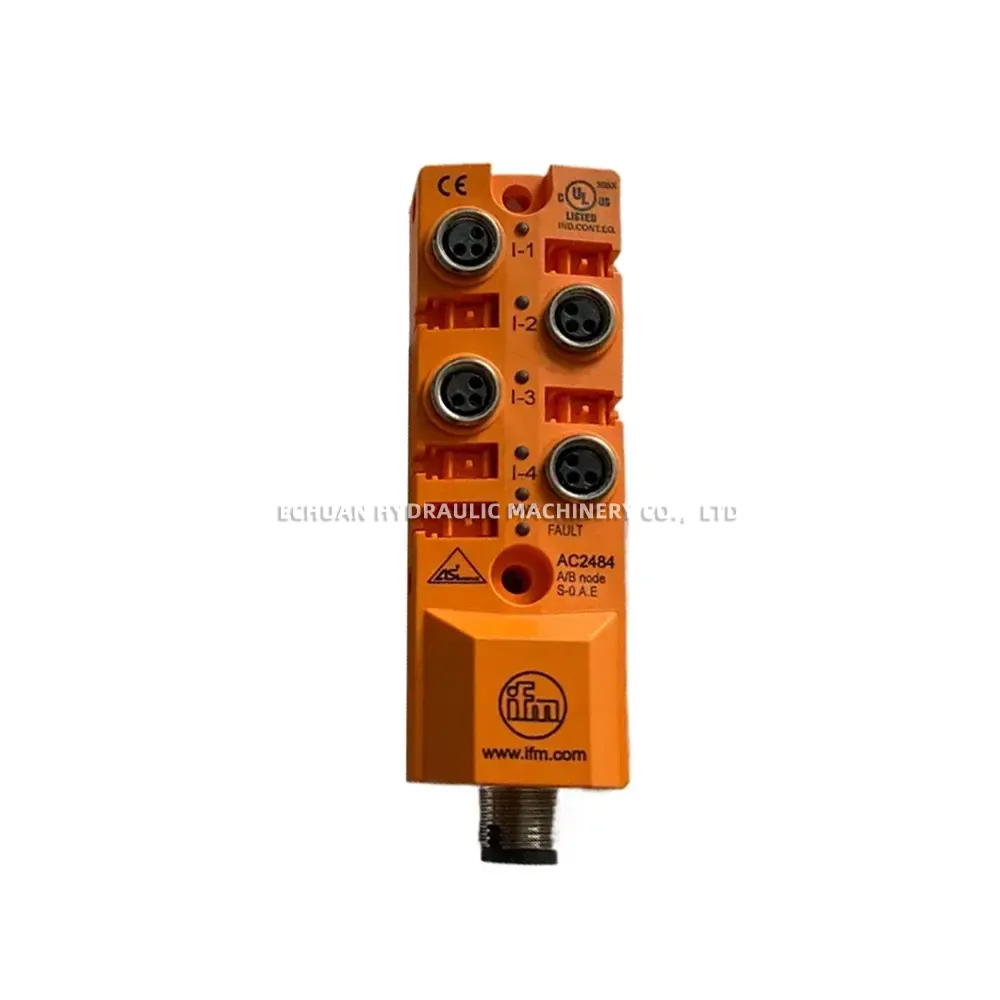

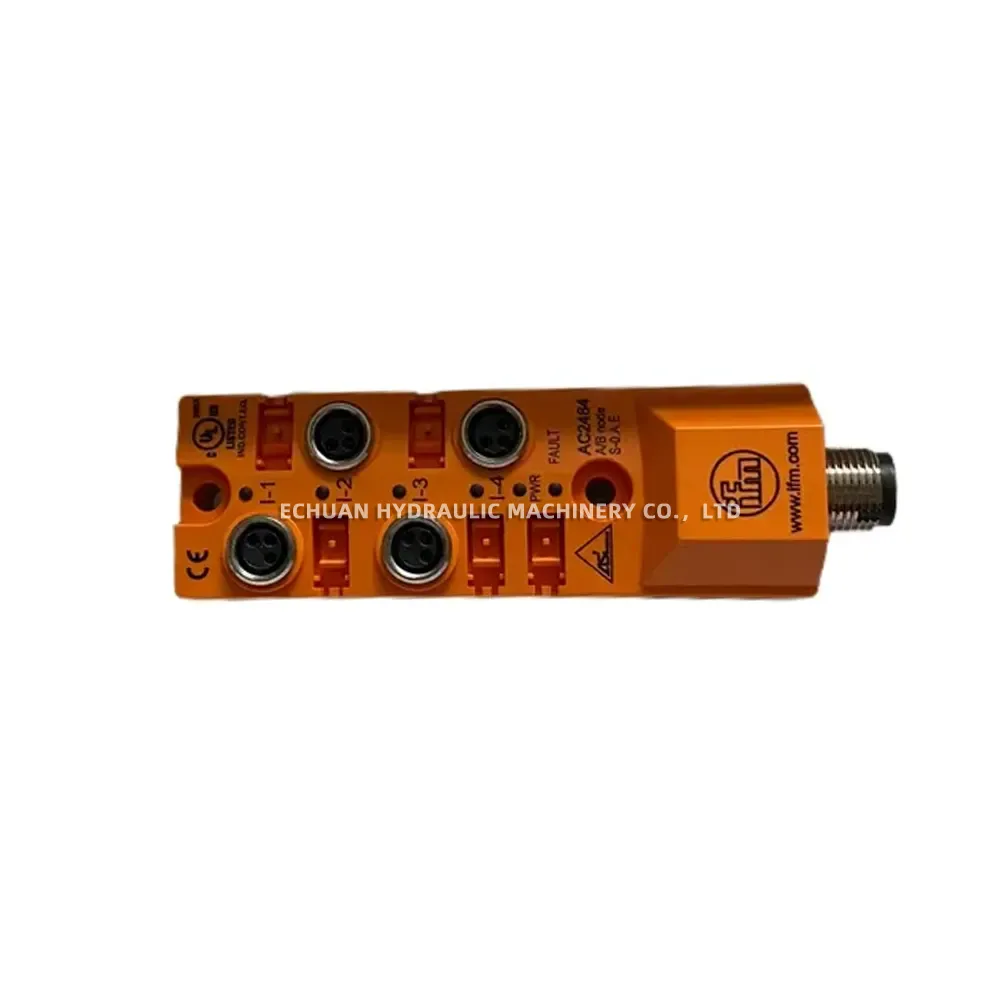

ifm AC2484 AS-i Module
The ifm AC2484 is a highly reliable and compact AS-Interface (AS-i) module designed for seamless integration into industrial automation systems. Manufactured in Germany by ifm electronic, this CompactM8 module features 4 digital inputs equipped with standard M8 connectors for robust sensor connectivity. Operating as an A/B node with the S-0.A.E profile, it ensures efficient data transmission and network optimization. The module supports an input voltage range of 26.5 to 31.6 V DC with a maximum current consumption of 180 mA (Supply Class 2). It is cULus listed as industrial control equipment, guaranteeing high safety and performance standards in demanding environments.
Technical Specifications:
- Brand: ifm electronic
- Model: AC2484
- Module Type: CompactM8 4DI AS-i module
- Node Profile: A/B node S-0.A.E
- Input Voltage: AS-i 26.5 – 31.6 V DC
- Maximum Current: 180 mA
- Power Supply Type: Supply Class 2
- Sensor Pin Configuration: 1: Sensor supply +, 3: Sensor supply -, 4: Data input
- AS-i Pin Configuration: 1: AS-i +, 3: AS-i –
- Certifications: cULus LISTED IND.CONT.EQ.
- Country of Origin: Made in Germany
ifm AC2484 AS-i Module
Optimize your industrial automation with the ifm AC2484 CompactM8 4DI AS-i module. Featuring 4 digital inputs, robust M8 connectors, and A/B node S-0.A.E compatibility, this reliable German-made module operates on 26.5-31.6V DC. Ideal for efficient sensor networking.
