Product Description

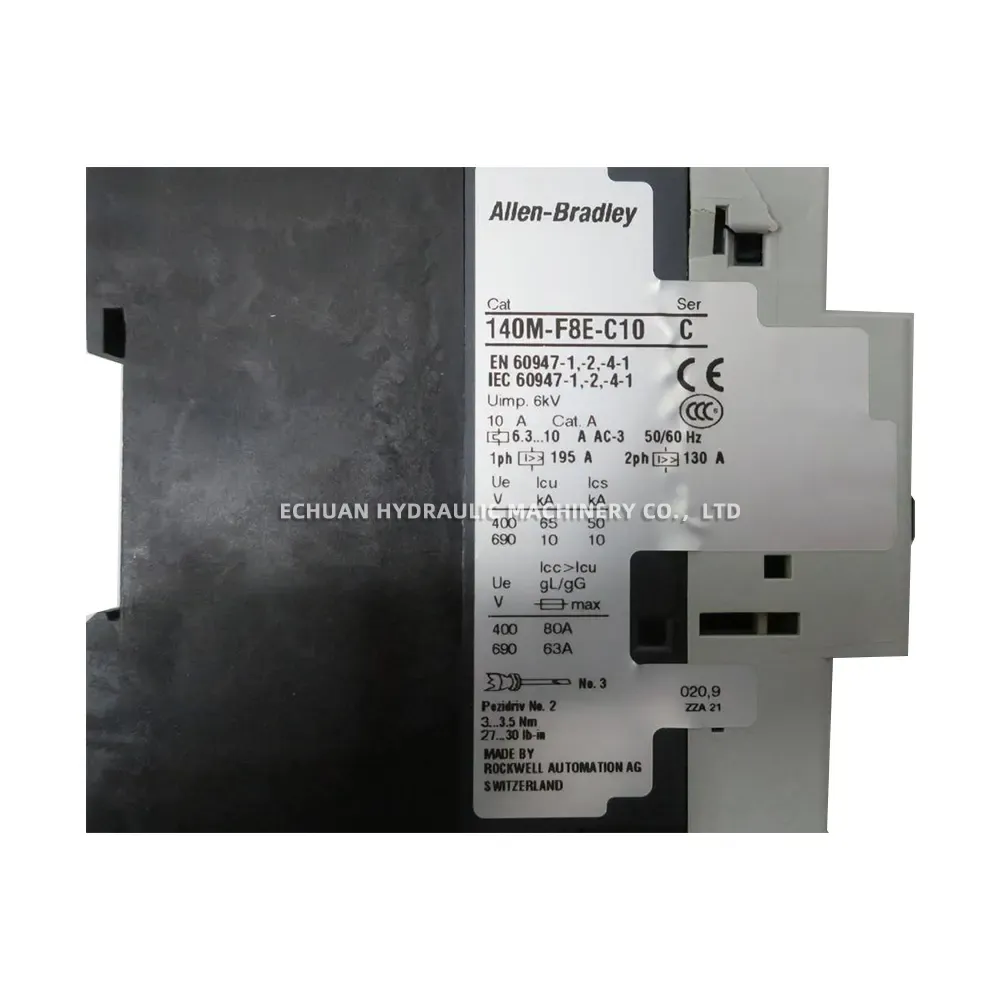

Allen-Bradley 140M-F8E-C10 Manual Motor Controller
The Allen-Bradley 140M-F8E-C10 by Rockwell Automation is a heavy-duty, manual self-protected combination motor controller and motor protection circuit breaker. Designed for reliable industrial motor control, this Series C device features a 10 A maximum current rating with an adjustable thermal trip range of 6.3 to 10 A. It delivers exceptional short-circuit protection with an interrupting capacity (Icu) of up to 65 kA at 400V AC. UL Listed and fully compliant with EN/IEC 60947 standards, the 140M-F8E-C10 ensures safe, efficient, and space-saving motor branch circuit protection for demanding automation environments.
Technical Specifications:
- Brand: Allen-Bradley / Rockwell Automation
- Model/Catalog Number: 140M-F8E-C10 (Series C)
- Device Type: Manual Self-Protected Combination Motor Controller
- Rated Current (In): 10 A (Category A)
- Thermal Trip Setting Range (Ith): 6.3…10 A (AC-3 50/60 Hz)
- Magnetic Trip Current: 195 A
- Maximum Operating Voltage (Ue): 690V AC (480V Max for UL/US)
- Short-Circuit Capacity (Icu): 65 kA @ 400V AC / 10 kA @ 690V AC
- Rated Impulse Withstand Voltage (Uimp): 6 kV
- Horsepower Ratings: 0.5 HP @ 115V (1ph), 1.5 HP @ 230V, 10 HP @ 460/575V
- Terminal Torque: 3…3.5 Nm (27…30 lb-in) via Pozidriv No. 2
- Standards & Certifications: UL Listed (File E15708), EN/IEC 60947-1, -2, -4-1
Allen-Bradley 140M-F8E-C10 Manual Motor Controller / Motor Protection Circuit Breaker
Shop the Allen-Bradley 140M-F8E-C10 Manual Motor Controller. This 10A, 600V-class motor protection circuit breaker offers an adjustable 6.3-10A thermal trip and 65kA short-circuit rating for reliable industrial automation safety.
| Brand | Allen-Bradley |
|---|---|
| Model | 140M-F8E-C10 |
| Part No. | 1041012980589 |
| Category | Electrical |
| Link | https://www.echuan-hydraulic.com/product/allen-bradley-140m-f8e-c10-manual-motor-controller-motor-protection-circuit-breaker |
