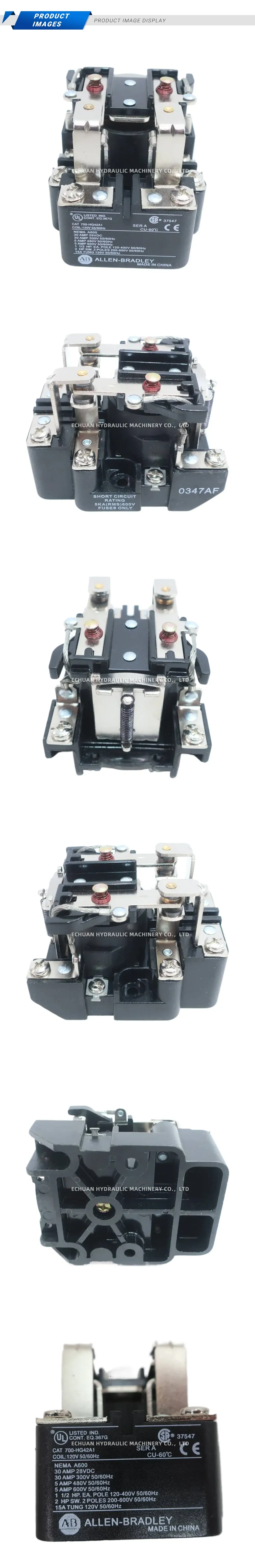

Product Description

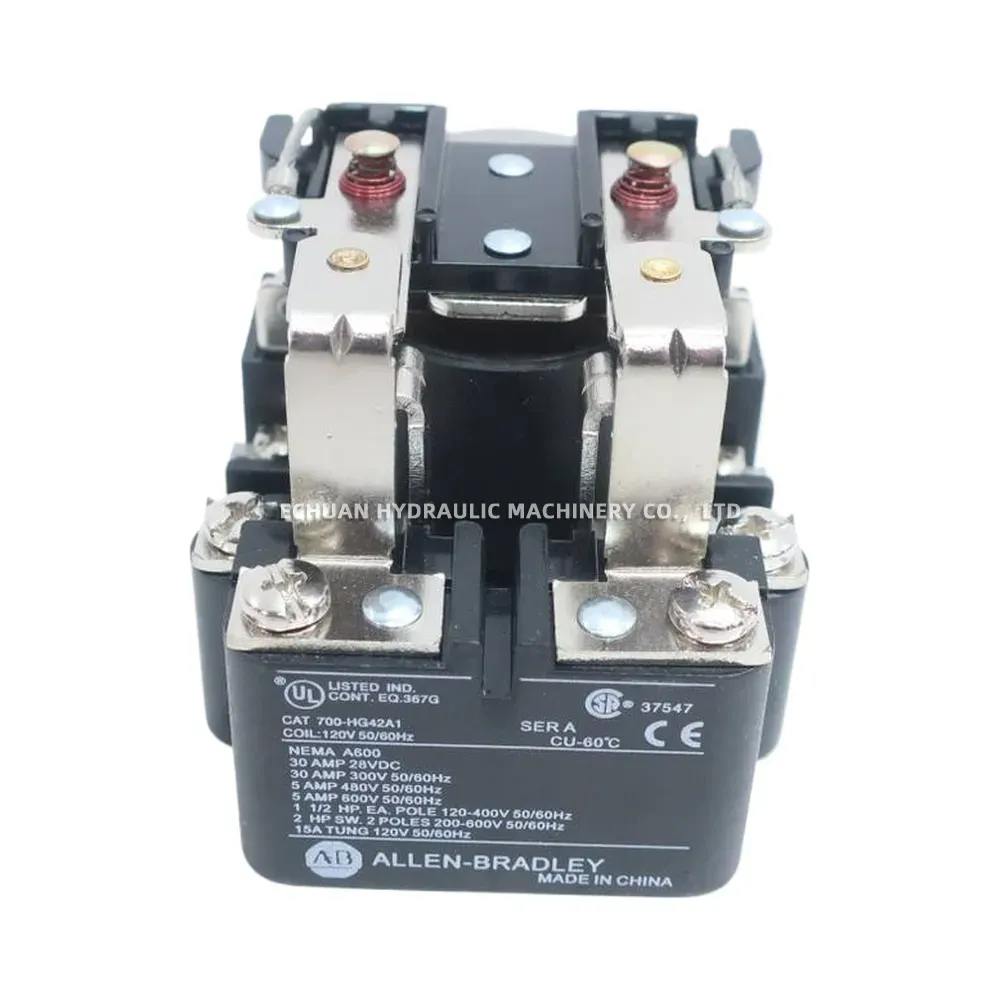

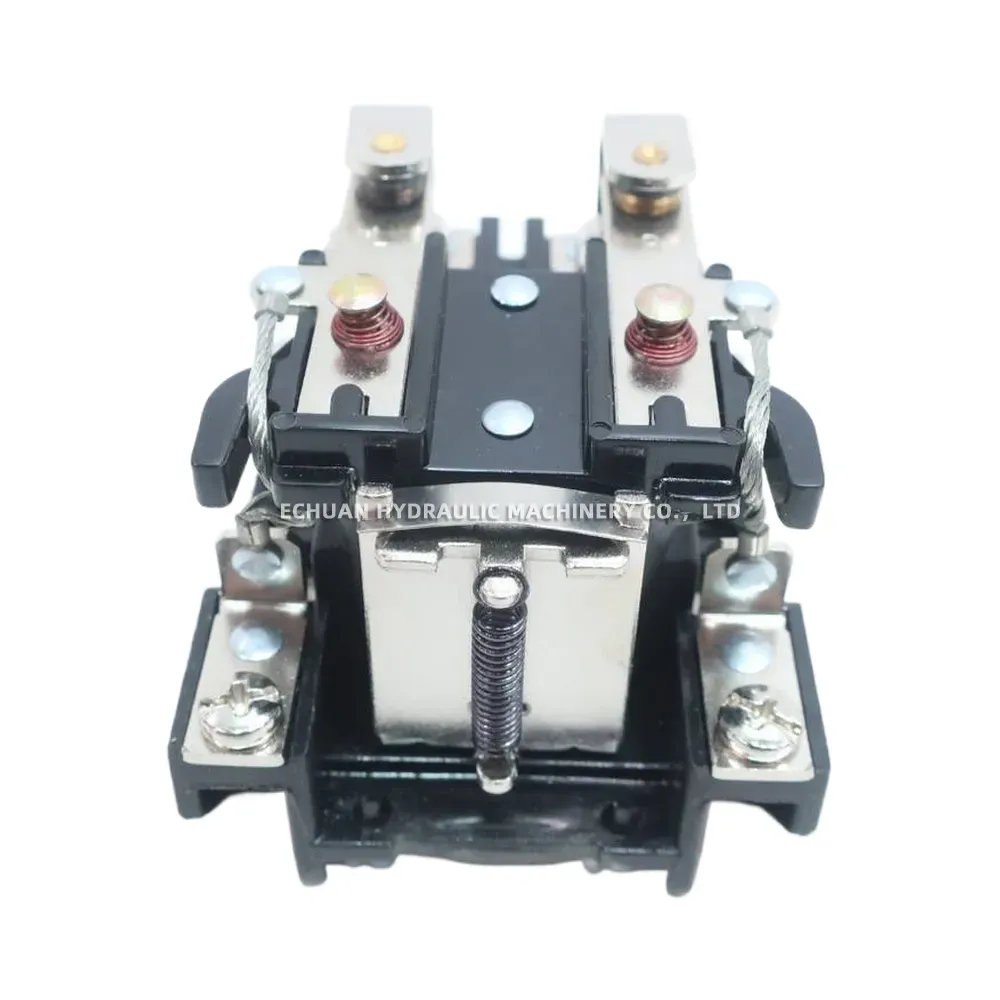

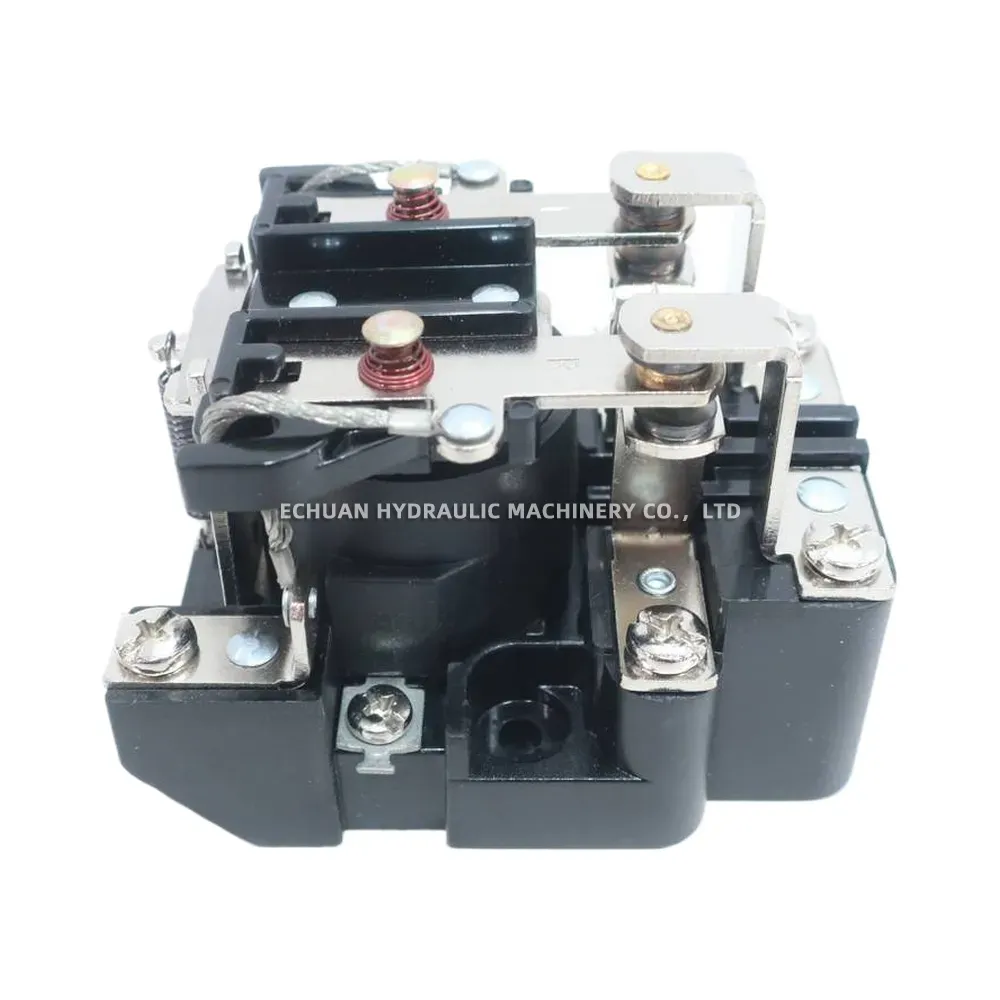

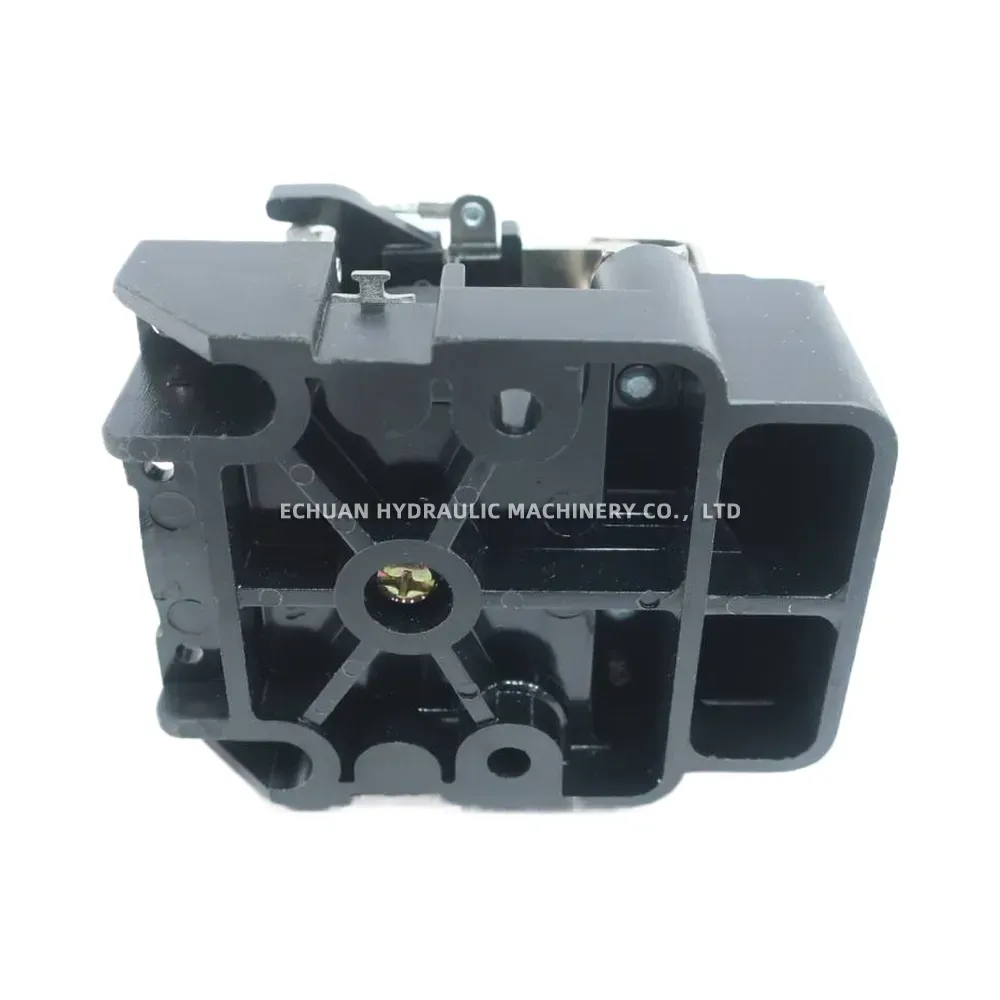

Allen-Bradley 700-HG42A1 General Purpose Relay
The Allen-Bradley 700-HG42A1 is a robust and highly reliable general-purpose relay engineered for demanding industrial automation and control applications. Equipped with a 120V 50/60Hz coil and carrying a NEMA A600 rating, this heavy-duty Series A relay delivers exceptional switching performance. It accommodates versatile electrical loads, featuring a 30 Amp capacity at both 28V DC and 300V AC, alongside a 15A Tungsten rating for lighting applications. Built to meet stringent UL, CSA, and CE standards, the 700-HG42A1 ensures safe, efficient, and durable power switching for motors and resistive loads across various commercial and industrial environments.
Technical Specifications:
- Brand: Allen-Bradley
- Model: 700-HG42A1 (Series A)
- Coil Voltage: 120V 50/60Hz
- NEMA Rating: A600
- Contact Ratings (Amperage): 30 AMP @ 28VDC / 300V AC; 5 AMP @ 480V / 600V AC
- Horsepower Ratings: 1-1/2 HP Each Pole (120-400V); 2 HP Switching 2 Poles (200-600V)
- Tungsten Rating: 15A @ 120V 50/60Hz

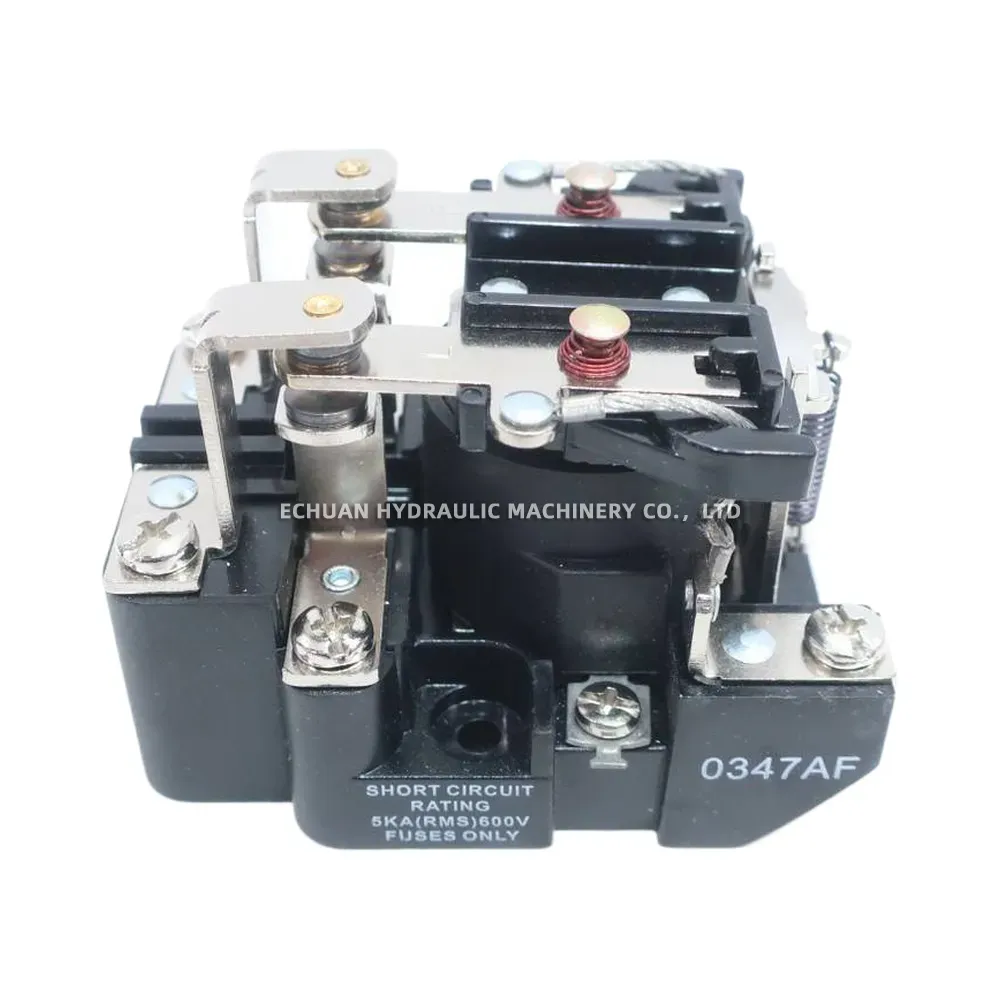

- Short Circuit Rating: 5KA (RMS) @ 600V (Fuses Only)

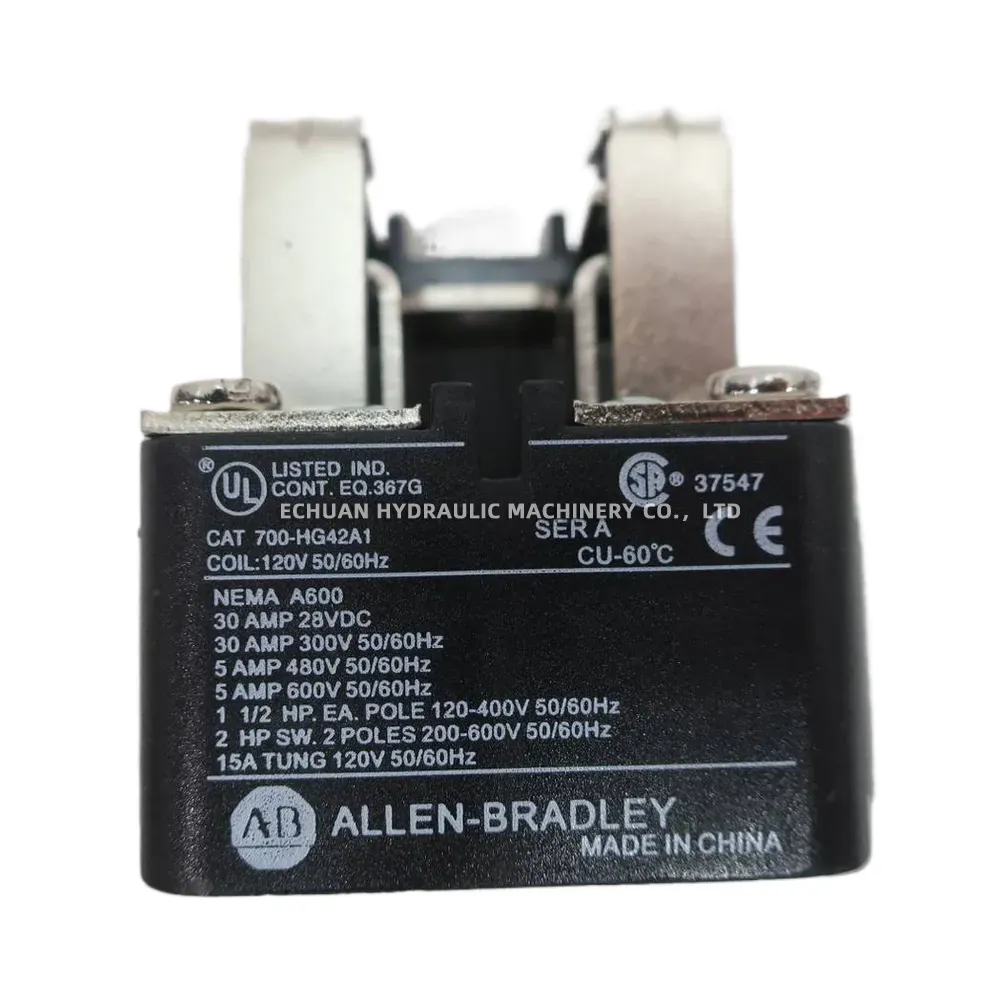

- Certifications: UL Listed (CONT. EQ. 367G), CSA (37547), CE
