Product Description

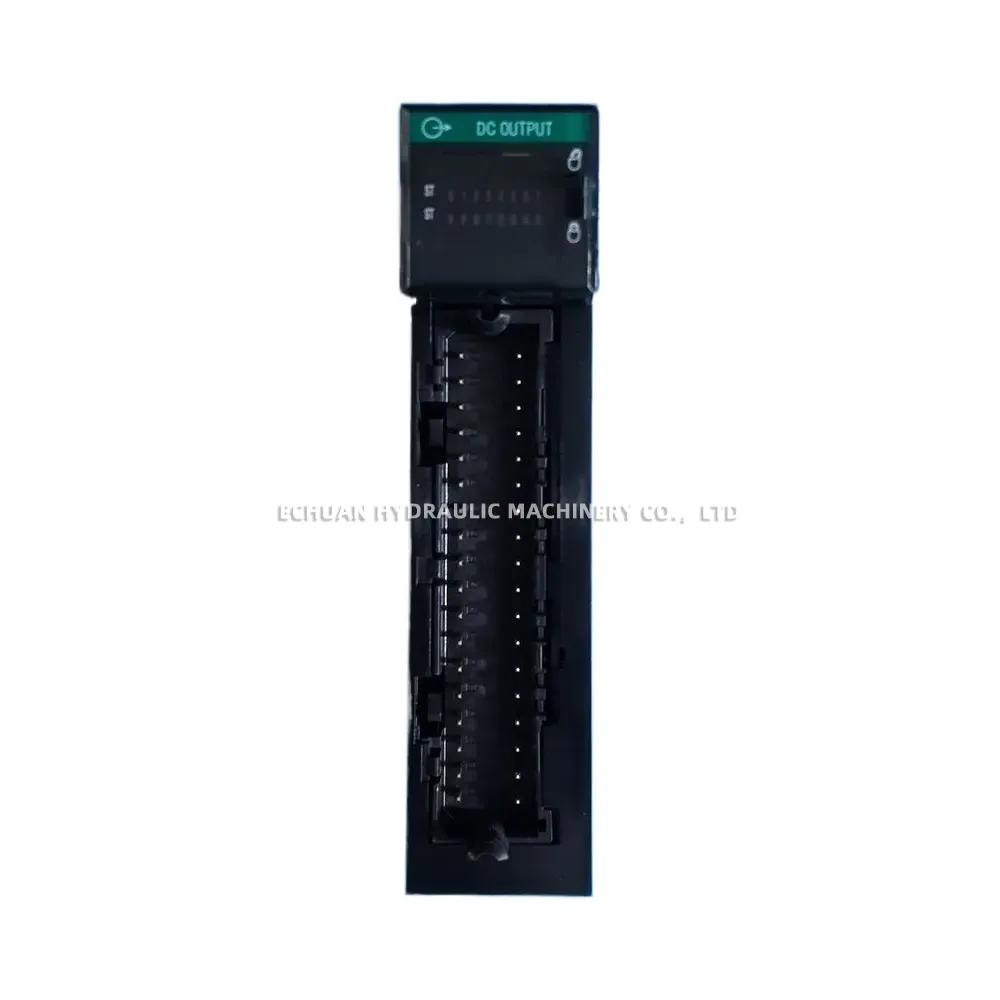

Allen-Bradley 1756-OB16I
The Allen-Bradley 1756-OB16I is a ControlLogix Digital DC Output Module designed for high-performance industrial control systems. It features 16 individually isolated sourcing outputs, providing enhanced protection and noise immunity for each channel. This module operates within a 10-31.2V DC voltage range, making it suitable for a wide variety of 12/24V DC applications. With built-in diagnostic features, the 1756-OB16I allows for quick detection of field-side issues such as open wires or short circuits, minimizing downtime and simplifying maintenance. It is an ideal choice for controlling devices like pilot lights, relays, solenoids, and motor starters in demanding automation environments.
Technical Specifications:
- Module Type: Digital DC Sourcing Output Module
- Number of Outputs: 16 (individually isolated)
- Voltage Category: 12/24V DC Sourcing
- Operating Voltage Range: 10 to 31.2V DC
- Output Current Rating: 2 A per point @ 30 °C, 1 A per point @ 60 °C
- Backplane Current: 300 mA @ 5.1V DC; 2 mA @ 24V DC
- Required Terminal Block: 1756-TBCH or 1756-TBS6H
Allen-Bradley 1756-0B16I
Allen-Bradley 1756-OB16I ControlLogix 16-point individually isolated 12/24V DC sourcing output module with diagnostics for reliable industrial control applications.
