Product Description

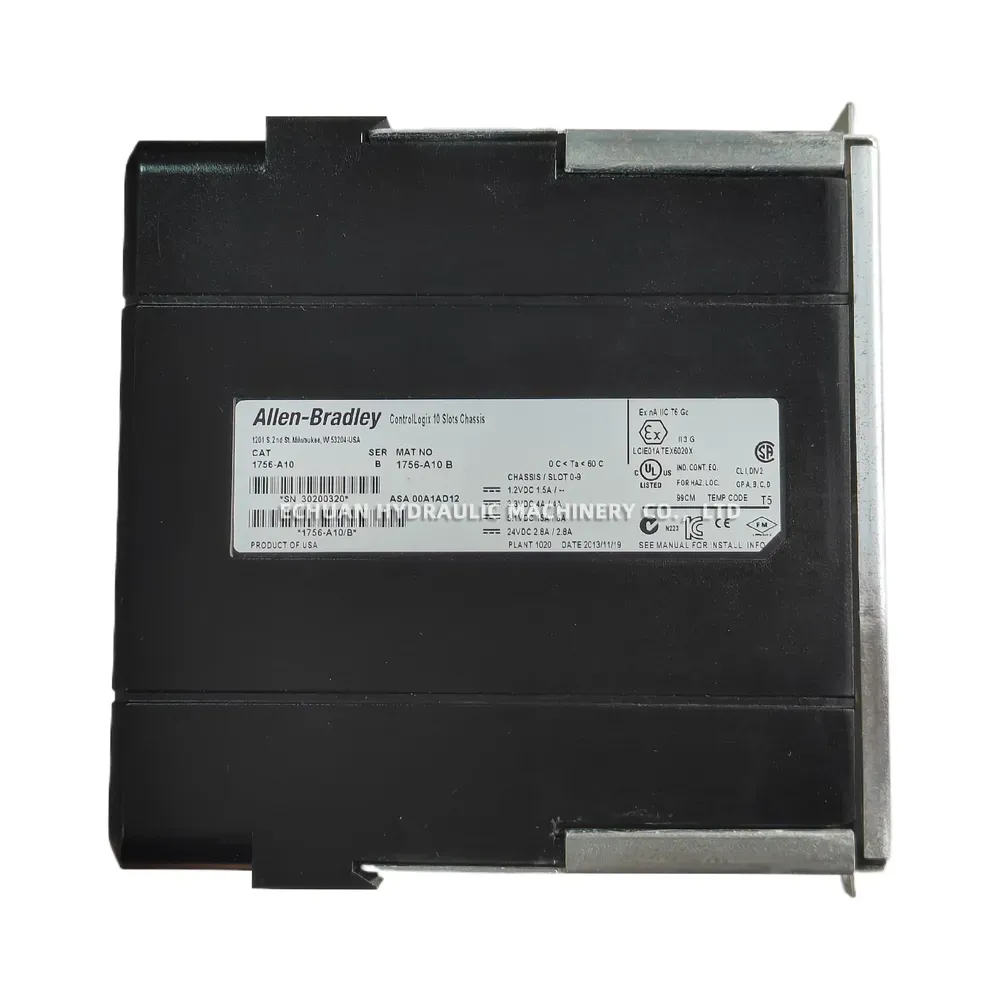

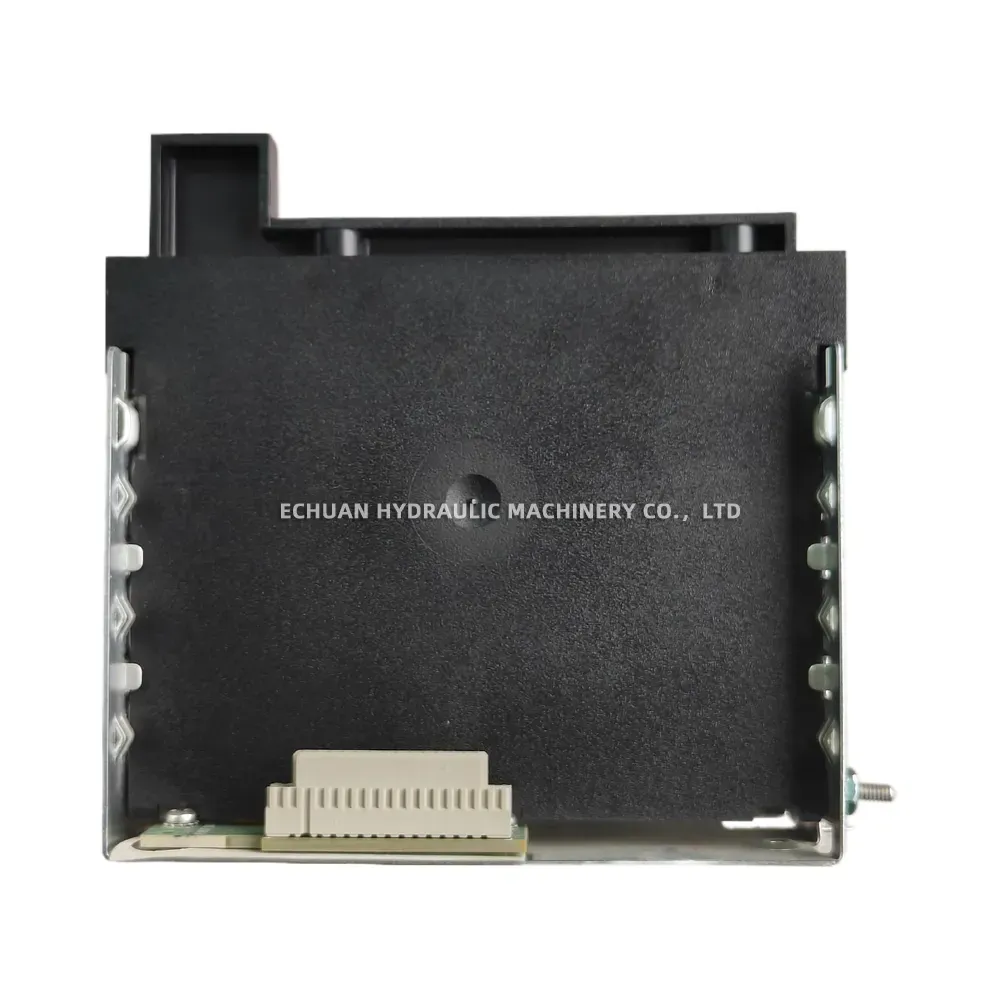

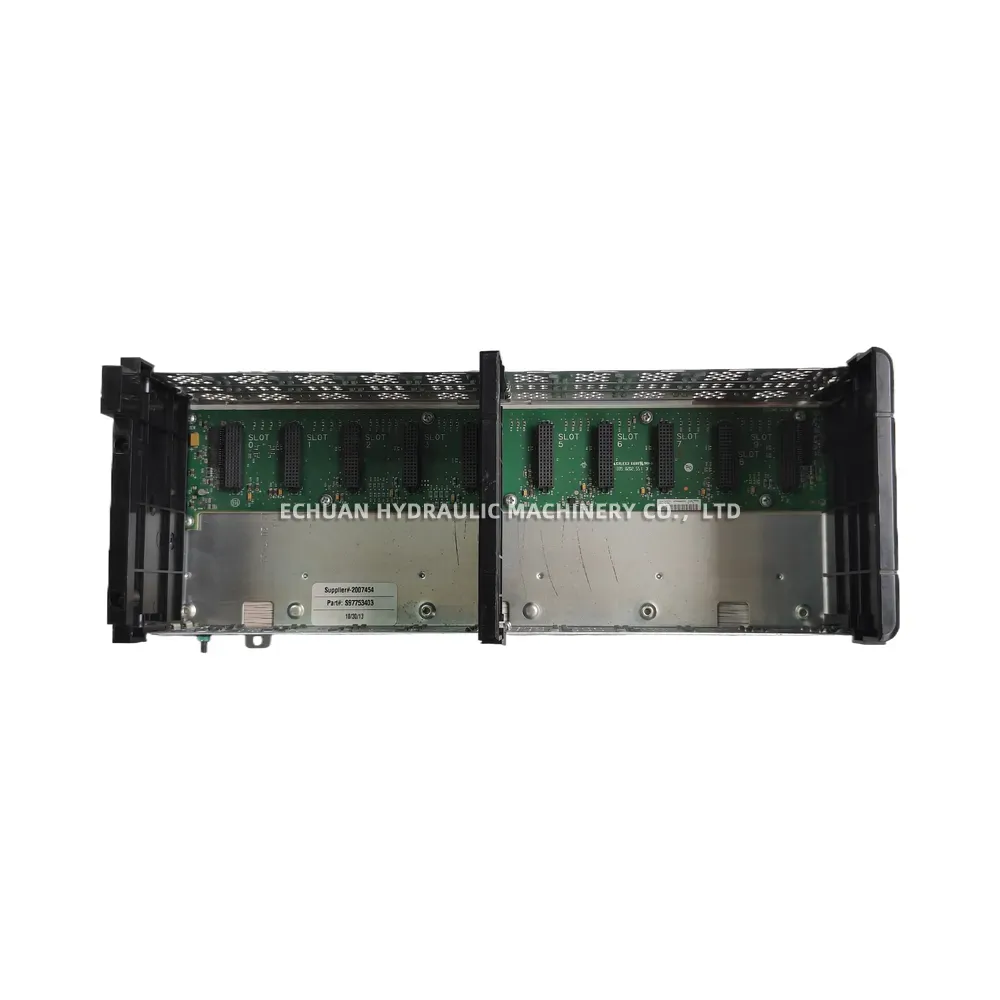

Allen-Bradley 1756-A10 Slot-type chassis
The Allen-Bradley 1756-A10 is a ControlLogix standard chassis designed to house ControlLogix modules in an industrial automation system. With 10 available slots, it provides the structural foundation and high-speed backplane for communication between I/O modules, controllers, communication modules, and power supplies. Its robust construction ensures reliable performance in demanding environments, making it a cornerstone for building scalable and flexible control systems. The 1756-A10 chassis supports horizontal mounting and is a key component for creating a centralized and efficient Allen-Bradley PLC architecture.
Technical Specifications:
- Number of Slots: 10
- Backplane Current (5.1V DC): 15 A
- Backplane Current (24V DC): 2.8 A
- Power Dissipation: 4.2 W
- Mounting: Horizontal panel mount
- Dimensions (H x W x D): 171 x 483 x 145 mm (6.73 x 19.0 x 5.71 in.)
Allen-Bradley 1756-A10 Slot-type chassis
Discover the Allen-Bradley 1756-A10, a durable 10-slot ControlLogix chassis. This essential component provides a high-speed backplane for modular PLC configurations in industrial automation systems.
