Product Description

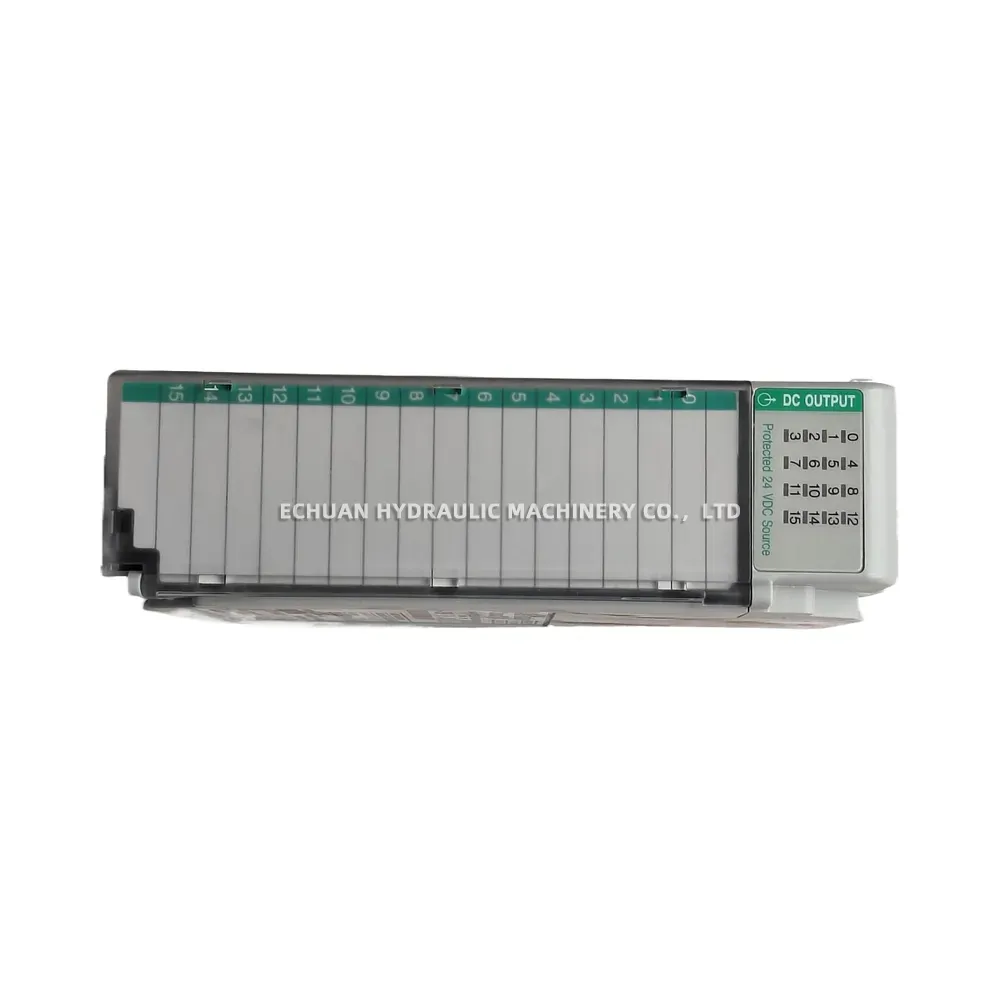

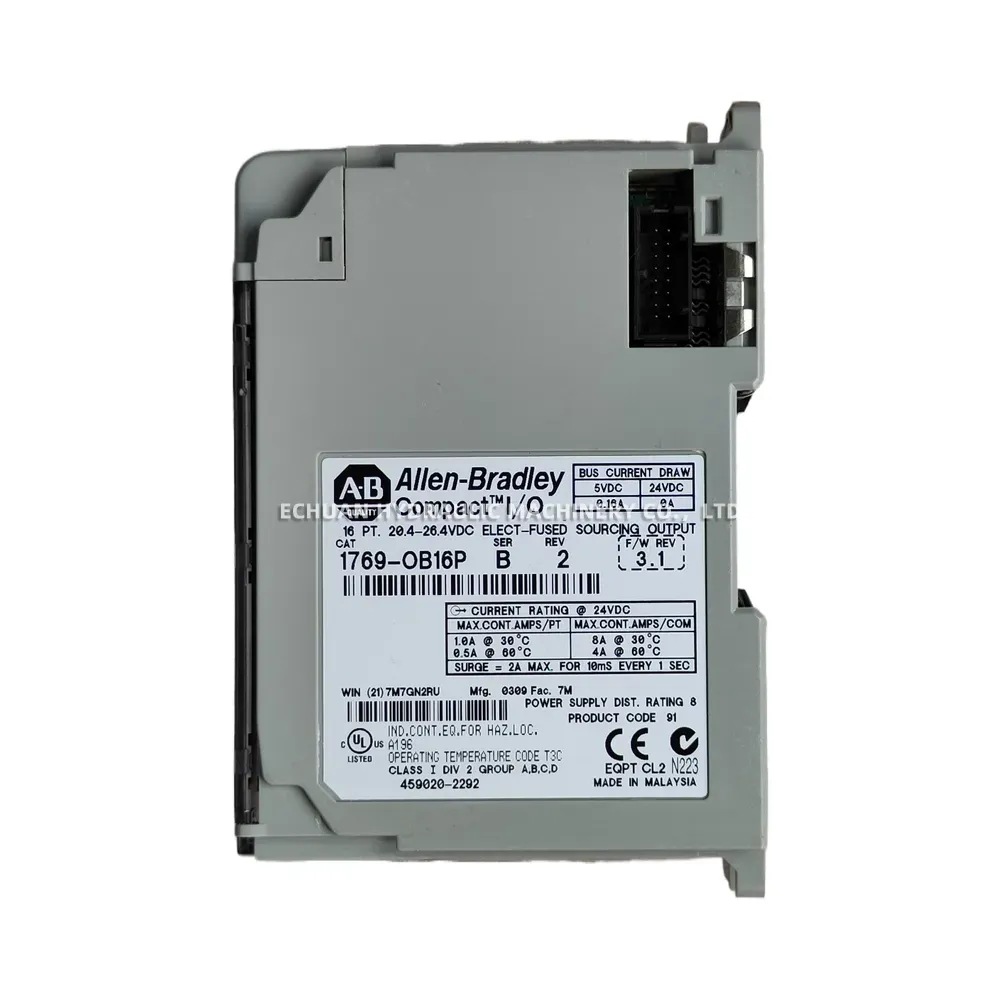

Allen-Bradley 1769-OB16P Sourcing Output
The Allen-Bradley 1769-OB16P is a CompactLogix 16-point sourcing output module designed for use in industrial control systems. This module provides sixteen 24V DC sourcing outputs, making it ideal for controlling a wide range of devices such as pilot lights, relays, motor starters, and solenoids. As part of the versatile 1769 Compact I/O platform, it offers a compact and cost-effective solution for expanding the capabilities of CompactLogix and MicroLogix 1500 controllers. The 1769-OB16P is electronically protected against overloads and short circuits, ensuring reliable operation and enhanced system safety in demanding automation environments.

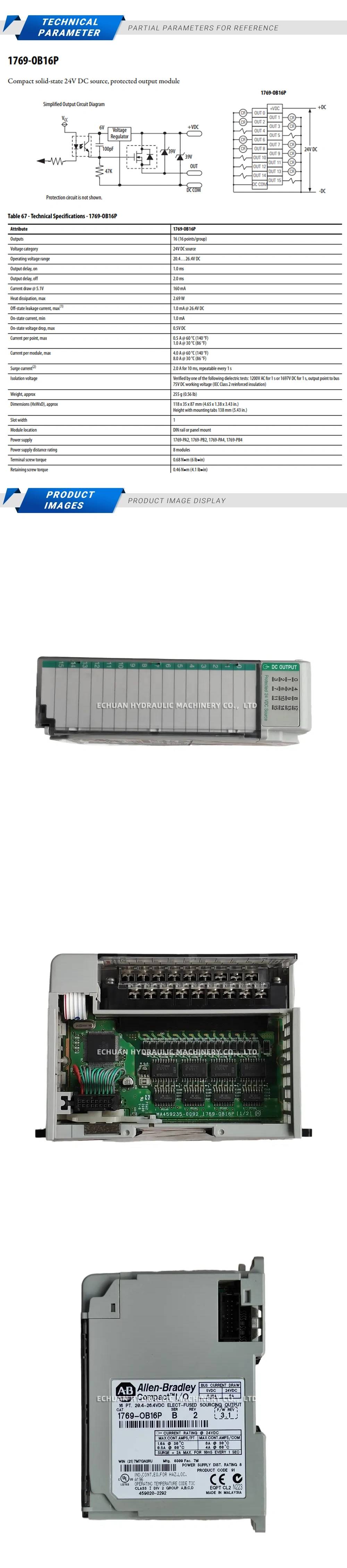

Technical Specifications:
- Outputs: 16 (1 group of 16), sourcing, electronically protected
- Voltage Category: 24V DC
- Operating Voltage Range: 20.4…26.4V DC
- Output Current Rating: 1.0 A per point (max), 8 A per module (max)
- On-State Voltage Drop: 1.0V DC @ 1.0 A (max)
- Off-State Leakage Current: 1.0 mA per point (max)
- Backplane Current: 150 mA @ 5.1V DC
- Power Supply Distance Rating: 8 modules
Allen-Bradley 1769-0B16P Sourcing Output
Discover the Allen-Bradley 1769-OB16P, a reliable CompactLogix 16-point 24V DC sourcing output module. Ideal for PLC applications requiring robust and protected digital outputs.
