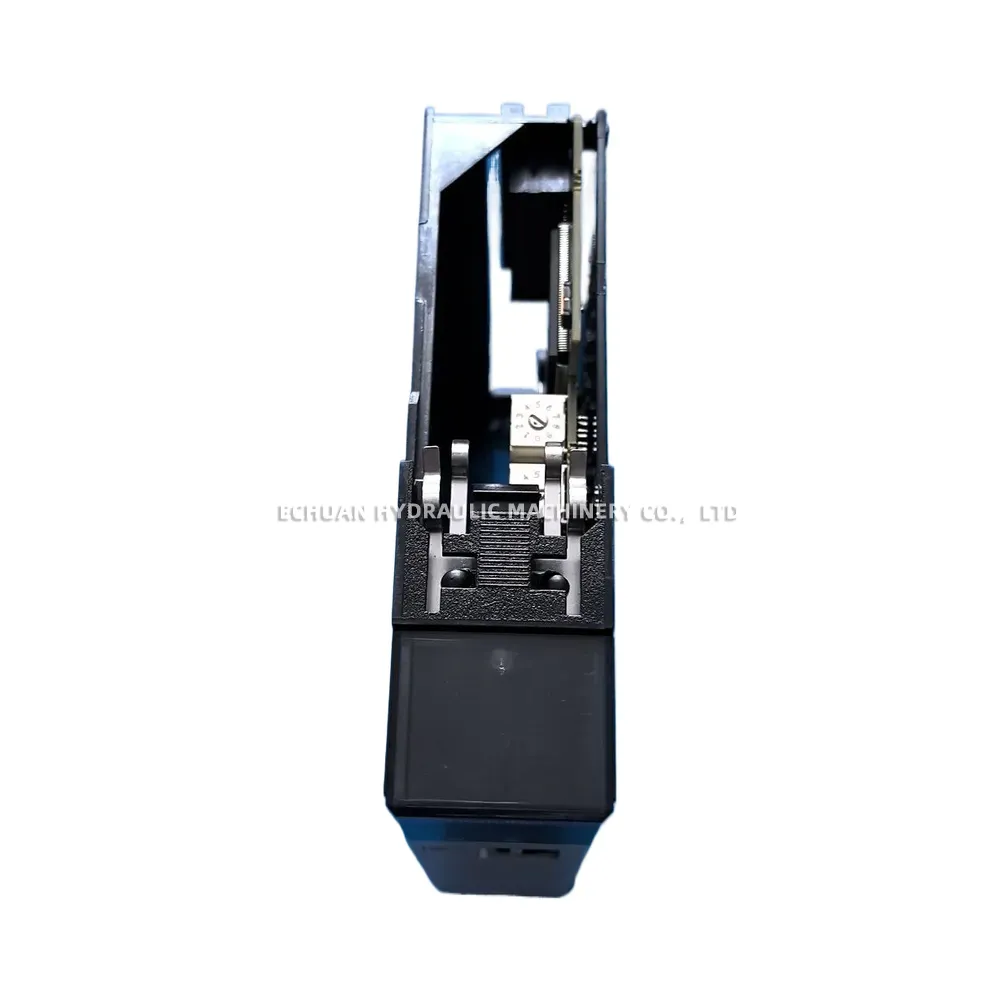

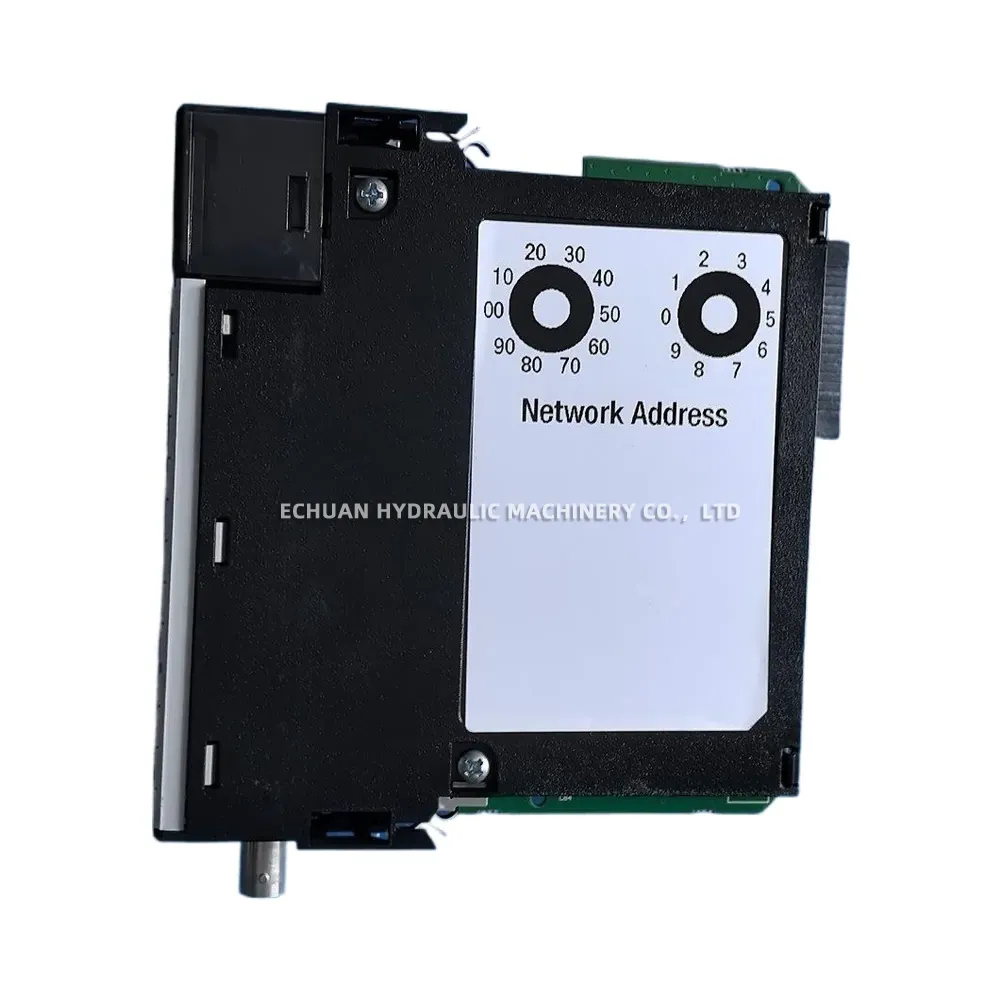

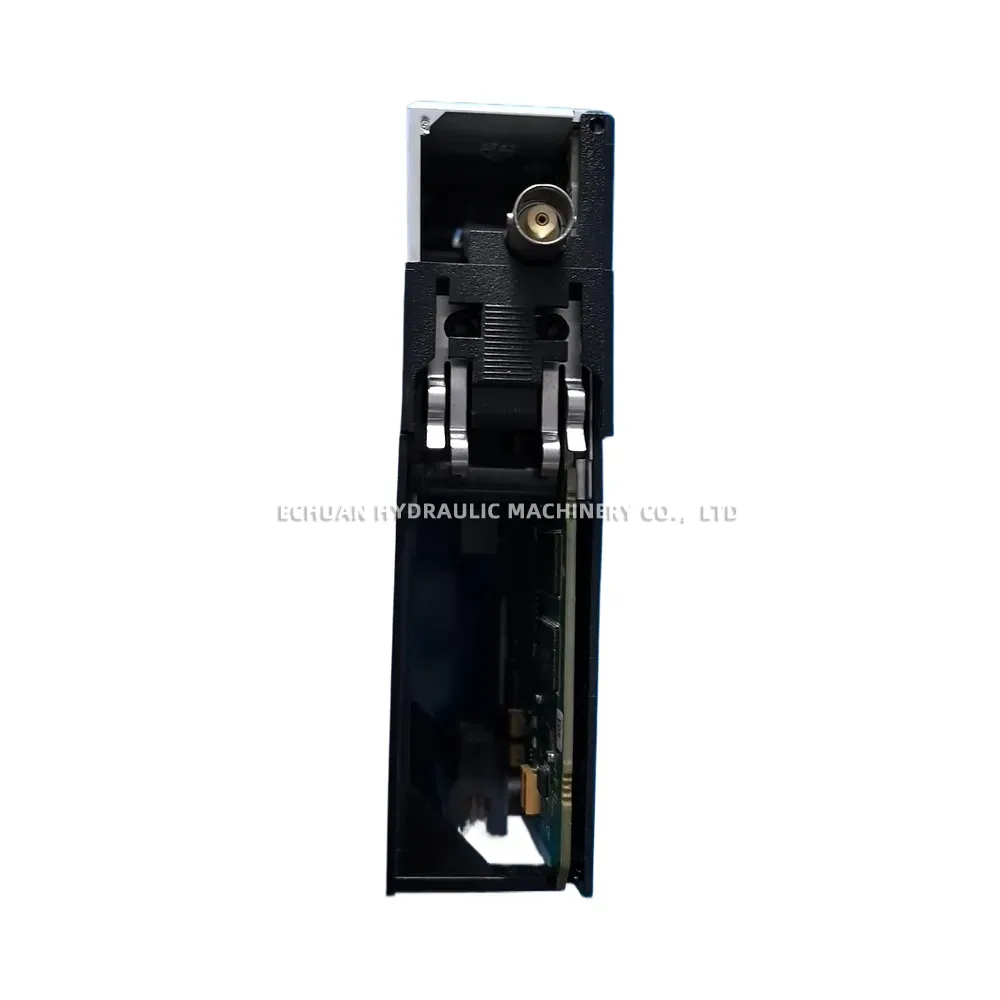

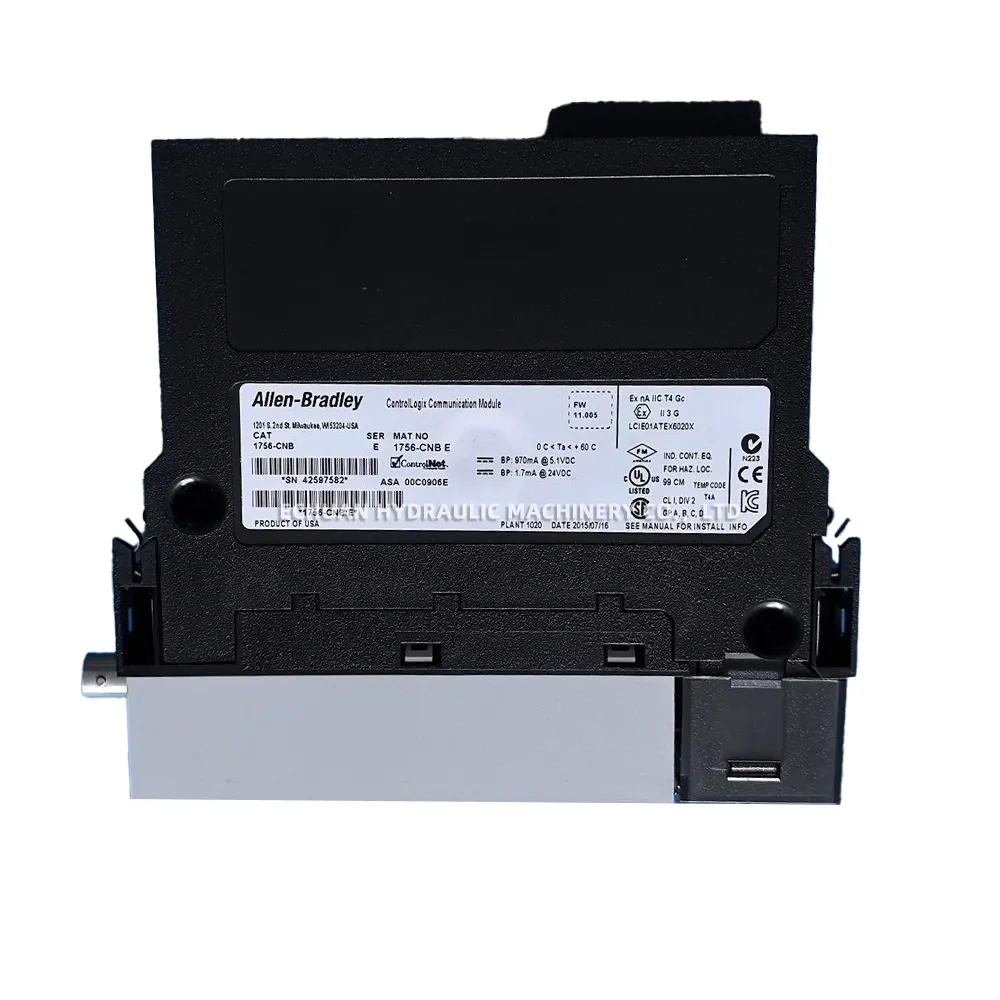

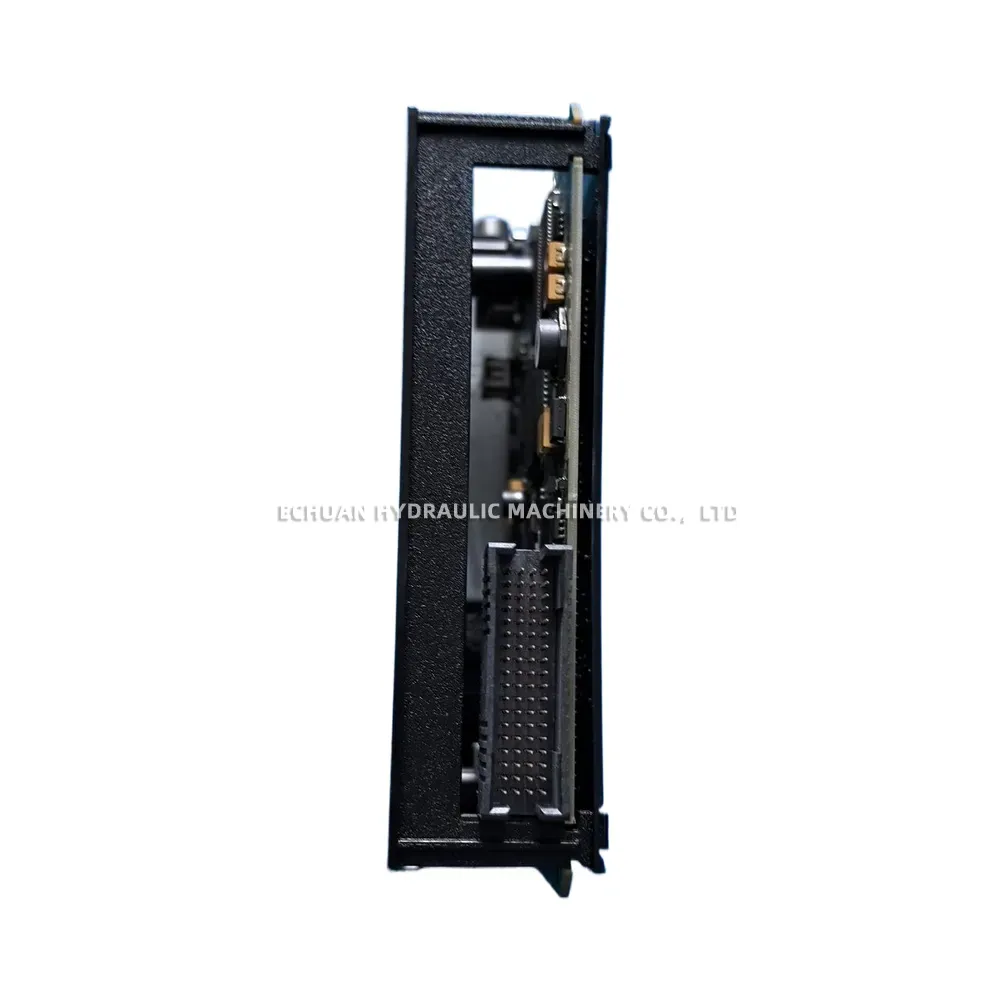

Allen-Bradley 1756-CNB
The Allen-Bradley 1756-CNB is a ControlNet Bridge Module designed for the ControlLogix platform. This module serves as a crucial communication link, bridging the ControlLogix backplane to the ControlNet network. It facilitates high-speed, deterministic data exchange between multiple ControlLogix chassis, remote I/O, and other ControlNet-compatible devices. The 1756-CNB is essential for building large-scale, distributed control systems that require reliable and time-critical communication for complex industrial automation processes. It supports redundant media configurations, enhancing network availability and system robustness.
Technical Specifications:
- Module Type: ControlNet Bridge Module
- Communication Network: ControlNet
- Communication Rate: 5 Mbps
- Backplane Current Draw: 990 mA at 5.1V DC; 3 mA at 24V DC
- Power Dissipation: 5.2 W
- Slot Width: 1
- Logix Connections: 128
Allen-Bradley 1756-CNB
Allen-Bradley 1756-CNB ControlLogix ControlNet Bridge Module for high-speed, reliable communication in distributed automation and control systems.
