Product Description

Allen-Bradley 1756-IH16I A

The Allen-Bradley 1756-IH16I is a ControlLogix 120V AC/DC Digital Input Module. This module features 16 individually isolated inputs, making it ideal for applications requiring high noise immunity and protection between channels. It is designed to interface with a wide range of field devices such as push buttons, limit switches, and sensors within a ControlLogix system. Its robust design ensures reliable performance in demanding industrial environments, providing a secure connection between the control system and external high-voltage signals.

Technical Specifications:

  • Module Type: Digital AC/DC Input Module

  • Number of Inputs: 16 (Individually Isolated)

  • Voltage Category: 120V AC/DC

  • On-State Voltage Range: 74…132V AC / 74…132V DC

  • Backplane Current: 150 mA at 5.1V, 3 mA at 24V

  • Slot Width: 1

  • Compatible Terminal Blocks: 1756-TBCH, 1756-TBS6H

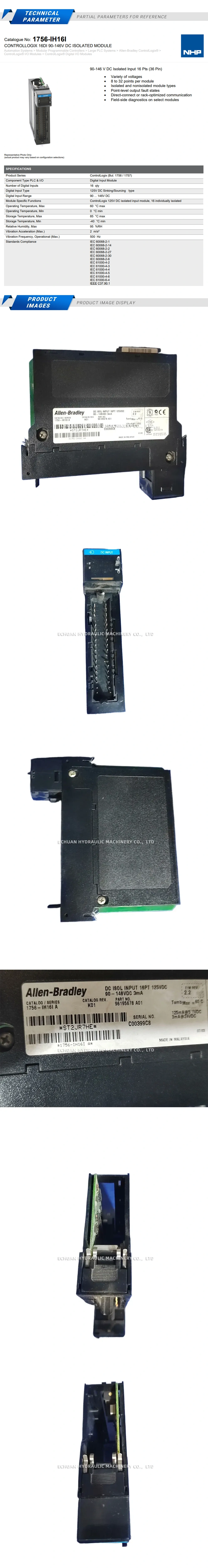

Allen-Bradley 1756-IH16I A Description

Allen-Bradley 1756-IH16I A

Allen-Bradley 1756-IH16I Series A ControlLogix module with 16 individually isolated digital inputs for 120V AC/DC applications. A reliable I/O solution for industrial automation and control systems.
