Product Description

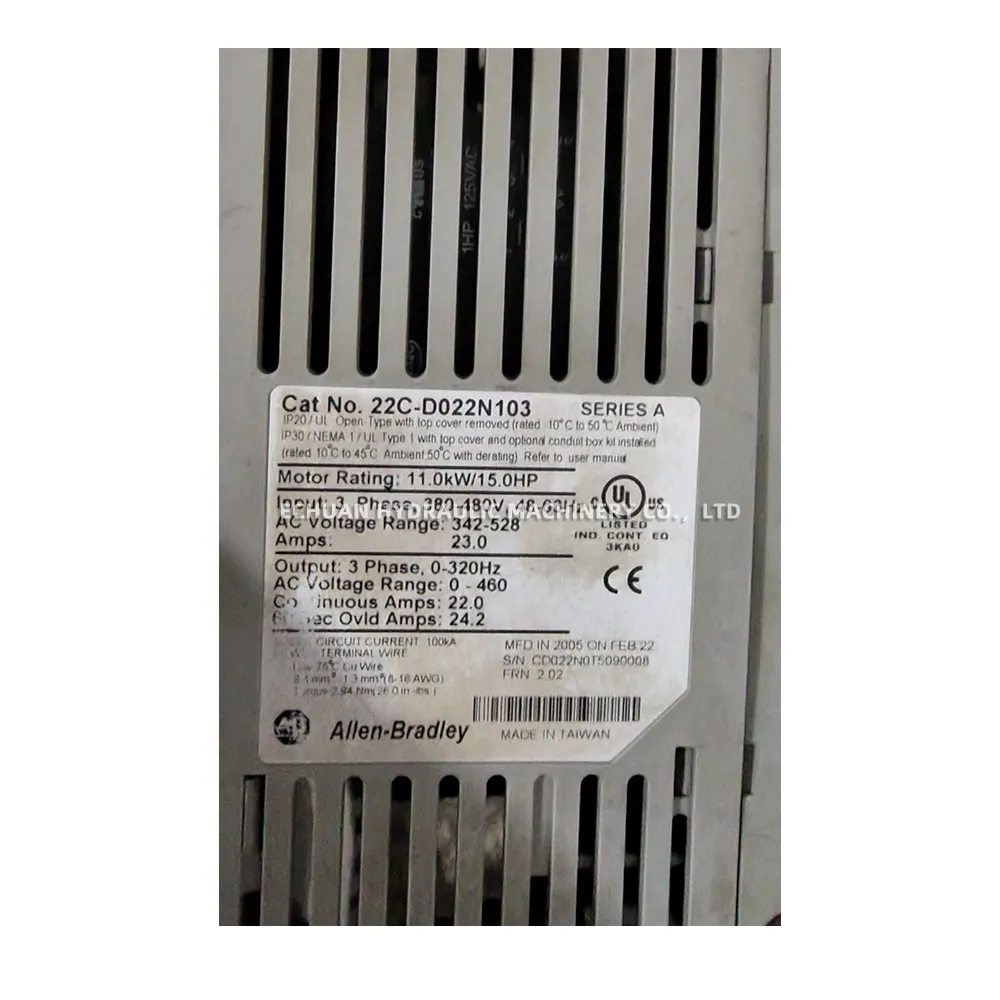

Allen-Bradley 22C-D022N103
The Allen-Bradley 22C-D022N103 is a PowerFlex 400 AC Drive, engineered for flexibility, space-saving design, and ease of use. This drive is specifically optimized for commercial and industrial fan and pump applications. It features Sensorless Vector Control for exceptional motor speed regulation and torque response. With an integral RS-485 communication port, it can be easily integrated into a variety of control networks. The drive’s built-in PID controller and intuitive fixed keypad simplify setup and operation, making it a reliable solution for variable speed motor control.
Technical Specifications:
- Voltage Rating: 480V AC, 3-Phase
- Output Current: 22 Amps
- Power Rating (Normal Duty): 11 kW / 15 HP
- Frame Size: D
- Enclosure Type: IP20 / NEMA UL Type Open
- Brake Transistor: Includes Dynamic Brake Transistor
- User Interface: Fixed Keypad with LED Display
Allen-Bradley 22C-D022N103
Shop the Allen-Bradley 22C-D022N103 PowerFlex 400 AC Drive. This 11 kW (15 HP), 480V, 3-Phase VFD is designed for efficient control of fan and pump applications with Sensorless Vector Control and an integral RS-485 port.
| Brand | Allen-Bradley |
|---|---|
| Model | 22C-D022N103 |
| Category | Electrical |
| Link | https://www.echuan-hydraulic.com/product/allen-bradley-22c-d022n103 |
