Product Description

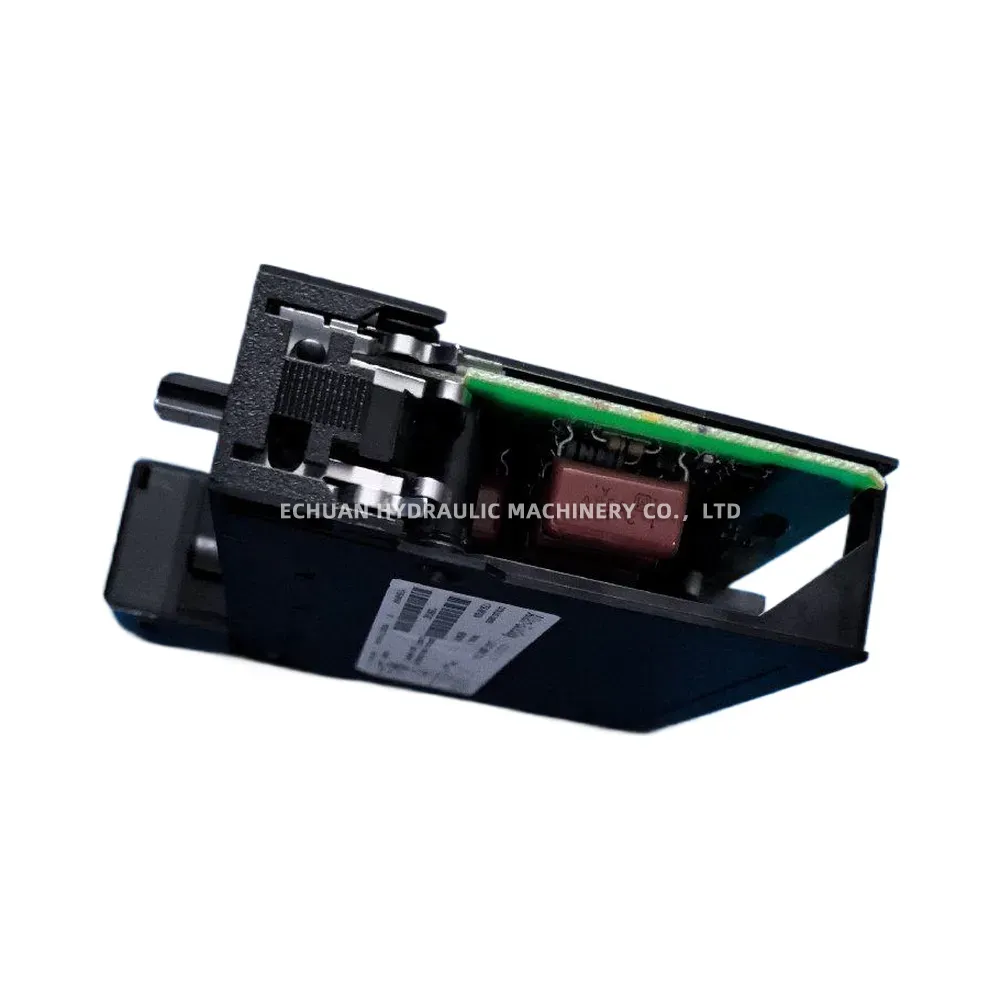

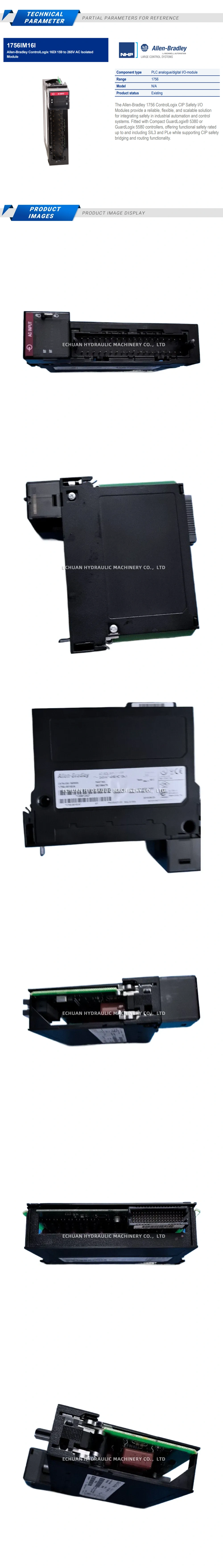

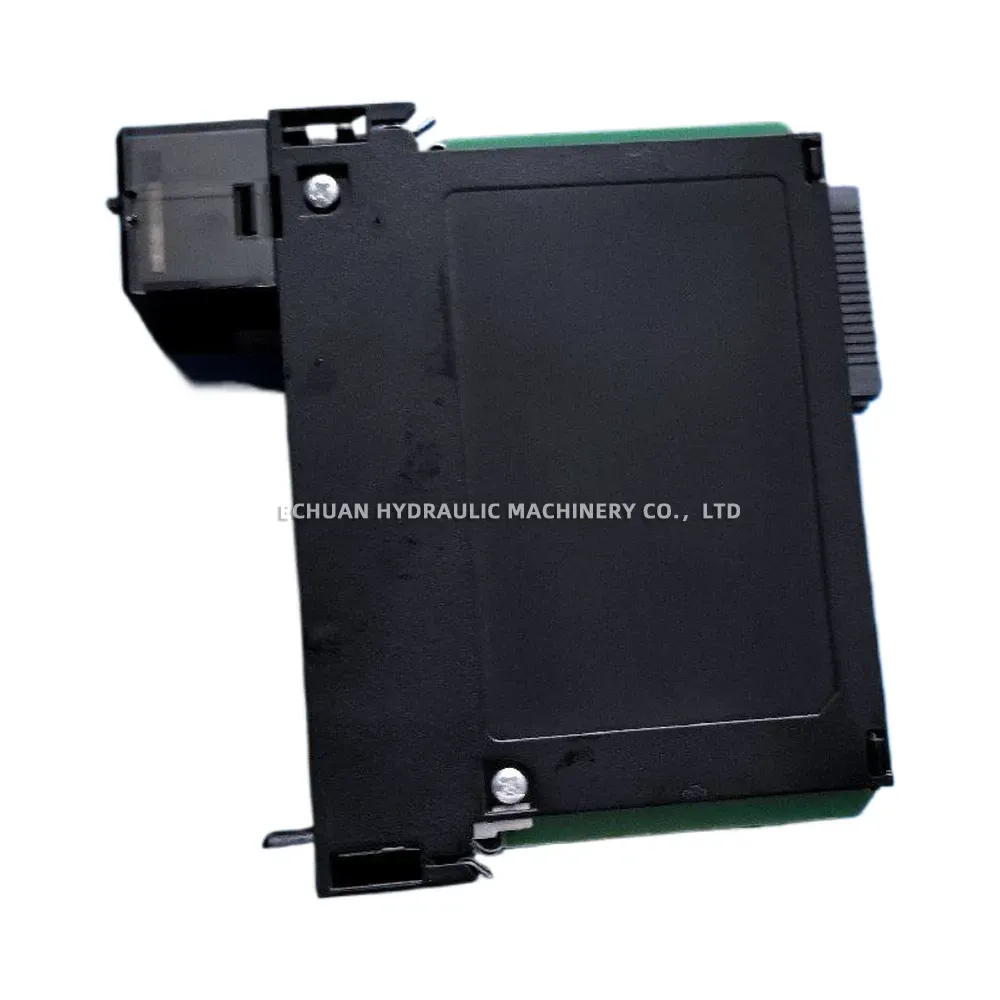

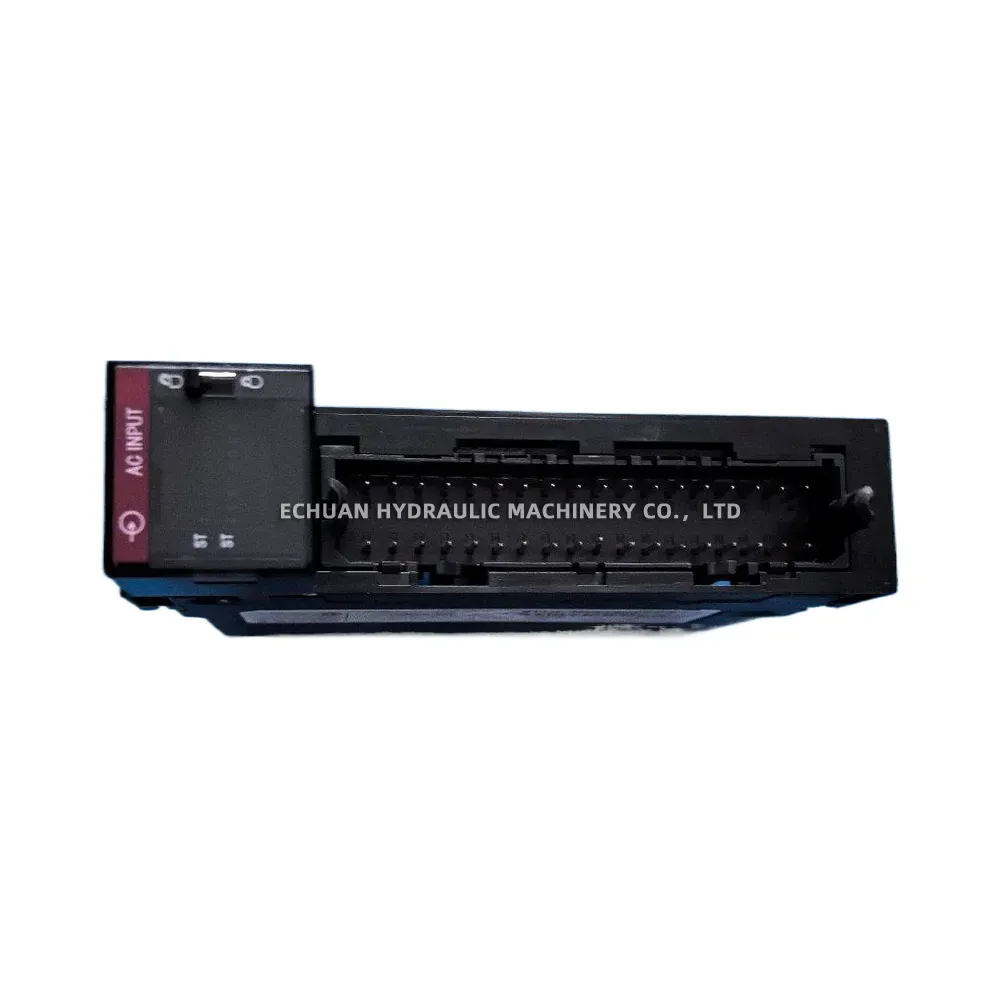

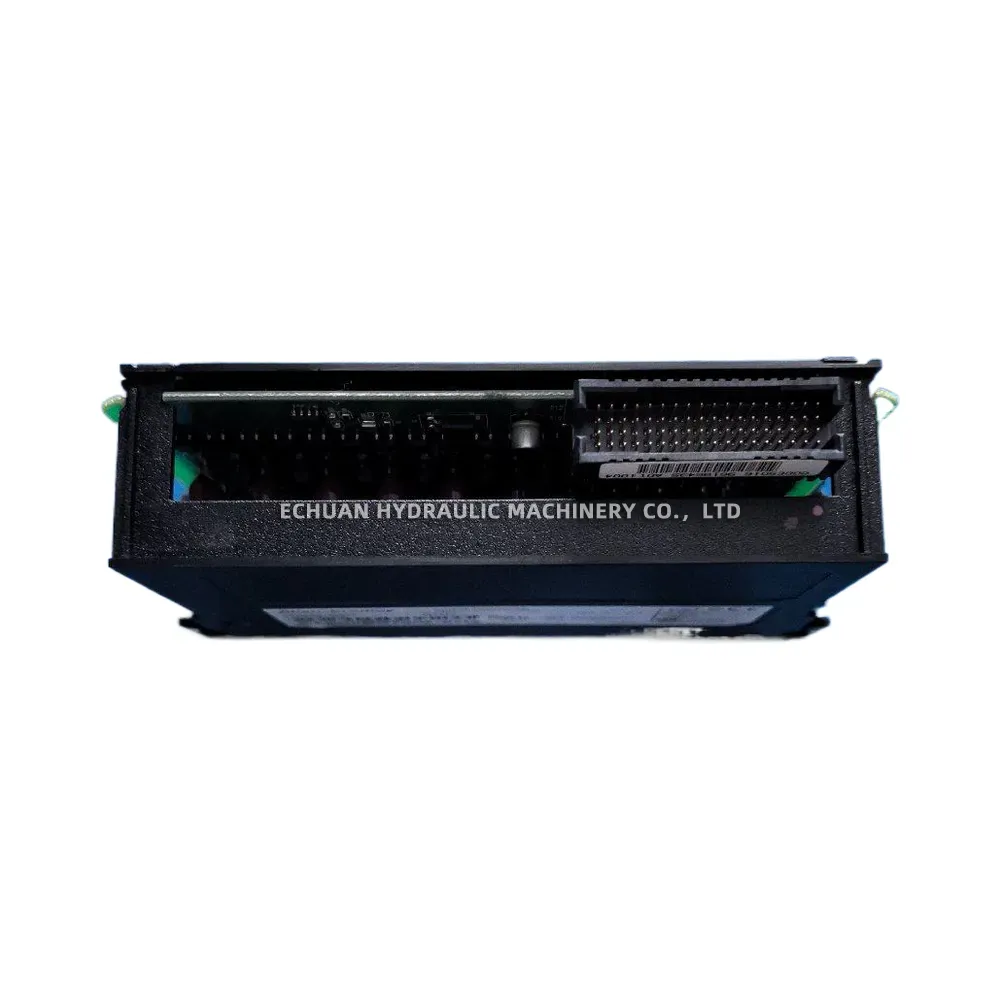

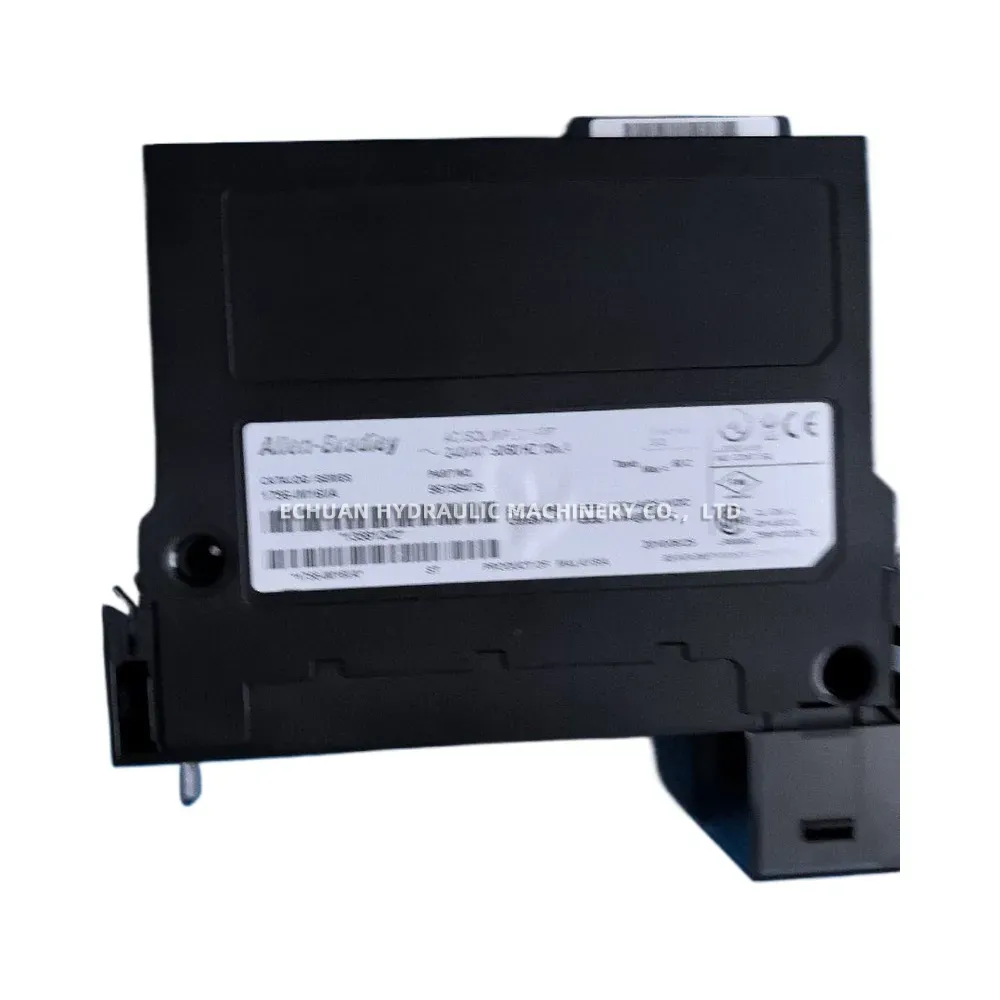

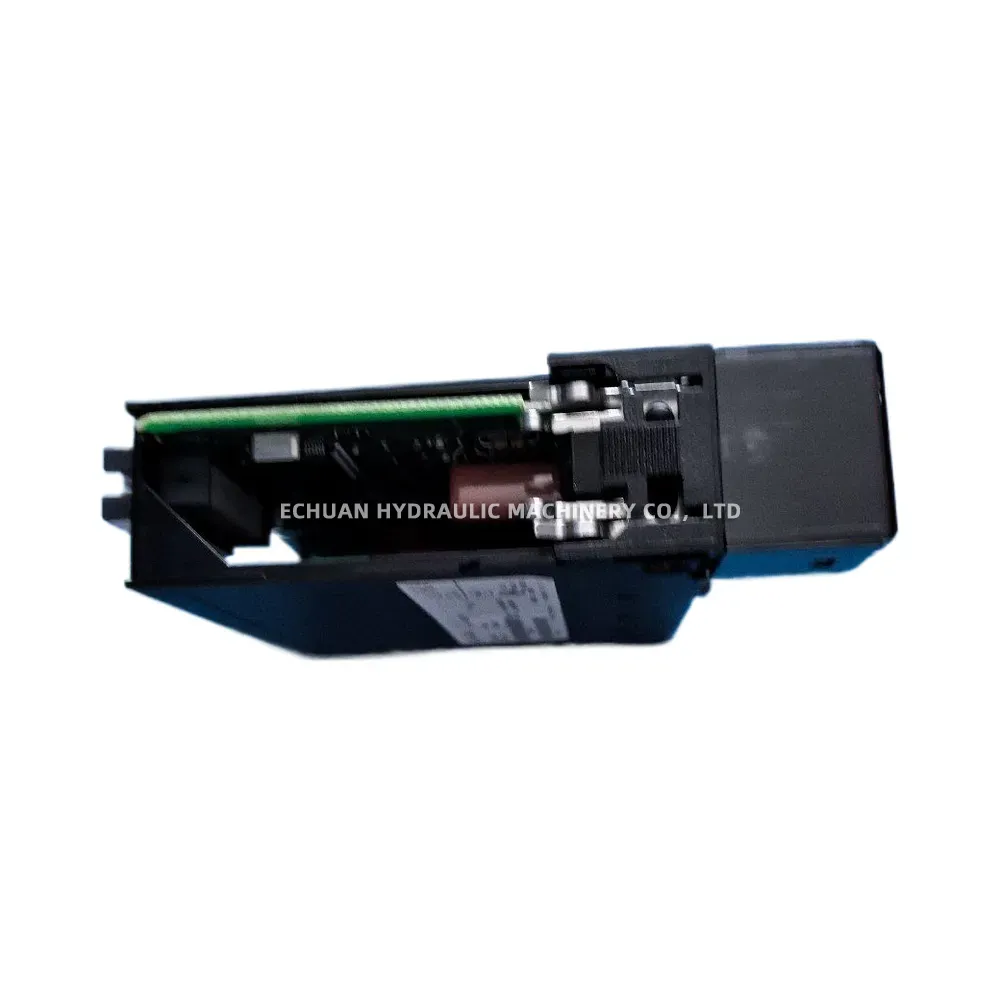

Allen-Bradley 1756-IM16I/A
The Allen-Bradley 1756-IM16I/A is a ControlLogix digital DC input module designed for high-performance industrial control systems. It features 16 individually isolated inputs, providing superior noise immunity and protection for sensitive control logic. This module is ideal for interfacing with a variety of DC sensors and switches in demanding automation environments. Operating in the 12/24V DC range, it offers flexibility and reliability. The module includes status indicators for each input point and for overall module health, simplifying diagnostics and maintenance procedures.
Technical Specifications:
- Module Type: Digital DC Input Module
- Number of Inputs: 16 (Individually Isolated)
- Voltage Category: 12/24V DC Sink
- Operating Voltage Range: 10…30V DC
- Backplane Current: 100 mA at 5.1V, 3 mA at 24V
- Total Backplane Power: 0.58 W
- Required Terminal Block: 1756-TBNH or 1756-TBSH
Allen-Bradley 1756-IM16I/A
Allen-Bradley 1756-IM16I/A ControlLogix 16-point, individually isolated digital DC input module. Operates at 12/24V DC sink for reliable industrial automation and control applications.
| Brand | Allen-Bradley |
|---|---|
| Model | 1756-IM16I/A |
| Category | Electrical |
