Product Description

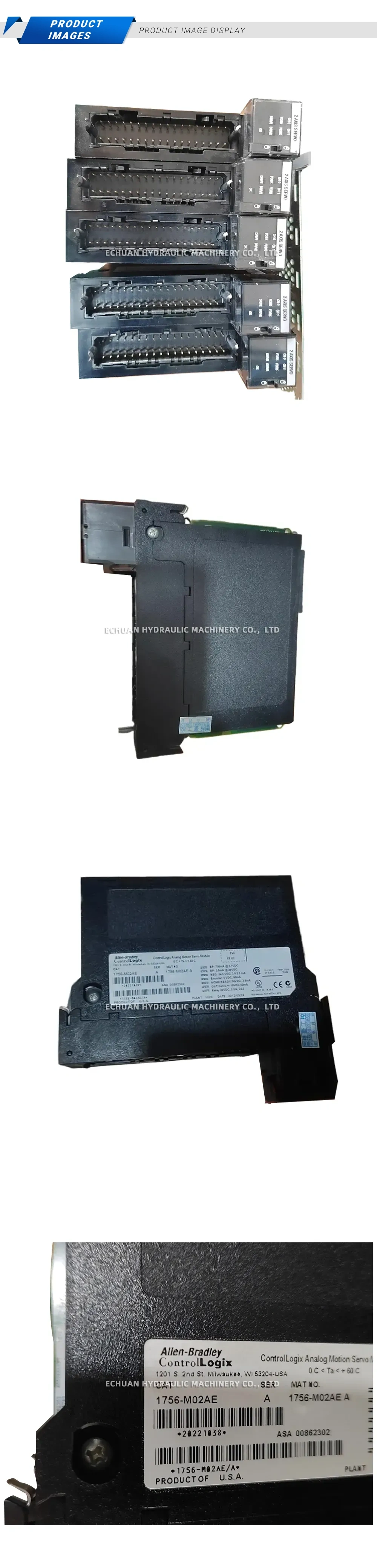

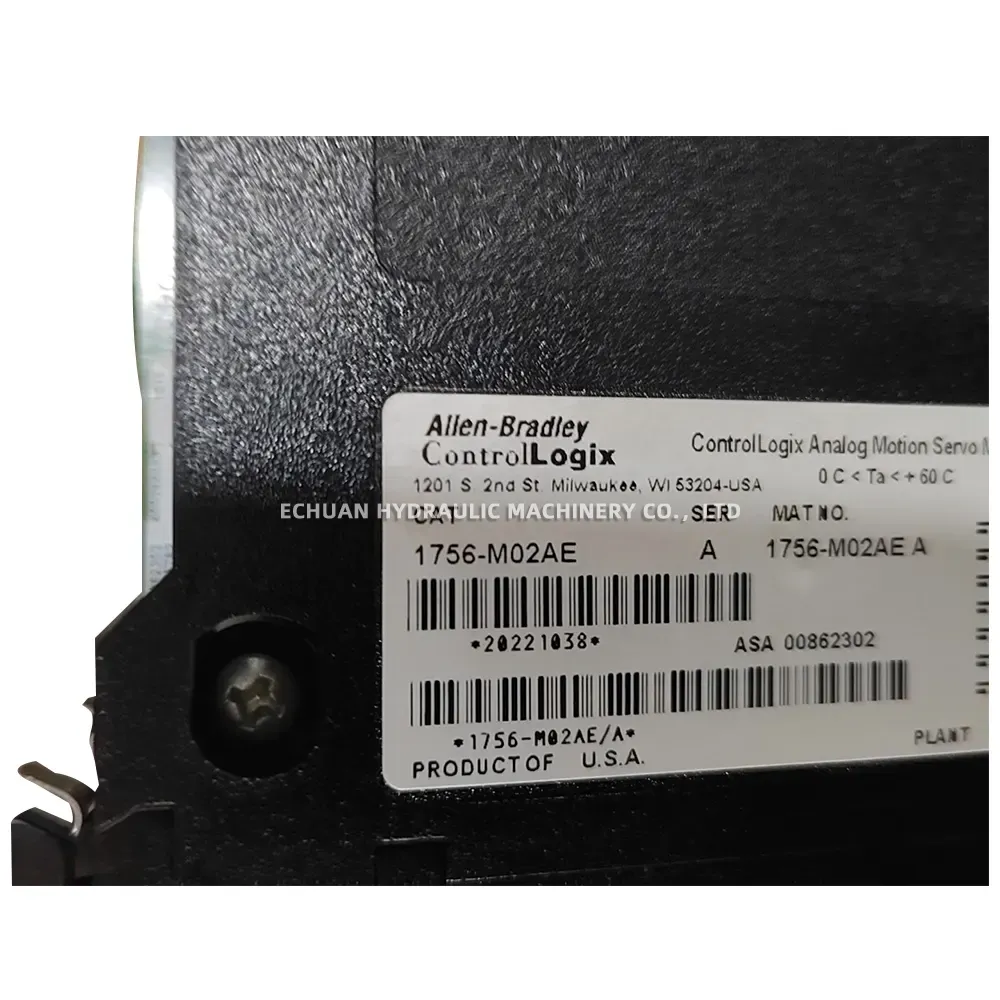

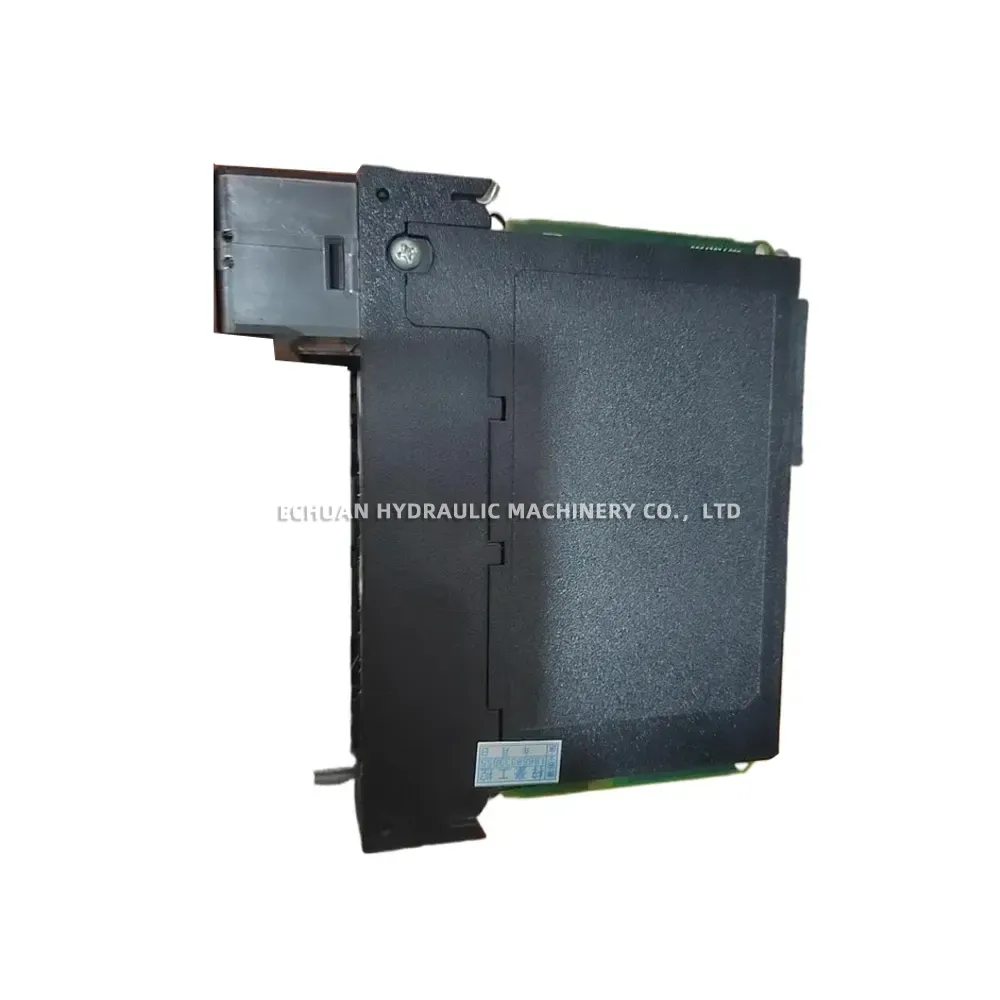

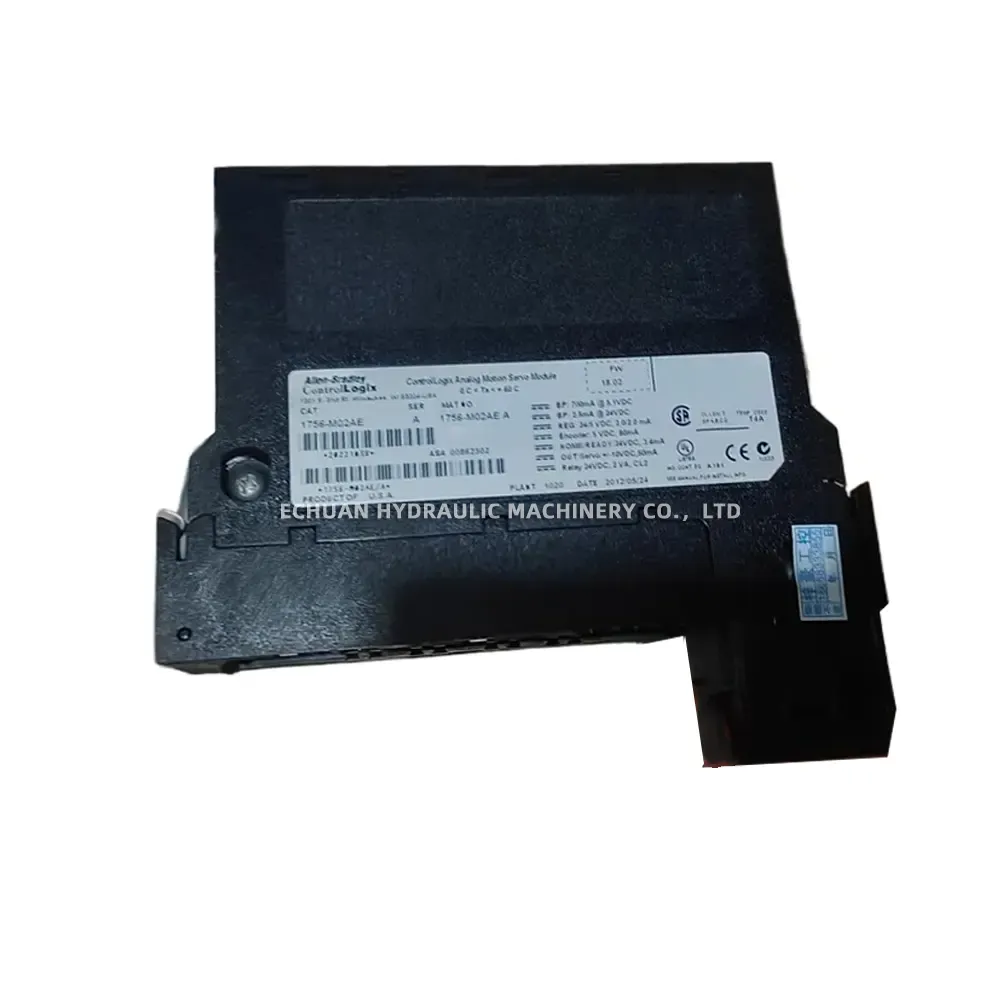

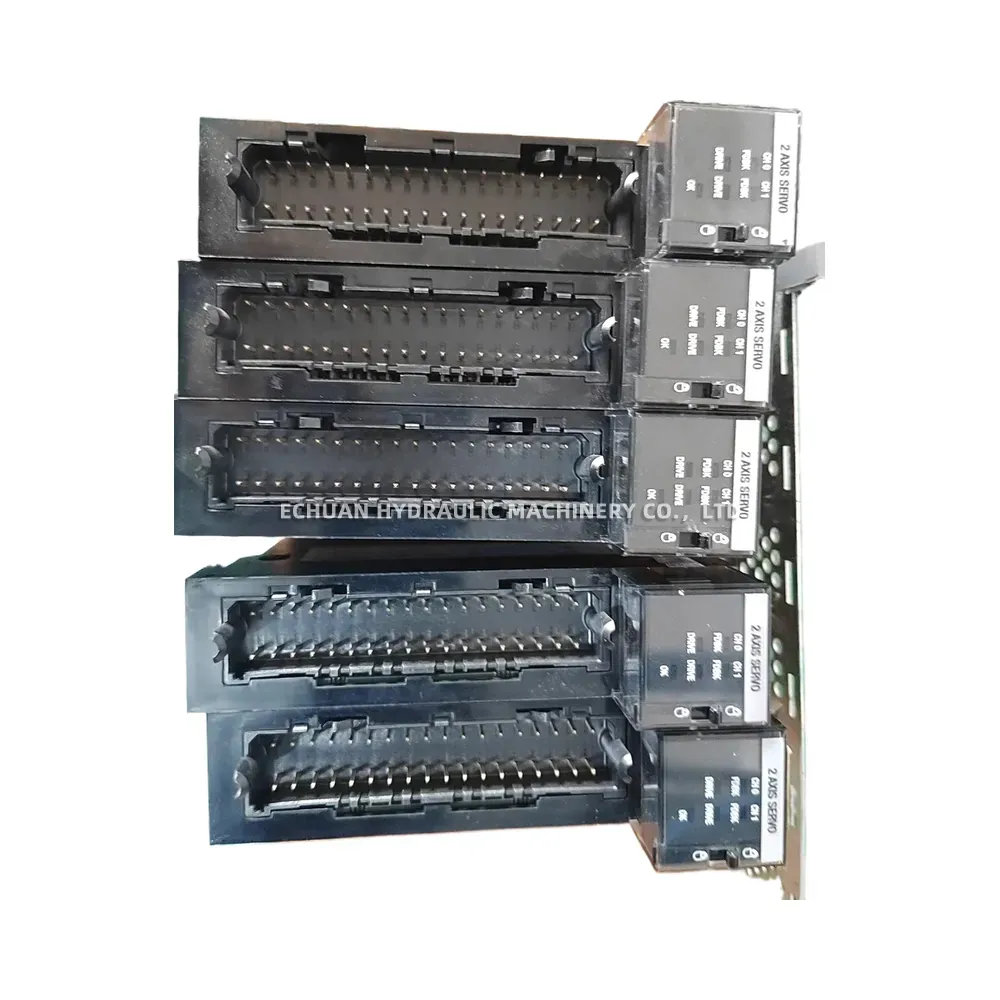

Allen-Bradley 1756-M02AE ControlLogix Analog Motion Servo Module
The Allen-Bradley 1756-M02AE is a highly reliable 2-axis analog motion servo module designed specifically for the ControlLogix system. This module provides precise control for up to two axes using a +/- 10V DC analog output for servo drive commands and features built-in quadrature encoder interfaces for accurate position feedback. Ideal for complex industrial automation applications, the 1756-M02AE ensures seamless integration with ControlLogix processors, offering robust motion control, high-speed performance, and enhanced operational efficiency in demanding environments.
Technical Specifications:
- Brand: Allen-Bradley
- Model: 1756-M02AE
- Product Type: Analog Motion Servo Module (2-Axis)
- Platform: ControlLogix
- Backplane Current: 700mA @ 5V DC
- External Power Requirement: 24V DC / 24.5V DC
- Analog Output (Servo): +/- 10V DC, 30mA
- Encoder Interface: 5V DC (Max)
- Relay Rating: 24V DC, 3 VA, CL2
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
Allen-Bradley 1756-M02AE ControlLogix Analog Motion Servo Module
Upgrade your industrial automation with the Allen-Bradley 1756-M02AE ControlLogix 2-Axis Analog Motion Servo Module. Featuring +/- 10V DC output and integrated encoder interfaces, this module delivers precise, high-speed motion control and seamless integration for your Allen-Bradley systems.
