Product Description

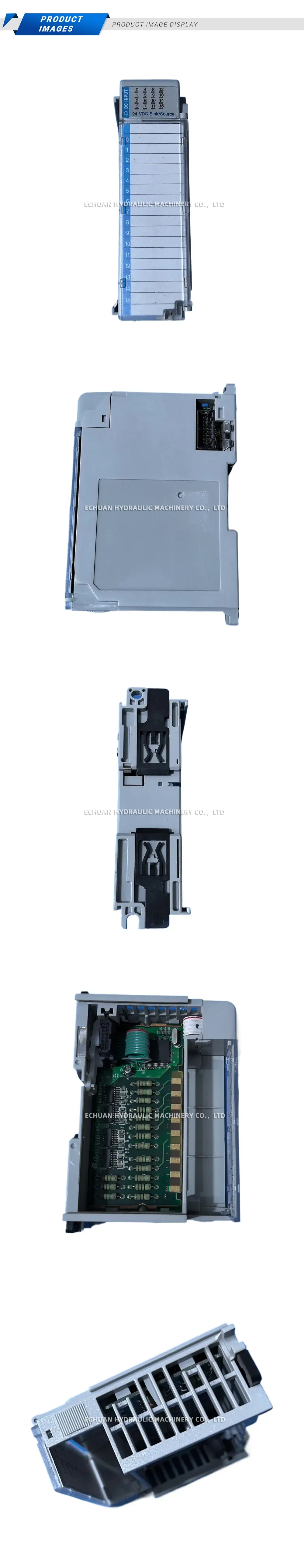

Allen-Bradley 1769-IB16 PLC Digital Input Module

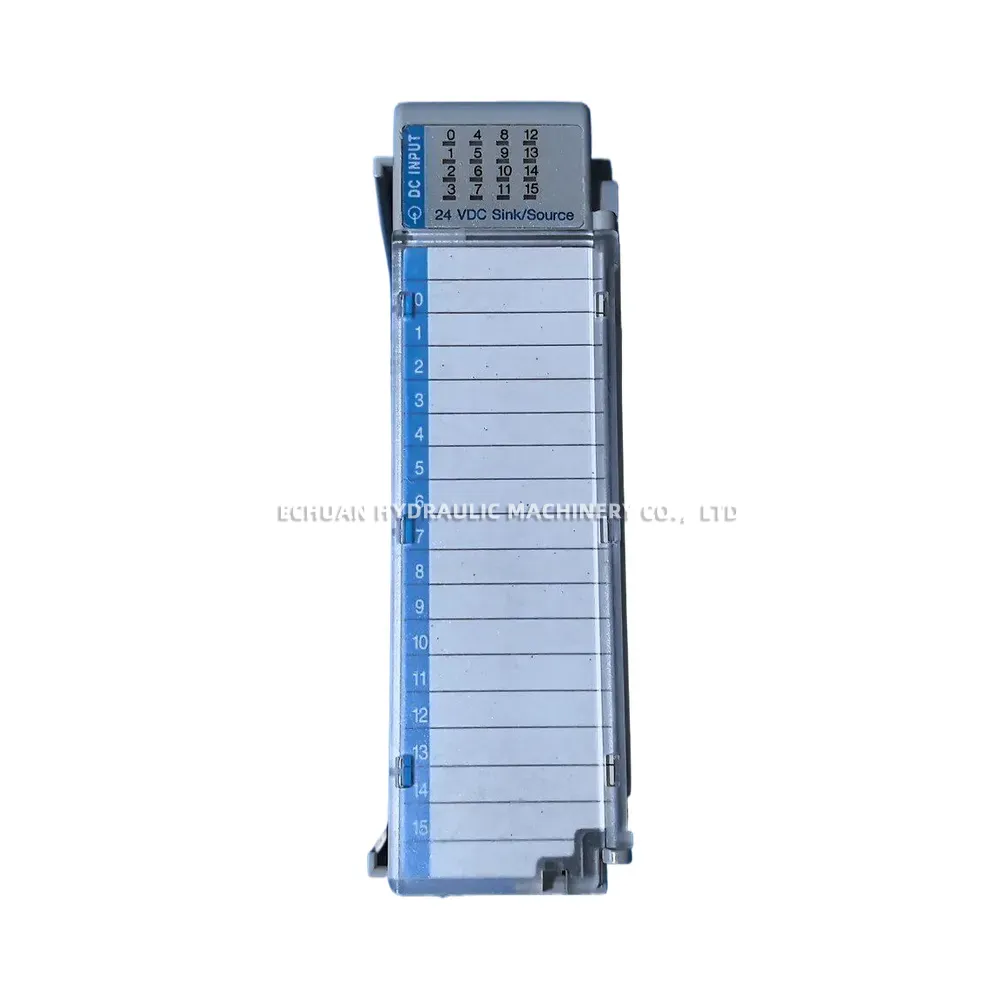

The Allen-Bradley 1769-IB16 is a highly reliable Compact I/O digital input module engineered for seamless integration with CompactLogix and MicroLogix 1500 programmable logic controller (PLC) systems. This module features 16 input points that support 24V DC sink or source configurations, offering exceptional versatility for various industrial automation setups. With its compact footprint and clearly labeled terminal connections (points 0-15), the 1769-IB16 ensures straightforward wiring, robust performance, and accurate monitoring of field devices such as proximity switches, limit switches, and push buttons.
Technical Specifications:
- Brand: Allen-Bradley
- Model Number: 1769-IB16
- Number of Inputs: 16 Points
- Input Type: 24V DC Sink/Source
- Operating Voltage Range: 10…30V DC @ 30 °C (10…26.4V DC @ 60 °C)
- Backplane Current Draw: 115 mA at 5V DC
- Compatibility: CompactLogix and MicroLogix 1500 PLC Systems
Allen-Bradley 1769-IB16 PLC Digital Input Module
Upgrade your industrial automation with the Allen-Bradley 1769-IB16 CompactLogix digital input module. Featuring 16 points and 24V DC sink/source capability, it delivers reliable and flexible I/O expansion for your PLC systems.
| Brand | Allen-Bradley |
|---|---|
| Model | 1769-IB16 |
| Part No. | 955873136591 |
| Category | Electrical |
