Product Description

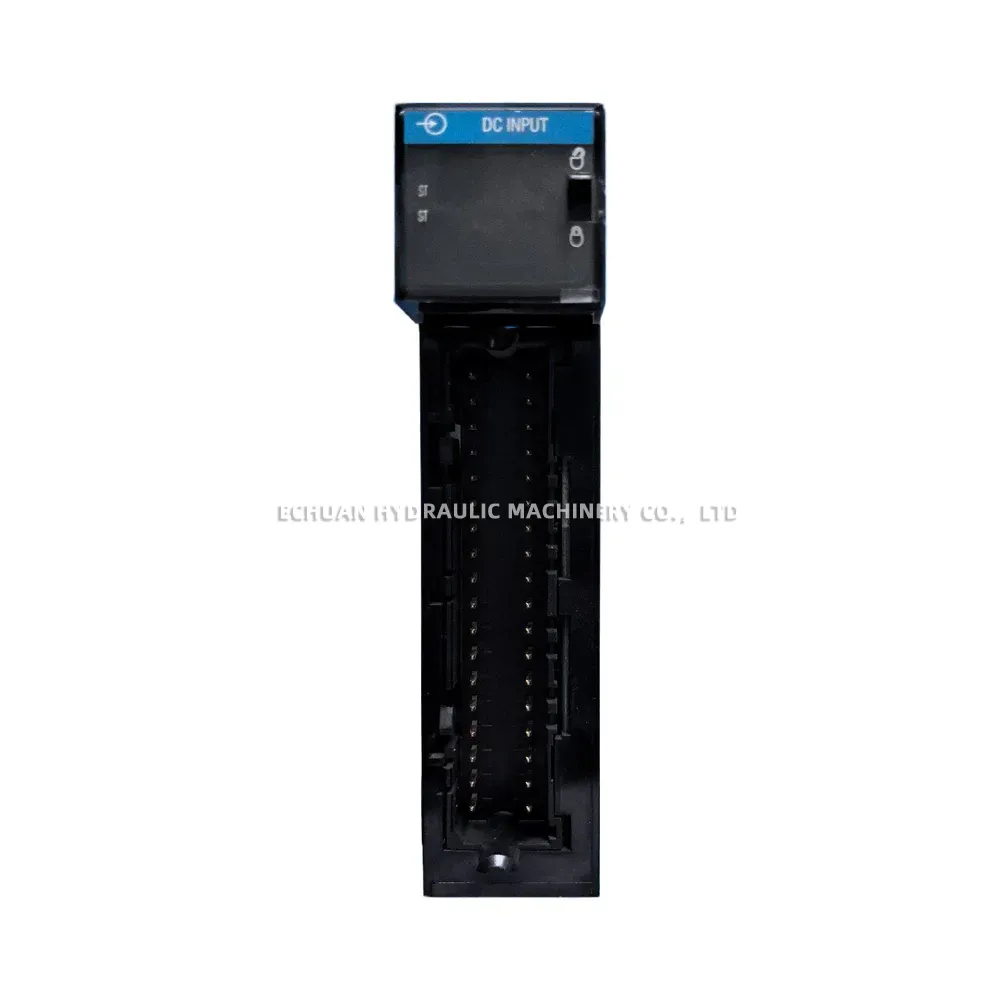

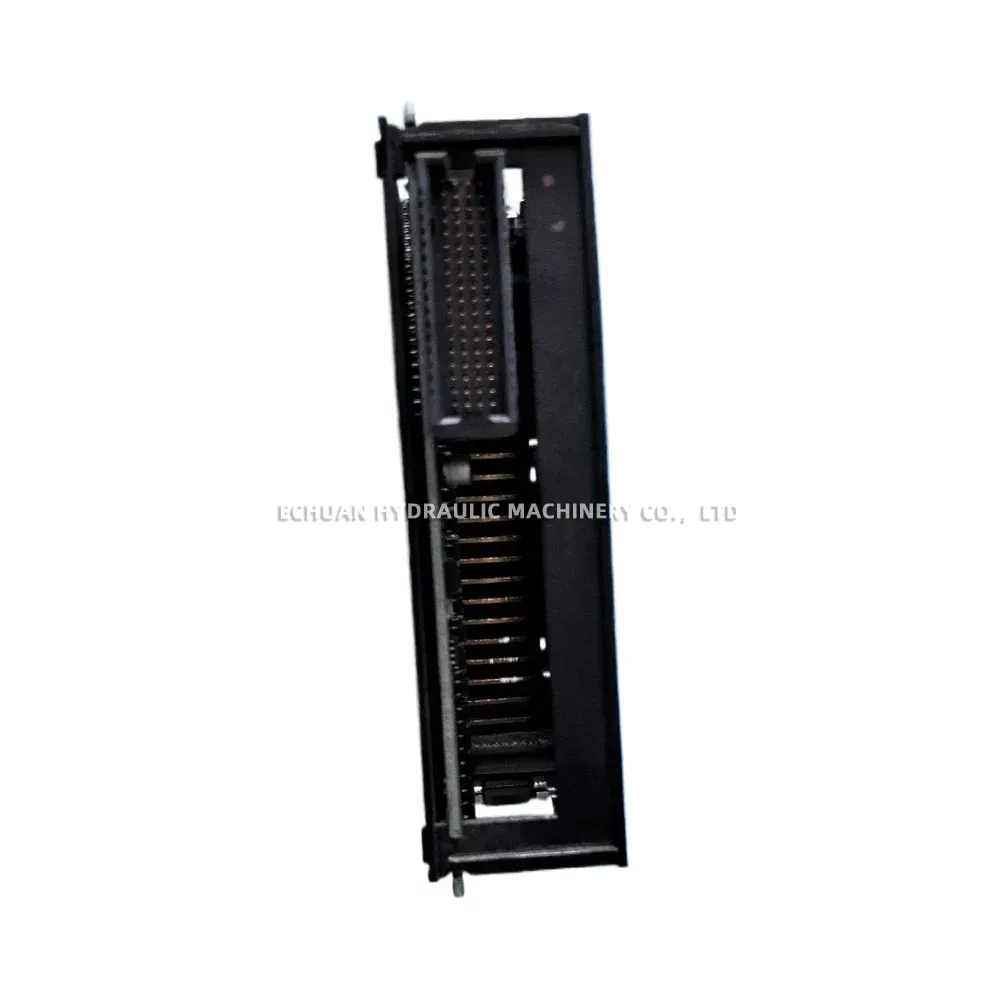

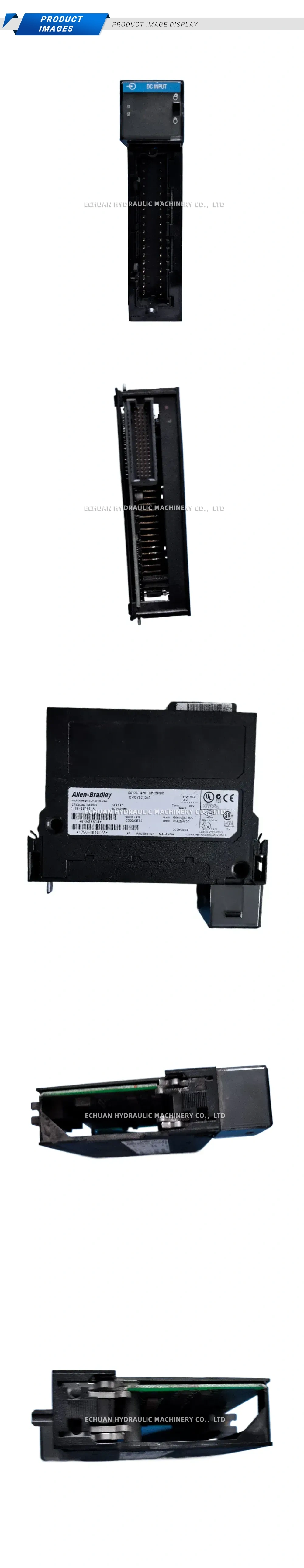

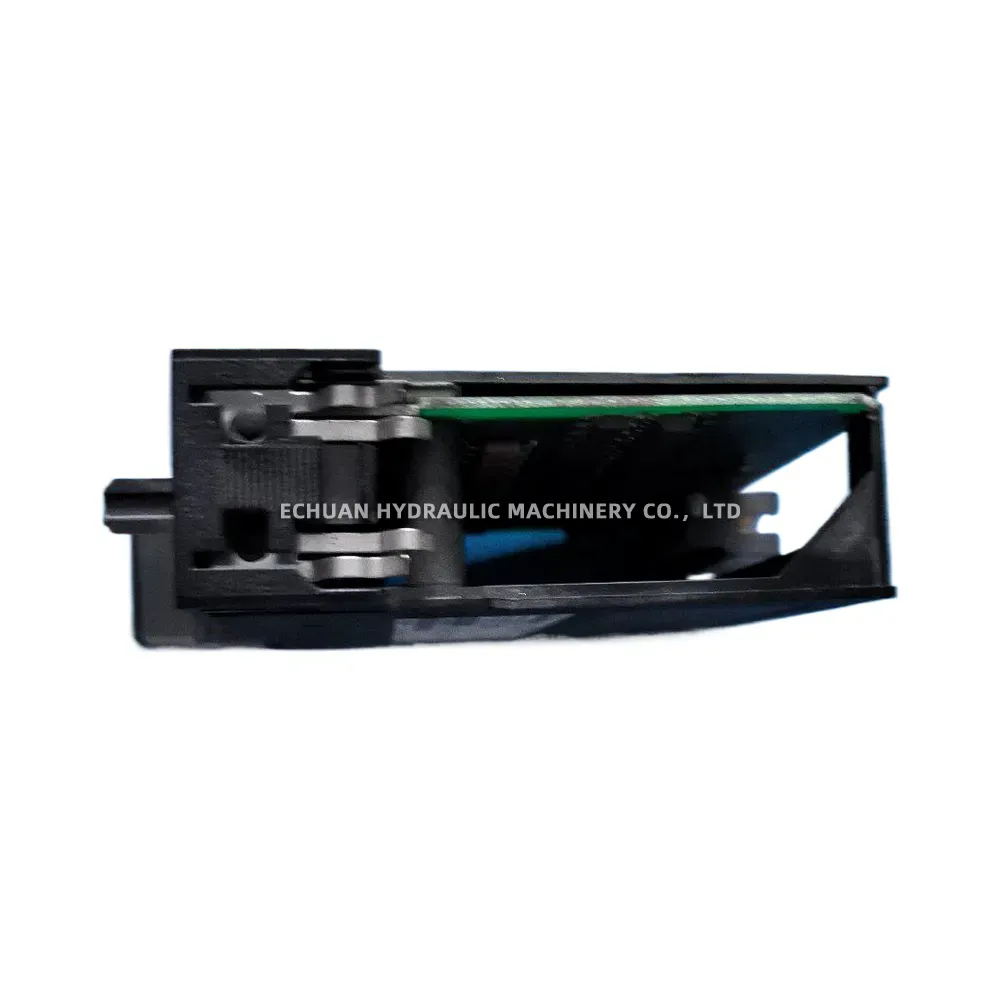

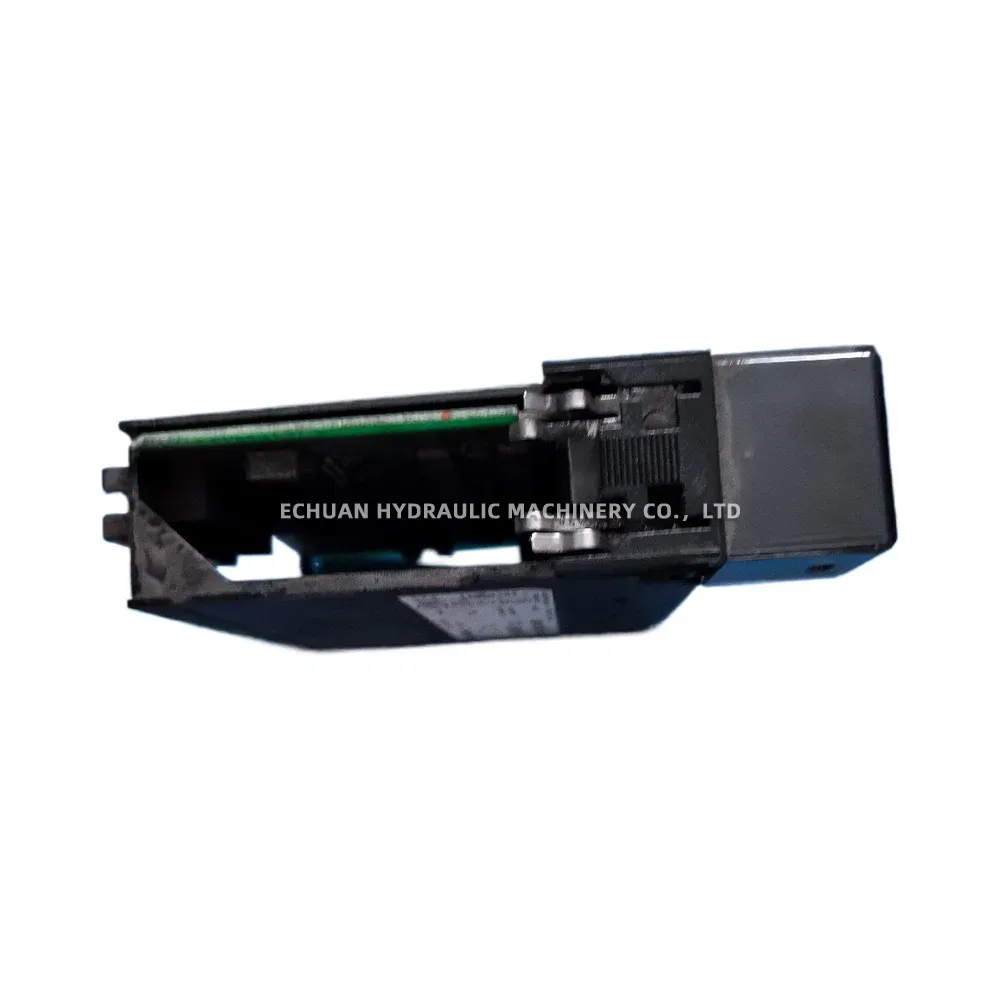

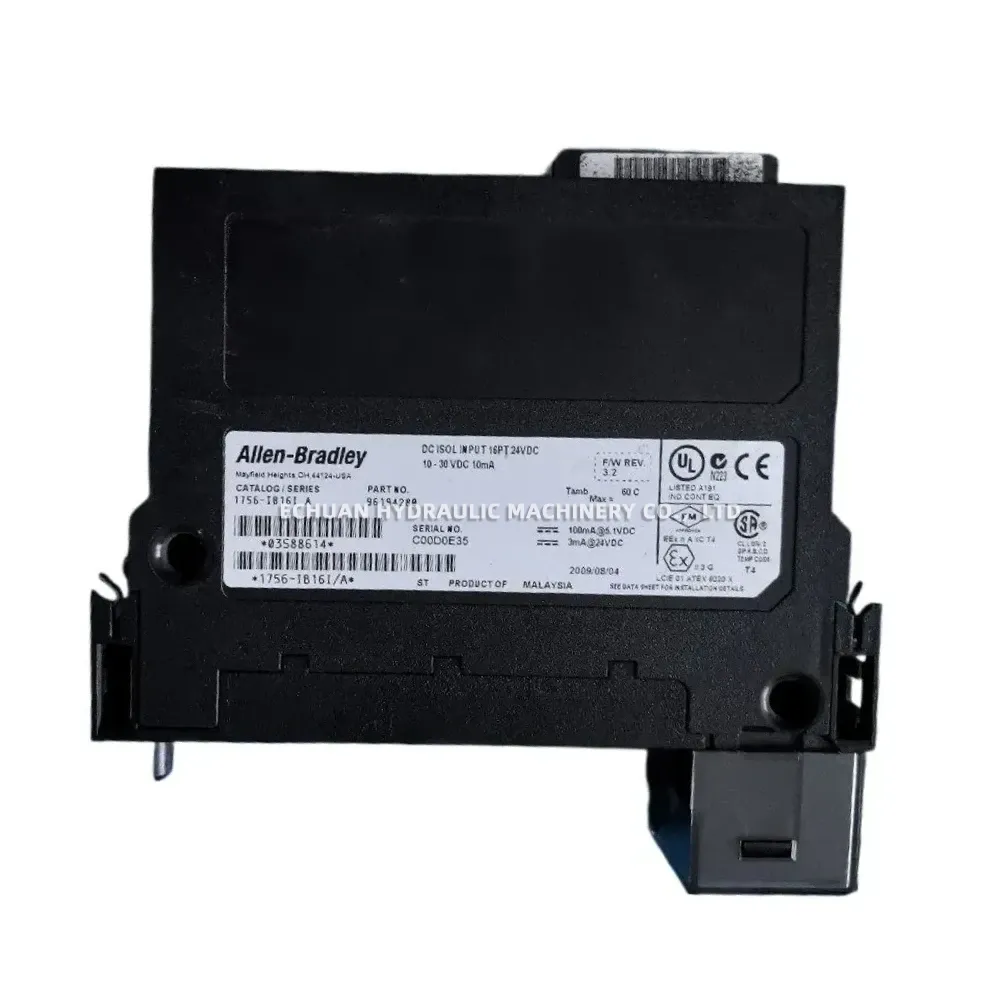

Allen-Bradley 1756-IB16I A DC Isolated Input Module
The Allen-Bradley 1756-IB16I Series A is a highly reliable 16-point isolated DC input module designed for the industry-leading ControlLogix programmable logic controller (PLC) platform. Featuring 16 individually isolated inputs, this module provides excellent channel-to-channel isolation, making it the perfect solution for applications requiring strict electrical noise immunity and independent grounding. It operates efficiently within a voltage range of 10 to 30 VDC (at 10mA) and draws minimal backplane current (100mA @ 5.1VDC and 3mA @ 24VDC). Engineered for rugged industrial environments, the 1756-IB16I operates safely in ambient temperatures up to 60°C and carries comprehensive hazardous location certifications, including UL, CE, CSA, FM Class I Division 2, IECEx, and ATEX.
Technical Specifications:
- Brand/Manufacturer: Allen-Bradley / Rockwell Automation
- Catalog/Model Number: 1756-IB16I Series A
- Module Type: ControlLogix DC Isolated Input Module
- Number of Inputs: 16 Points (Individually Isolated)
- Operating Voltage Range: 10-30 VDC at 10mA
- Backplane Power Consumption: 100mA @ 5.1VDC | 3mA @ 24VDC
- Maximum Ambient Temperature (Tamb): 60°C (140°F)
- Firmware Revision: 3.2
- Certifications: UL Listed, CE, CSA, FM Class I Div 2 (Groups A,B,C,D T4), IECEx, ATEX
Allen-Bradley 1756-IB16I A DC Isolated Input Module
Upgrade your ControlLogix system with the Allen-Bradley 1756-IB16I Series A 16-Point DC Isolated Input Module. Features 10-30VDC operation, individual channel isolation, and hazardous location ratings (Class I Div 2, ATEX) for rugged and reliable industrial automation.
