Product Description

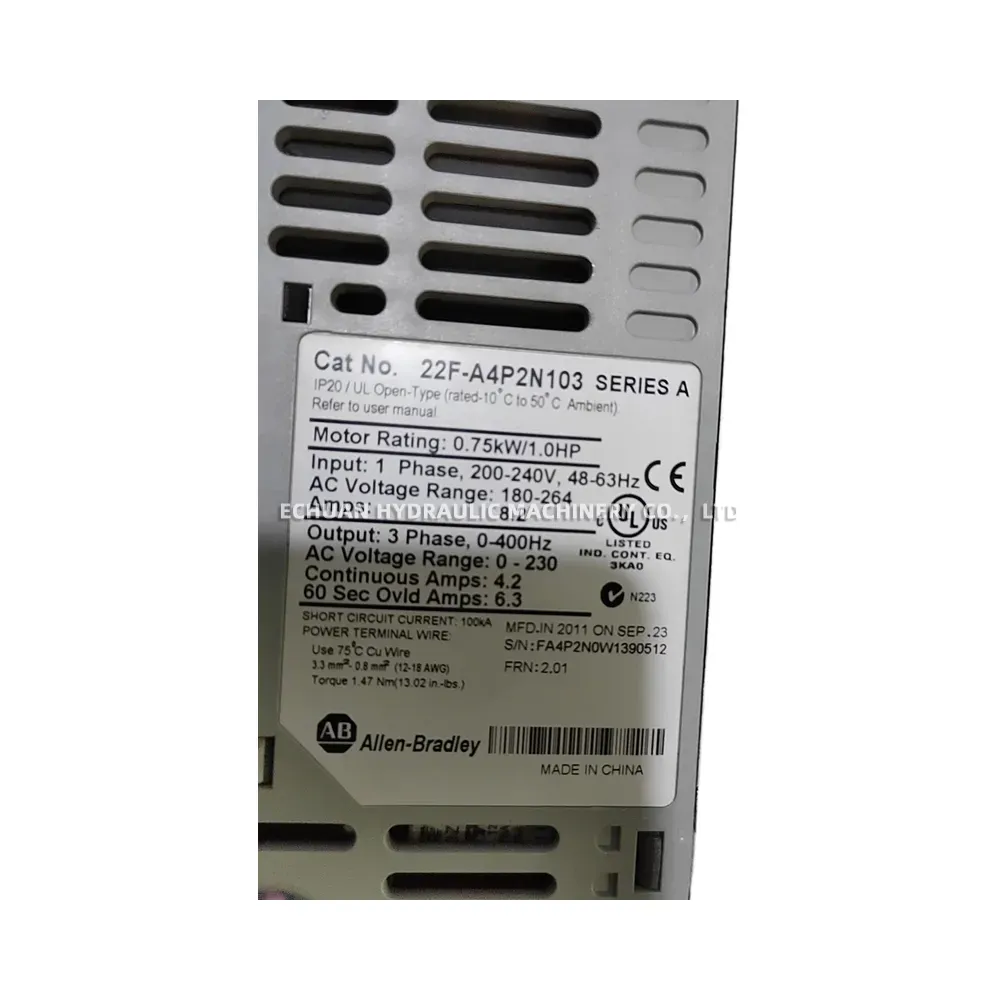

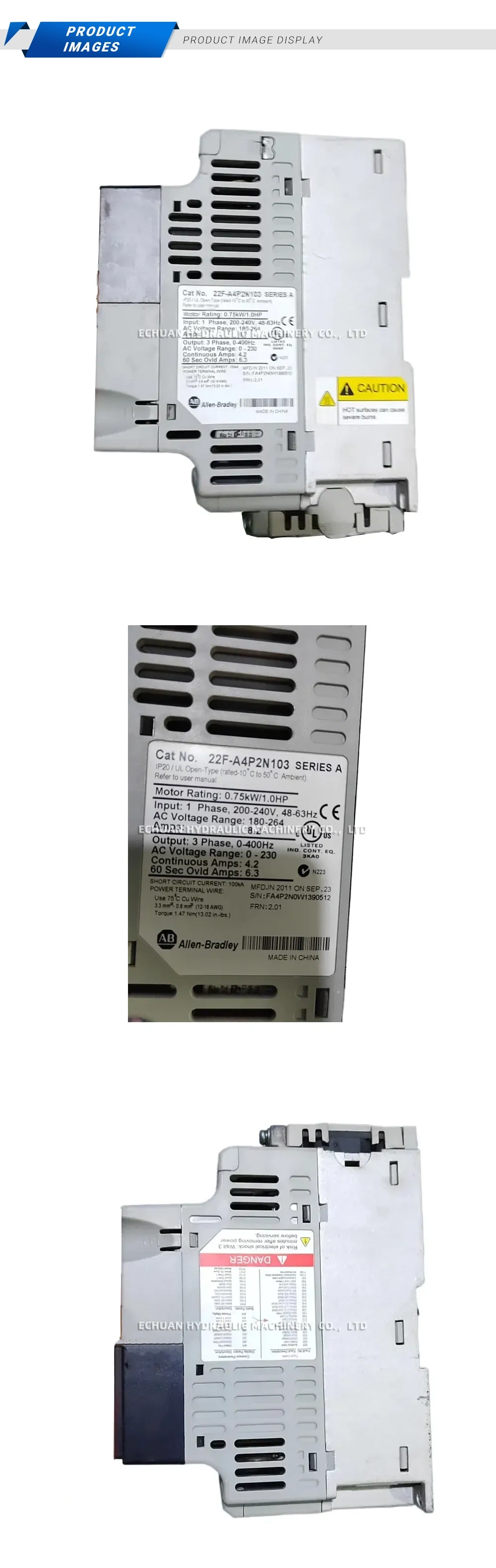

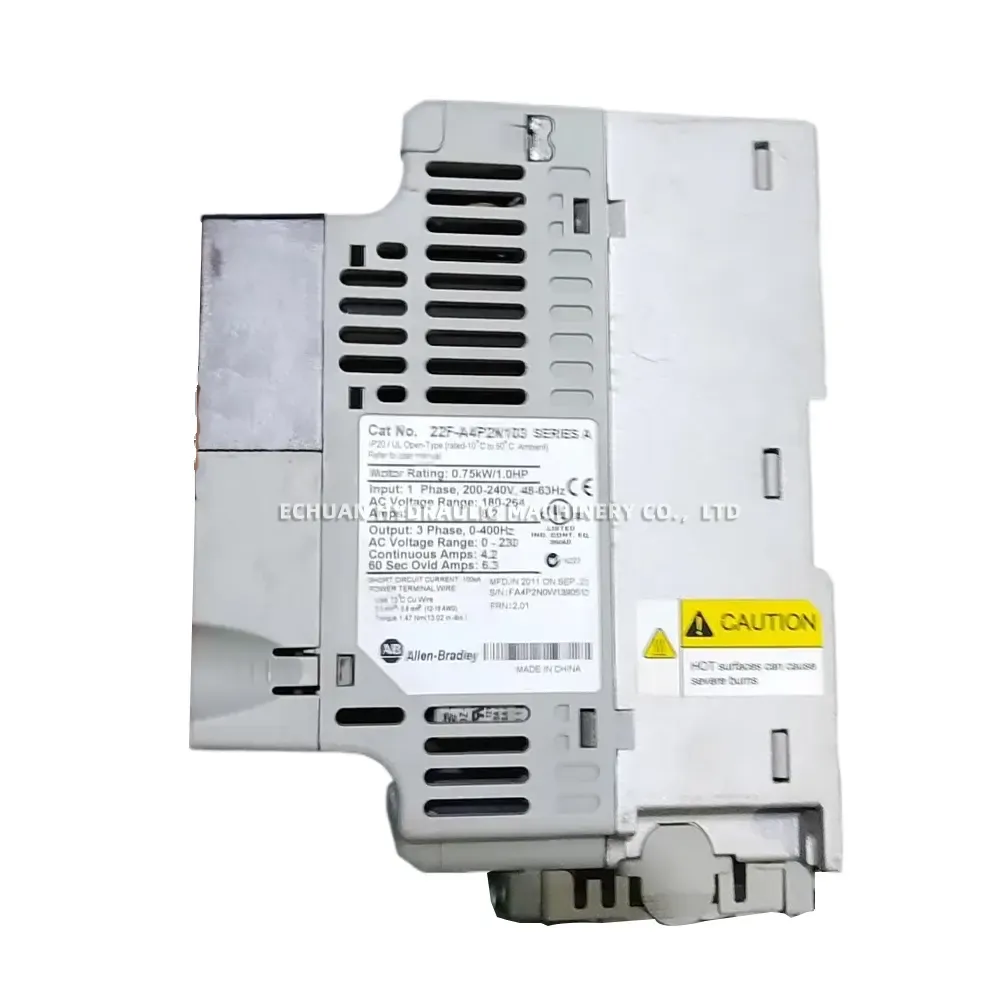

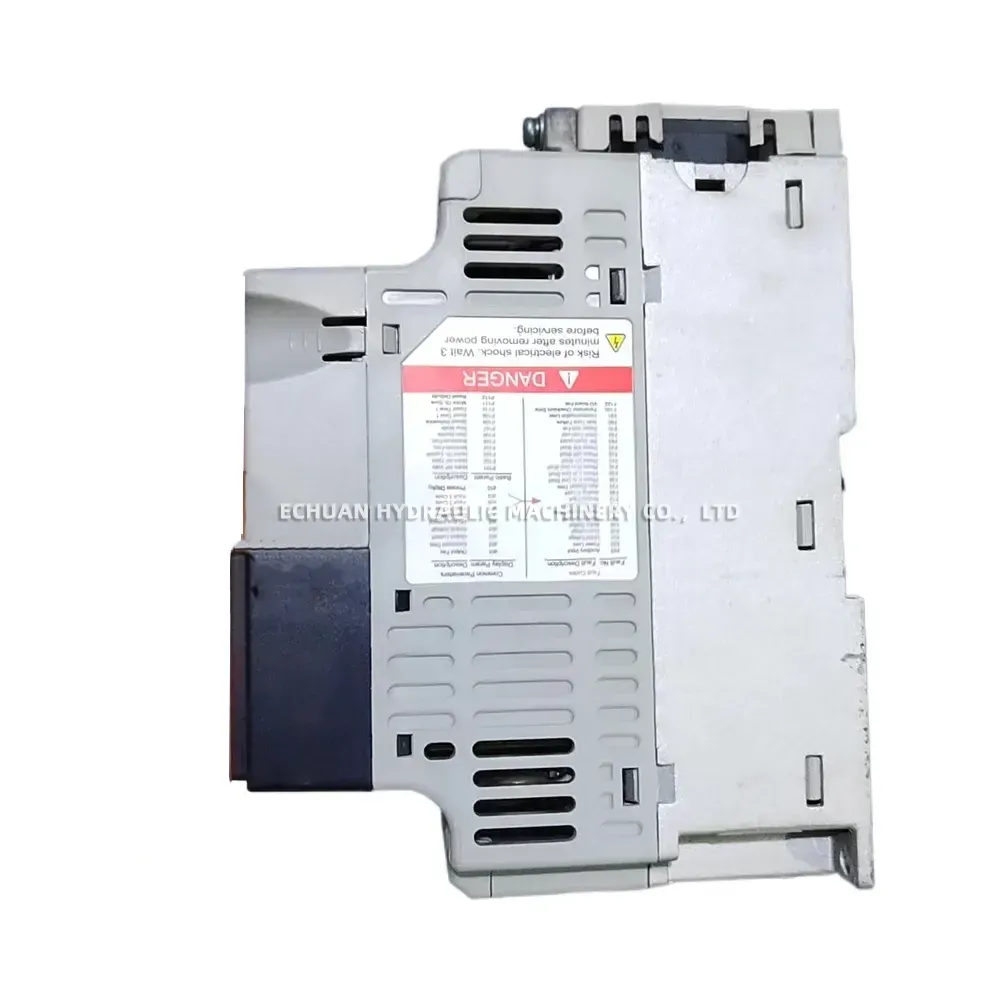

Allen-Bradley 22F-A4P2N103 AC Drive
The Allen-Bradley 22F-A4P2N103 is a highly reliable and compact PowerFlex 4M AC drive designed to provide efficient motor control for a wide variety of industrial applications. This Series A variable frequency drive features a motor rating of 0.75 kW (1.0 HP) and operates on a single-phase input of 200-240V AC (180-264V range). It delivers a smooth three-phase output with a continuous current of 4.2 Amps and a versatile frequency range of 0-400Hz. Designed for space savings and easy panel integration, it comes equipped with an IP20 / UL Open-Type enclosure suitable for ambient operating temperatures ranging from -10°C to 50°C. Additional features include a 100kA short circuit current rating and robust wiring terminals, making it an ideal, cost-effective choice for precise speed control in standard AC motor applications.
Technical Specifications:
- Brand: Allen-Bradley
- Model / Catalog Number: 22F-A4P2N103 (Series A)
- Product Family: PowerFlex 4M
- Motor Rating: 0.75 kW / 1.0 HP
- Input Specifications: 1 Phase, 200-240V AC, 48-63Hz, 8.2 Amps (Voltage Range: 180-264V)
- Output Specifications: 3 Phase, 0-230V AC, 0-400Hz
- Continuous Output Current: 4.2 Amps
- 60 Sec Overload Current: 6.3 Amps
- Short Circuit Current Rating (SCCR): 100kA
- Enclosure Rating: IP20 / UL Open-Type
- Operating Temperature: -10°C to 50°C Ambient
- Power Terminal Wiring: Use 75°C Cu Wire, 3.3 mm² to 0.8 mm² (12-18 AWG), Torque 1.47 Nm (13.02 in.-lbs.)
Allen-Bradley 22F-A4P2N103 AC Drive
Shop the Allen-Bradley 22F-A4P2N103 PowerFlex 4M AC Drive. This compact 0.75kW/1.0HP variable frequency drive features a 1-Phase 200-240V input, 3-Phase output, and delivers 4.2A continuous current. Featuring an IP20 enclosure, it is the perfect solution for reliable and space-saving industrial motor control.
