Product Description

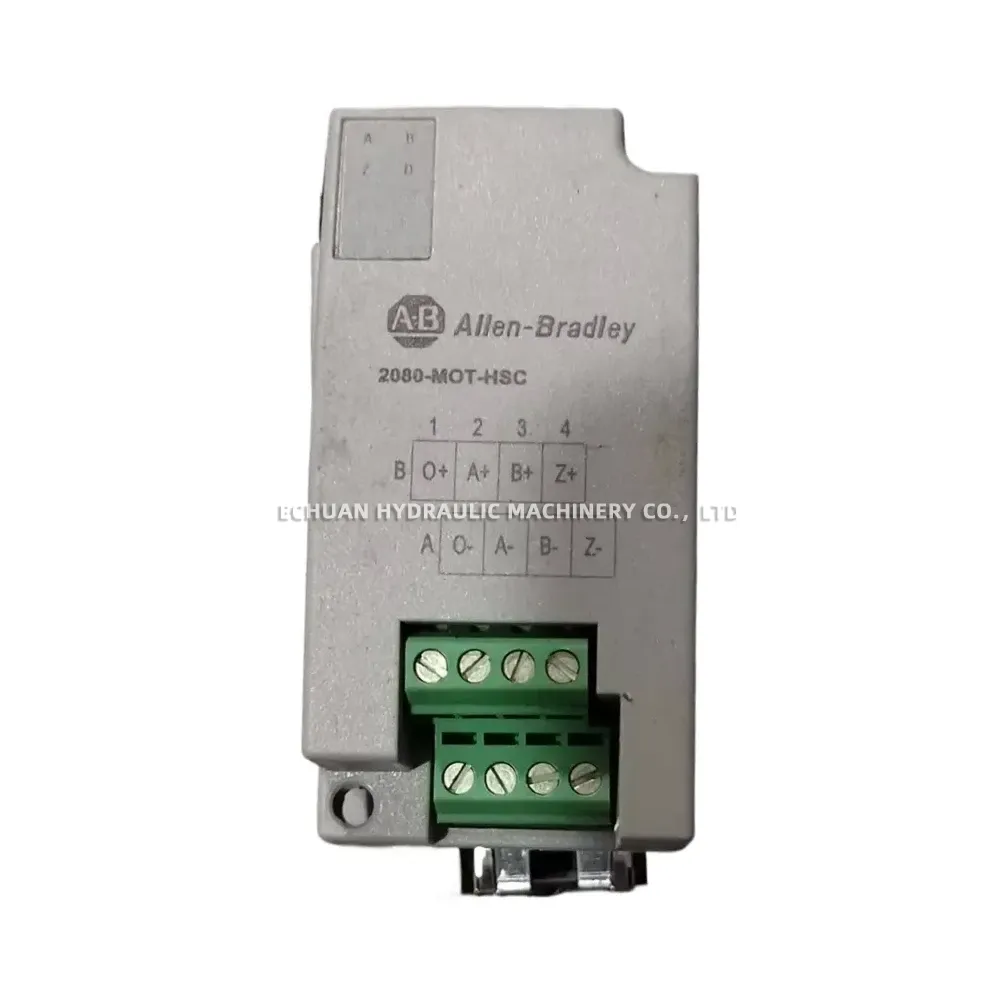

Allen-Bradley 2080-MOT-HSC Micro800 High Speed Counter Module
The Allen-Bradley 2080-MOT-HSC is a highly reliable Micro800 series plug-in expansion module specifically engineered for advanced high-speed counting applications. Designed to seamlessly integrate with Allen-Bradley Micro800 controllers, this module provides accurate hardware-based counting essential for precise positioning, packaging, and material handling tasks. It is equipped with removable green terminal blocks to ensure secure, straightforward wiring for A, B, and Z phase encoder connections. Built to withstand demanding industrial environments, the 2080-MOT-HSC operates reliably across a wide temperature range of -20°C to +65°C and features a robust design that is cULus listed and certified for safe use in Class I Division 2 hazardous locations.
Technical Specifications:
- Brand: Allen-Bradley
- Model/Catalog Number: 2080-MOT-HSC (Series A)
- Module Type: High-Speed Counter Plug-in Module
- Input/Output Voltage: 24V DC
- Bus Current Consumption: 60mA @ 3.3V DC
- Encoder Support: A, B, and Z phases
- Operating Temperature: -20°C to +65°C

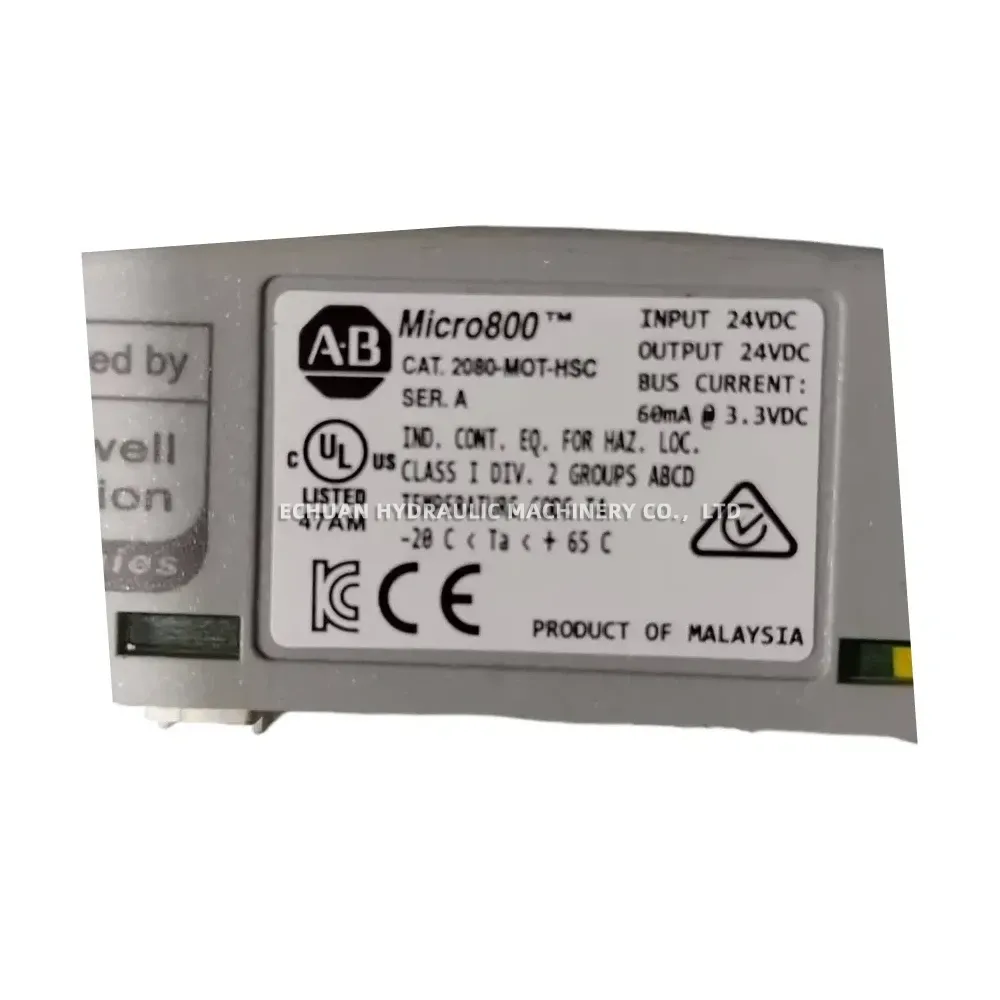

- Certifications: cULus Listed, Class I Div 2 Groups ABCD (Temperature Code T4)
Allen-Bradley 2080-MOT-HSC Micro800 High Speed Counter Module
Optimize your industrial automation processes with the Allen-Bradley 2080-MOT-HSC Micro800 High-Speed Counter Module. This 24VDC plug-in expansion module offers precise A/B/Z phase encoder support, a rugged -20°C to +65°C operating range, and Class I Div 2 certification, delivering accurate and reliable high-speed counting for demanding control systems.
