Product Description

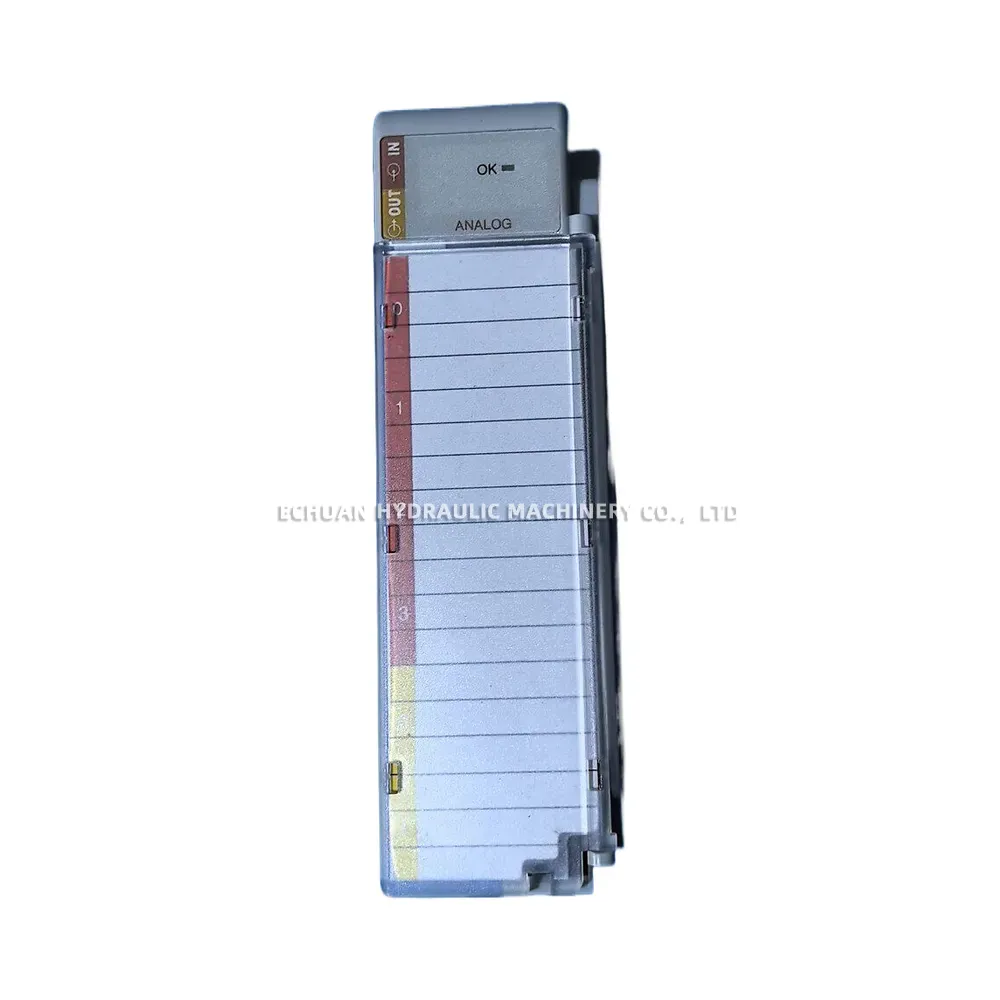

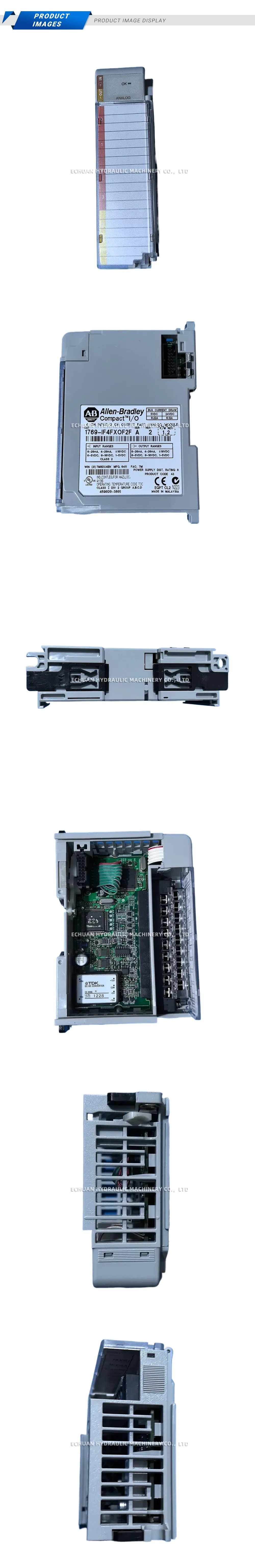

Allen-Bradley 1769-IF4XOF2F Compact I/O 4 CH Input/2 CH Output Fast Analog Module
The Allen-Bradley 1769-IF4XOF2F is a highly versatile Compact I/O Fast Analog Combination Module designed for high-speed industrial control applications. It features 4 high-speed analog input channels and 2 high-speed analog output channels, offering a wide variety of voltage and current configurations including 0-20mA, 4-20mA, ±10VDC, 0-5VDC, 0-10VDC, and 1-5VDC. Engineered for reliability in demanding environments, this module is cULus listed for use in Class I, Division 2, Groups A, B, C, and D hazardous locations with an operating temperature code of T3C. It integrates seamlessly into your existing Allen-Bradley CompactLogix or MicroLogix 1500 systems, providing precise analog signal processing, efficient power consumption, and robust performance.
Technical Specifications:
- Brand: Allen-Bradley
- Model Number: 1769-IF4XOF2F
- Module Type: Fast Analog I/O Combination Module
- Input Channels: 4 (Class 2)
- Output Channels: 2
- Input/Output Ranges: 0-20mA, 4-20mA, ±10VDC, 0-5VDC, 0-10VDC, 1-5VDC

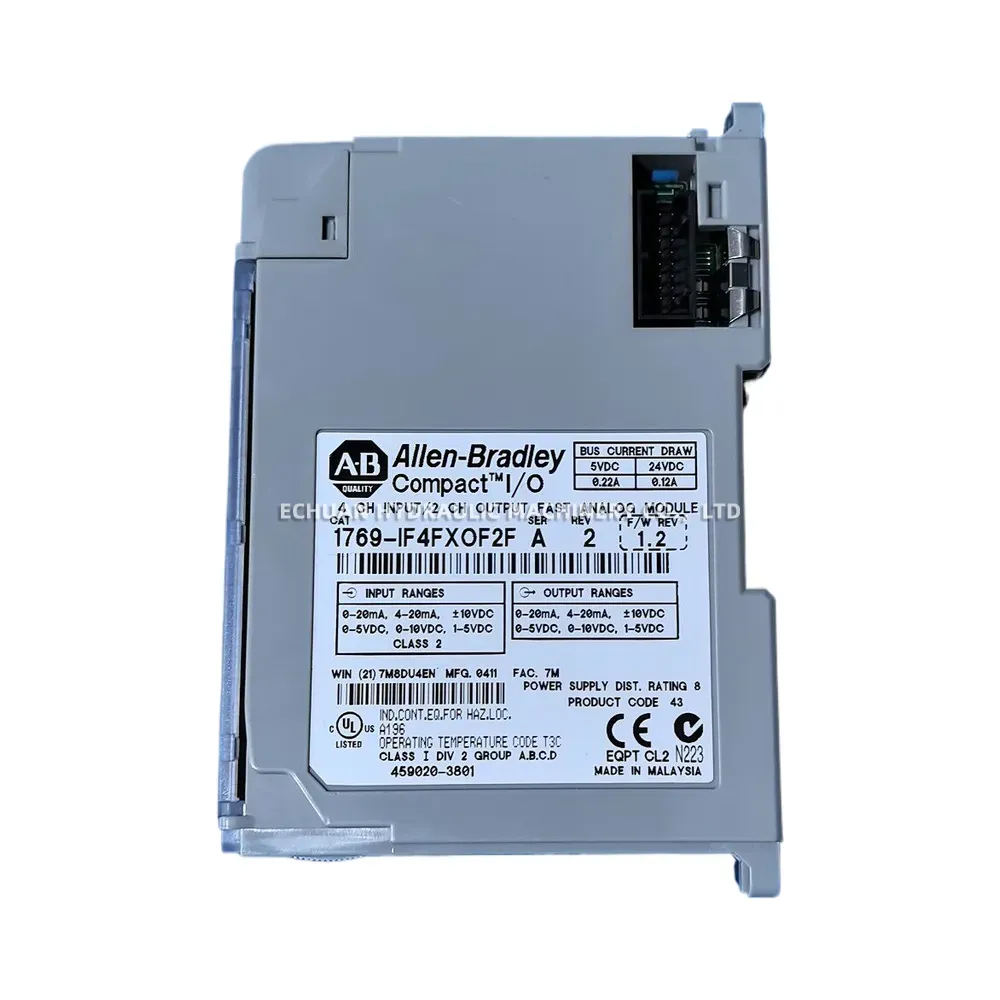

- Bus Current Draw: 0.22A @ 5VDC / 0.12A @ 24VDC
- Power Supply Distance Rating: 8
- Hazardous Location Rating: Class I, Div 2, Group A, B, C, D (Temp Code T3C)
Allen-Bradley 1769-IF4XOF2F Compact I/O 4 CH Input/2 CH Output Fast Analog Module
Upgrade your industrial automation with the Allen-Bradley 1769-IF4XOF2F Compact I/O Fast Analog Module. Featuring 4 inputs, 2 outputs, and multiple voltage/current ranges, this high-speed module offers robust performance and hazardous location certification for demanding CompactLogix applications.
| Brand | Allen-Bradley |
|---|---|
| Model | 1769-IF4XOF2F |
| Part No. | 955295405880 |
